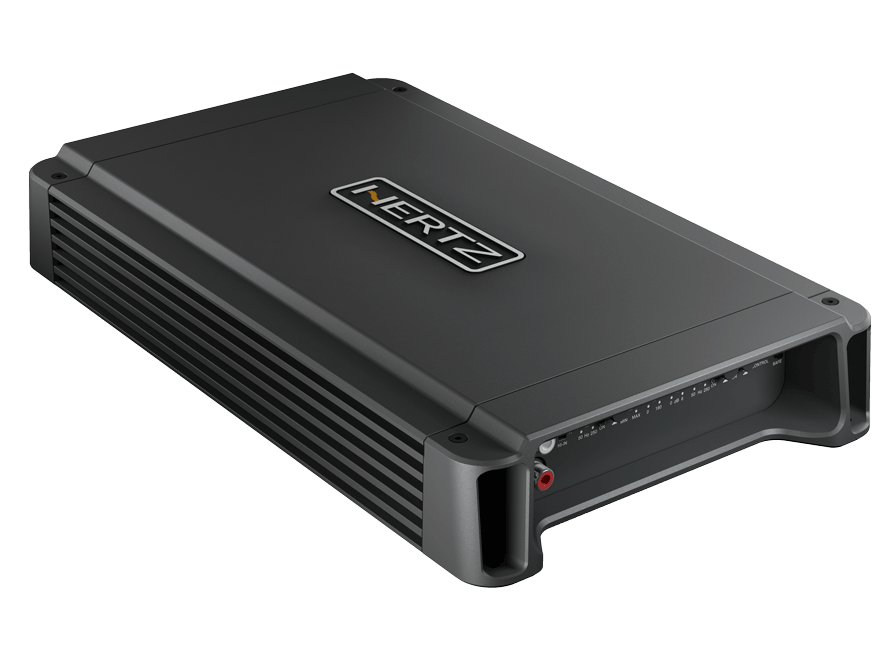

Hertz HCP 1DK D-Class Mono Amplifier
HCP 1DK is a mono car audio amplifier with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
HCP 1DK has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.
Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.
Specs
Channel mode 1
Output Power (RMS)
@ 14.4 VDC 1 Ch: 740 W x 1 (4 )
1 Ch: 1240 W x 1 (2 )
Filters
Bypass -
Hi-Pass 50 250 Hz @ 12 dB/Oct.
Lo-Pass 50 250 Hz @ 24 dB/Oct.
Band-Pass -
Subsonic 25 Hz @ 24 dB/Oct.
Distortion - THD
(100Hz @ 4 ) 0,25 %
S/N Ratio
(A weighted @ 1V) > 100 dB
Damping factor
(100Hz @ 4 ) > 100
Size W x D x H
mm (in.) 315 x 190 x 50 (12.40 x 7.48 x 1.97)
