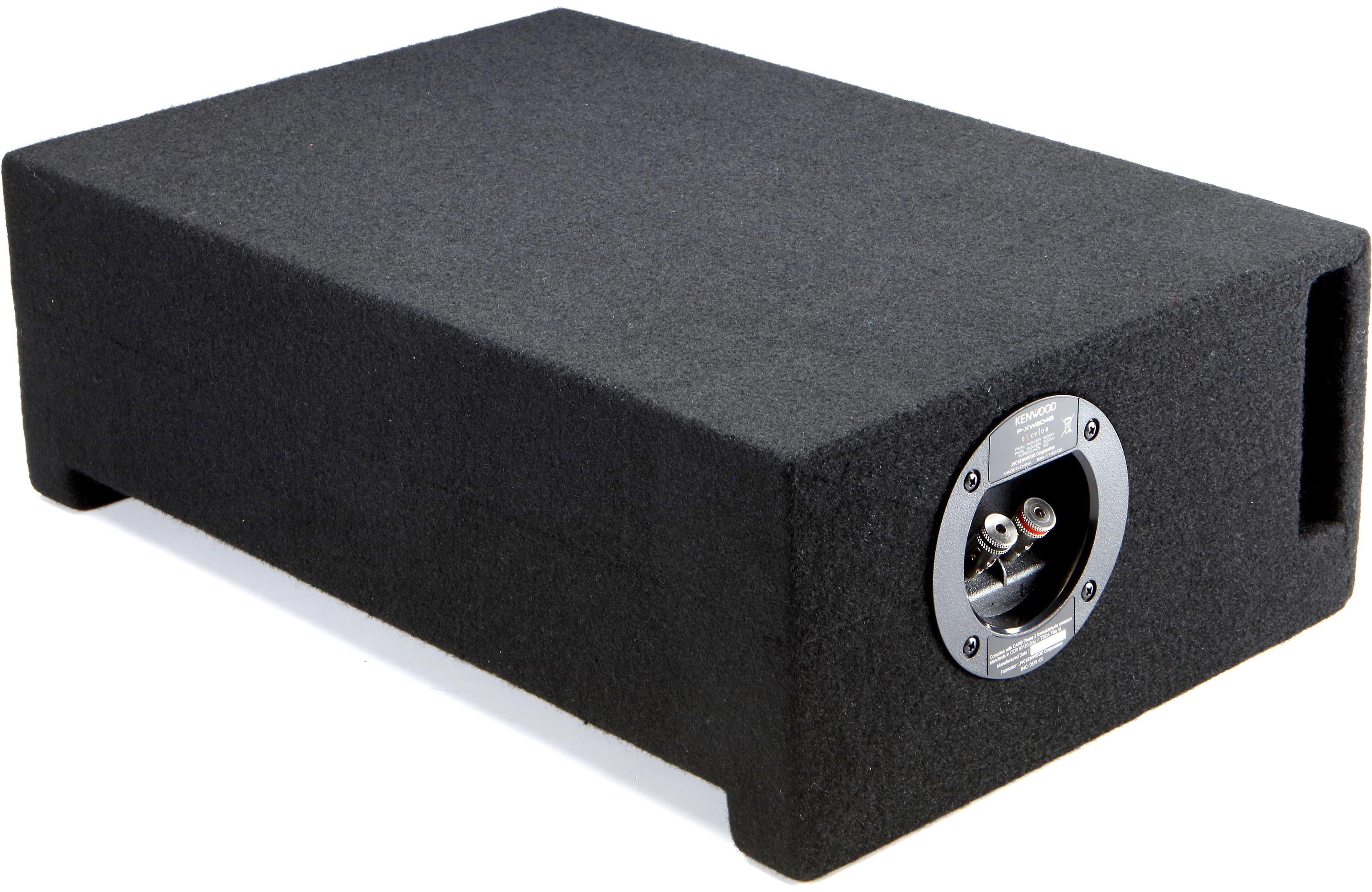

Kenwood Excelon PXW804B 8” Oversized Shallow Subwoofer Enclosure
eXcelon Subwoofers
Subwoofers are one of the most important pieces of the sound quality puzzle. eXcelon oversized woofers provide quick response and offer stable and powerful bass that remains true to the original recording.
Test and Measurement
Subwoofer development requires a diligent testing process including an anechoic chamber, power testing facility and the most advanced desktop applications for design and simulation. These high standards allow KENWOOD eXcelon speakers to deliver their expected performance and have long term reliability so your music can be enjoyed for many years.
Oversized Diaphragm
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.
* RECOMMENDED SEALED BOX VOLUME: 0.88 cft
Reinforcing Ribs (Cone)
The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.
Strong Magnetic Circuit
Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Stress-free Spider
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.
Specs
UNIT SIZE
Woofer Size 20cm 8”
ELECTRICAL
Impedance (Ω) 4Ω
Peak Input Power (W) 900W
RMS Power (W)CTA-2031 standards 300W
Sensitivity (dB at 1m) 80dB
Frequency Response (Hz) 41-300Hz
WOOFER UNIT
Diaphragm SVC
Surround 8inch PP
DIMENSION / WEIGHT
Dimension
Width 450 mm 17-11/16 inch
Height 300 mm 11-13/16 inch
Depth 150 mm 5-7/8 inch
Weight 8.5 kg 18.74 lbs
ACCESSORY
Mounting hardware
L-shaped bracket 2 pc
Tapping Screw φ5x25mm 8pcs
Warranty Card 1 pc
SPECIAL FEATURE
Downfiring Ported Enclosure
(CARB PhaseⅡ Grade)
8AWG Push Terminal
