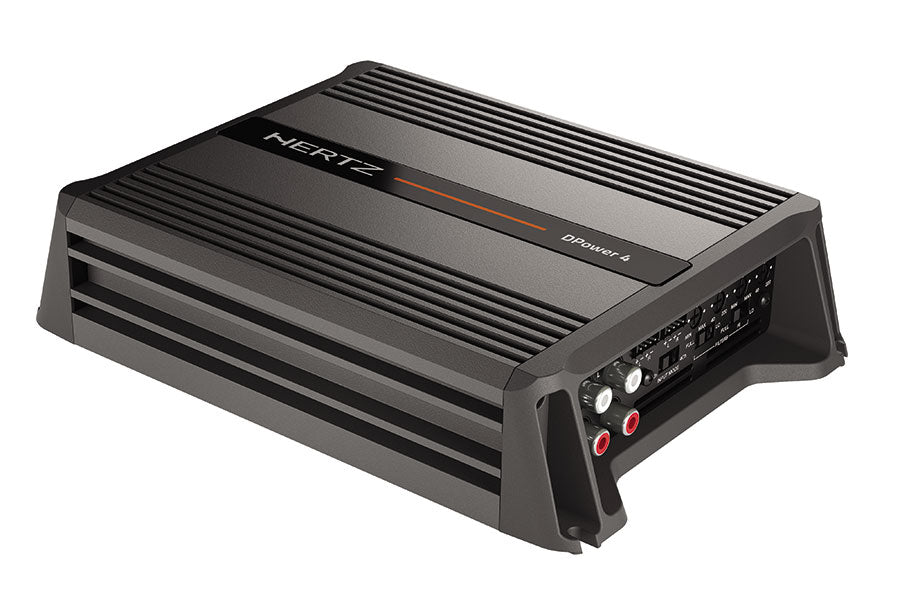

Hertz DPower 4 D-Class Four Channel Amplifier
Excellent for OEM systems upgrade, the Hertz DPower4 four channels car audio amplifiers is ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The versatile crossover filter of the DPower 4 enables the user to create a front-rear or front + subwoofer system by connecting two channels in bridge mode.
The double SPEAKER & RCA INPUTS allows the DPower4 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems the DPower4 is equipped with a smart automated turn on and off circuit according to the factory radio.
Technologies
ULTRA-COMPACT
Excellent for OEM systems upgrade, the DPower amplifiers are ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area.
HIGH POWER/SIZE RATIO
The efficient D class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration.
VERSATILE X-OVER
DPower1 bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch.
SPEAKER & RCA INPUTS
The double SPEAKER & RCA INPUTS allows the DPower amplifiers to connect to any type of source, be it OEM or aftermarket.
ART AUTO TURN-ON/OFF
For an excellent integration with OEM systems the DPower amplifiers are equipped with a smart automated turn on and off circuit according to the factory radio.
Specs
Channel mode 4 - 3 - 2
Output Power (RMS)
@ 14.4 VDC 4 Ch 60 W x 4 (4 )
4 Ch 75 W x 4 (2 )
2 Ch 150 W x 2 (4 )
3 Ch 60 W x 2 + 150 W x 1 (4 )
3 Ch 75 W x 2 + 150 W x 1 (2 )
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic
Yes
40 220 Hz @ 12 dB/Oct.
40 220 Hz @ 12 dB/Oct.
Not available
Not available
Distortion - THD
(100Hz @ 4 ) 0.2 %
S/N Ratio
(A weighted @ 1V) 95 dB
Damping factor
(100Hz @ 4 ) 60
Size W x D x H
mm (in.) 222,2 x 160 x 50,5 / 8,75 x 6,3 x 1,99
