Max Power: 2000 Watts
Rated Input Power: 4 ohms 500W x 1, 2 ohms 1000W x 1
Specifications: Signal to Noise Ratio: 100 dB1
Low Pass Filter: 50 - 200 Hz (-24 dB / oct.)1
Infrasonic Filter: 20 - 50 Hz (-24 dB / oct.)1
Bass Boost: 40 Hz (0 - +18 dB)1
Size(inch): (W)13-3/16" x (H)2-3/16" x (D)7-9/16"1
Weight(lbs): 6.2
Specs

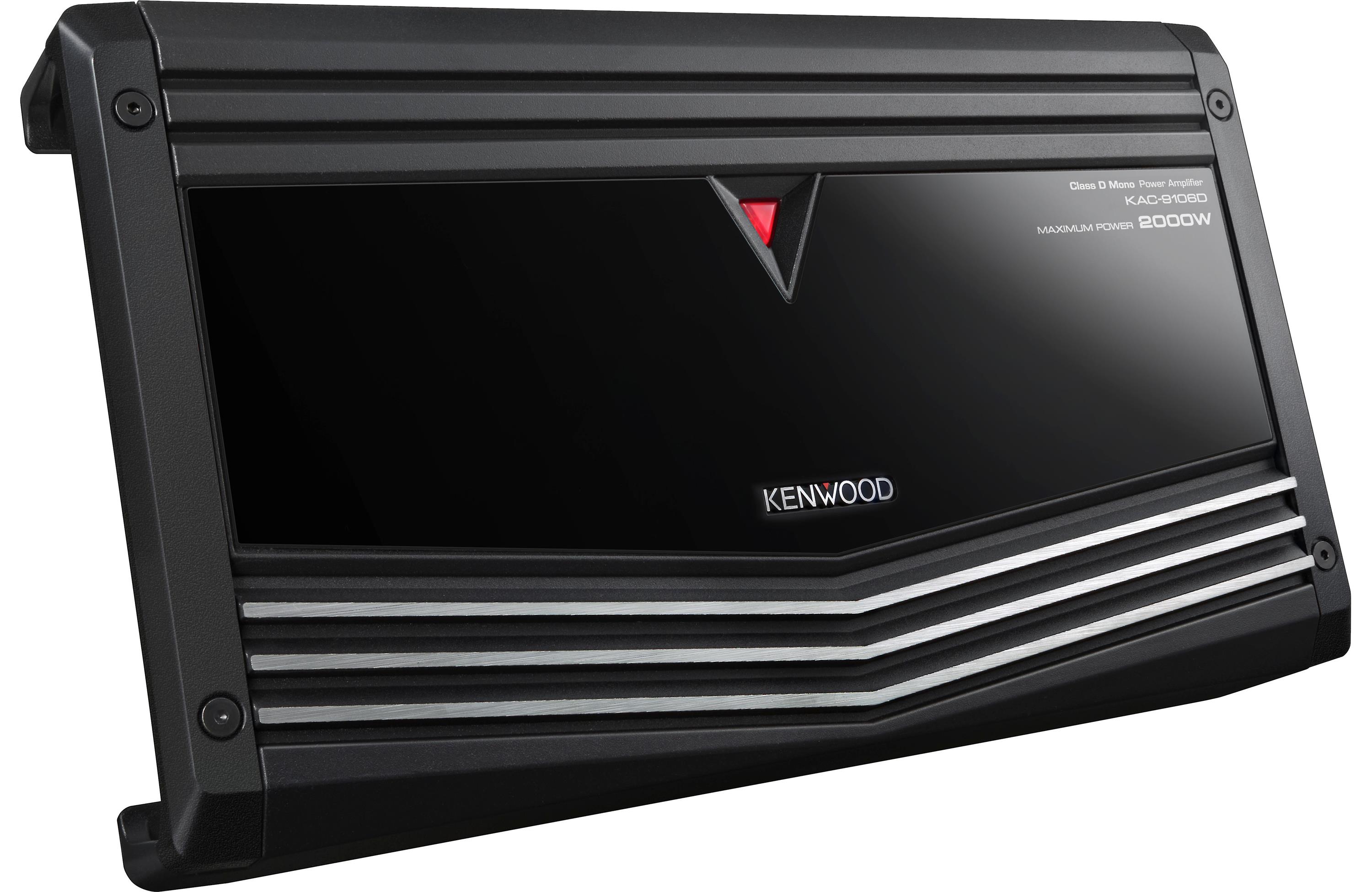

Title Class D Mono Power Amplifier
Amplifier Type Class D
CEA-2006 Primary Ratings Power Output 500Watts RMS x 1 at 4 Ohms and 1%THD+N
Signal-to-Noise Ratio 76dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output MAX POWER 2000W
Power Output Rated Power at 14.4V 500Watts RMS x [ch] (4 Ohms, 20-200Hz, 1.0% THD)
1000Watts RMS x [ch] (2 Ohms, 100Hz, 1.0% THD)
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Class D
Input Impedance 10k ohm
Speaker Impedance 4 (2 to 8 allowable)
Audio Section Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
Infrasonic Filter Built in Variable Infrasonic Filter (20Hz-50Hz, -24dB/oct)
Bass Boost Built in Bass Boost Control (40Hz, 0dB-+18dB)
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]

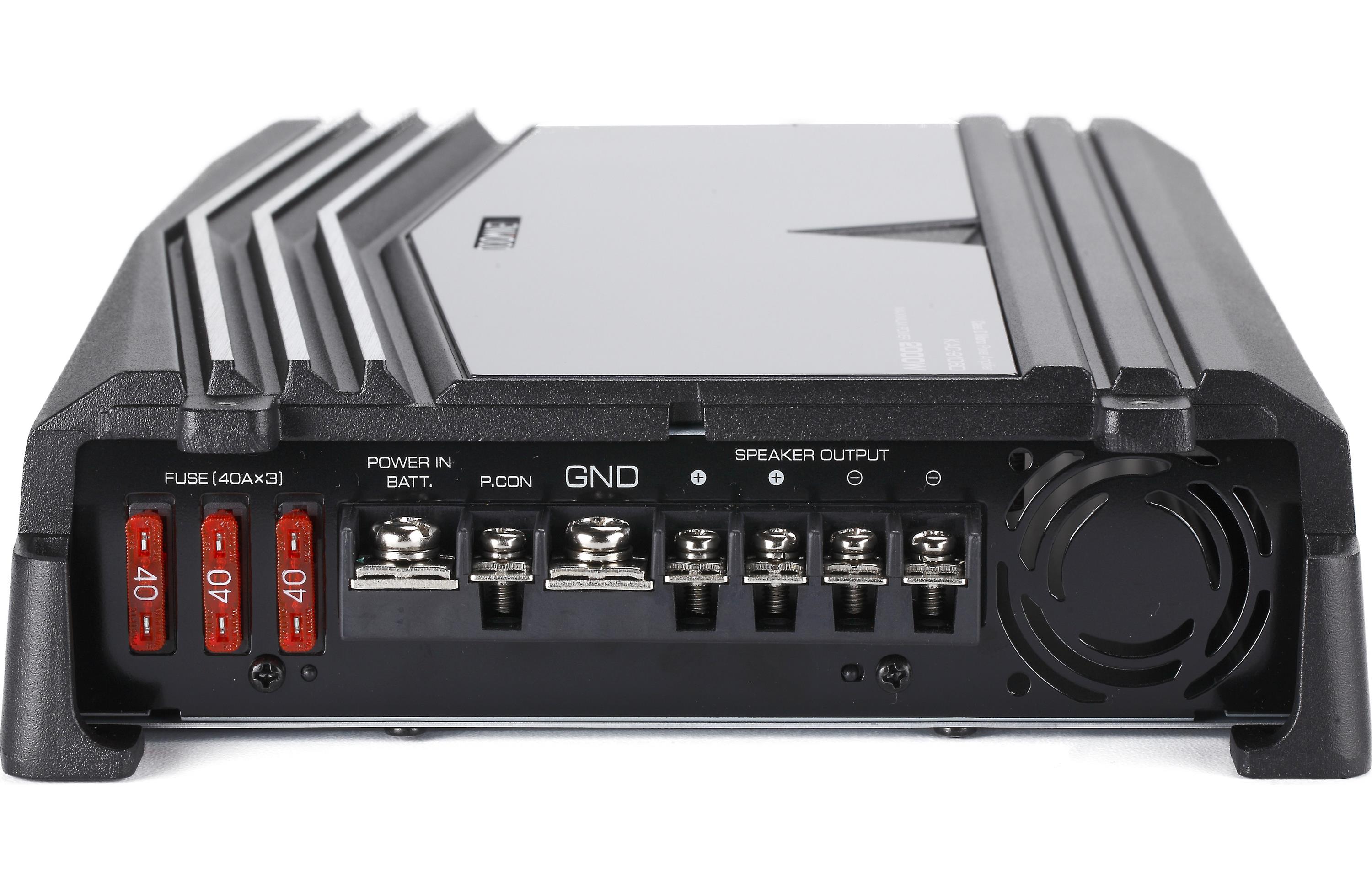

Terminals Battery & Ground Screw Type Terminal Block (Ni) (M6)
Speaker Output Screw Type Terminal Block (Ni) (M4)
Line In RCA (Ni)
Line Out RCA (Ni)
Speaker Input JST Connector
General Dimensions(WxHxD) 335 [mm] x 56 [mm] x 192 [mm]
13-3/16 inch x 2-3/16 inch x 7-9/16 inch
Weight (kg) 2.8 [kg] 6.2 [lbs]
Operating Voltage 14.4V(11-16V allowable) [V]
Current Consumption 65 [A]
Key Features CEA-2006 Compliant
Class D
2 Ohms Load Capability
Speaker Level Input
Signal Sensing Turn-on
Terminal Cover
Power MOS-FET Switching Power Supply
Cast Aluminum Heat Sink Design
Line Output Terminals for Extension
Others Triangle Indicator
