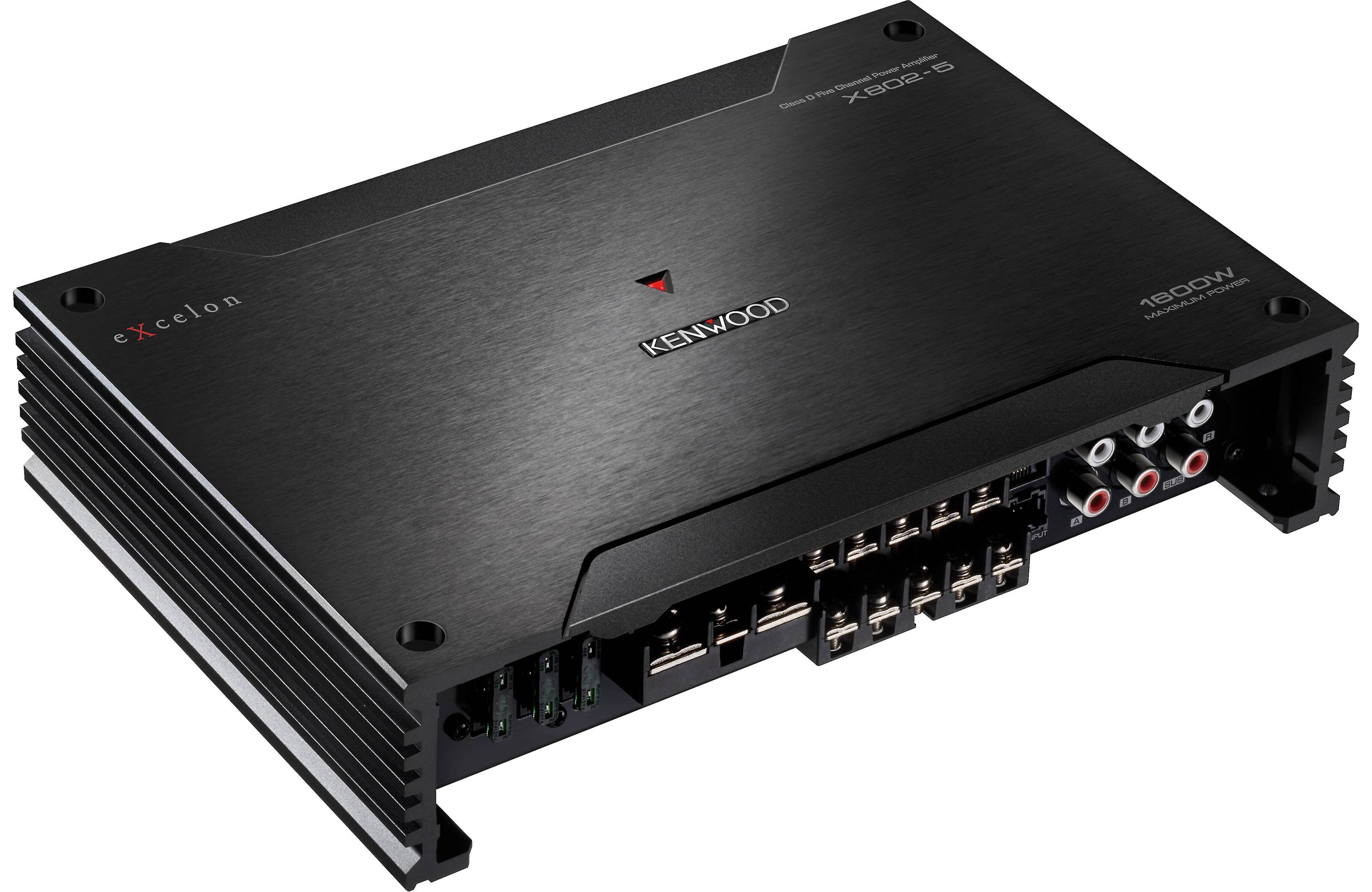

Kenwood Excelon X802-5 Class D 5-Channel Power Amplifier
- Max Power 1600W
- Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"
- Variable High & Low Pass Filter
- Bass Boost
- Optional Wired Remote Ready
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.

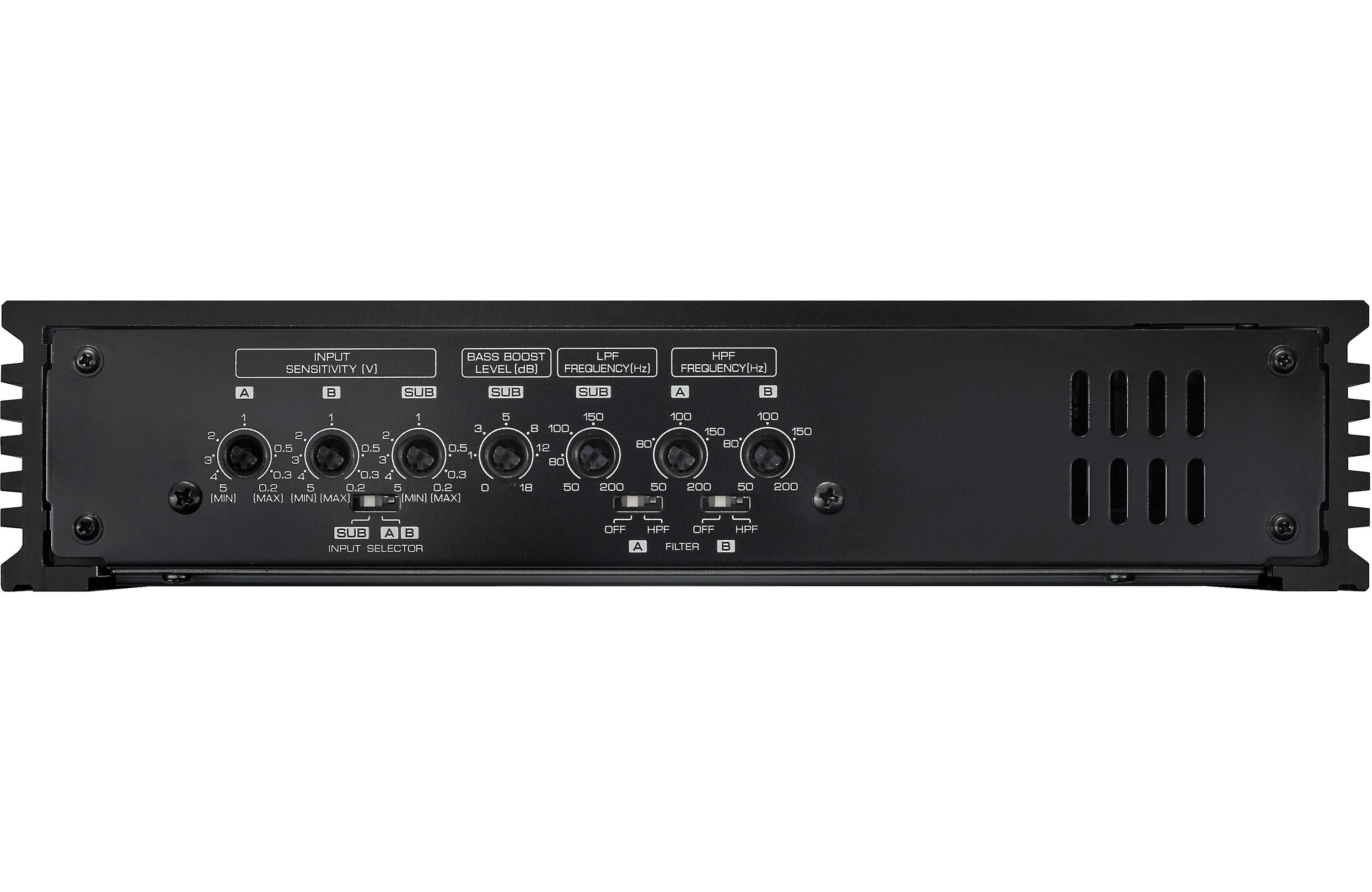

Variable Gain Circuit
Improved Signal to Noise Ratio

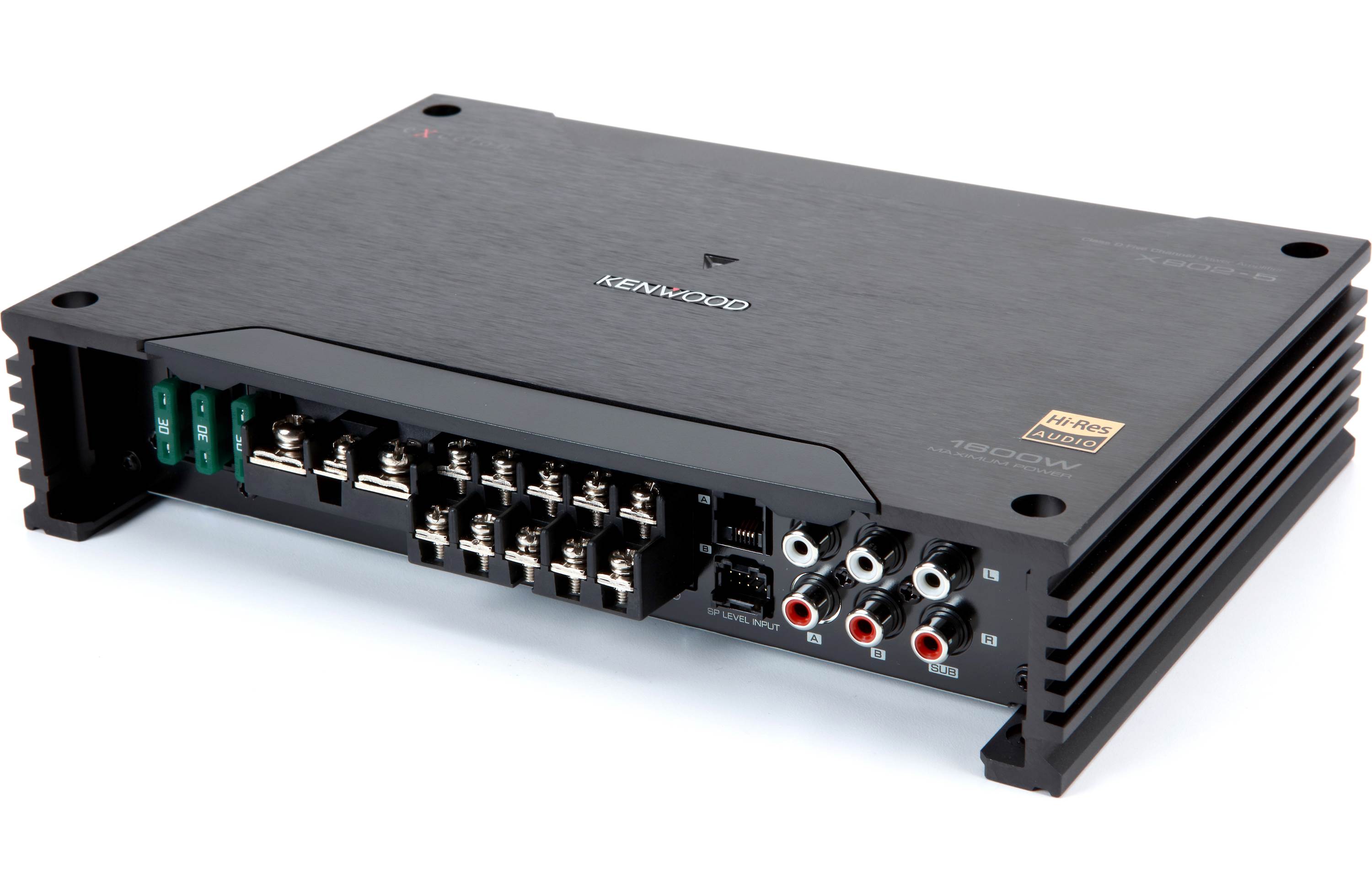

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
Specs
MAX POWER 1600W
RMS POWER OUTPUT (4Ω) 50W x 4 + 300W
RMS POWER OUTPUT (2Ω) 75W x 4 + 500W
RMS POWER OUTPUT Bridged 150W x 2 (Bridged) + 300W
Features Speaker Level Input
Signal Sensing Turn-On
Variable High Pass Filter
Variable Low Pass Filter
Bass Boost
Optional Wired Remote Ready
Dimensions (W)9-3/4" x (H) 2-1/16” x (D)5-7/8”
Weight 4.6 lbs ( 2.1 kg)
