- Peak Power 2000W
- RMS Power 300W
- PP Cone with Diamond Array Pattern
- Stress Controlled Spider
- 4Ω Impedance
- Steel Mesh Grille Included
X-Motif Cap
X-Motif Cap controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.
Closed Yoke with Advanced Airflow Control
Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.
Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.
Multiple Position Options
Forward, Rear, or Down-Firing installation available.

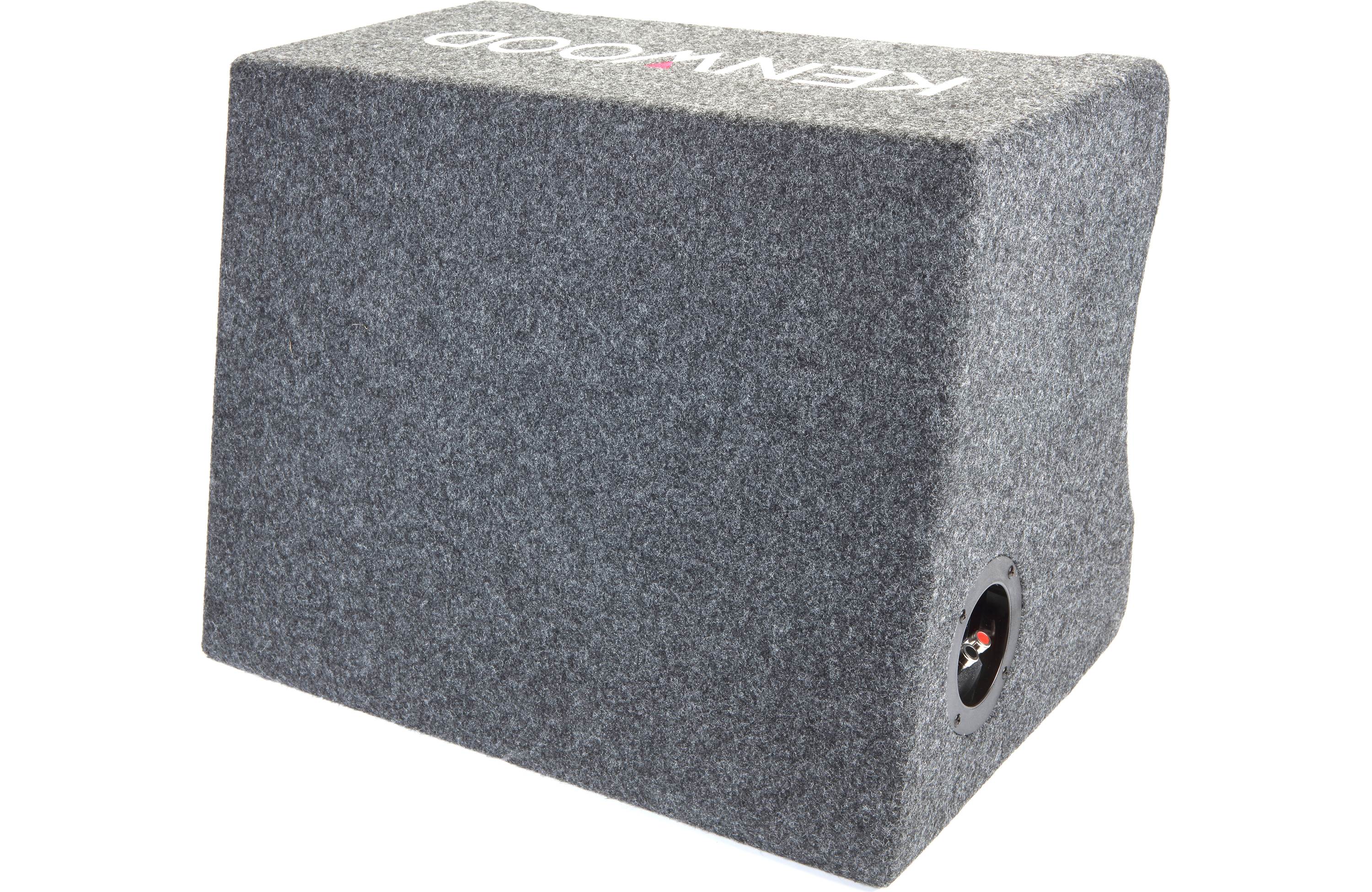

Slant Back Design
Easily fits behind the rear seat of an SUV and is more effective in suppressing standing waves that typically occur in a standard square enclosure.
3/4" THICK MDF Baffle
5/8” MDF construction with 3/4” THICK Baffle provides more strength and durability, ensuring accurate bass even at high volume.
INCLUDED Steel Mesh Grille
Valued at $30 when sold separately, enclosure includes a protective grille for further enhanced durability.
Enhanced Down-Firing Structural Support
Extra thick legs support the weight of the system when installed in a down-firing application. This ensures the low frequency energy is transmitted without loss, resulting in powerful, impactful bass.
Reduced Port Noise
The port’s rounded shape reduces airflow resistance and noise generation.
Precisely Power Matched
P-XW1241S Subwoofer enclosure encloser is precisely power matched with the eXcelon X502-1 amplifier.
Specs
Model P-XW1241S
Subwoofer Specification 12” Subwoofer
Peak Power 2000W
RMS Power 300W
Impedance 4Ω
Frequency Response 30Hz-300Hz
Features Injection Polypropylene X-motif Cone with Diamond Array Pattern
Closed Yoke with Advanced Airflow Control
Aluminum Bobbin
Enclosure Specifications Slant Back Design with Flared Port & Down Firing Capability
5/8"MDF Construction with 3/4" MDF Baffle Board
8AWG-ready Nickel-plated Spring Posts
Dimensions: 20-7/8"(W) x 15-13/16"(H) x 14-5/8"(D)
