STANDS NOT INCLUDED

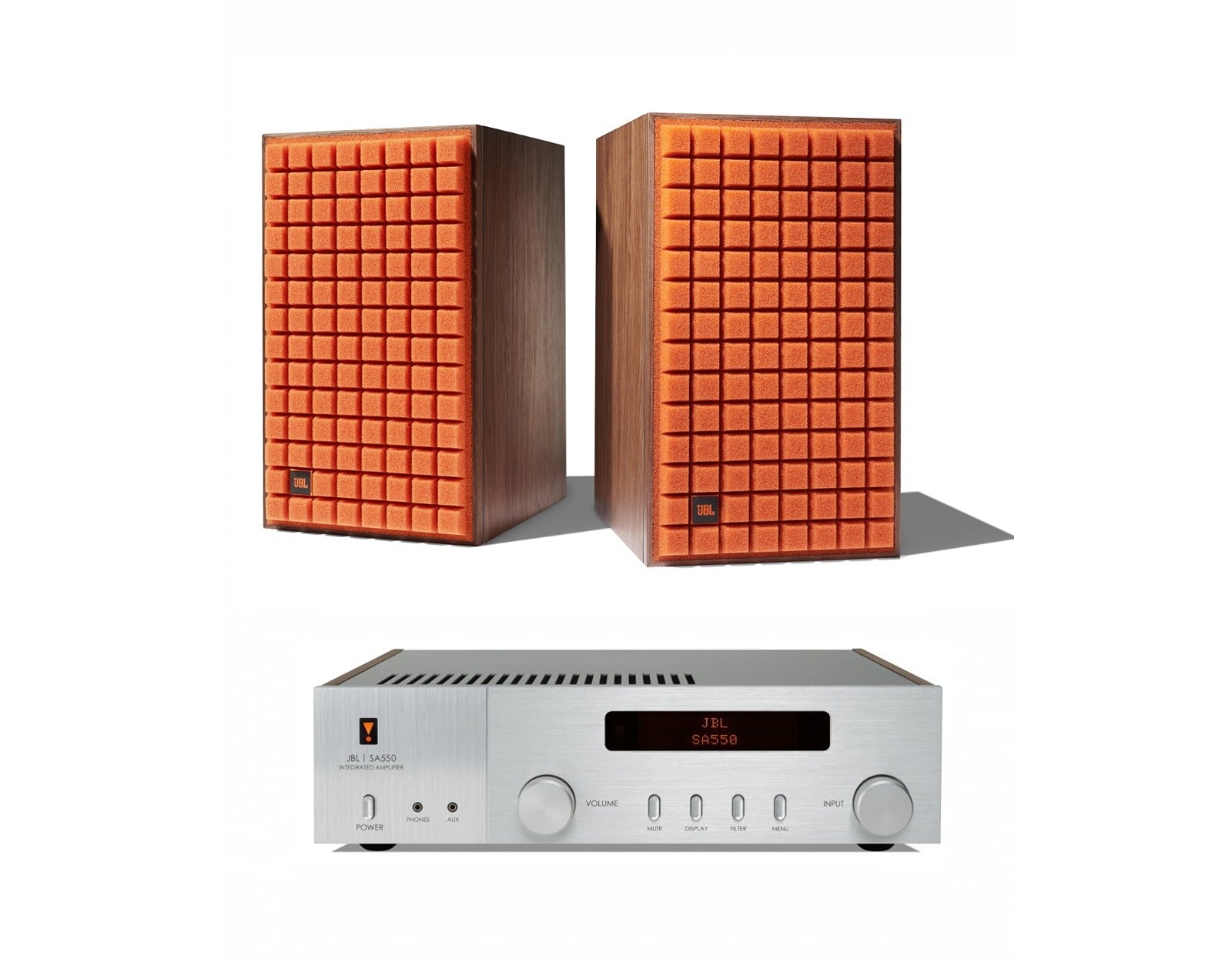

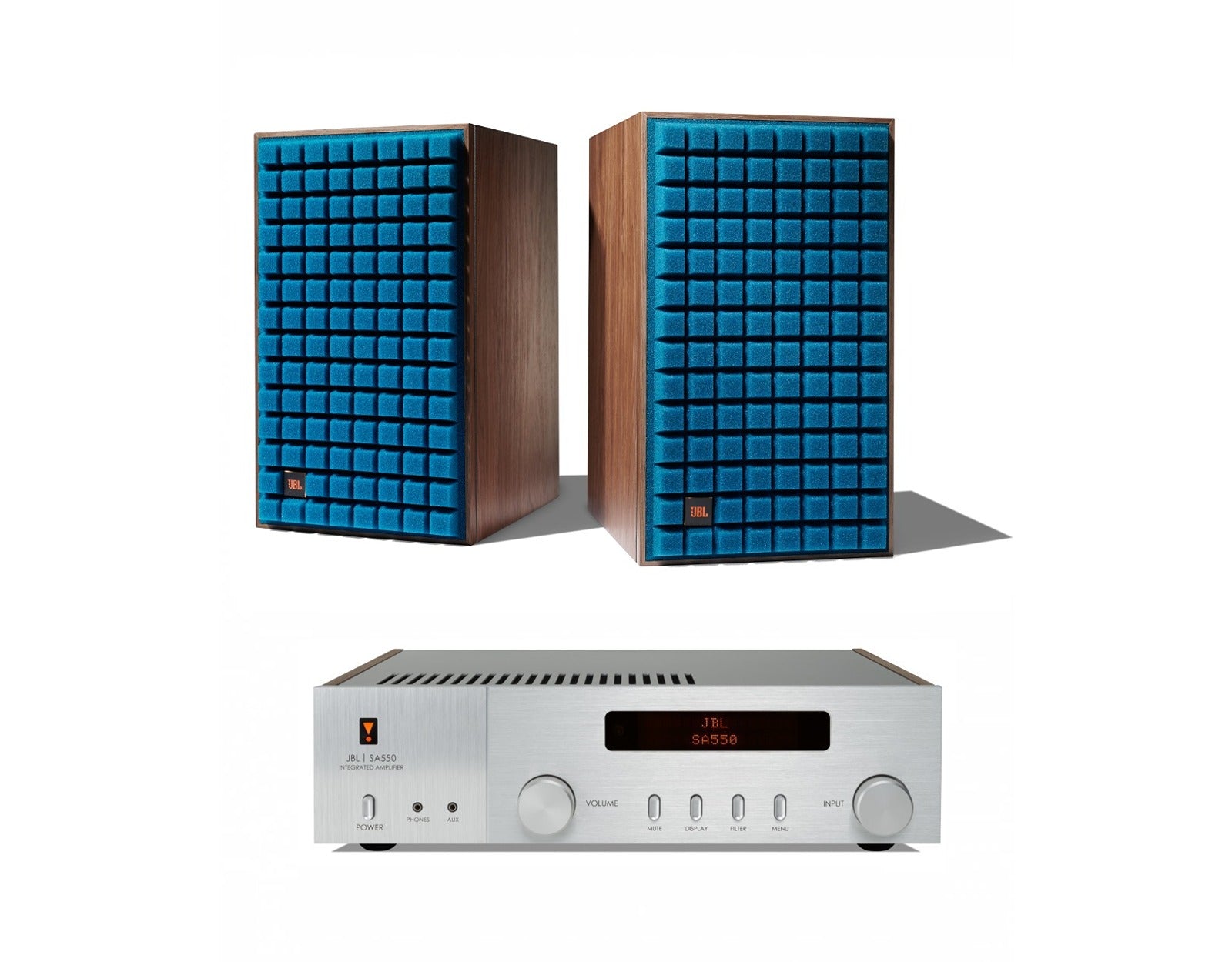

THIS BUNDLE INCLUDES:
1 PAIR JBL 82 CLASSIC 8" 2-WAY BOOKSHELF SPEAKERS (BLACK, ORANGE, OR BLUE GRILLS)
1 JBL SA550 Bluetooth Integrated Amplifier
JBL L82 Classic
The L82 Classic is a compact 8-inch (200mm) 2-way bookshelf loudspeaker featuring JBL s advanced acoustic technologies in combination with the iconic retro-inspired style of its larger family member: the L100 Classic. The vintage design of the L82 Classic features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lies modern acoustic components that deliver stunning sound sure to please any music lover. In the storied tradition of JBL 8-inch 2-way loudspeakers, the L82 Classic is sure to become a favorite of listeners around the world.
The L82 Classic is a compact 8-inch (200mm) 2-way bookshelf loudspeaker featuring JBL s advanced acoustic technologies in combination with the iconic retro-inspired style of its larger family member: the L100 Classic. The vintage design of the L82 Classic features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lie modern acoustic components that deliver stunning sound sure to please any music lover. For pristine and detailed high frequencies, the L82 Classic utilizes a 1-inch (25mm) Titanium dome tweeter mated with a waveguide the same captivating high-frequency components found in the larger L100 Classic. A high-frequency L-pad attenuator allows the user to tailor the sound as desired. As a 2-way design, the L82 Classic uses a powerful 8-inch (200mm) cast-frame, white pure pulp cone woofer operating in a bass-reflex design with a front-firing tuned port. Despite its relative size, the L82 Classic provides dynamic and authoritative sound even in larger spaces. The accessory JS-80 floor stands allow the L82 Classic to be used in a freestanding environment with the loudspeaker angling gently backwards to focus the sound to the listening position in the same manner as the JS-120 floor stands with the L100 Classic. In the storied tradition of JBL 8-inch 2-way loudspeakers, the L82 Classic is sure to become a favorite of listeners around the world.
Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange, or blue
Genuine satin walnut wood veneer enclosure with black front and rear panels
8-inch white cone, pure pulp woofer with cast frame
1-inch titanium dome tweeter with waveguide
Bass-reflex design with front-firing port
High-frequency L-pad attenuator
Matching JS-80 floor stands available (sold separately)
JBL SA550
The JBL SA550 Classic is inspired by the classic JBL SA600 amplifier from the 1960’s, with retro styling and walnut veneer side panels to match JBL Classic and Studio Monitor loudspeakers on the outside.
On the inside, the JBL SA550 is a music system for today with an advanced amplifier topology with high power output, inventive efficiency, and fine noise control for captivating musicality and effortless power.
Straight out of the box, pair your smart phone or tablet to the SA550 with Bluetooth for instant high performance music from all your music services and libraries that you listen to everyday. The JBL SA550 Classic includes the latest Bluetooth AptX®Adaptive technology for hi-res audio over Bluetooth and low latency to ensure audio is in sync with video.
The advanced amplifier topolgy in the JBL SA550 Classic is called Class G. Class G utilizes multiple power supplies where all other amplifiers only use one. The first power supply feeds enough power for the amplifier to deliver 10 Watts per channel, not a lot you might think... but this small amplifier includes a big heatsink that keeps the amplifier stable up to 90 Watts per channel. That enables this first 10 Watts to be delivered in a topology known as Class A, which ordinarily is not very efficient. The benefit is that it involves no switching of any output stage components in and out of the music signal - as normally occurs in any Class AB or Class D amplifier. The result is vanishingly low noise and the purest sound with all micro dynamics and details preserved. Of course, 10 Watts really isn’t much and so the SA550 can deliver a great deal more. It can deliver a maximum sustained output of 150 Watts per channel with the use of a second, much higher voltage power supply, and this is where the amplification in the SA550 is incredibly inventive. If that second power supply was simply switched into circuit when required, it would induce nasty distortion, and this would be harmonic too - quite unpleasant. So the SA550 includes a set of high speed “lifters” which gradually raise the
power delivered to the amplifier, tracking the music signal and maintaining a 5 Volt head room. This allows the benefits of Class G amplification to be realizes, whilst eliminating the downsides and powering any speaker system effortlessly. All that smart amplification can be enjoyed from three digital and four analog inputs, including a moving magnet phono input for a turntable. The digital inputs include a high resolution, ultra high-fidelity DAC with the highest performance ESS DAC chip at heart. The SA550 is a throw-back to the late 1960’s on the outside. But with Hi-res Bluetooth technology, efficient amplification and exceptional musical performance, the SA550 is a modern classic rooted in today’s best technologies.
Specs
JBL L82 Classic Specifications:
Speaker Type: 2-way bookshelf loudspeaker
Low Frequency Driver Size and Material: 8" (200mm) Pure Pulp cone woofer (JW200PW-6)
High Frequency Driver Size and Material: 1" (25mm) Titanium dome tweeter (JT025TI1-4)
Recommended Amplifier Power : 25 - 150 WRMS
Impedance: 8 Ohm
Loudspeaker Sensitivity: 88 dB (2.83V/1m)
Frequency Response: 44 Hz-40 kHz (-6 dB)
Crossover Frequency: 1.7 kHz
Enclosure Type: Front-ported bookshelf
Enclosure Finish: Genuine walnut veneer
Dimensions with grille (H x W x D): 18.61" x 11.06" x 11.65" (472.8mm x 281mm x 296mm)
Controls: HF level control
Input Type: Dual gold-plated binding posts
Product Weight: 27.9 lb (12.7 kg)
Shipping Weight: 64 lb (29 kg)
JBL SA550 Specifications:
General Specifications:
Continous power output both channels driven (0.5% THD):
• 90W into 8Ω x2
• 150W into 4Ω x2
• Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Phono moving magnet input:
• Input sensitivity at 1kHz: 5mV
• Input impedance: 47kΩ + 100pF
• Frequency response (ref. RIAA curve): 20Hz - 20kHz ±1dB
• Signal/Noise ratio (A-wtd) 50W, ref. 5mV input: 80dB
• Overload margin, ref. 5mV at 1kHz
Line inputs:
• Nominal sensitivity: 1V
• Input impedance: 10kΩ
• Maximum input: 6Vrms
• Frequency response: 20Hz - 20kHz ±0.2dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 106dB
Digital inputs:
• Supported Bit depth: 16 bit - 24 bit
• Supported sample rates (Optical)(kHz): 32, 44.1, 48, 88.2, 96
• Supported sample rates (Coaxial)(kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• Frequency response: 20Hz - 20kHz ±0.05dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 115dB
Mains Voltage: 110–120V or 220–240V, 50–60Hz
Maximum Power Consumption: 500W
Width (inches) 17-3/4
Height (inches) 4-15/16
Depth (inches) 13-5/8
Product Weight: 12kg, 24.69 lbs
Shipping Weight: 14kg, 30.86 lbs
Warranty: 5 Years
