STANDS NOT INCLUDED
THIS BUNDLE INCLUDES:

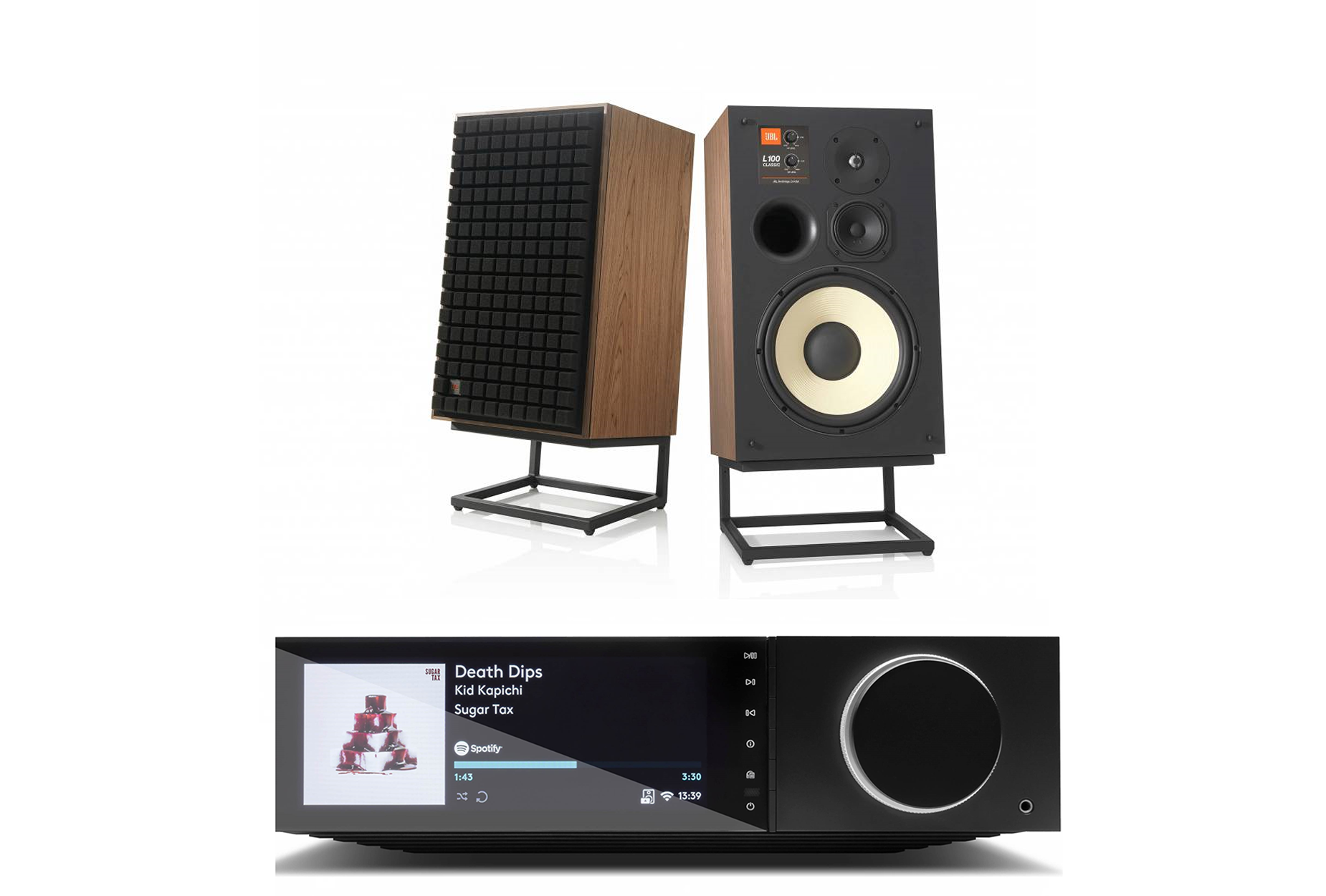

1 PAIR JBL L100 Classic 12" 3-Way Bookshelf Speaker Pair with Black Grills
1 Cambridge Audio Evo 150 Integrated Amplifier All-in-One Player
JBL L100 Classic
In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.
Main Features:
- Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
- Genuine satin walnut wood veneer enclosure with black painted front and rear panels
- 12-inch white cone, pure pulp woofer with cast frame
- 5-inch pure pulp cone midrange
- 1-inch titanium dome tweeter
- Bass-reflex design with front-firing port
- High-frequency and mid-frequency L-pad attenuators
Cambridge Audio Evo 150
- Powerful 150 watts per channel – capable of driving 2 sets of speakers
- High quality ESS SABRE ES9018k2m Reference DAC – for highly accurate & detailed musical performance
- Integrated MM Phono Stage – for a wide choice of turntables
- XLR balanced inputs – for connection of high-quality analogue equipment
- StreamMagic Gen 4 module – for an unparalleled streaming experience
- Bluetooth aptX HD – for hi-res playback from & to compatible device
Tomorrow’s Hi-Fi, Today
With Evo 150, we’ve brought your audio past and present into the future. With outstanding Hypex NCore Class D amplification and our class-leading StreamMagic streaming platform on board - all you need to do is add speakers to enjoy superb high-resolution audio quality from one elegant, discreet box.
And thanks to its suite of digital and analogue inputs, as well as its high-quality digital-to-analogue convertor, Evo can be the heart of your hi-fi system for years to come.
Easy to Set up, Easy to Upgrade
It couldn’t be simpler. Connect Evo 150 to the mains and to your speakers. Open StreamMagic, to connect to the network, then fire up your favorite music streaming service. Pick a tune, press play and adjust the volume to suit. When you're ready, you can dig deeper to set Evo 150 up just how you want it, adding functionality as you go.
StreamMagic App
Our StreamMagic app offers full control of Evo, plus access to the world’s most popular and high resolution music streaming services. It’s clear, logical and stable - so Evo will do precisely what you want. Alternatively, you may prefer to use the app of your favourite streaming service. Evo's ready for you to listen whichever way you choose.
Connectivity to Suit Your Needs
Thanks to its suite of digital and analogue inputs, including a built-in phono stage, Evo can be the heart of your system - add a turntable, say, or EVO CD. Video sources can play too, just connect your TV’s HDMI output to Evo’s ARC input. No matter where your music comes from, Evo 150's ready for it.
Bluetooth Convenience. Hi-Res Sound Quality
Often nothing’s more convenient than streaming via Bluetooth. Evo takes it to the max with aptX HD Bluetooth - which features wireless, high-definition music streaming from compatible devices - including our Alva turntables. And because Evo also transmits with Bluetooth aptx HD, it's perfect for private listening on compatible Hi-Res wireless headphones.
Made By Music
Evo 150 uses the best audio components, like the ESS SABRE ES9018k2m Reference DAC. And then we bring every one of our 55+ years of audio know-how to bear. The result is a performance that celebrates the talent of musicians and producers and retains the original raw emotive power and detail.
Complete Control
Evo is intuitive and straightforward to operate, no matter if you're using its supplied remote control, or our simple yet thorough StreamMagic app, or its physical controls - including the large dual-concentric dial, on the unit's fascia.
Neat and Easy Placement
At 317mm wide, roughly the size of an album vinyl sleeve, Evo will sit neatly where you need it to. But thanks to its award winning deign and all-around good looks, it really deserves to be center stage.
Great for Record Lovers
If you want to connect a turntable, Evo 150's built-in phono stage makes it perfect for decks with with moving magnet cartridges, but no integral pre-amp. That's on top of Bluetooth compatibility with our own Alva turntables.
A New Life for CD
Available separately, Evo CD is the compact disc transport developed to exclusively partner Evo all-in-one players. It shares the same eye-catching design, is crafted from the same premium materials and is engineered to the same exacting standards. Evo CD extracts every piece of musical detail from your discs, then passes it seamlessly to Evo. Your CD collection is now set to join the hi-fi evolution.
Designed to Thrill, Built to Last
Evo's confident sound, timeless looks and premium materials mean that you've found your new long-term musical partner - bringing pleasure to both your ears and eyes for many years to come.
Specs
JBL L100 Classic Specifications:
Description 3-way Bookshelf Loudspeaker
Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
Frequency Response 40Hz 40kHz (-6dB)
Sensitivity 90dB (2.83V/1m)
Power Handling 25 - 200 Watts RMS
Crossover Frequencies 450Hz, 3.5kHz
Impedance 4 Ohms
Controls Attenuators for MF and HF drivers
Connectors Five-way gold-plated binding posts
Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
Weight 58.5 lbs (26.7 kg)
Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue
Cambridge Audio Evo 150 Specifications:
POWER OUTPUT 150W into 8 Ohms
AMPLIFICATION Class-D Hypex Ncore®
DAC ESS Sabre ES9018K2M
FREQUENCY RESPONSE 20Hz – 20kHz +0/-3dB
ANALOGUE AUDIO INPUTS 1 x RCA, 1 x balanced XLR, 1 x Moving Magnet Phonostage
DIGITAL AUDIO INPUTS 2 x TOSLINK optical, 1 x S/PDIF coaxial, 1 x TV ARC, Bluetooth (integrated), USB Audio
USB AUDIO INPUT USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)
BLUETOOTH 4.2 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs
COMPATIBILITY TOSLINK optical: 16/24bit 32-96kHz PCM only S/PDIF coaxial: 16/24bit 32-192kHz PCM only USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD 256 Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD (24bit 48kHz) UPnP, Local USB media, Airplay 2, Chromecast built-in, Internet Radio, Spotify Connect, TIDAL, MQA, Qobuz, Roon Ready, ARC: 16/24bit 32-192kHz PCM only, Deezer
AUDIO FORMATS ALAC, WAV, FLAC, AIFF, DSD (x256), WMA, MP3, AAC, HE AAC AAC+, OGG Vorbis
OUTPUTS Speakers A+B, 3.5mm headphone, Preamp Output, Subwoofer Output, Bluetooth: 4.2 A2DP/AVRCP supporting up to aptX HD
ETHERNET IEEE 802.3, 10 Base-T or 100 Base-T
WI-FI Dual Band 2.4/5gHz
MAX POWER CONSUMPTION 700w
STANDBY POWER CONSUMPTION <0.5w
DIMENSIONS (W X H X D) 317 x 89 x 352mm, 12.48" x 3.5" x 13.86"
WEIGHT 5.3 kg, 11.68 lbs
WHAT'S IN THE BOX Evo 150 All-in-One player, Quick Start Guide, Safety Guide, Mains Lead, Remote Control, 2 x AAA Batteries, Customisable Side Panels x 2
