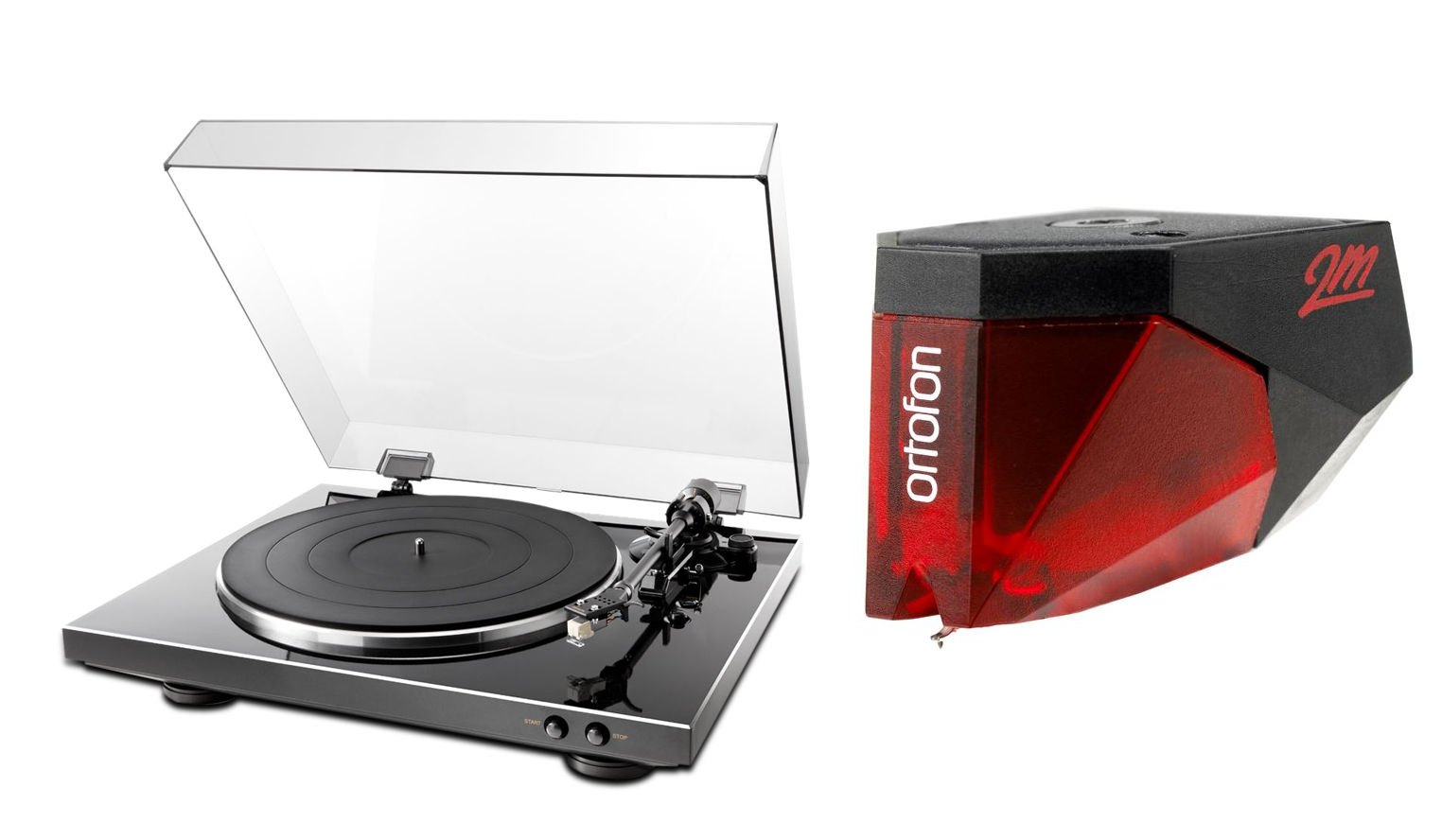

This Turntable Bundle consists of the following:
QTY: 1 Denon DP-300F Fully Automatic Turntable
QTY: 1 Ortofon 2m Red Moving Magnet Phono Cartridge
**Phono Cartridge comes professionally mounted and calibrated

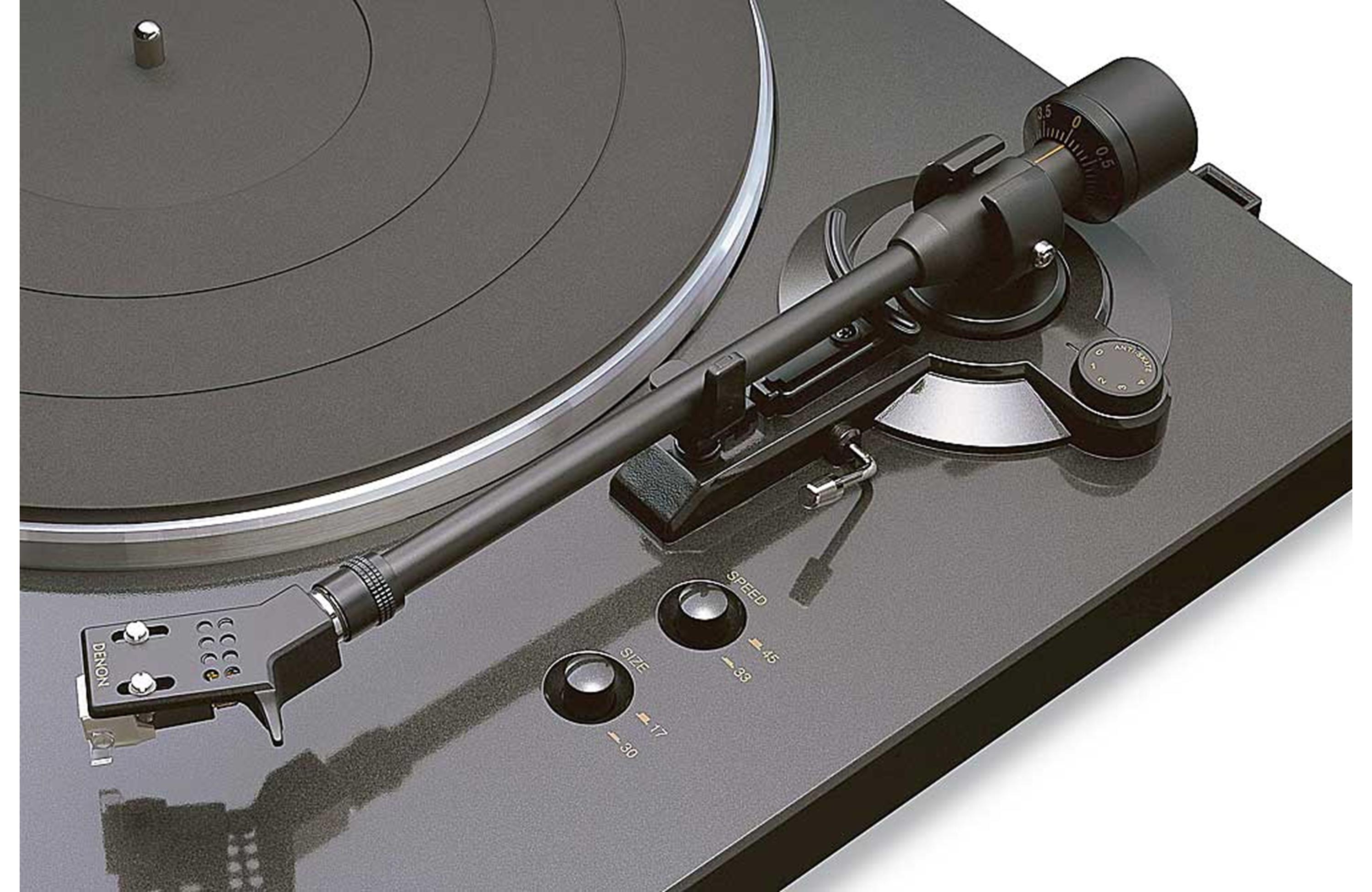

The DP-300F has been designed with heavier base construction for reduced vibration and performance. The all new tonearm has a removable headshell making cartridge replacement simple. The standard mount headshell allows for any standard mount cartridge between 5 ~ 10 grams to be mounted and balanced. The automatic startup feature allows the turntable to begin play with the touch of a button, and once play has been completed, the tonearm will be returned to the armrest gently so that the stylus and record are not damaged or scratched. The turntable is made of rigid diecast aluminum to produce uniform rotation for smooth flutter free operation. There is also a manual lifter mechanism that allows you to place the needle on the record wherever you want, so you can skip to a different song in the middle of a side.
The DP-300F includes a built-in phono equalizer to connect the player to an integrated amp or receiver that does not have its own phono input. This turntable is powered by a DC servo motor and belt drive system and has rotation speeds of 33 1/3 or 45 rpm. It comes with a MM cartridge so that you can begin to enjoy your analog record collection as soon as you connect the DP-300F to your home hi-fi system.
Denon DP-300F Turntable Details:
- Designed with a heavier base construction to decrease vibration for superior performance
- Tone arm action starts and stops automatically using gentle lifting and lowering motions to protect your vinyl

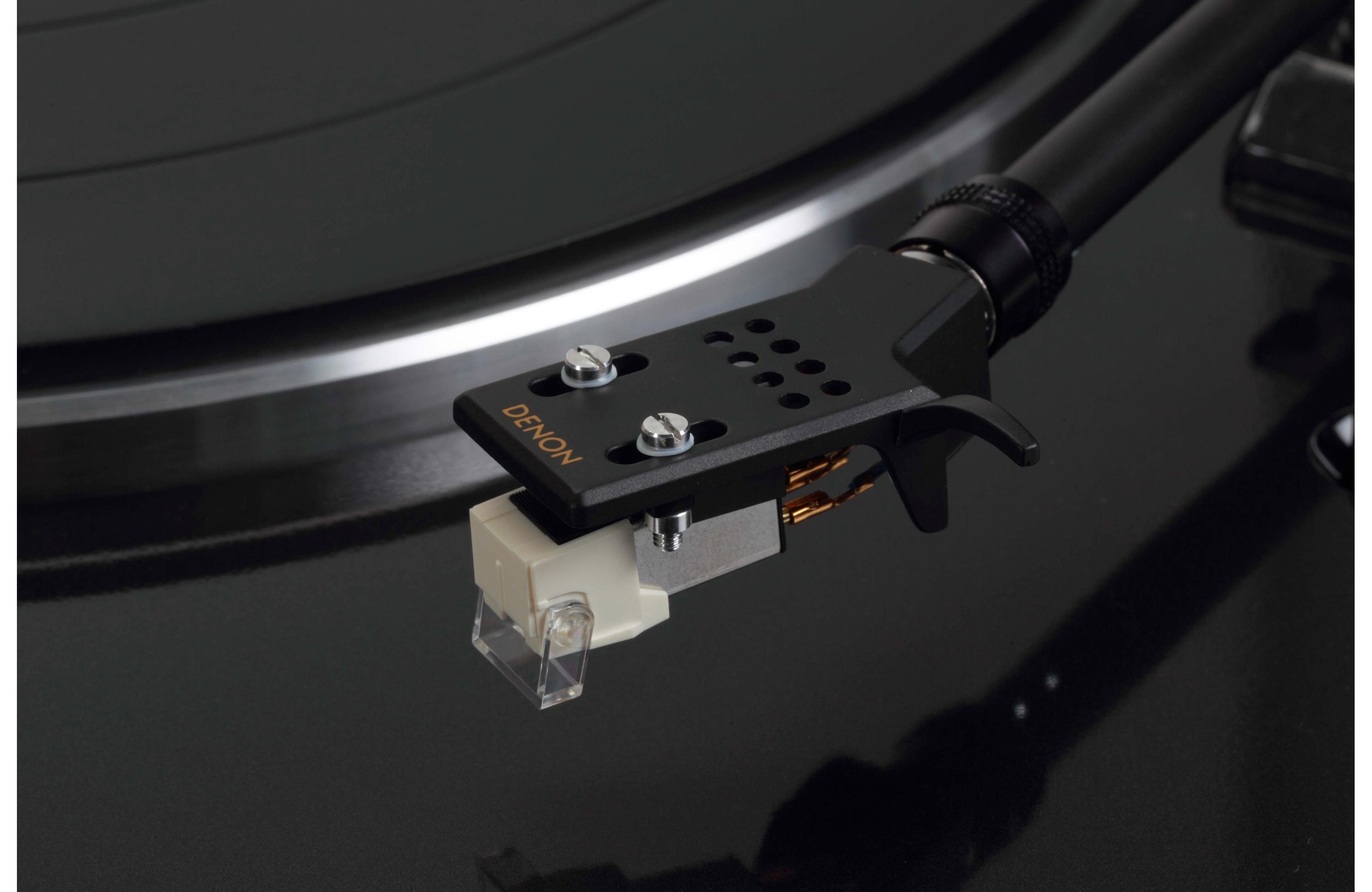

- Moving-magnet (MM) cartridge headshell is removable
- Turntable sheet is 5mm thick; uses hologram vibration analysis to improve its ability to hold a record
- DC servo motor and belt drive system with rotation speeds of 33 1/3 or 45 rpm
Specs
DP-300F Specifications
Motor Section
Drive system Belt drive Speed 33 1/3, 45 rpm Wow & flutter 0,10% (WRMS) Turntable Diecast aluminum
Tone arm Type Straight Effective length 221.5 mm, 8.72 inch Overhang 19 mm, 0.75 inch Tracking error Within 3 Stylus pressure range 0 4.0g (0.1g increments) Compatible cartridge weight 5.0 10.0g (excluding headshell)
Cartridge Type MM Appropriate needle pressure 2.0g Cartridge weight 5g Replacement needle DSN-85 Supplied headshell weight 10g (Can be replaced with dedicated shell: PCL-310SP [Premium Silver] or PCL-310K [Black])
General Power supply AC 120V, 60 Hz Power consumption 2W Dimensions 434 (W) x 122 (H) x 381 (D) mm17.1 (W) x 4.8 (H) x 15.0 (D) inch (including feet) Weight 5.5 kg, 12.13 lbs
Features
Operation Fully Automatic
Speeds 33-1/3, 45
Drive Type Belt
Pitch Control No
Cartridge Type MM
Phono Preamp Built-in
USB Output No
45 RPM Adapter Yes
Specs
Signal to Noise Ratio 60
Wow and Flutter 0.1
Weight 12.1 lbs.
- Ortofon 2M Red Specifications:
- Designed with a heavier base construction to decrease vibration for superior performance
- Tone arm action starts and stops automatically using gentle lifting and lowering motions to protect your vinyl
- Moving-magnet (MM) cartridge headshell is removable
- Turntable sheet is 5mm thick; uses hologram vibration analysis to improve its ability to hold a record
- DC servo motor and belt drive system with rotation speeds of 33 1/3 or 45 rpm
Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 m
Compliance, dynamic, lateral - 20 m/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 m
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20
Internal impedance, DC resistance - 1,3 kOhm Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)
