STANDS NOT INCLUDED

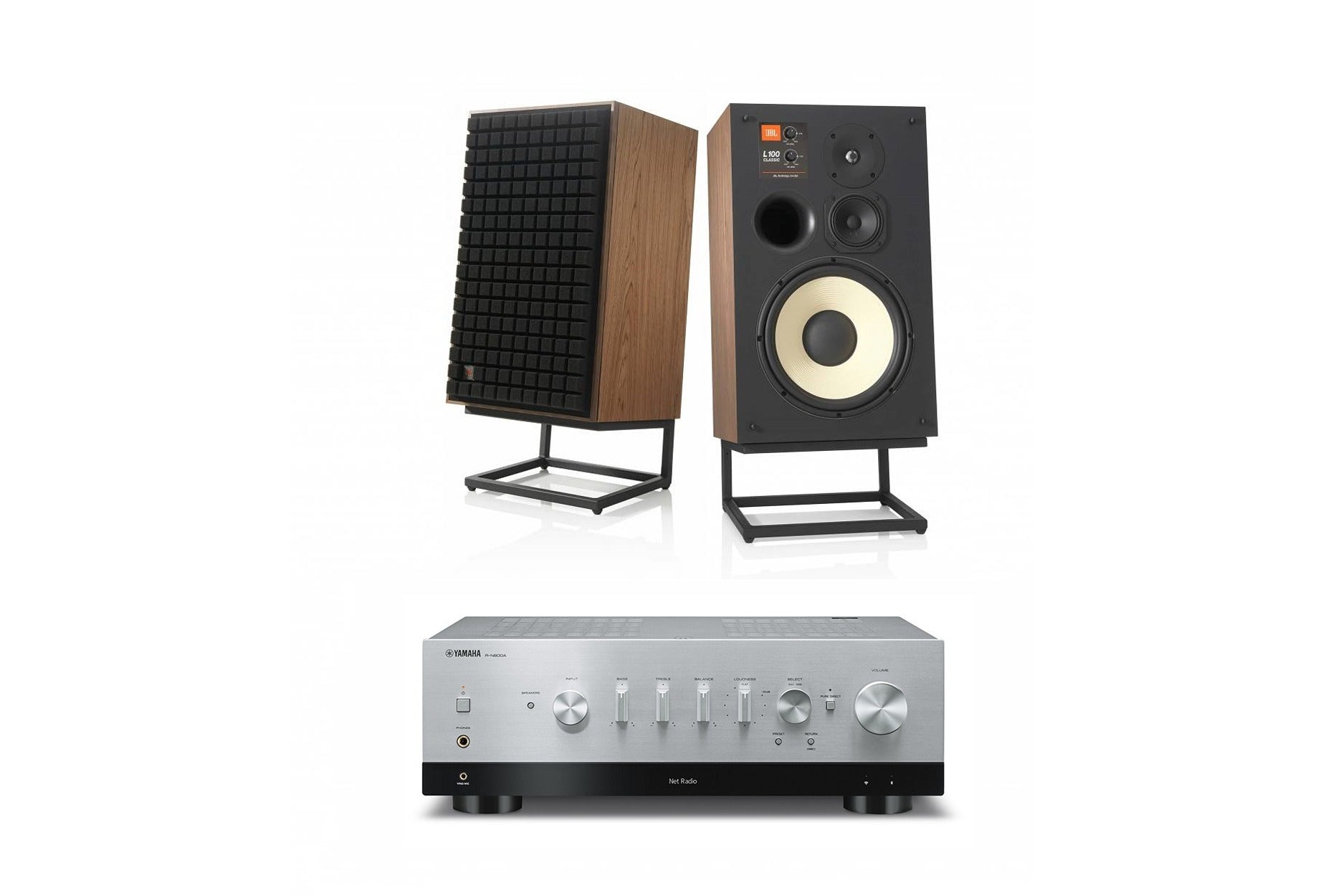

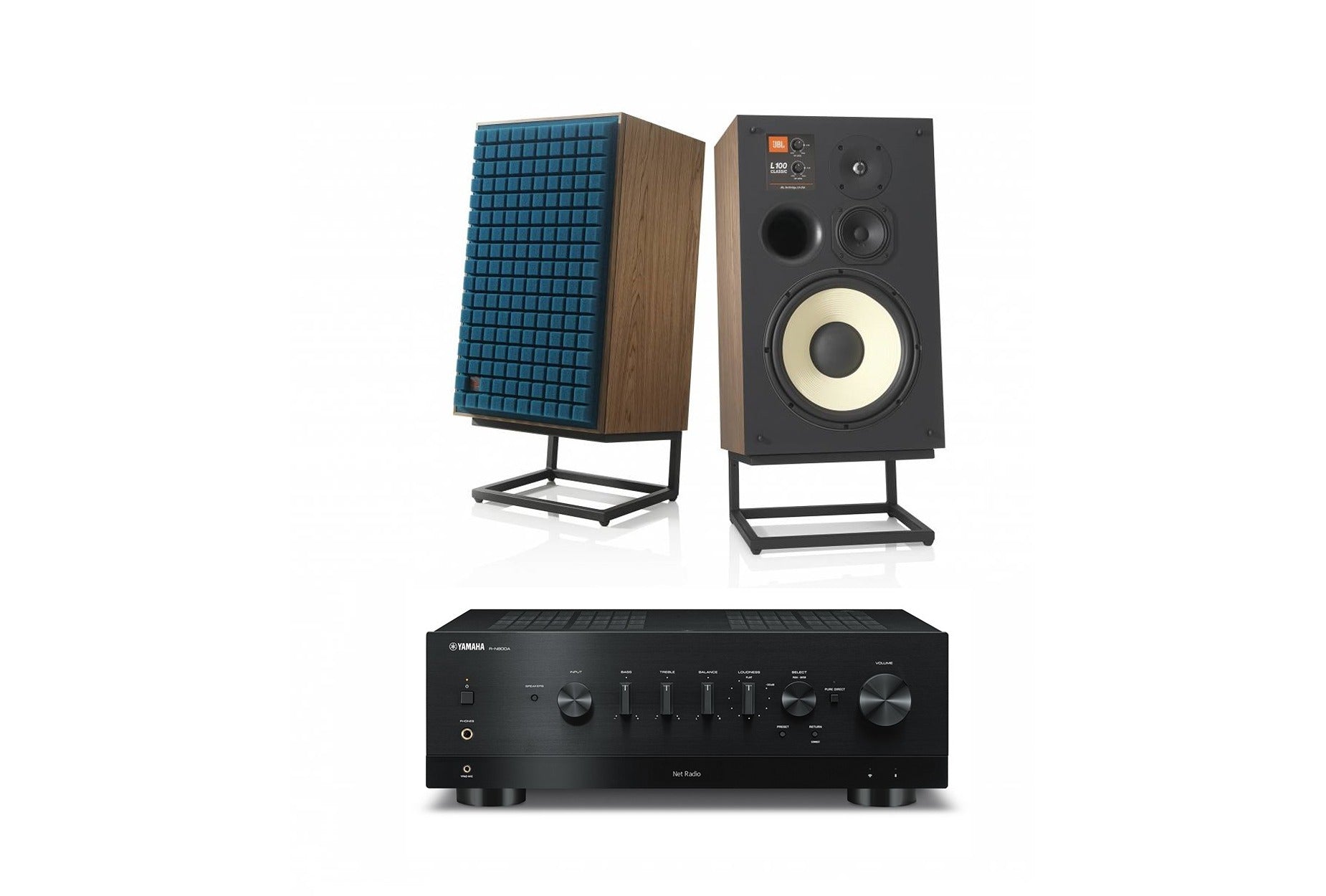

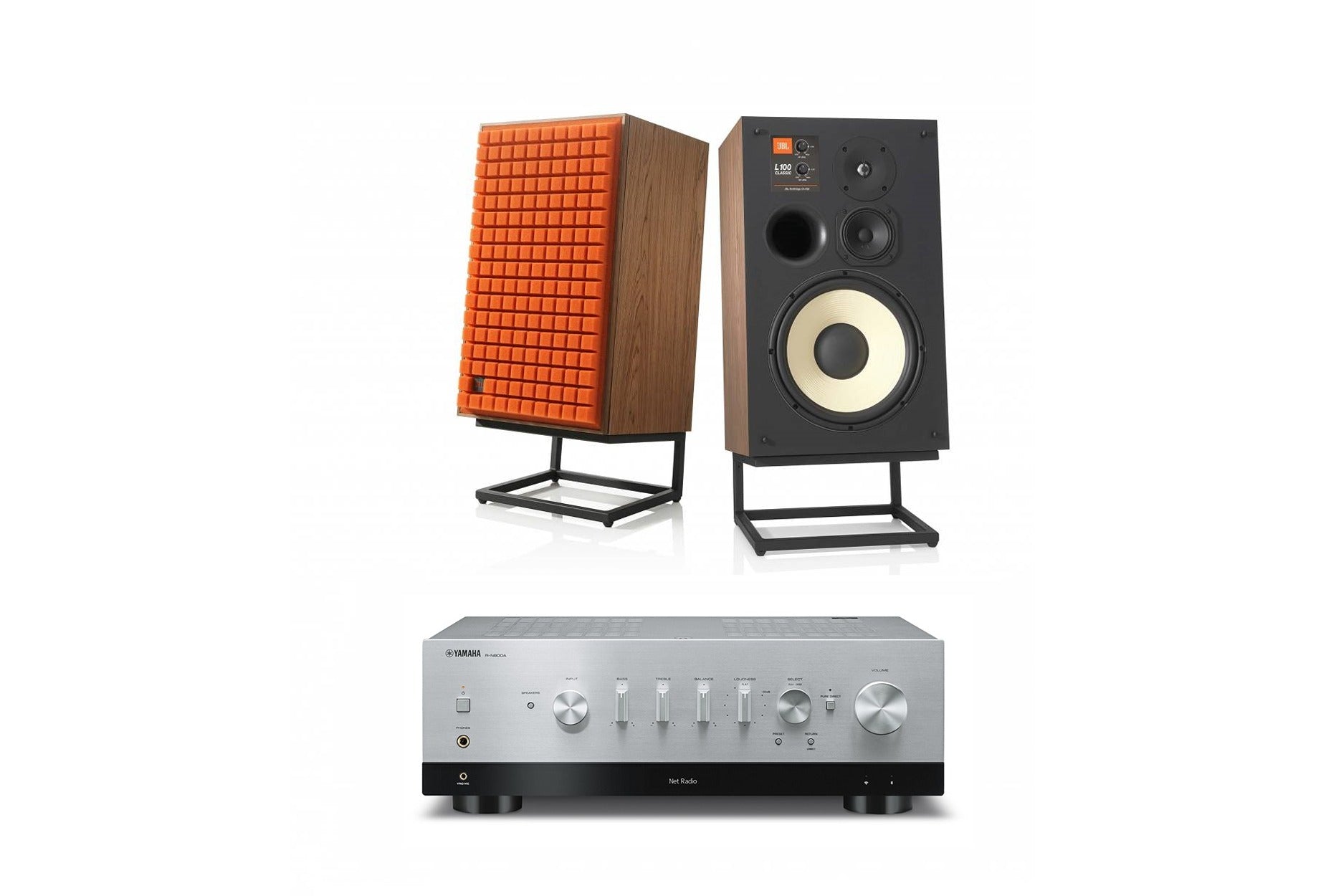

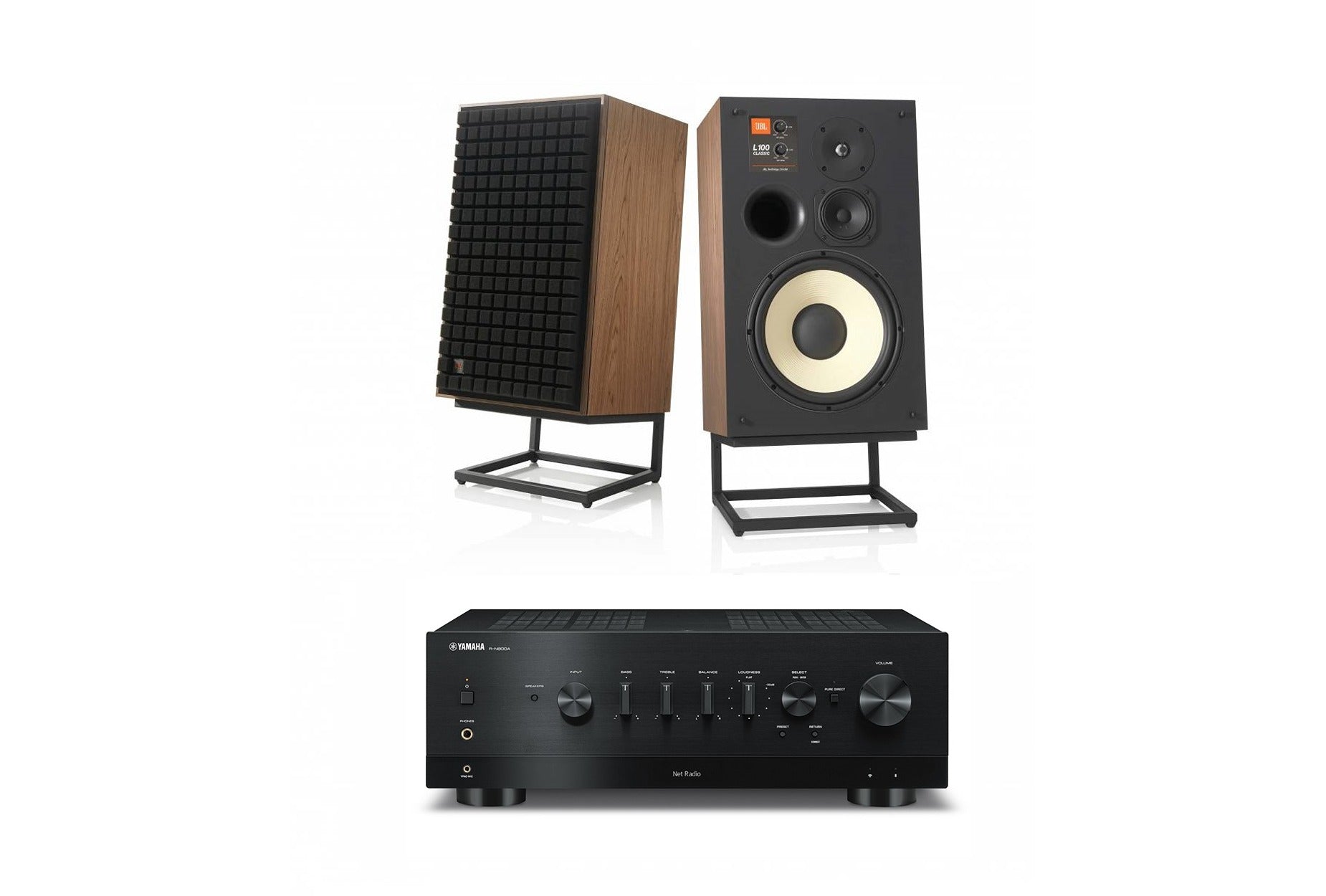

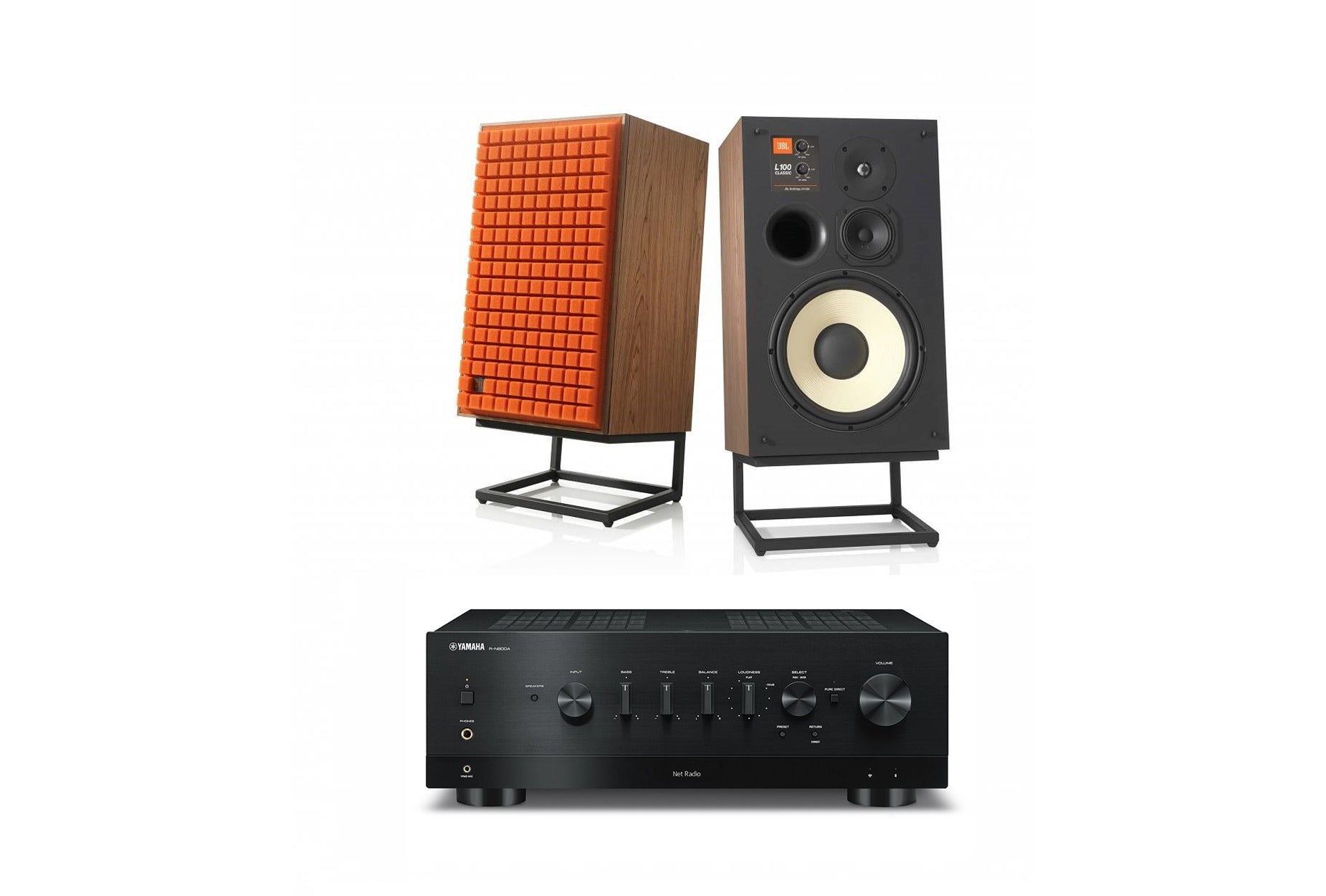

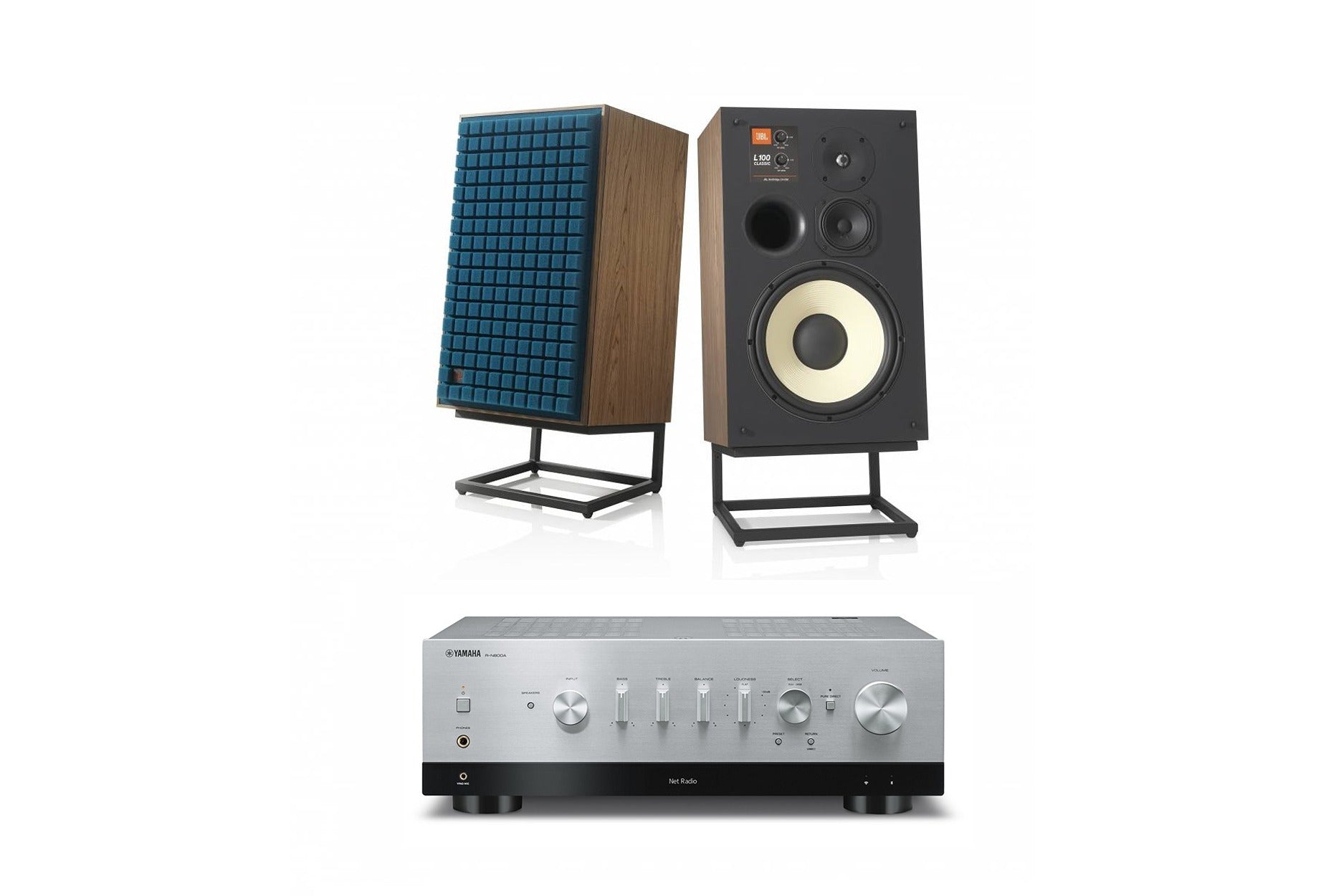

THIS BUNDLE INCLUDES:
1 PAIR JBL 100 CLASSIC 12" 3-WAY BOOKSHELF SPEAKERS (BLACK, ORANGE, OR BLUE GRILLS)
1 YAMAHA R-N800A STEREO A/V RECEIVER (BLACK OR SILVER)
JBL L100 Classic
In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.
Main Features:
- Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
- Genuine satin walnut wood veneer enclosure with black painted front and rear panels
- 12-inch white cone, pure pulp woofer with cast frame
- 5-inch pure pulp cone midrange
- 1-inch titanium dome tweeter
- Bass-reflex design with front-firing port
- High-frequency and mid-frequency L-pad attenuators
Yamaha R-N800A
Specs
JBL L100 Classic Specifications:
Description 3-way Bookshelf Loudspeaker
Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
Frequency Response 40Hz 40kHz (-6dB)
Sensitivity 90dB (2.83V/1m)
Power Handling 25 - 200 Watts RMS
Crossover Frequencies 450Hz, 3.5kHz
Impedance 4 Ohms
Controls Attenuators for MF and HF drivers
Connectors Five-way gold-plated binding posts
Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
Weight 58.5 lbs (26.7 kg)
Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue
Yamaha R-N800A Specifications:
Receiver / Integrated Amplifier
Network section File Format MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
Wi-Fi Yes
Bluetooth Yes (SBC / AAC)
AirPlay Yes
Rated Output Power [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms) 140 / 170 / 220 / 290 W
Frequency Response 10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ0±0.5 (Pure Direct ON)
Signal-to-Noise Ratio (CD) 100 dB (Pure Direct ON)
Audio In / Out Phono, CD, line1, line2 / Pre out, Subwoofer out
Digital Input Optical1, Optical2, Coaxial1, Coaxial2
HDMI(ARC) No
Phono Input Yes
USB Input USB DAC (USB B-type)
Ethernet Yes
Headphone Out Yes
Subwoofer Out Yes
Control (Trigger) Out Yes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) 3 µV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo) 69 dB / 68 dB
Pure Direct Yes
ToP-ART Yes
Standby Power Consumption 0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
Dimensions (W x H x D) 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
