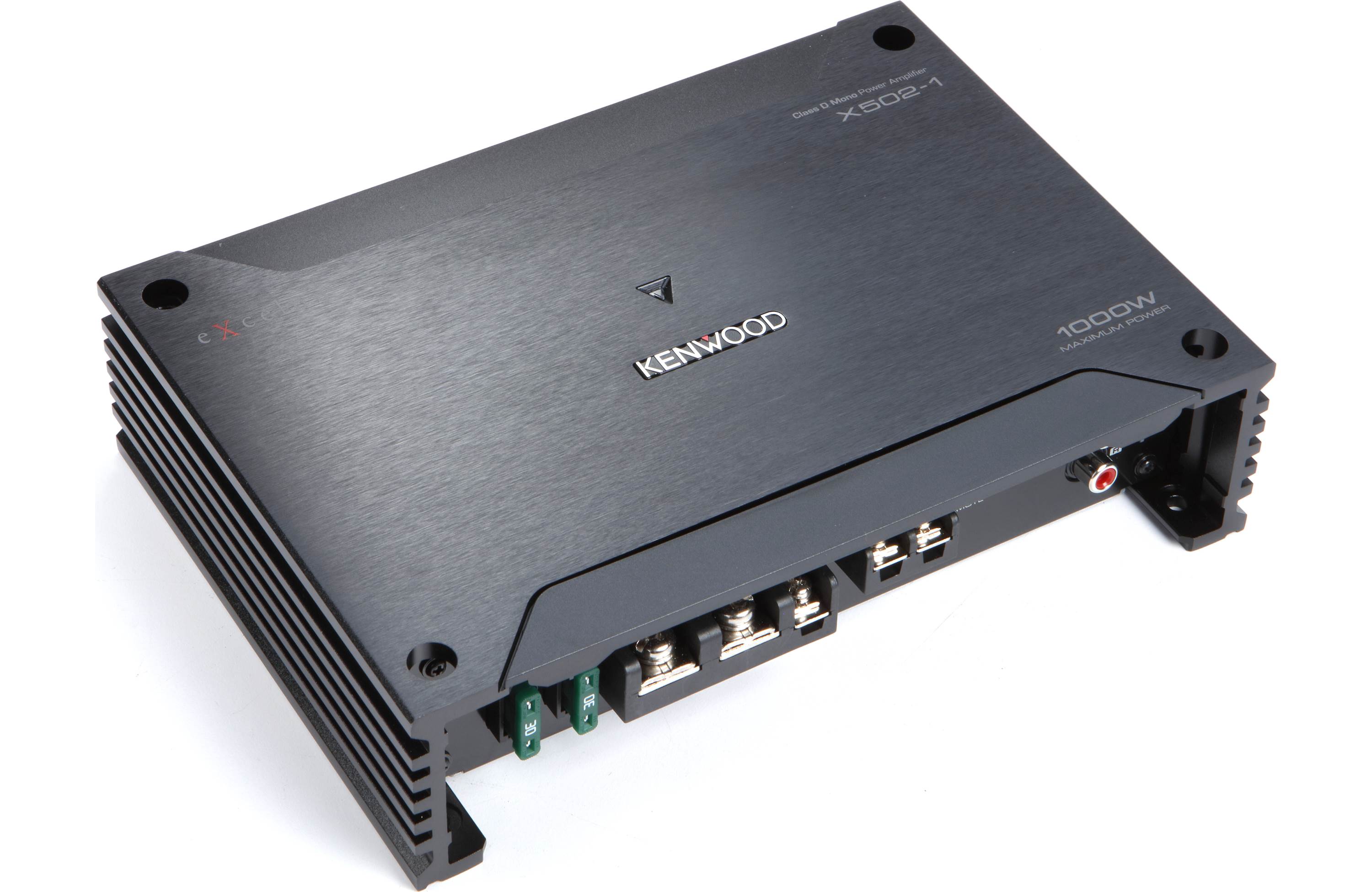

Kenwood Excelon X502-1 Class D Mono Power Amplifier
- Max Power 1000W
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
- Variable Low Pass Filter
- Bass Boost
- Optional Wired Remote Ready
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
Variable Gain Circuit
Improved Signal to Noise Ratio
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
Specs
MAX POWER 1000W
RMS POWER OUTPUT (4Ω) 300W
RMS POWER OUTPUT (2Ω) 500W
RMS POWER OUTPUT Bridged -
Features Speaker Level Input
Signal Sensing Turn-On
Variable Low Pass Filter
Infrasonic Filter
Bass Boost
Optional Wired Remote Ready
Dimensions (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
Weight 3.1 lbs ( 1.4 kg)
