STANDS NOT INCLUDED

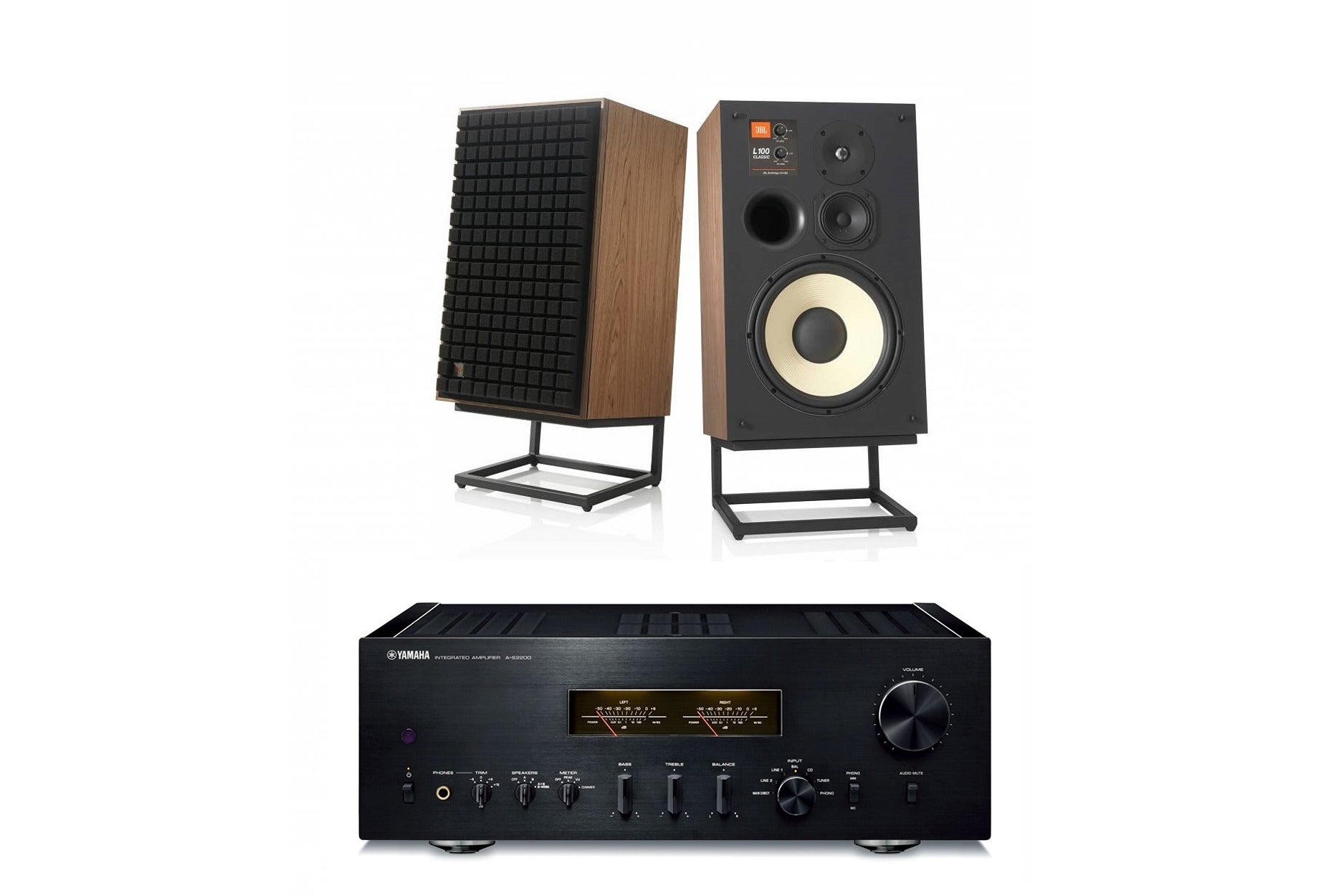

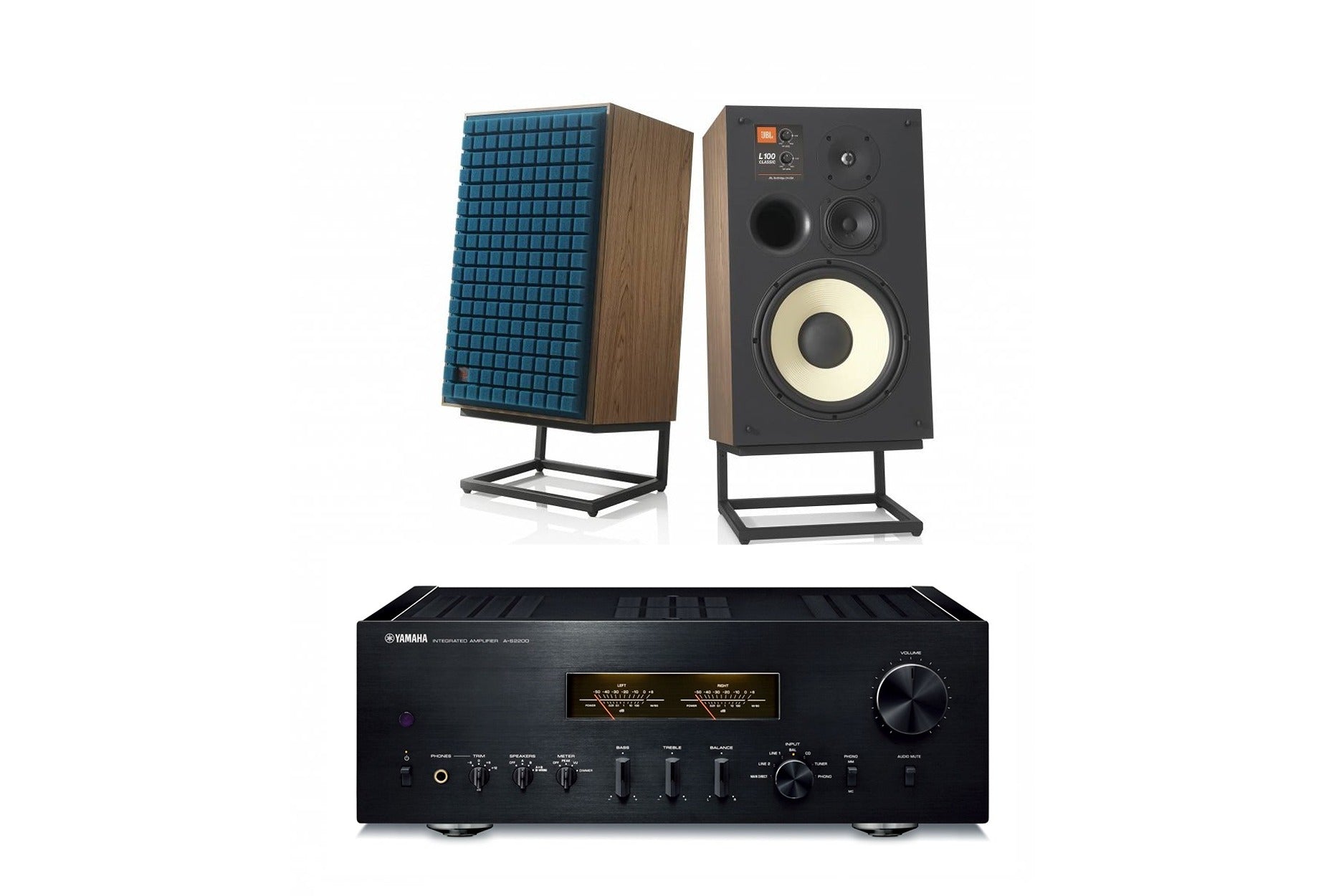

THIS BUNDLE INCLUDES:
1 PAIR JBL 100 CLASSIC 12" 3-WAY BOOKSHELF SPEAKERS (BLACK, ORANGE, OR BLUE GRILLS)
1 YAMAHA A-S2200 Integrated Amplifier Black Finish
JBL L100 Classic
In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.
Main Features:
- Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
- Genuine satin walnut wood veneer enclosure with black painted front and rear panels
- 12-inch white cone, pure pulp woofer with cast frame
- 5-inch pure pulp cone midrange
- 1-inch titanium dome tweeter
- Bass-reflex design with front-firing port
- High-frequency and mid-frequency L-pad attenuators
Yamaha A-S2200
Specs
JBL L100 Classic Specifications:
Description 3-way Bookshelf Loudspeaker
Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
Frequency Response 40Hz 40kHz (-6dB)
Sensitivity 90dB (2.83V/1m)
Power Handling 25 - 200 Watts RMS
Crossover Frequencies 450Hz, 3.5kHz
Impedance 4 Ohms
Controls Attenuators for MF and HF drivers
Connectors Five-way gold-plated binding posts
Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
Weight 58.5 lbs (26.7 kg)
Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue
Yamaha A-S2200 Specifications:
Receiver / Integrated Amplifier
Rated Output Power [20 Hz-20 kHz, 0.07% THD] 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
High Dynamic Power/Channel (8/6/4/2 ohms) 105/135/190/220 W
Damping Factor 250 (1 kHz, 8 ohms)
Frequency Response +0 / -3 dB (5 Hz-100 kHz) , +0 / -0.3 dB (20 Hz-20 kHz)
RIAA Equalization Deviation +/-0.5 dB (PHONO (MM/MC))
Total Harmonic Distortion (20Hz to 20kHz) PHONO MC LINE2 OUT: 0.02 % (1.2 Vrms), PHONO LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL SP OUT: 0.035 % (50 W/8 ohms)
Signal-to-Noise Ratio PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
Input Sensitivity [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
Transformer 625VA (Toroidal)
Dimensions (W x H x D) 17-1/8" x 6-1/8" x 18-1/4"
Weight 50.0 lbs
