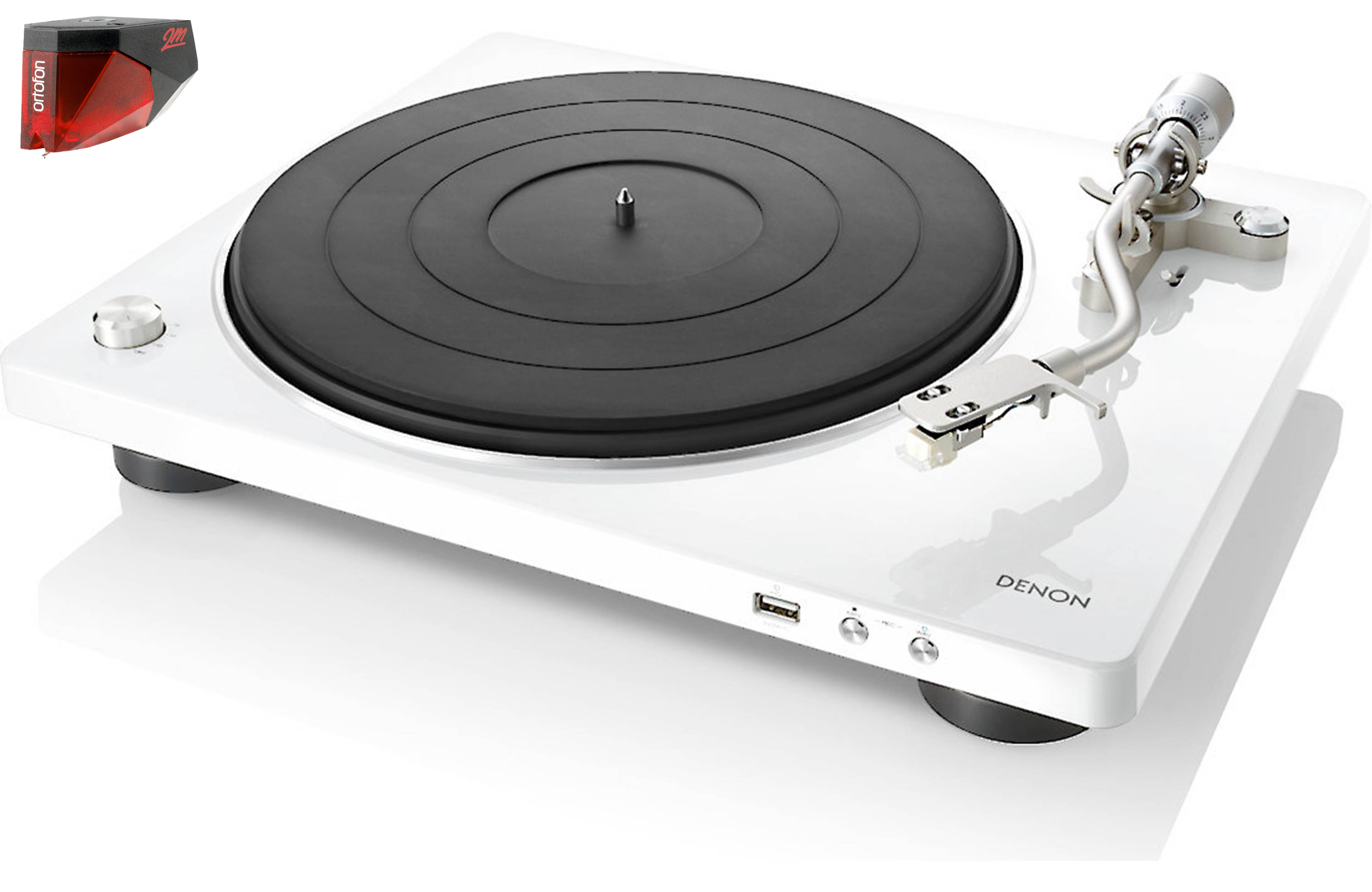

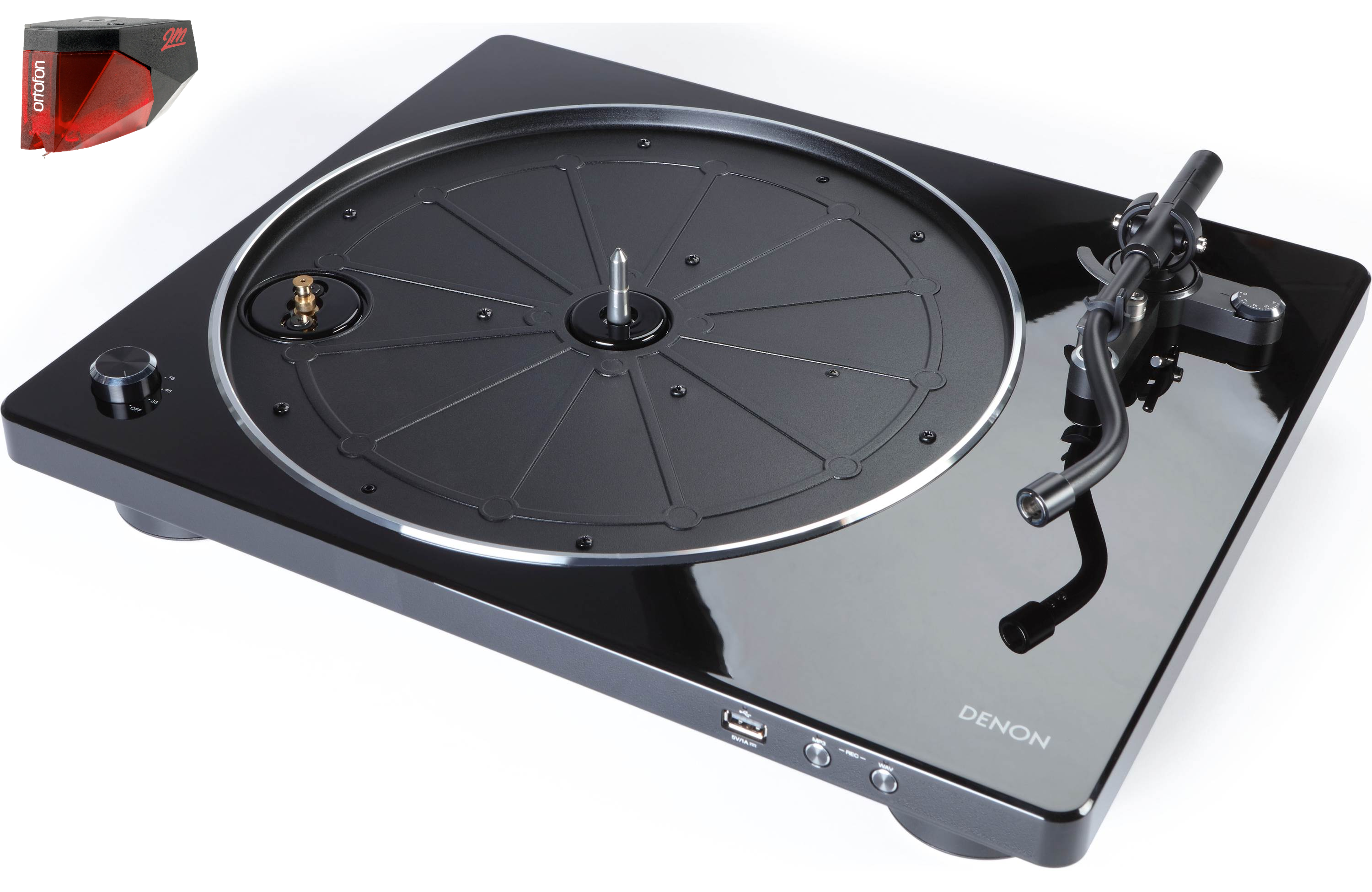

This Turntable Bundle consists of the following:
QTY: 1 Denon DP-450USB Hi-Fi Hi-Fi Turntable with USB
QTY: 1 Ortofon 2m Red Moving Magnet Phono Cartridge
**Phono Cartridge comes professionally mounted and calibrated
Overview
Reinvigorate your passion for vinyl at home or on-the-go with the Denon DP-450USB. Integrated USB-A port lets you digitize your vinyl collection and create quality records in MP3 or WAV file formats. Strong, sophisticated design perfectly blends with the existing Denon Design Series. Curved, horizontal tracking angled tone-arm and weighted, belt-driven platter spins your 33 1/3 rpm, 45 rpm or 75 rpm records with precision and detail. Connect the DP-450USB to any amplifier or system with analog inputs via the built-in phono equalizer and enjoy music that s faithful to the original recording.
CREATE DIGITAL FILES OF VINYL RECORDS
Enjoy your vinyl collection anywhere with DP-450USB. Integrated USB-A output allows for one-touch recording of your favorite vinyl records onto a USB drive as MP3 or WAV format files. Play your albums on the DP-450USB or record and take them with you to enjoy trusted Denon sound wherever you go.
Speed Selector
Supports playback at 33 1/3 rpm, 45 rpm and 78 rpm. Easily play your entire vinyl collection and enjoy its full breadth.
Easy Setup and Operation
Takes minutes to unbox and quickly operate for novice and seasoned vinyl fans. Plug DP-450USB into your favorite amplifier or system, including the Denon Design Series, and immediately begin reconnecting with your vinyl collection it s that easy.

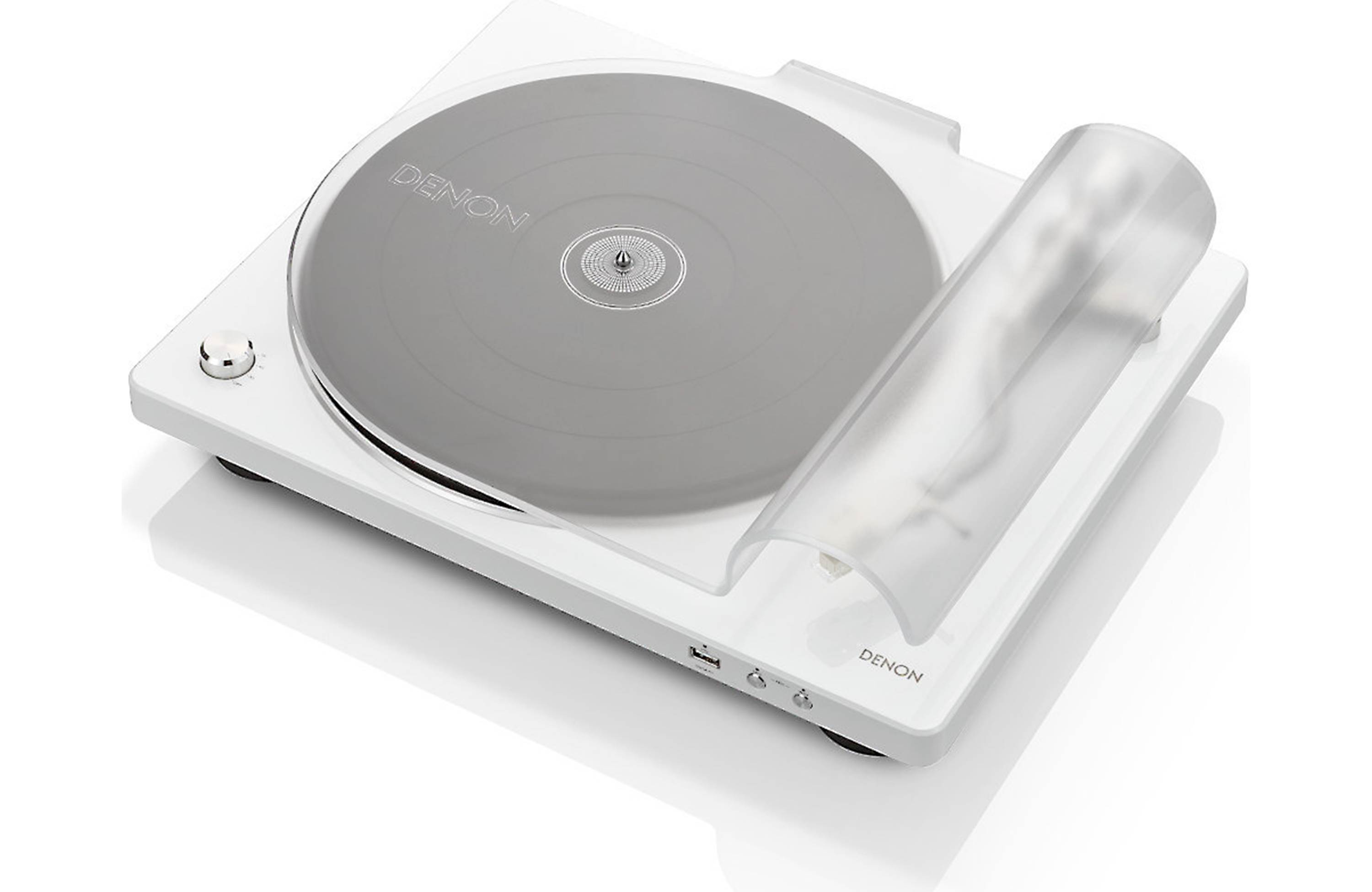

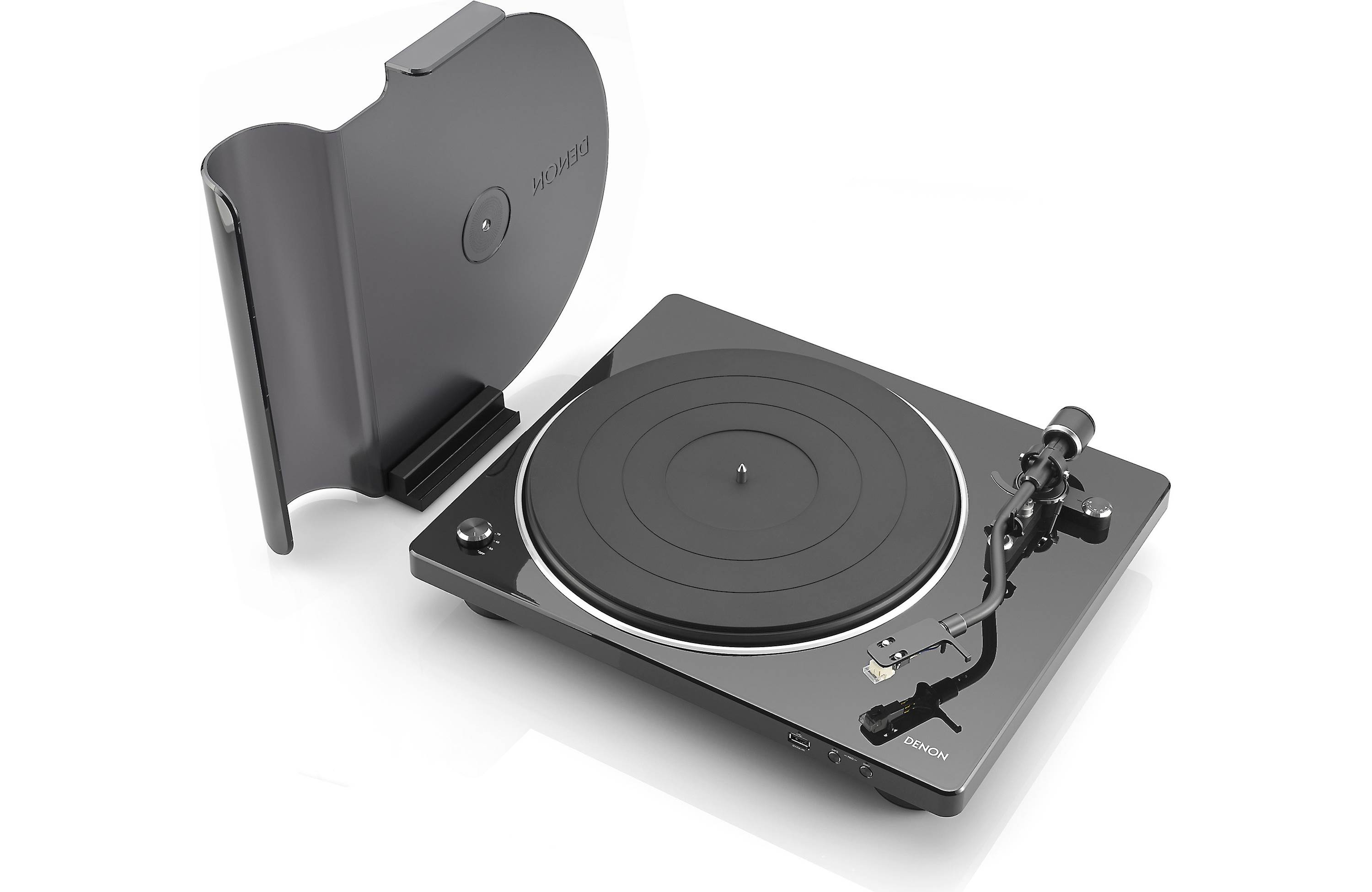

Exclusive, Removable Dual-purpose Dust Cover
Removable dust cover features a modern design, elevating the overall aesthetic of DP-450USB while eliminating vibration issues that affect music quality associated with attached covers. Doubling as a display stand for your album cover, place the dust cover upright on the included base and show it proudly to friends and family.
Phono Equalizer
Built-in phono equalizer creates an open, enveloping sound stage that enlivens your cherished vinyl collection while staying true to the original recording as the artist intended. Connect it directly to a mini component or integrated amp that lacks a phono terminal for seamless use.
Cartridge Options
Includes an MM cartridge for more precise listening and added musical detail. As a producer of the longest-selling cartridge in market, enjoy the Denon DP-450USB turntable with confidence. If you prefer listening via an MC cartridge, easily swap out the existing MM cartridge to fit your audio preferences. Enjoy iconic Denon sound quality however you choose to listen.
Musicut Software for Windows 10
Cut and organize your ripped vinyl albums with this easy-to-use PC software (for MP3 format only). Download the metadata for each track and easily build a digital library of your vinyl collection with each record s original warmth and sound.
Weighted, Belt-driven Platter with Auto Sensor
Integrated auto sensor accurately controls the platter, preventing unwanted speed fluctuations during playback enjoy audio reproduction exactly as the artist intended.
Compact Size
At just 415 mm in width, DP-400USB is constructed to fit seamlessly into your existing Hi-Fi system. Though compact in size, it still delivers the powerful, detailed sound you expect from Denon.
Sophisticated Design Series Aesthetic
Blending seamlessly with the popular Denon Design Series, DP-450USB features a sophisticated form factor and solid construction. Durable aluminum materials offer a modern aesthetic. Pair it with the rest of the Denon Design Series to complete your elegantly designed Hi-Fi system.
100+ Years of Firsts in Audio Technology
Founded in 1910, Denon has a deep heritage of "firsts" in audio technology from Japan's first audio electronics manufacturer, to producing the world's first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.
Specs
Denon DP-450USB Turntable Specifications:
- Drive type: Belt drive
- Motor: DC servo motor
- RPM speeds: 33 1/3, 45, 78 RPM
- Wow & flutter: 0.1% WRMS
- S/N ratio: 62dB
- Tonearm: Static balanced type
- Tonearm effective length: 220mm
- Overhang: 16mm
- Stylus pressure range: 0 - 4.0g (0-39.2mN), 1 gradation is 0.1g (0.98mN)
- Compatible cartridge weight: 5.0 - 13.0g, (59.2mN - 127.5mN)
- Cartridge: MM type
- Output voltage
- Equalizer off: 2.5mV
- Equalizer on: 150mV
- Optimum stylus pressure: 2.0g (19.6mN)
- USB port: USB recording, typeA USB port, version 2.0
- Power supply: AC 100 - 240V, 50/60Hz
- Power consumption: 10W
- In standby mode: 0.5W or less
- Dimensions (W x H x D): 16.2" x 5.2" x 13.7"
- Weight: 12.4 lbs.
Ortofon 2M Red Specifications:
- Designed with a heavier base construction to decrease vibration for superior performance
- Tone arm action starts and stops automatically using gentle lifting and lowering motions to protect your vinyl
- Moving-magnet (MM) cartridge headshell is removable
- Turntable sheet is 5mm thick; uses hologram vibration analysis to improve its ability to hold a record
- DC servo motor and belt drive system with rotation speeds of 33 1/3 or 45 rpm
Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-22.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 m
Compliance, dynamic, lateral - 20 m/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 m
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Red
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)
