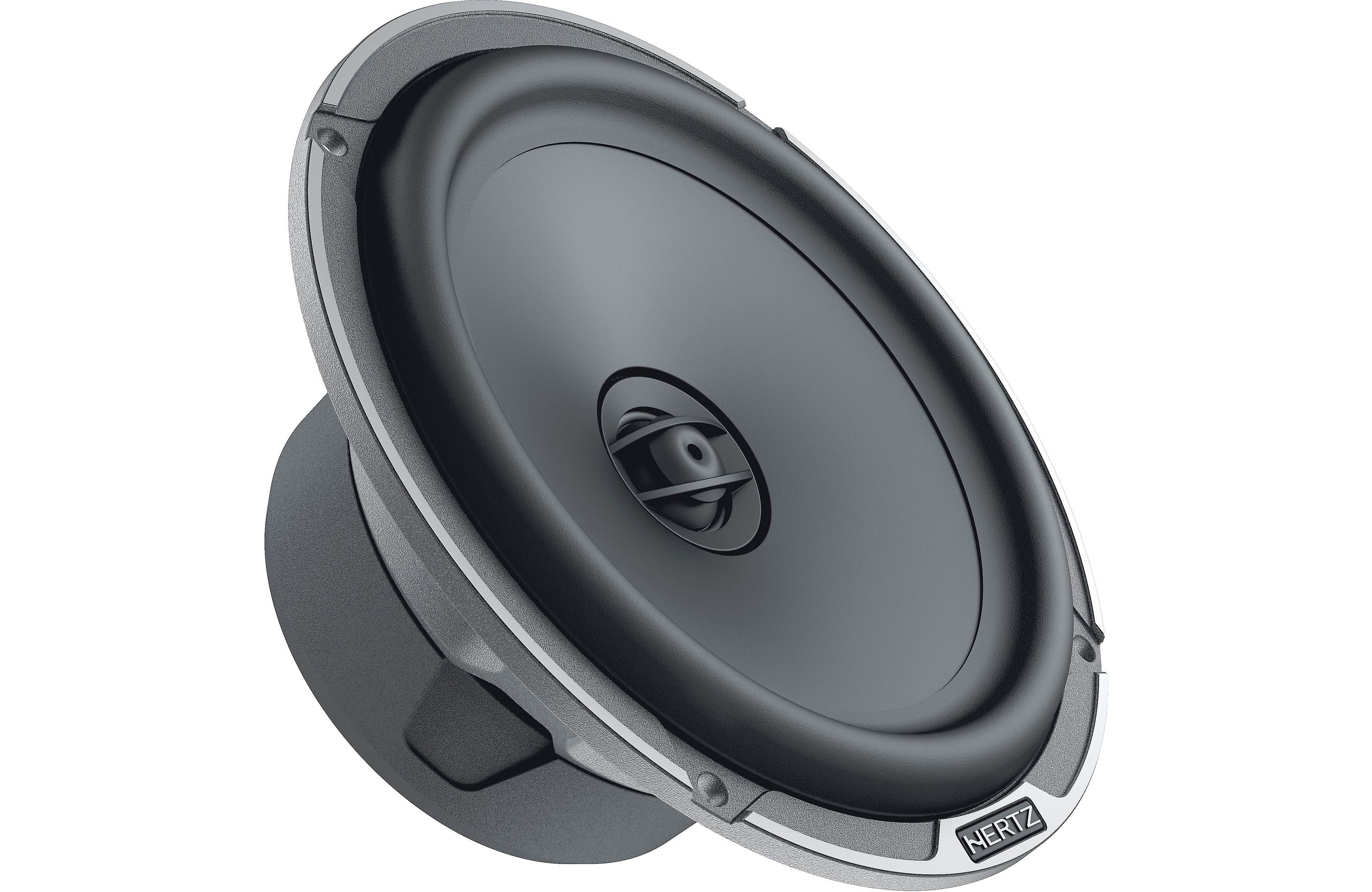

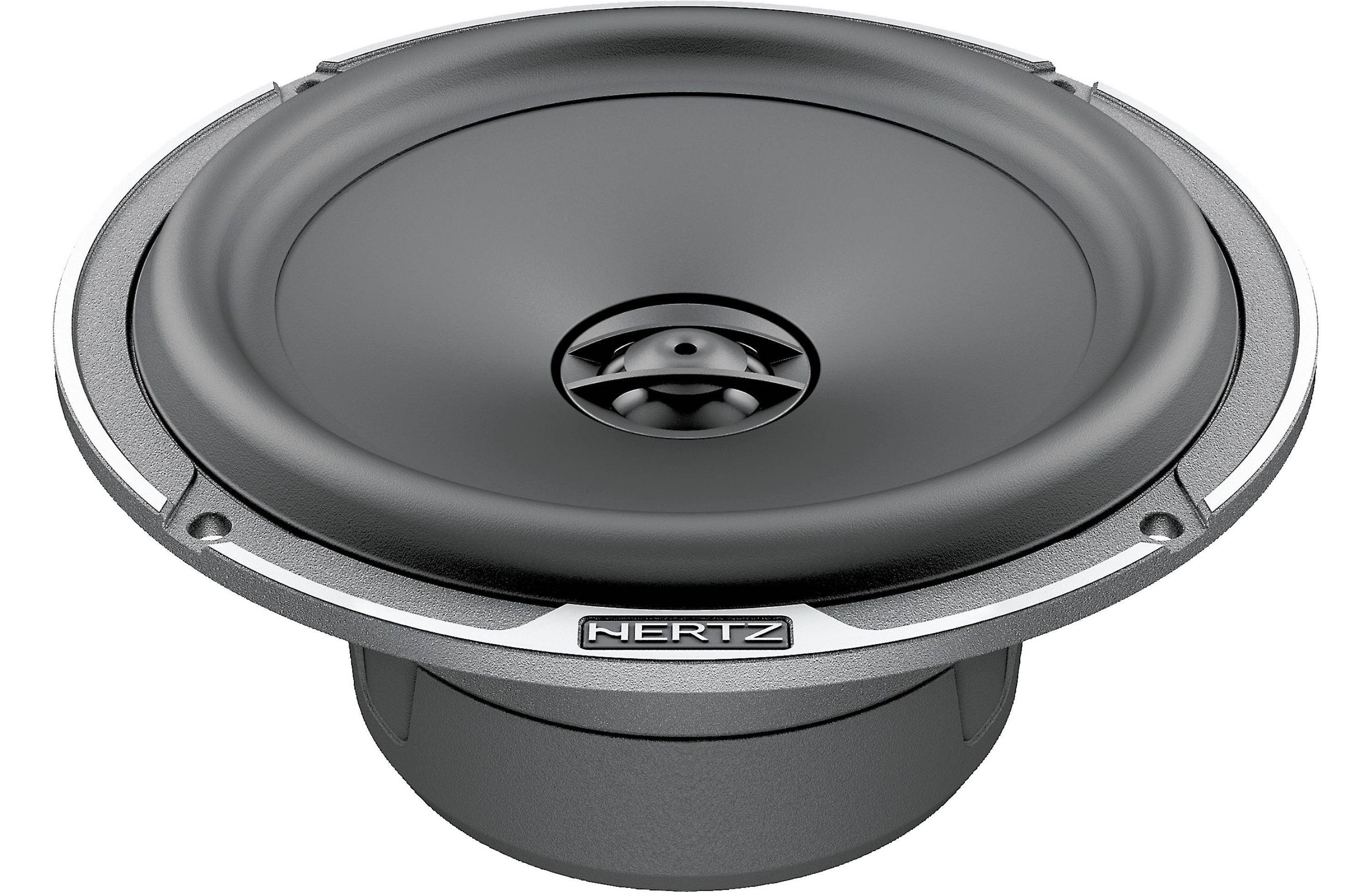

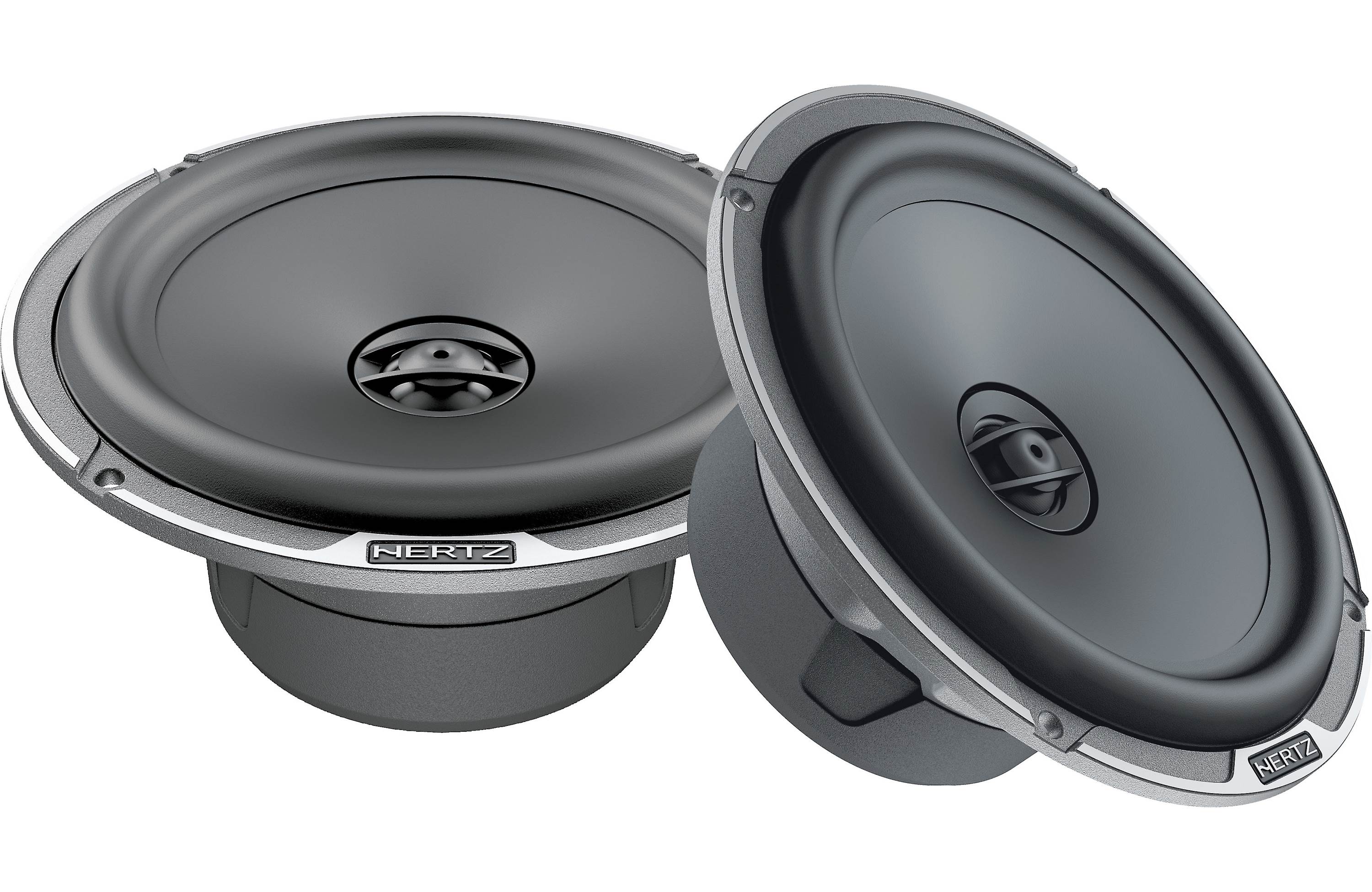

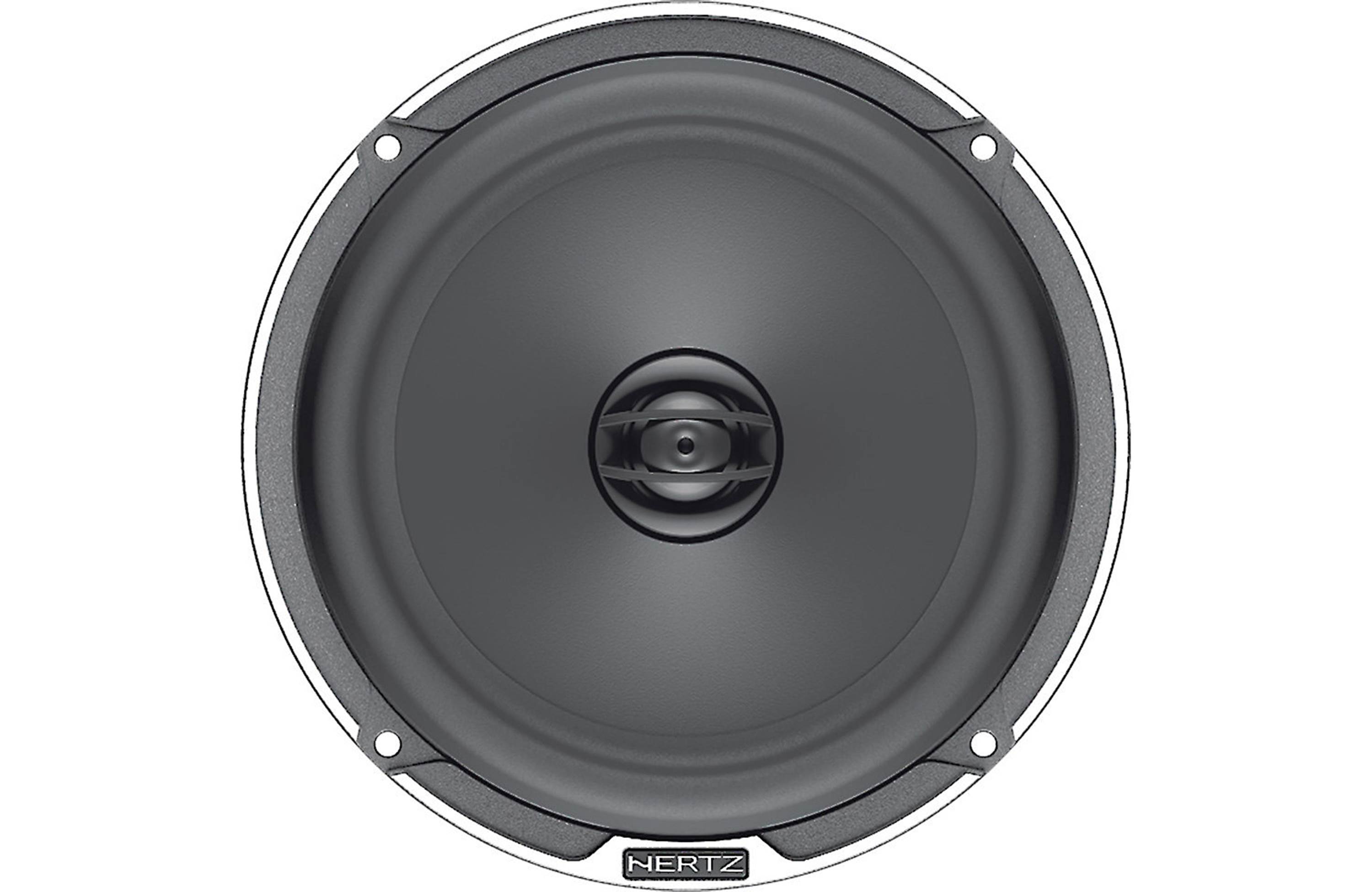

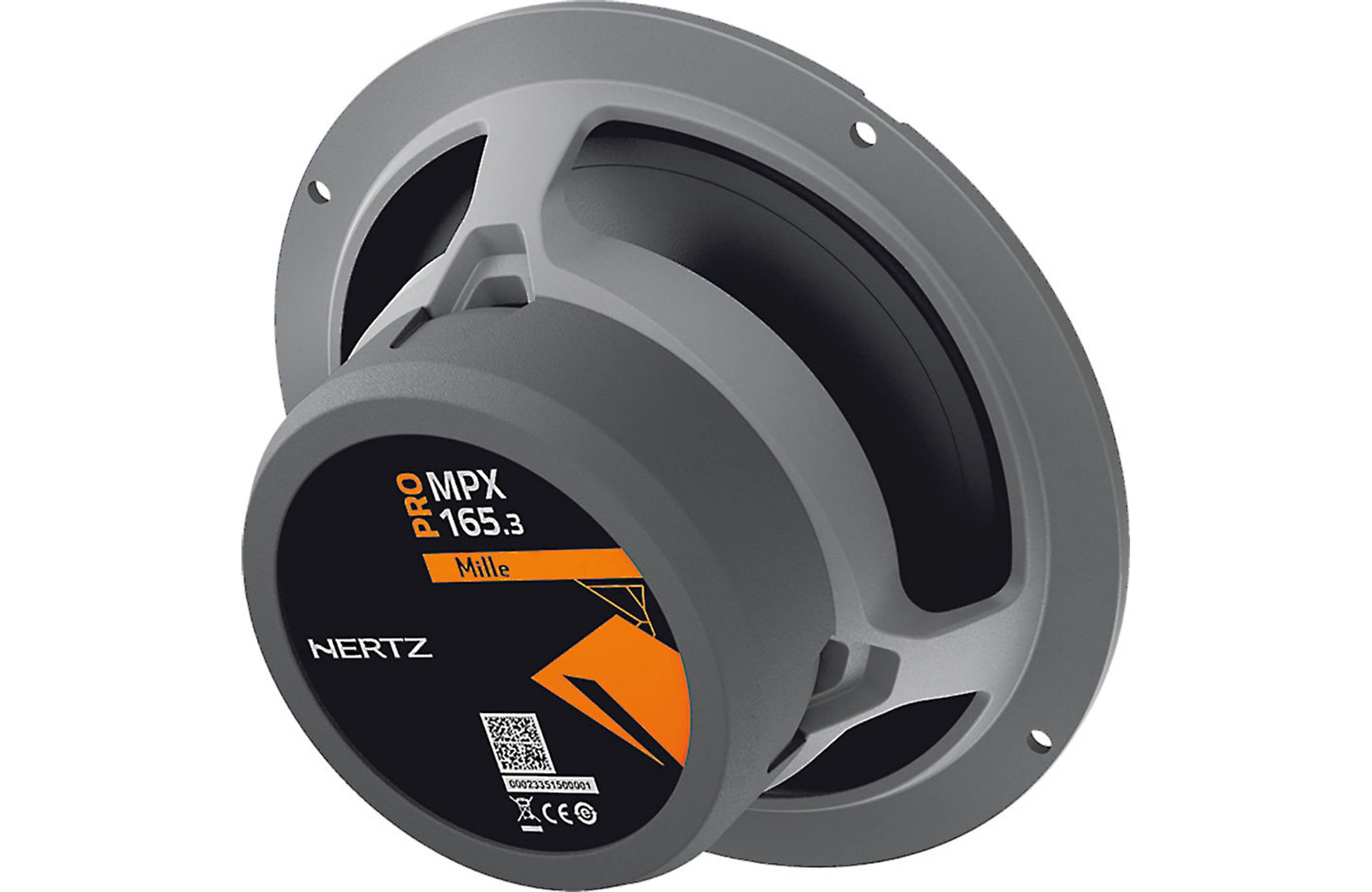

Hertz MPX 165.3 Mille Pro 2-Way 6.5" Coaxial Speaker (Pair)
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the Center Tuning Duct geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
Features
1. CONCENTRIC COAXIAL TWEETER: built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
2. TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
3. 36 MM PURE COPPER WOOFER VOICE COIL: wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
4. PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
5. BOUNDARY FREE RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)
6. OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
7. BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
8. ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations.
Specs
Power Handling - Peak W 200
Power Handling - Continuous W 100
Impedance 4
Frequency response Hz 45 21,5k
Sensitivity dB SPL 92
Woofer size mm (in.) 165 (6.5)
Tweeter size mm (in.) 25 (1)
Woofer Voice Coil mm (in.) 36 (1.42)
Tweeter voice coil mm (in.) 20 (0.8)
Woofer magnet High density flux ferrite
Tweeter magnet Neodymium
Woofer cone Pressed-pulp cone with cotton fibers
Tweeter dome Tetolon
