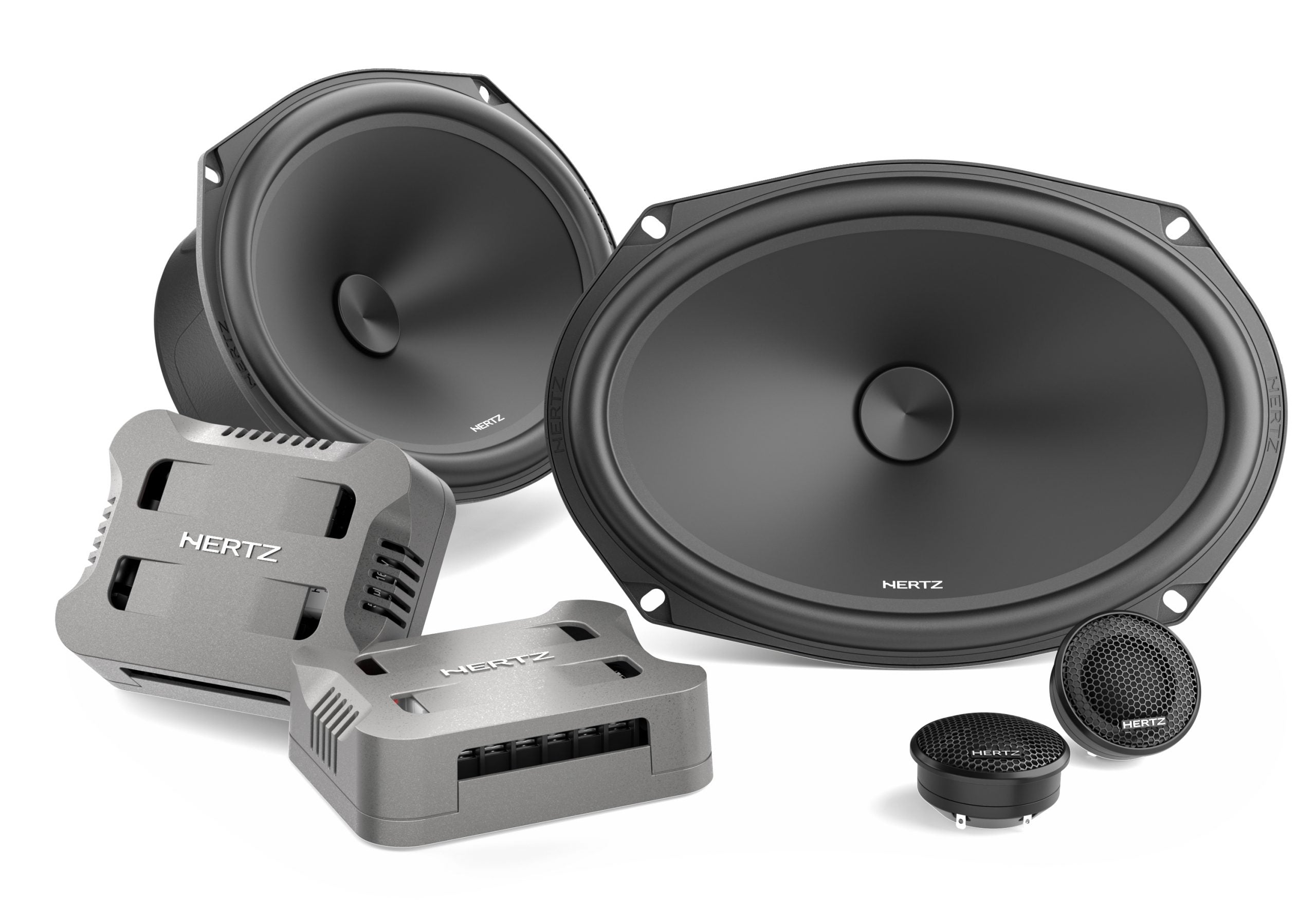

Hertz CPK 690 6" x 9" Component Speaker System (Pair)
The latest addition to the Cento PRO line is the CPK 690 system equipped with an elliptical woofer to avail of the 6 x 9 door placements, which are particularly common in the North American market, such as for the models of Toyota and FORD groups.
Like the other speakers of the Cento PRO line, the woofer cone is made of pressed paper, the most suitable material to obtain a linear and controlled emission even when the woofer is driven with very high power.
All electroacoustic parameters have been optimized to obtain maximum performance with door installations; we therefore find a magnetic group and voice coil improved for an excellent power handling and a lower resonance frequency.
The large emission area of the CP 690 increases the woofer efficiency and extends the response down to 35 Hz.
The crossover made with selected components, features a low-pass filter on the woofer with a 6 dB/oct. slope and
12 dB/oct. on the tweeter with three levels of attenuation.
CPK 690 is dedicated to the young enthusiast who wants a front row seat at their favorite concert while sitting comfortably behind the steering wheel.
Specs
Component System
Size mm (in.) (6 x 9)
Power Handling - Continuous W 120
Power Handling - Peak W 360
Impedance Ohm 4
Tweeter diaphragm mm (in.) 29 (1.14)
Woofer Voice Coil Ø mm (in.) 30,5 (1.2)
Tweeter Voice Coil Ø mm (in.) 25 (1)
Sensitivity dB SPL 92
Frequency Response Hz 35 ÷ 22,5k
Crossover Cut off LP 6 dB / Oct. - HP 12 dB / Oct.
Crossover Type 2 Way
Weight of one component - Woofer 1,69 (3.73)
Weight of one component - Tweeter kg (lb) 0,07 (0.15)
Weight of one component - Crossover kg (lb) 0,2 (0.44)
