STANDS NOT INCLUDED

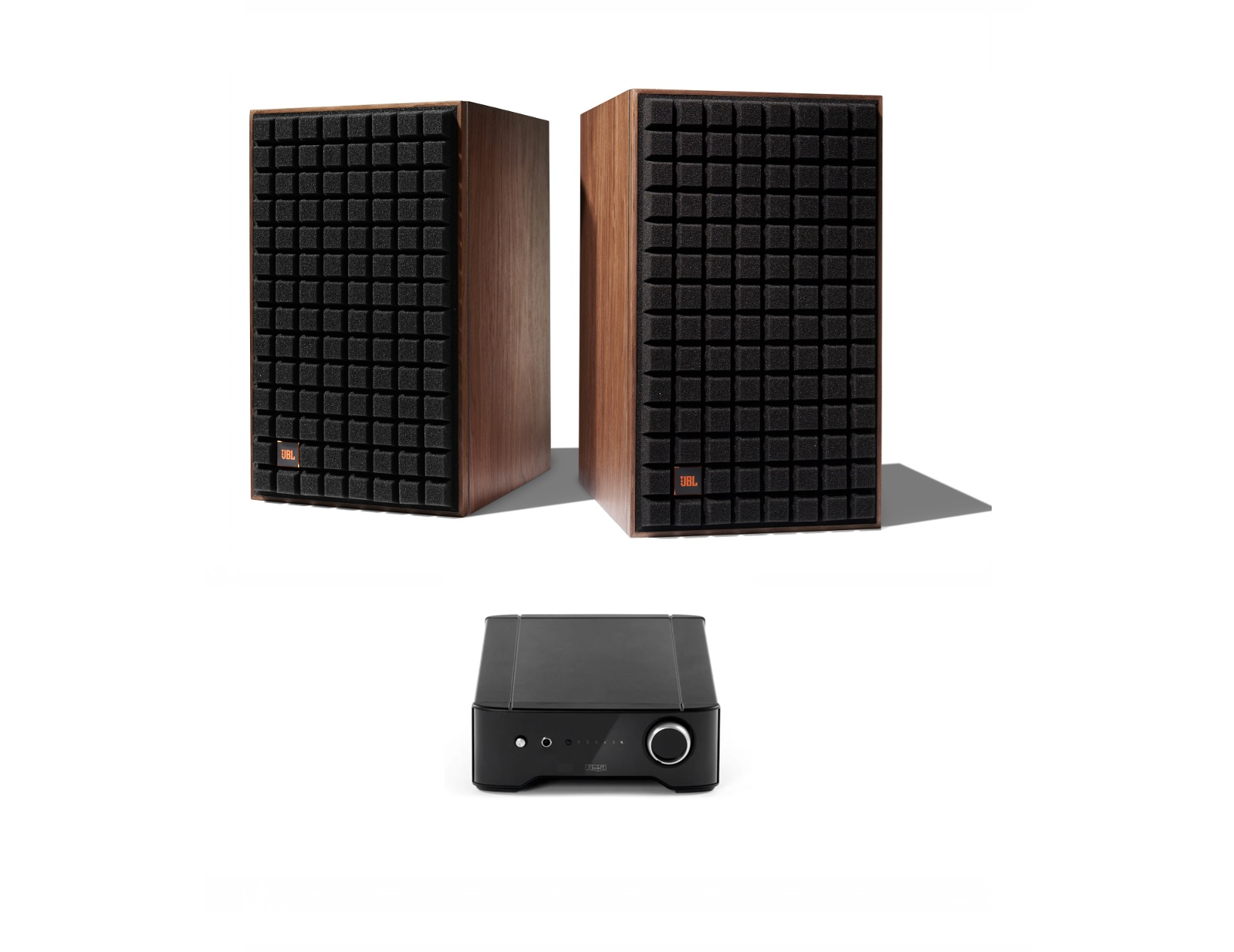

THIS BUNDLE INCLUDES:
1 PAIR JBL L82 Classic 8" 2-Way Bookshelf Speaker with Black Grills
1 Rega Brio Integrated Amplifier
JBL L82 Classic
The L82 Classic is a compact 8-inch (200mm) 2-way bookshelf loudspeaker featuring JBL s advanced acoustic technologies in combination with the iconic retro-inspired style of its larger family member: the L100 Classic. The vintage design of the L82 Classic features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lies modern acoustic components that deliver stunning sound sure to please any music lover. In the storied tradition of JBL 8-inch 2-way loudspeakers, the L82 Classic is sure to become a favorite of listeners around the world.
The L82 Classic is a compact 8-inch (200mm) 2-way bookshelf loudspeaker featuring JBL s advanced acoustic technologies in combination with the iconic retro-inspired style of its larger family member: the L100 Classic. The vintage design of the L82 Classic features a genuine walnut satin wood veneer cabinet and a striking Quadrex foam grille available in a choice of black, orange or blue. Beneath this compelling exterior lie modern acoustic components that deliver stunning sound sure to please any music lover. For pristine and detailed high frequencies, the L82 Classic utilizes a 1-inch (25mm) Titanium dome tweeter mated with a waveguide the same captivating high-frequency components found in the larger L100 Classic. A high-frequency L-pad attenuator allows the user to tailor the sound as desired. As a 2-way design, the L82 Classic uses a powerful 8-inch (200mm) cast-frame, white pure pulp cone woofer operating in a bass-reflex design with a front-firing tuned port. Despite its relative size, the L82 Classic provides dynamic and authoritative sound even in larger spaces. The accessory JS-80 floor stands allow the L82 Classic to be used in a freestanding environment with the loudspeaker angling gently backwards to focus the sound to the listening position in the same manner as the JS-120 floor stands with the L100 Classic. In the storied tradition of JBL 8-inch 2-way loudspeakers, the L82 Classic is sure to become a favorite of listeners around the world.
Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange, or blue
Genuine satin walnut wood veneer enclosure with black front and rear panels
8-inch white cone, pure pulp woofer with cast frame
1-inch titanium dome tweeter with waveguide
Bass-reflex design with front-firing port
High-frequency L-pad attenuator
Matching JS-80 floor stands available (sold separately)
Rega Brio
The Brio has a completely new case to house its improved circuits and parts. It now sits in a fully aluminum two-part case which boosts the Brio s heat sinking capabilities and improves on Rega's already solid build quality and reliability. The new Brio has a cleverly integrated headphone socket specially designed to avoid interference with the audio circuit when not in use and as you would expect, a very high specification moving magnet phono stage is built in as standard.
Throughout the design process the Brio has been meticulously improved in every aspect, from the quality of materials to the manufacturing process, to make this new Brio a step ahead in Rega s engineering and design for amplifiers.
Brand new case design.
The sleek and minimal look was designed to bring elegance to Rega's classic style but still harks back to the swooped features hidden away in Rega's past amplifiers. Combining all these aspects makes this Brio case a unique standpoint amongst the competition.
Re-designed circuit.
Key improvements have been made to the circuits. The PCB layout has been fully upgraded to handle higher specifications for all critical parts. A second raw power supply has been added to provide further isolation between output stage and the driver stage/line and phono amplifiers. This improves the isolation between high and low level signal stages of the amplifier. Higher specification MUSES operational amplifiers have been used in the line and phono amplifier.
Headphone Socket.
For convenience, the Brio has the capability to drive standard hi-fi headphones from the internal amplifier. Adding a headphone socket was only possible by finding a way to reduce its impact on the main signal path so it doesn't disrupt the overall sound quality. We have paid special attention to the switch that deactivates the main speakers.
Specs
JBL L82 Classic Specifications:
Speaker Type: 2-way bookshelf loudspeaker
Low Frequency Driver Size and Material: 8" (200mm) Pure Pulp cone woofer (JW200PW-6)
High Frequency Driver Size and Material: 1" (25mm) Titanium dome tweeter (JT025TI1-4)
Recommended Amplifier Power : 25 - 150 WRMS
Impedance: 8 Ohm
Loudspeaker Sensitivity: 88 dB (2.83V/1m)
Frequency Response: 44 Hz-40 kHz (-6 dB)
Crossover Frequency: 1.7 kHz
Enclosure Type: Front-ported bookshelf
Enclosure Finish: Genuine walnut veneer
Dimensions with grille (H x W x D): 18.61" x 11.06" x 11.65" (472.8mm x 281mm x 296mm)
Controls: HF level control
Input Type: Dual gold-plated binding posts
Product Weight: 27.9 lb (12.7 kg)
Shipping Weight: 64 lb (29 kg)
Rega Brio Specifications:
Specifications
Input sensitivities for rated output level:
Input 1 (phono) input sensitivity = 2.1mV at 47K in parallel with 220pF.
Maximum Input 1 (phono) input level = 100mV
Input 2-5 (line) input sensitivity = 210mV at 47k
Maximum input 2-5 (line) input level = 10.25V
Power outputs at 230/115V supply voltage:
50 Watts RMS both channels driven into the rated load of 8
58 Watts RMS one channel driven into the rated load of 8
73 Watts RMS both channels driven into the rated load of 4
93 Watts RMS one channel driven into the rated load of 4
Continued high level use into 4 may cause the case to exceed 40 C above the ambient temperature.
Headphone output:
No load = 8V
32 = 1.8V
54 = 2.6V
300 = 5.9V
Source impedance = 109
Power consumption:
195 Watts at 230V/220V/115V/100V into the rated load of 8
Record output level:Record output level (with rated input levels) = 210Mv.
Record output impedance = 470
Frequency response:
Phono 15Hz to 40KHz (-3dB Points) / 27Hz to 20.5KHz (-1dB Points)
RIAA accuracy (100Hz to 10KHz) 0.4dB typically better than 0.3dB
Line 12Hz (-1dB points) to 43KHz (-3dB points)
Remote control batteries included 2 x AAA Alkaline.
Fuse ratings:
T2AL 250V - 230V/50Hz and 220V/60Hz
T3.15AL 250V - 115V/60Hz and 100V 50/60Hz
Dimensions:
345mm (D) -inc volume control x 216mm (W) x 78mm (H)
Weight:
5.1kg
