Focal ES 165 KX3 K2 Power 6.5" 3 Way Component Speaker (Pair)
2 woofers 6,5 + 2 speakers 3

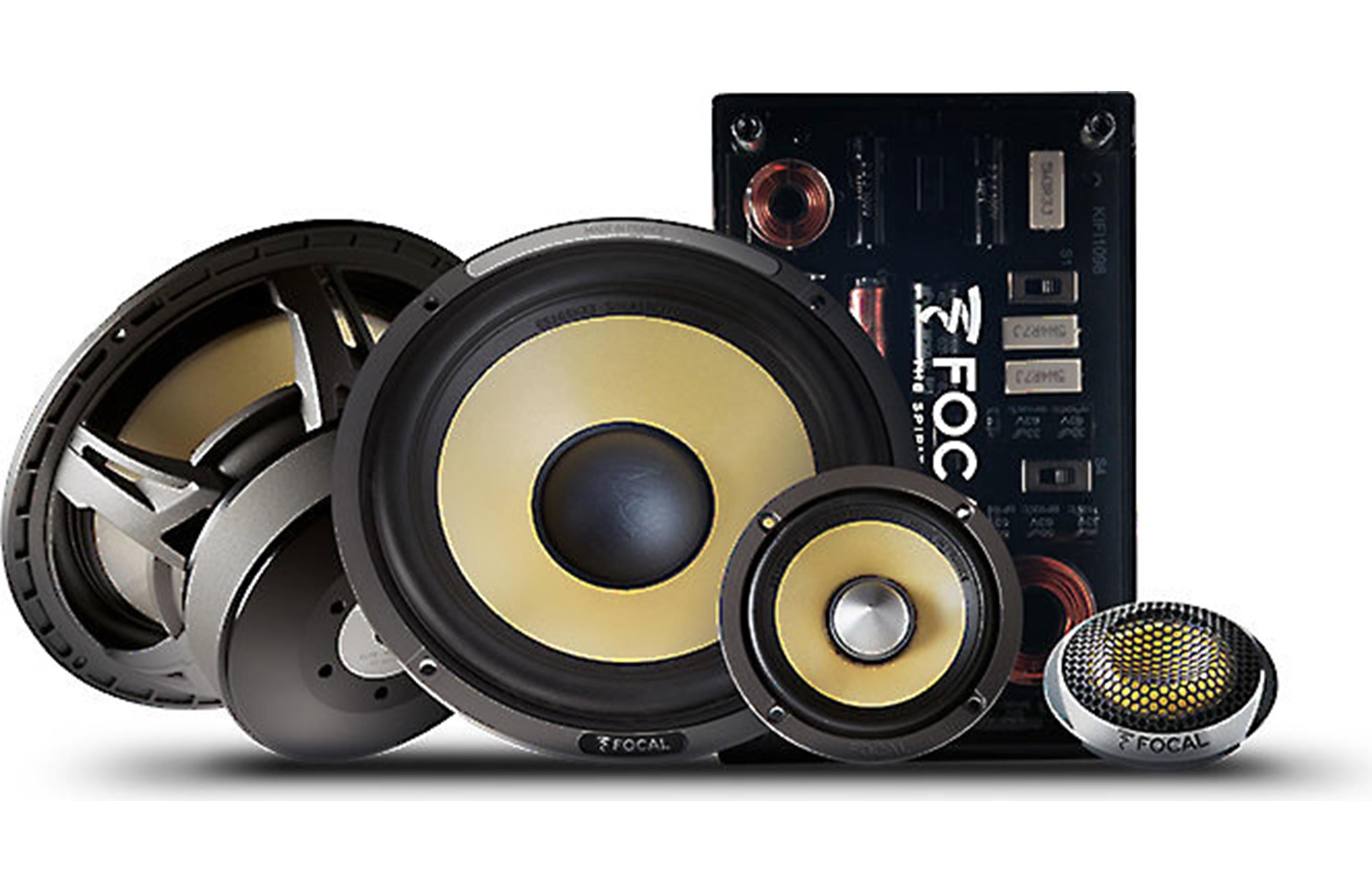

TWO-WAY COMPONENT KIT 6 " / 3"
The ES 165 KX3 is a very complete kit offering remarkably extensive frequency response (45 Hz - 22 kHz). Its main advantages are the excellent power handling and the very realistic soundstage.

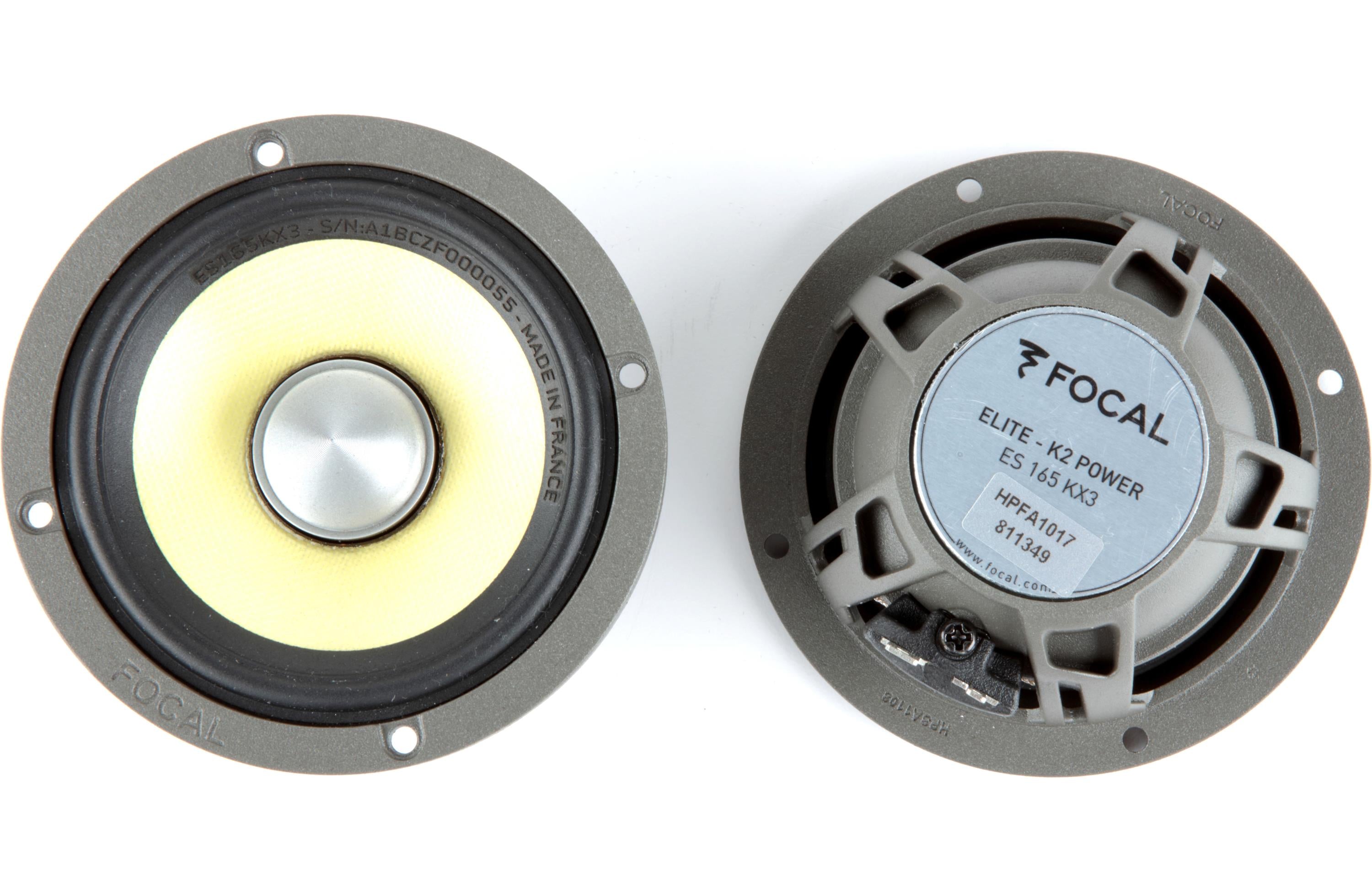

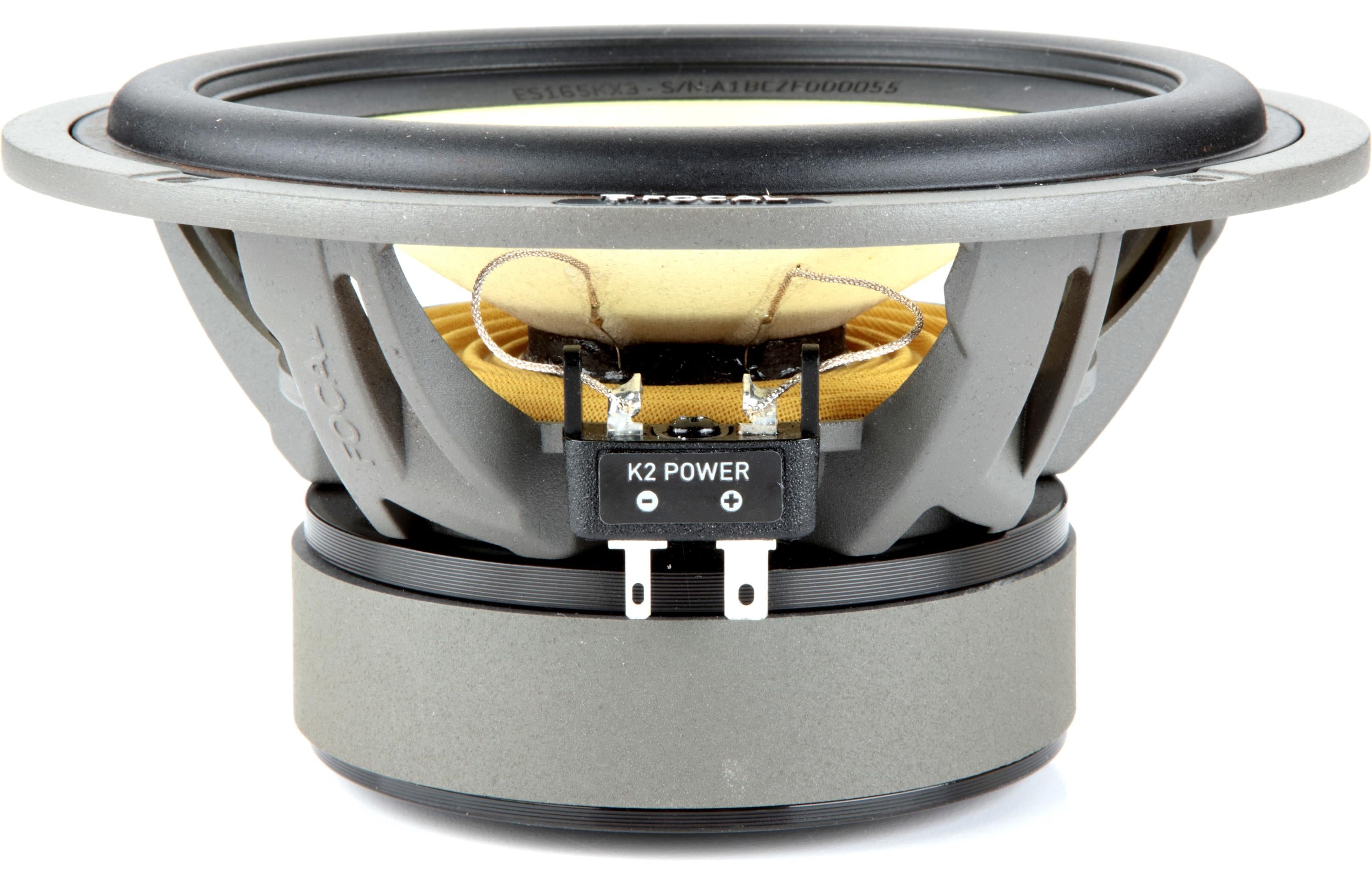

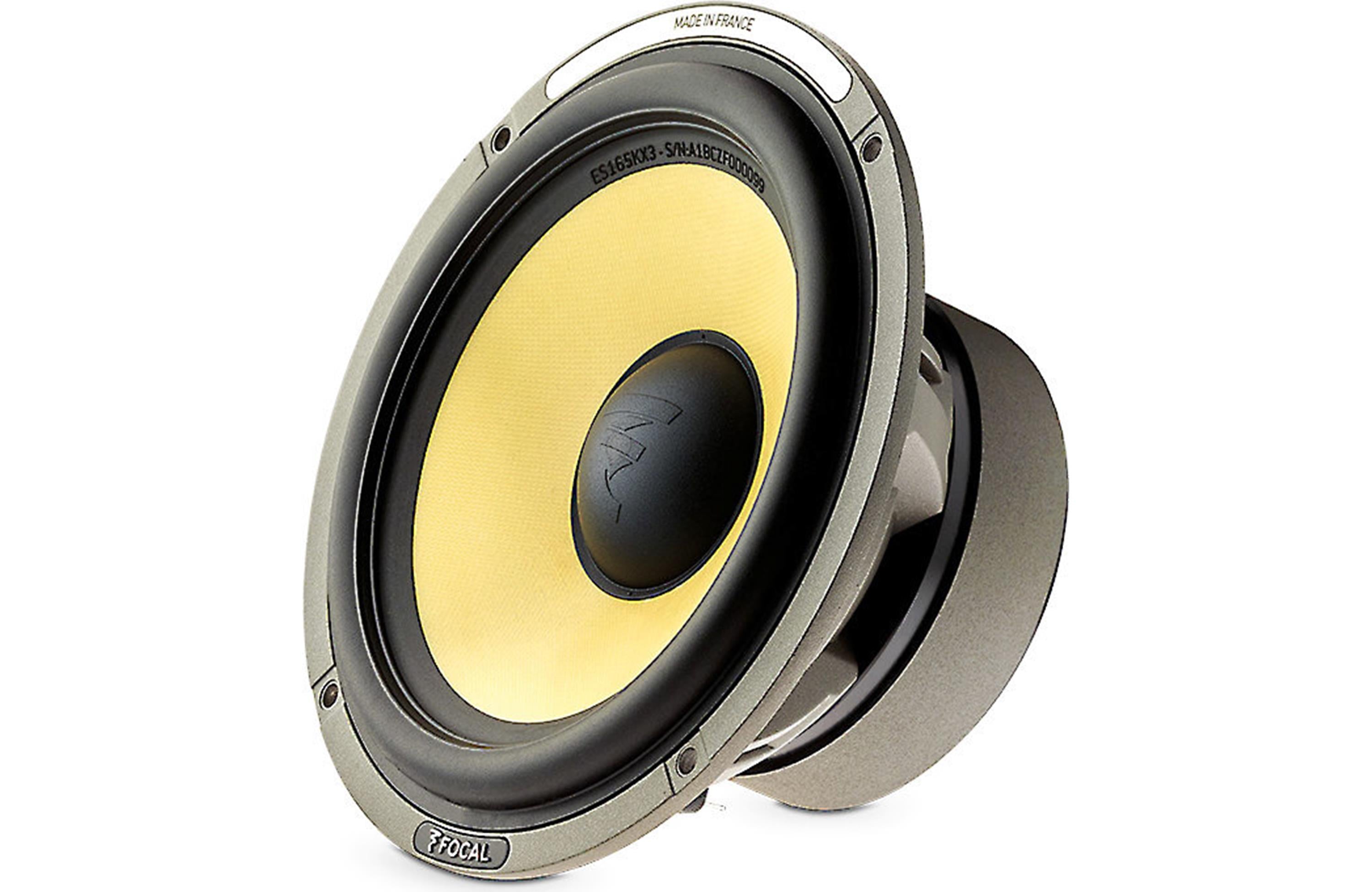

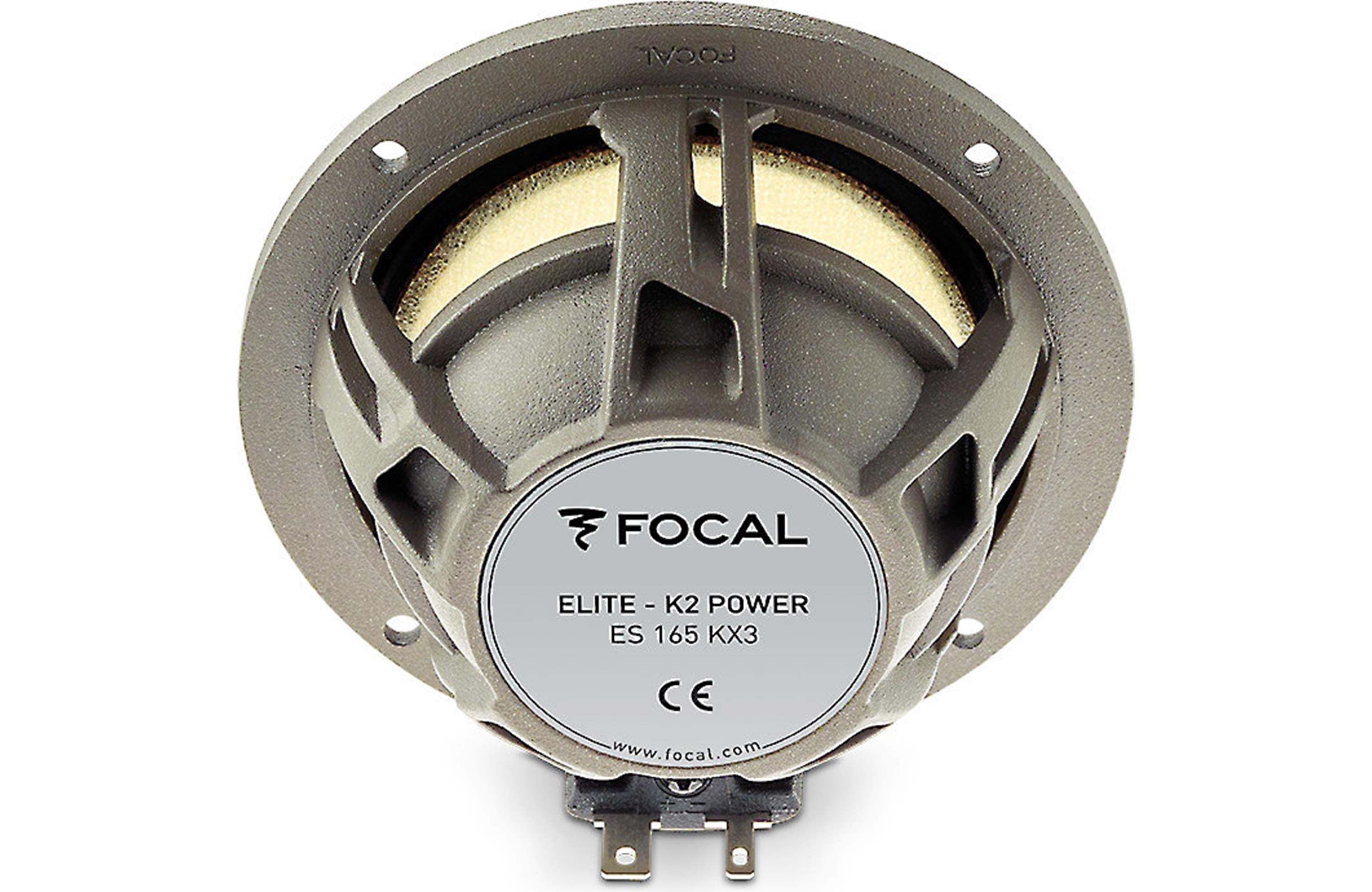

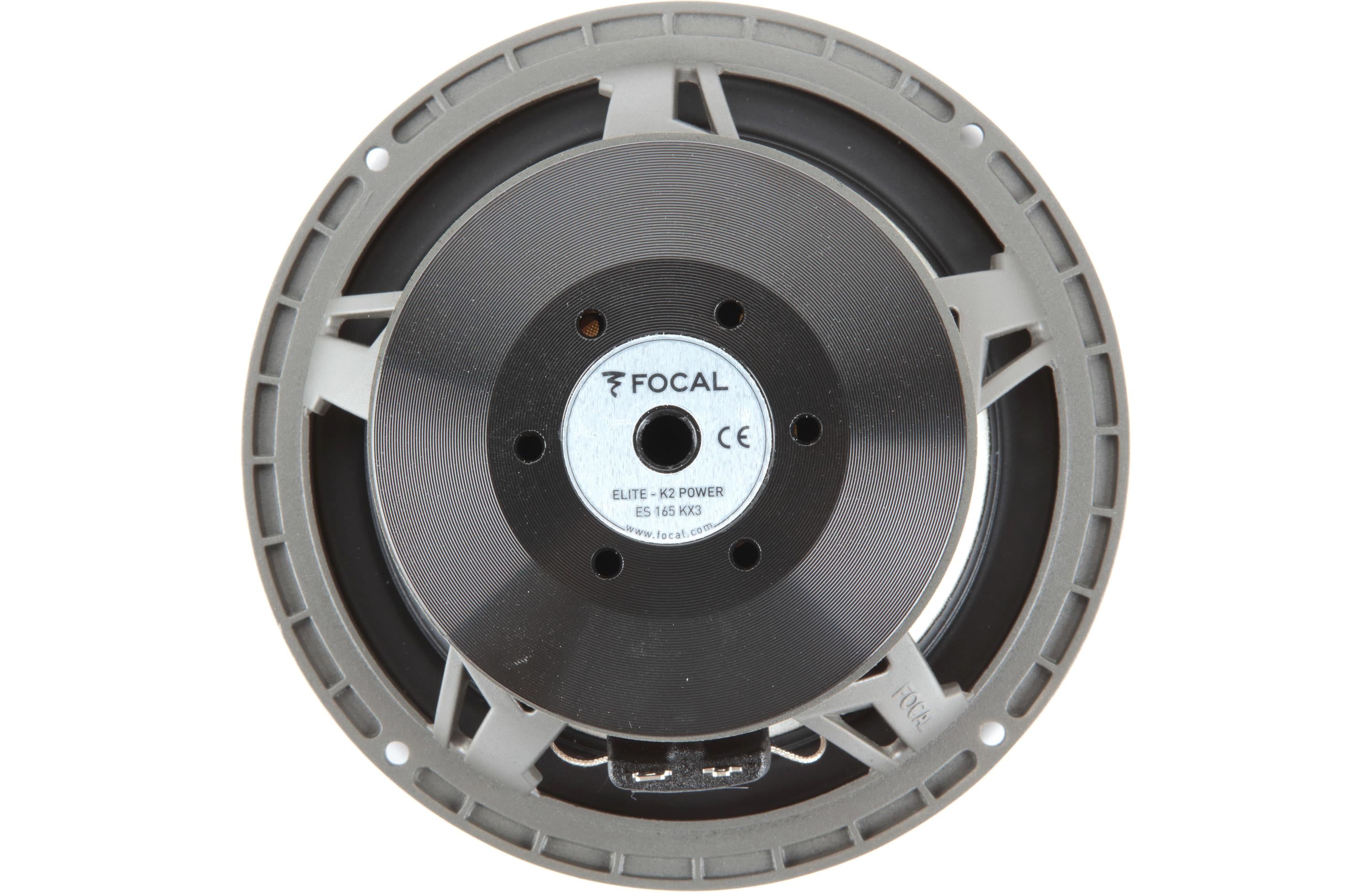

Composed of two 6 " (165 mm) woofers and two 3" (80 mm) mid-range speaker drivers with Kevlar cones, it offers a very rich and dynamic mid-range and very low frequency response (45 Hz). The two bi-amped 'M'-shaped tweeters guarantee a precise high end with perfect definition.
This kit is composed with two 6,5 woofers and two 3 speakers.

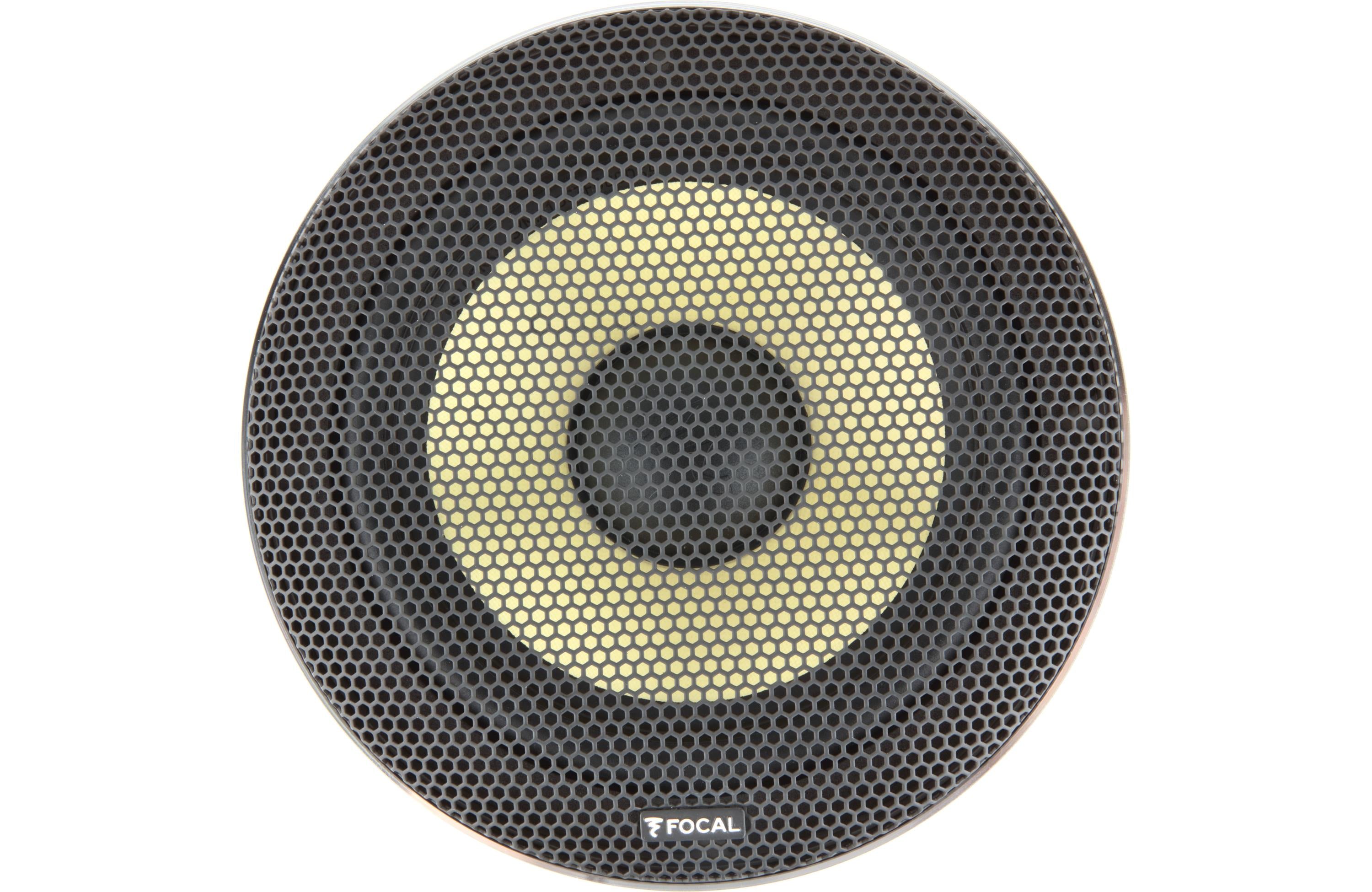

The ES 165 KX3 is supplied with aluminum and mesh grilles.
KEVLAR CONE
Precision and dynamics
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics:
Rigidity
Lightness
Damping, for precise and dynamic sound.
TMD SUSPENSION
Say goodbye to distortion
The new K2 Power TKM tweeter features an exclusive M -shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a push-pull motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance
Radial VC cooling
For higher SPL
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Progressive spider profile
Improved linearity and precision
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
For improved reliability
An optimised crossover
The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
Specs
3-way component kit
Diameter: 6 " (165mm)
Voice coil diameter: 19/16"(40mm)
Voice coil height: 02/3"(16.5mm)
Motor: Magnet
Tweeter: TKMX ("M" profile aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned Mass Damper (TMD )
Separated crossover: 6-12/12/12dB (3/4/500Hz/3.5kHz)
Tweeter Adjustable level: +3; 0; -3dB/oct
Max.power: 240W
Nom.power: 120W RMS
Sensitivity (2.83V/1m): 93dB
Frequency response: 45Hz- 22kHz
Impedance: 4
Accessories: Supplied grilles and midbox
