3 separate way kit

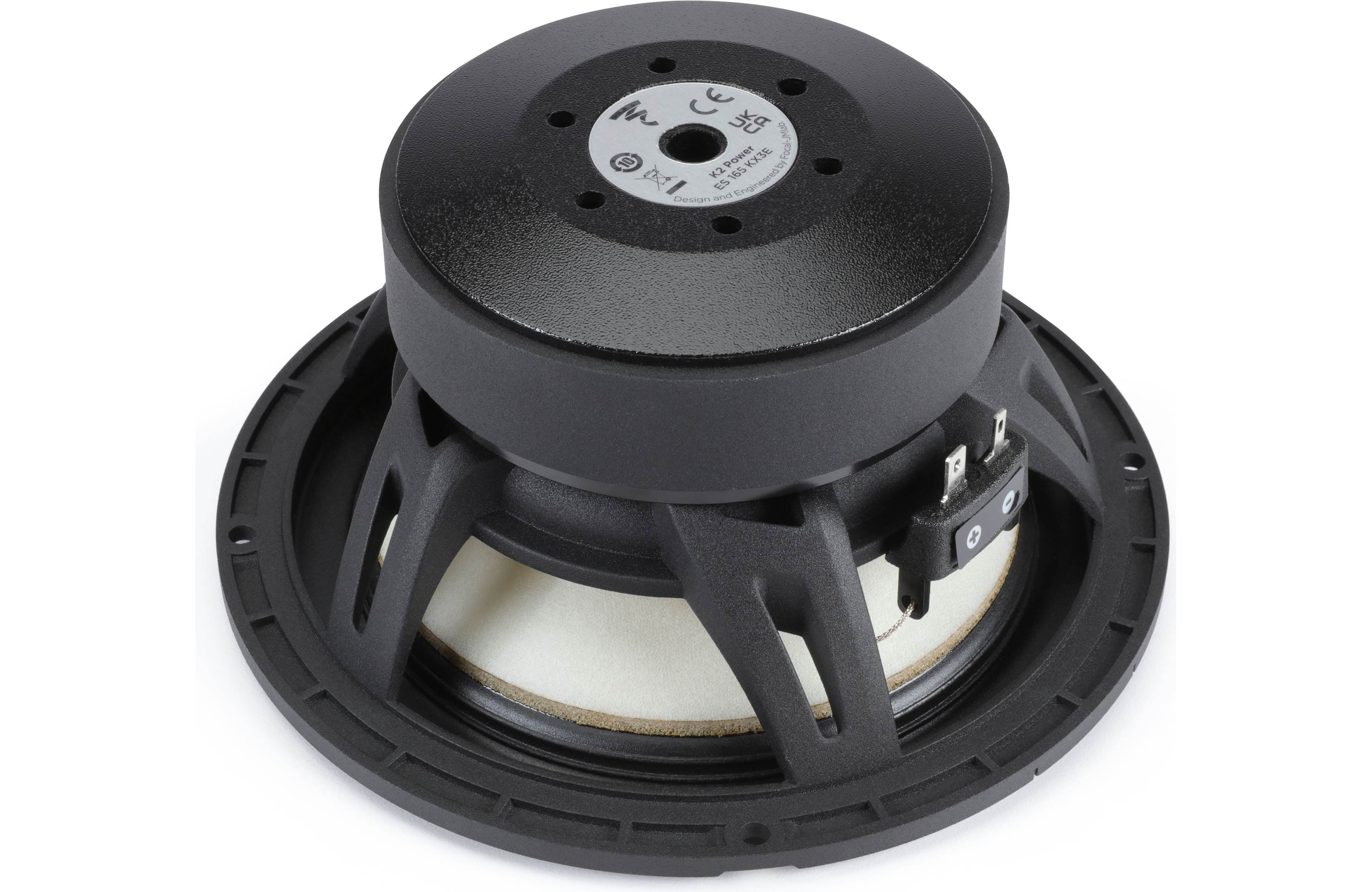

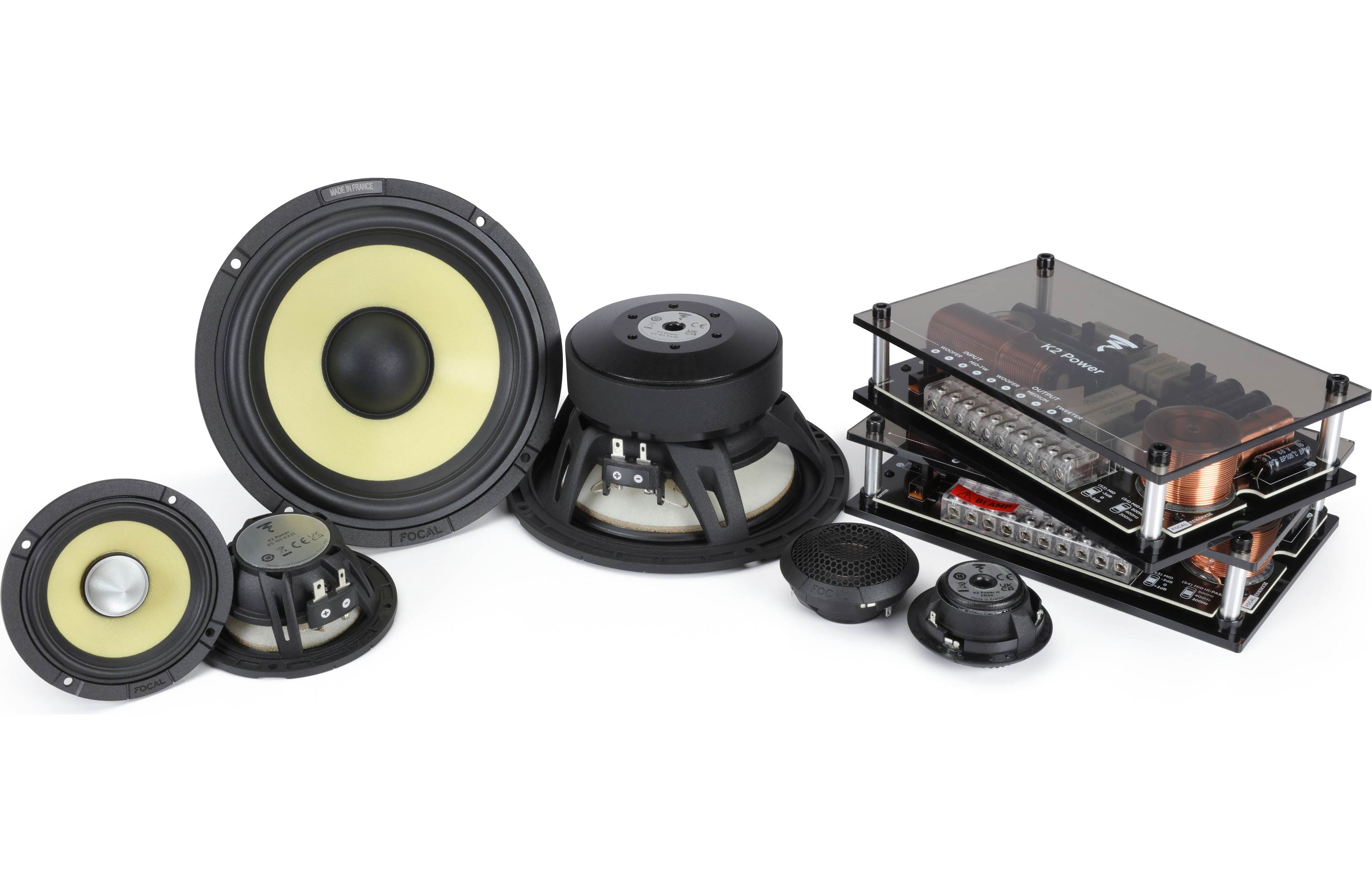

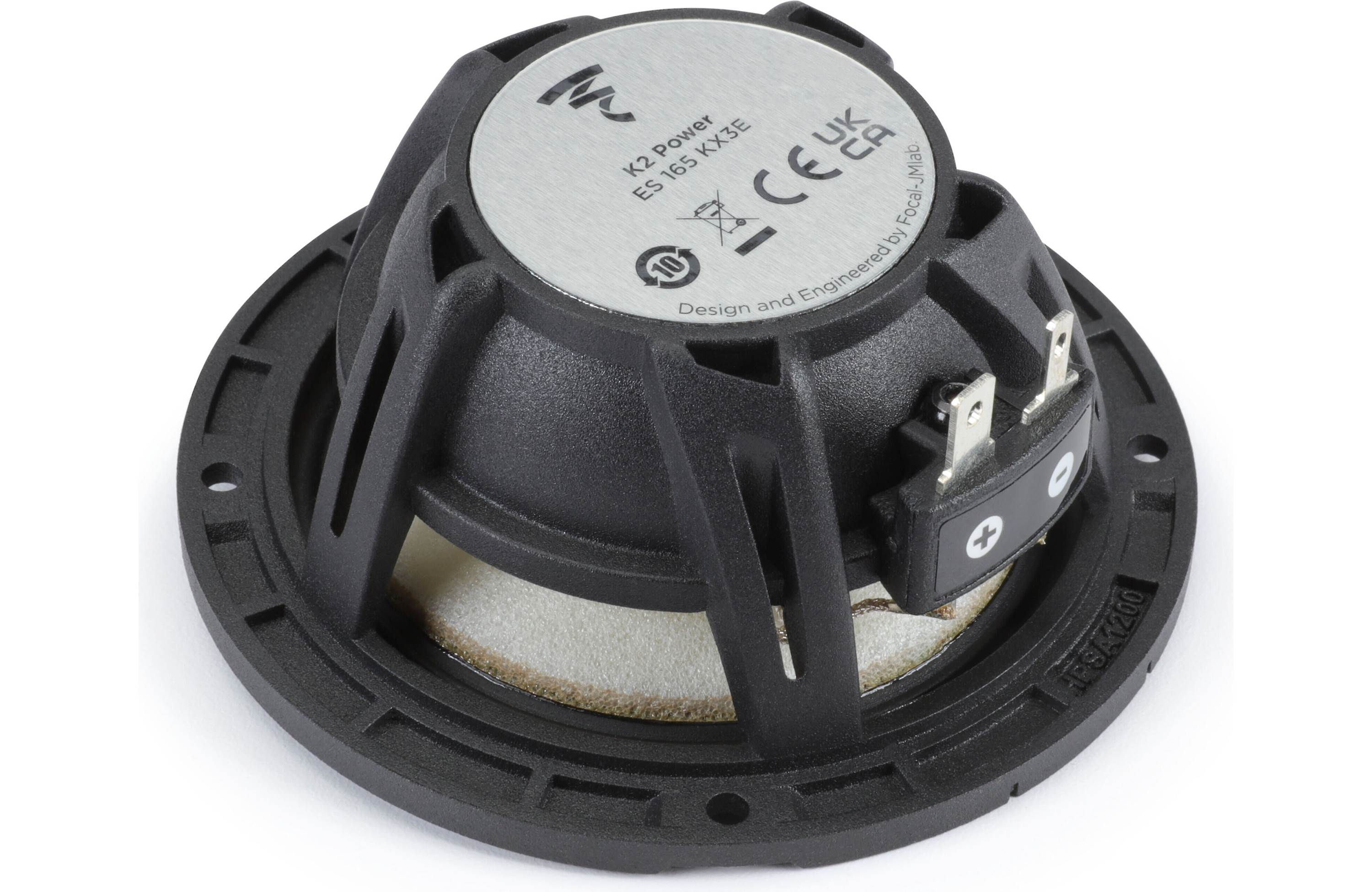

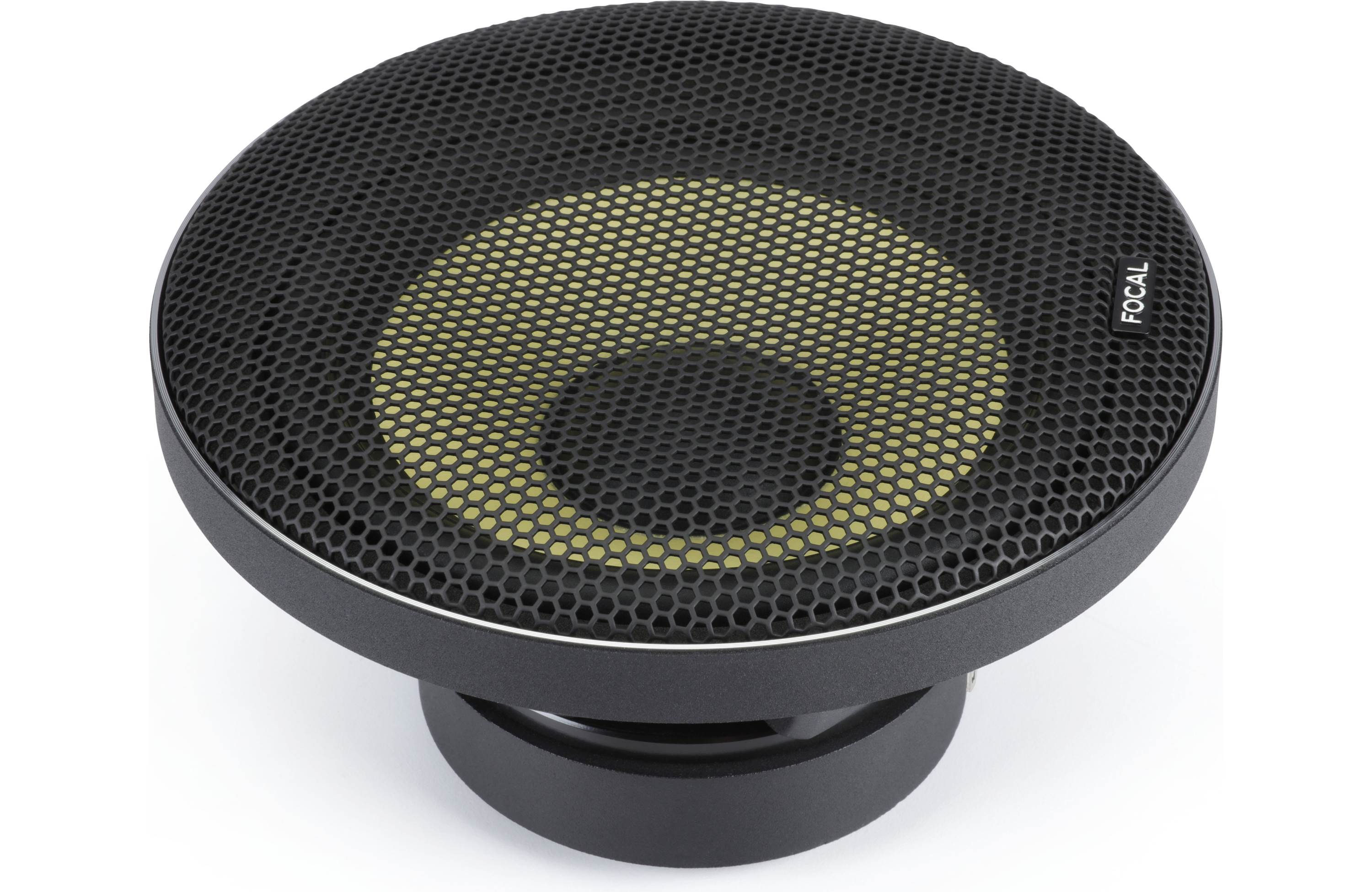

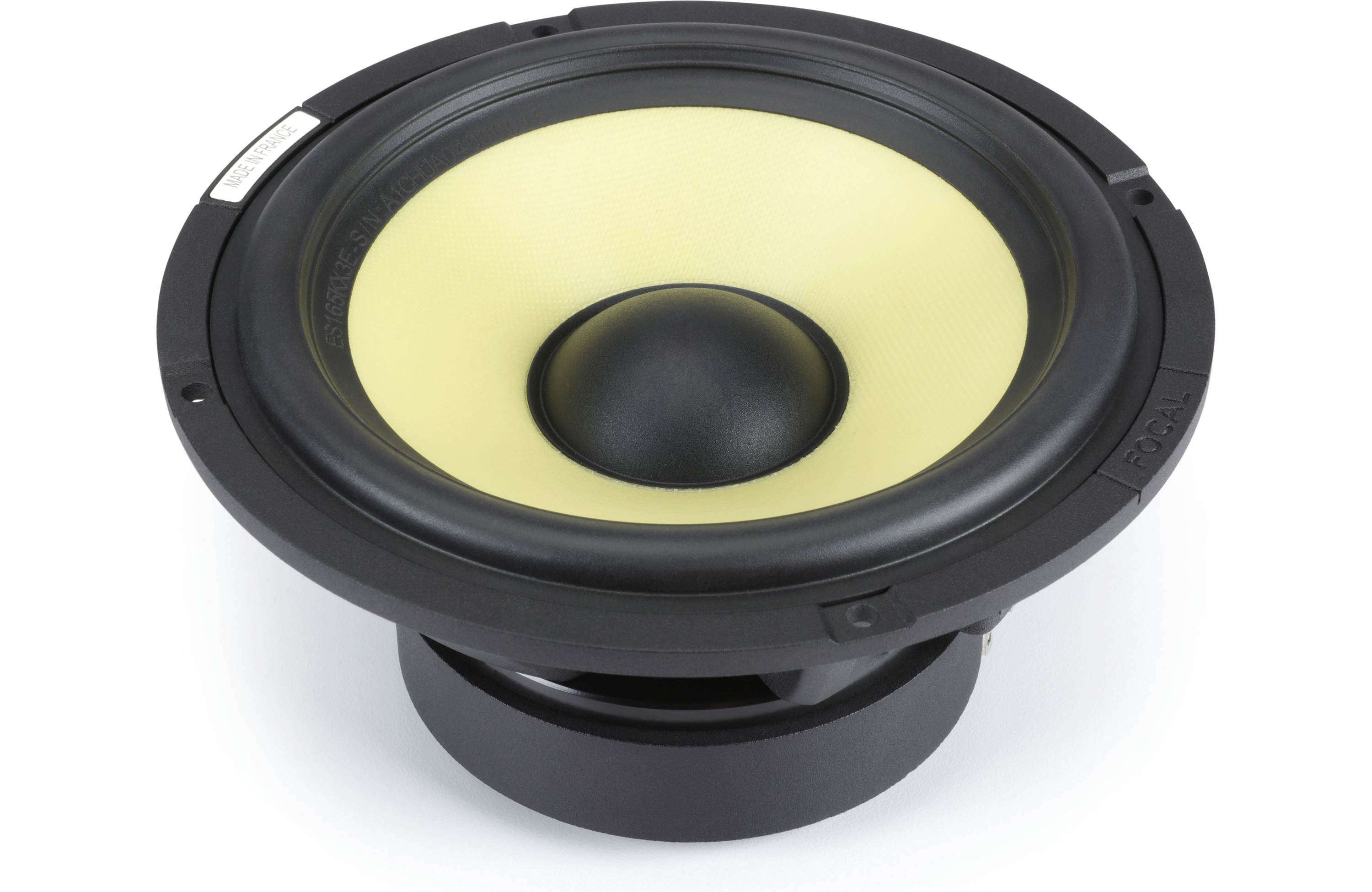

Two 16.5 cm woofers, two 8 cm midranges and two FRAK tweeters: complete, the ES 165 KX3E audio kit covers a wide frequency spectrum, with rich and dynamic mids, soft and precise highs and deep bass. The speakers are equipped with Focal’s iconic K2 membrane in aramid fiber, a performance-oriented cone for the pleasure of music in the car.
REALISTIC SOUND

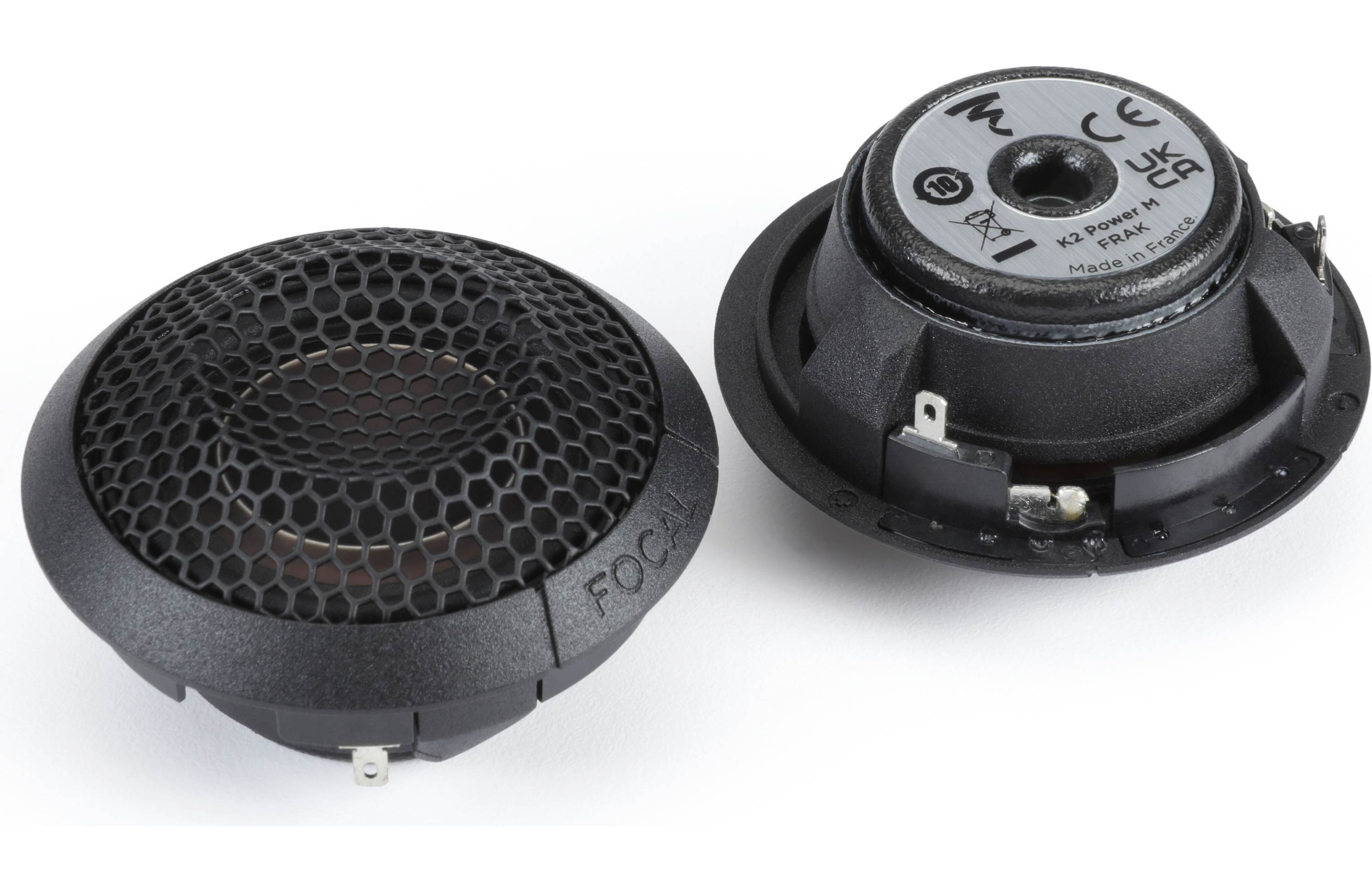

For perfect reproduction of treble and midrange, the kit includes FRAK tweeters. Patented by Focal, they deliver ultra-realistic, crystal-clear sound.
OUTSTANDING COMPONENTS
From the TMD® surround for perfect diaphragm control, to the rigid, non-magnetic aluminum frame, to the coil ventilation system that maximizes power handling: every component of the loudspeakers is designed and optimized to reproduce the full impact of the bass and enhance the precision and dynamics of the sound.
FLEXIBLE INSTALLATION

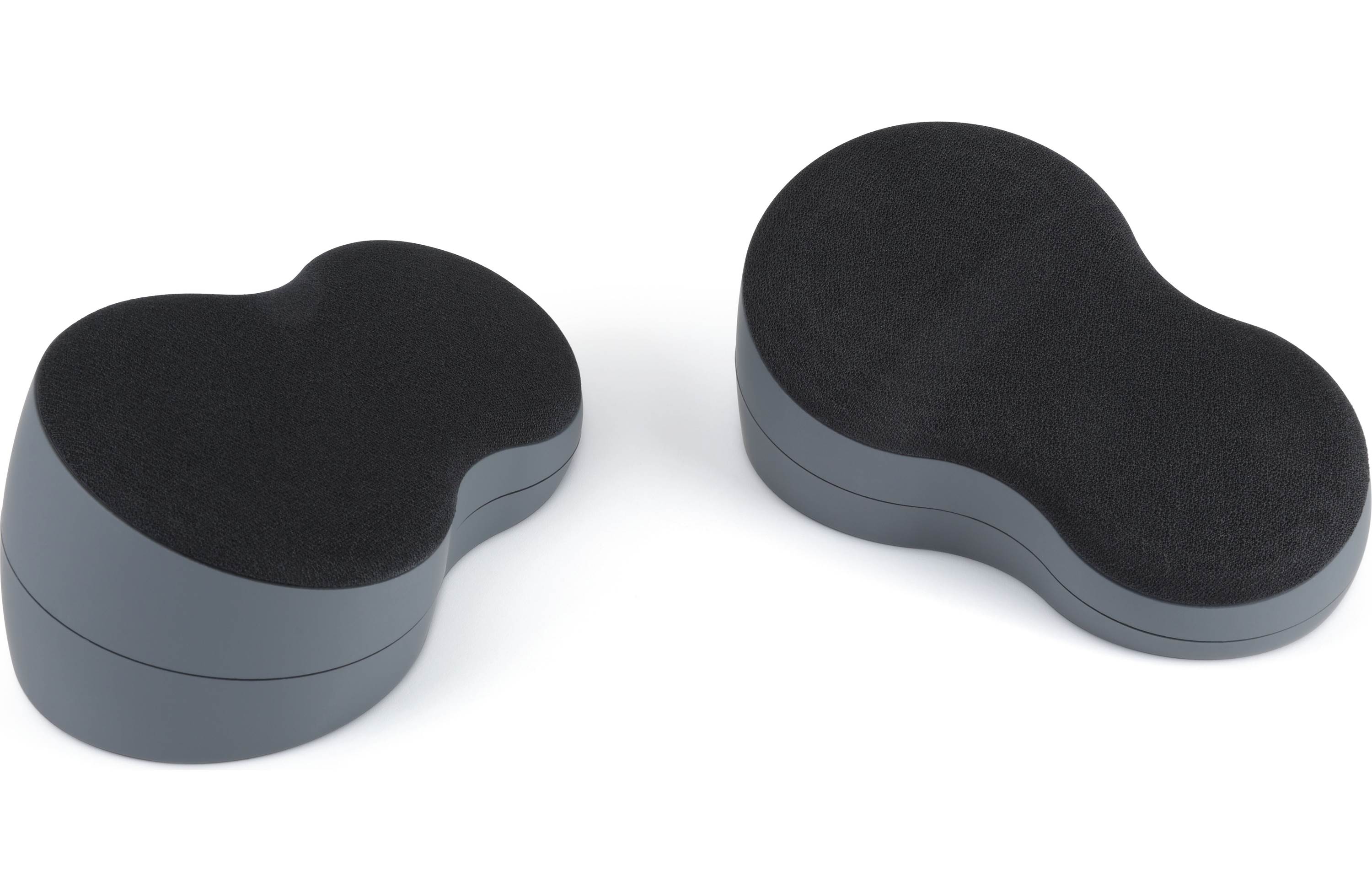

In addition to the available midrange/tweeter support, three mounting options are available for the tweeters: in the original slots, flush-mounted or on inclined brackets. The kit's installation thus combines efficiency, simplicity and flexibility.
Specs
Type 3-way component kit
Maximum power 240W (Woofer) 100W (Midrange)
Nominal power 120W RMS (Woofer) 50W RMS (Midrange)
Sensitivity (2.83V/1m) 93dB (Woofer) 88dB (Midrange)
Frequency response 45Hz – 32kHz (Woofer) 45Hz – 32kHz (Midrange)
Impedance 4Ω (Woofer) 4Ω (Midrange)
Cone K2 Sandwich (Woofer) K2 Sandwich (Midrange)
Diameter 6 1/2" (165mm) (Woofer) 4" (100mm) (Midrange)
Voice coil diameter 15/8" (40mm)(Woofer) 3/4" (20mm) (Midrange)
Depth 3" (76mm) (Woofer) 1 3/8" (33.5mm) (Midrange)
Magnet Ferrite (Woofer) Ferrite (Midrange)
Surround TMD®(Woofer) TMD® (Midrange)
Tweeter Aluminum, ‘M’-profile (Woofer) Aluminum, ‘M’-profile (Midrange)

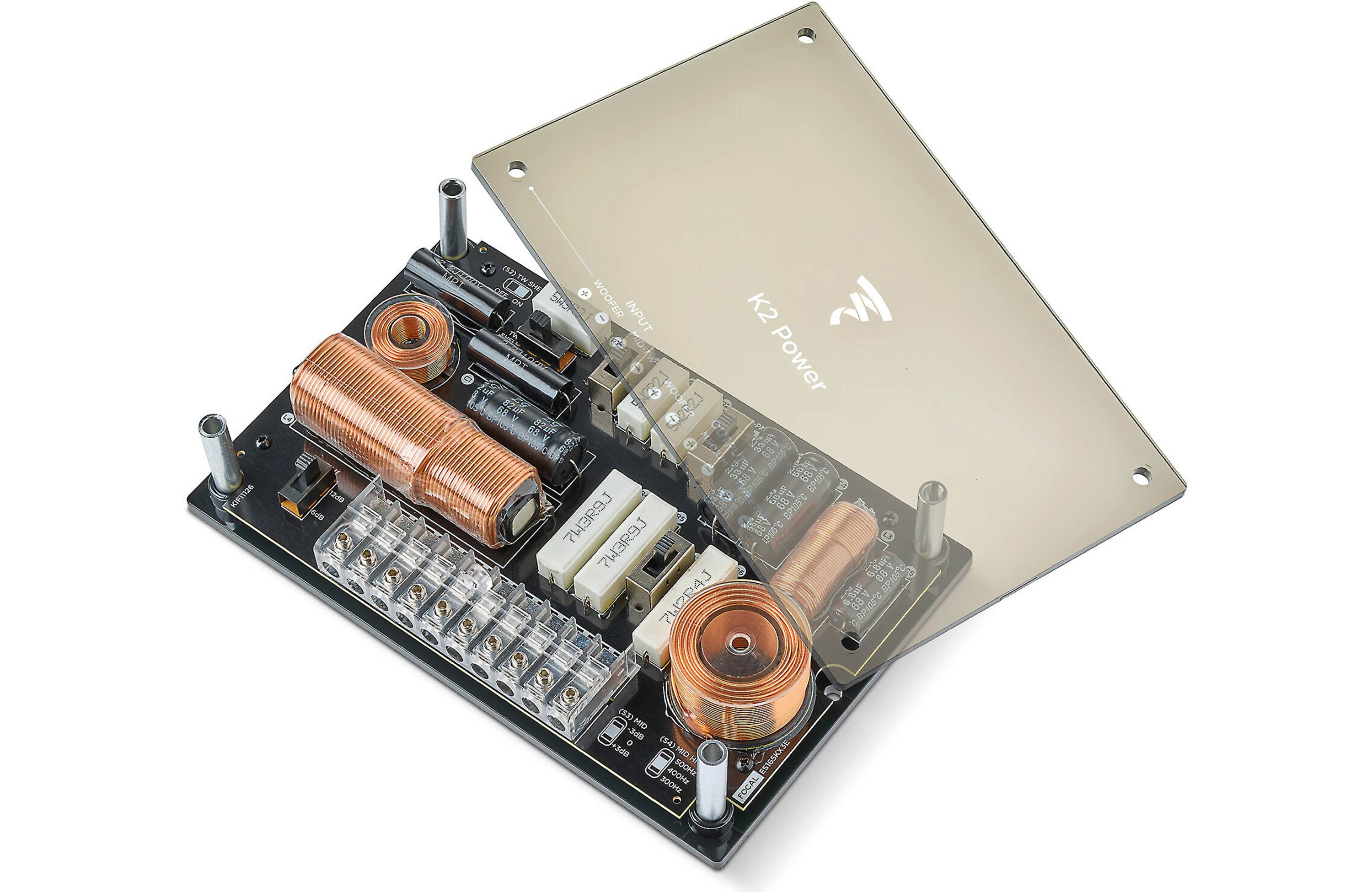

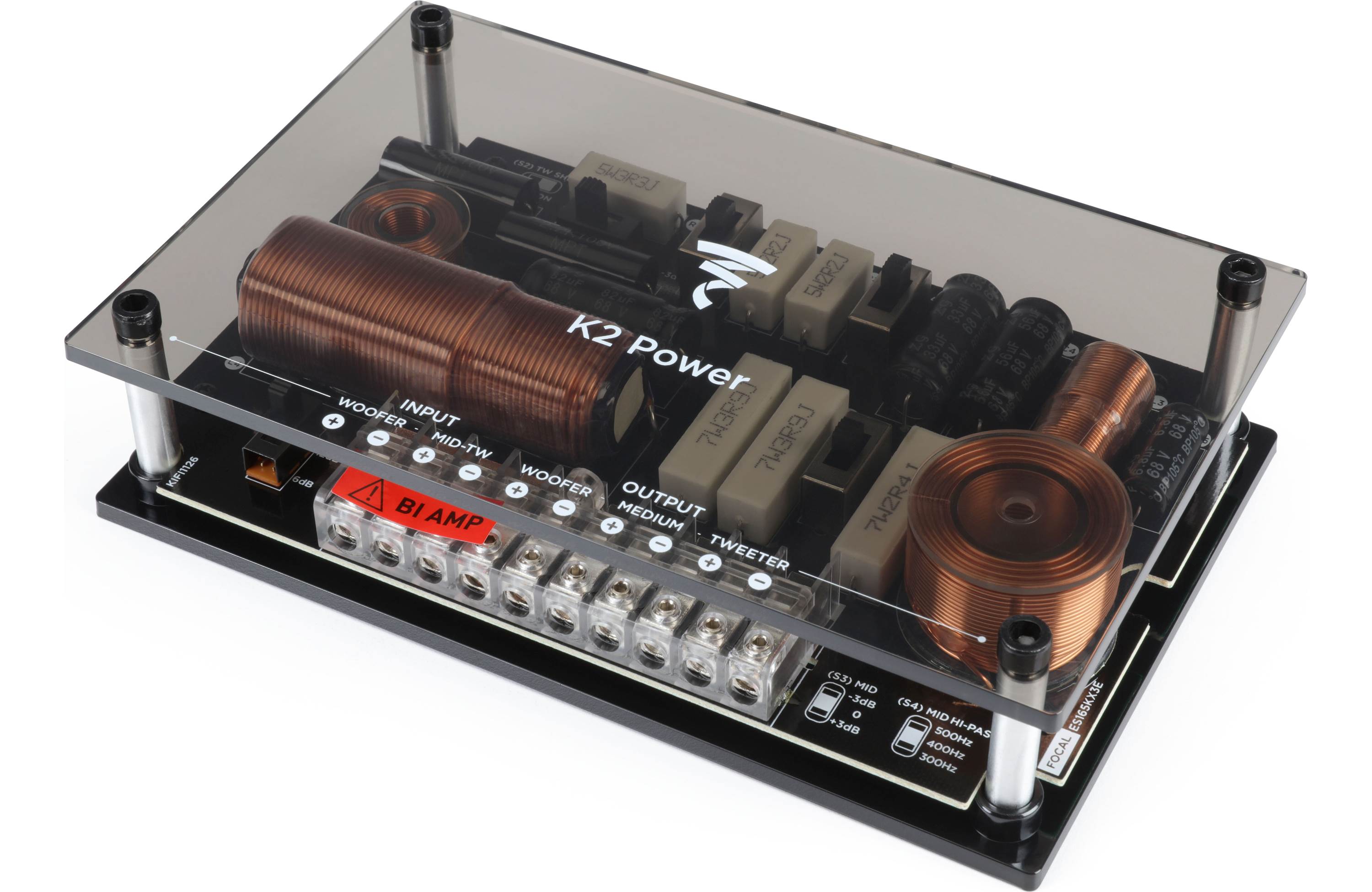

Crossover 6-12/12/12dB (3/4/500/3/5kHz) Woofer,
6-12/12/12dB
(3/4/500/3/5kHz) (Midrange)
