- Peak Power 2000W
- RMS Power 500W
- PP Cone with Dual Area Cap
- Stress Controlled Spider
- 2Ω Impedance
- Steel Mesh Grille Included
PP Dual Area Cap
This gives its diaphragm the rigidity required for higher power handling and delivers more accurate bass.
Closed Yoke with Advanced Airflow Control
Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.
Stress Controlled Spider
Computer-optimized damper controls stress and increases mechanical durability.
Multiple Position Options
Forward, Rear, or Down-Firing installation available.

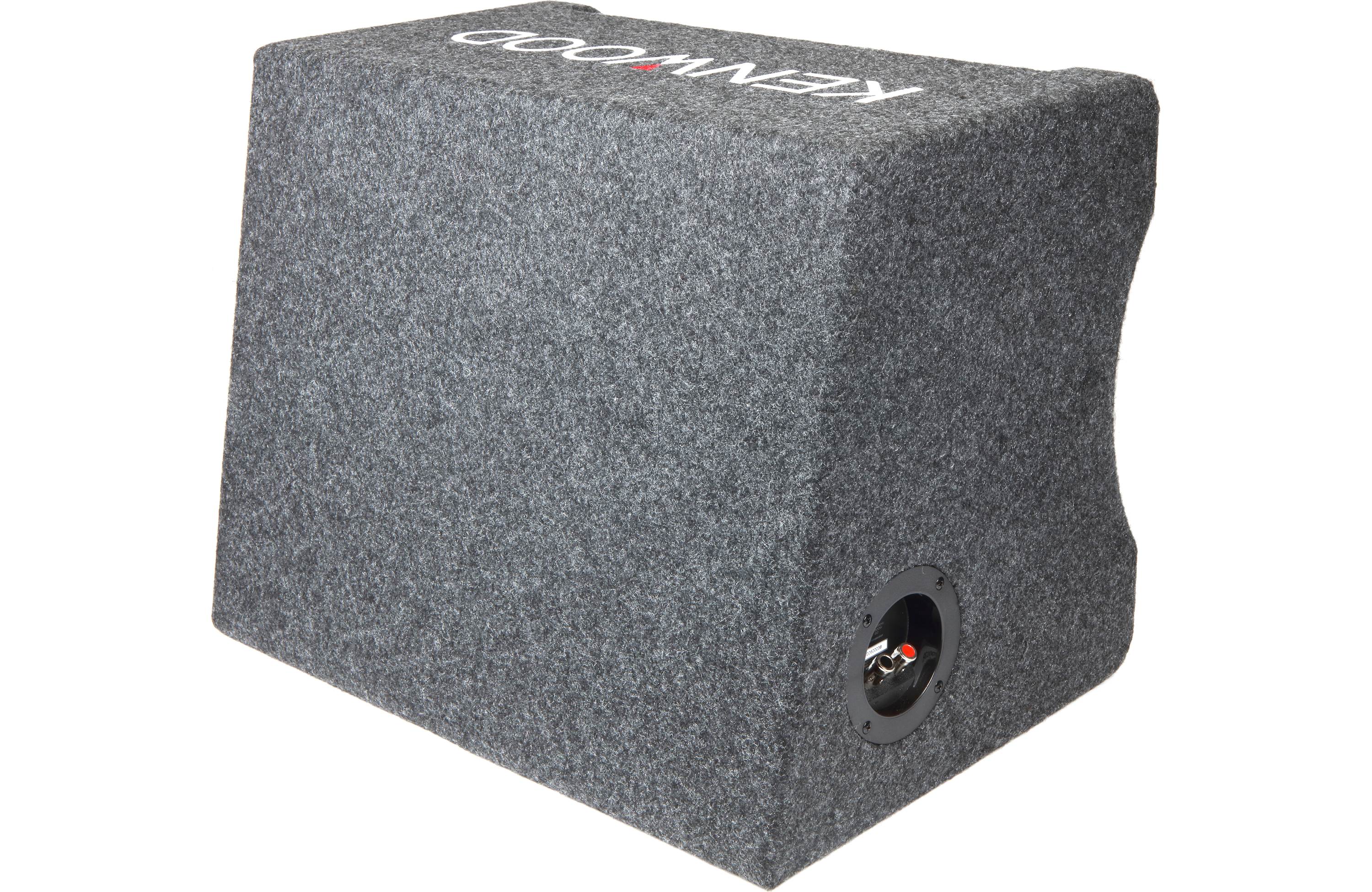

Slant Back Design
Easily fits behind the rear seat of an SUV and is more effective in suppressing standing waves that typically occur in a standard square enclosure.
3/4" THICK MDF Baffle
5/8” MDF construction with 3/4” THICK Baffle provides more strength and durability, ensuring accurate bass even at high volume.

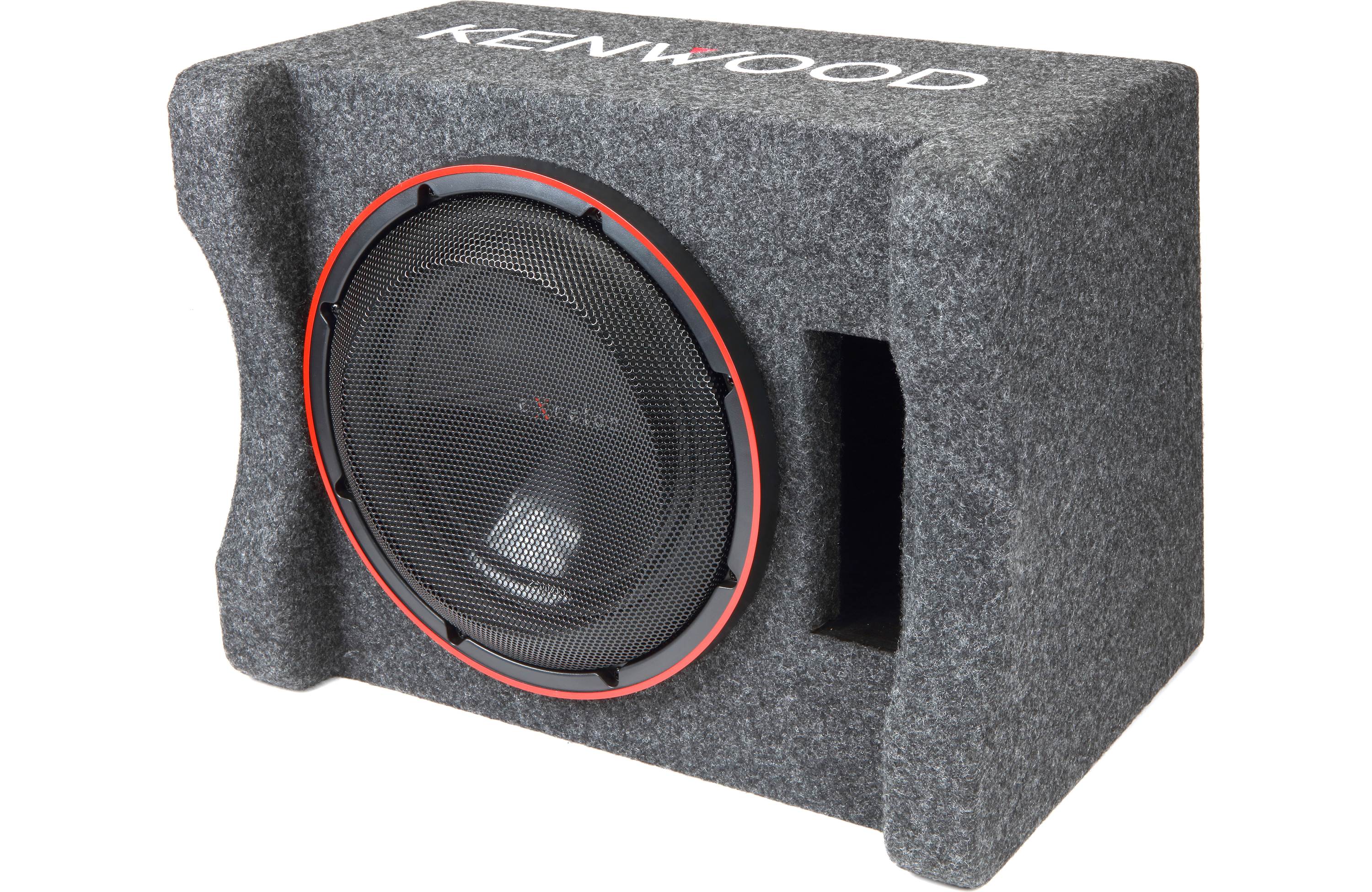

INCLUDED Steel Mesh Grille
Valued at $30 when sold separately, enclosure includes a protective grille for further enhanced durability.
Enhanced Down-Firing Structural Support
Extra thick legs support the weight of the system when installed in a down-firing application. This ensures the low frequency energy is transmitted without loss, resulting in powerful, impactful bass.
Reduced Port Noise
The port’s rounded shape reduces airflow resistance and noise generation.
Precisely Power Matched
P-XW1221SHP "High Performance" Class Subwoofer enclosure is precisely power matched with the eXcelon X502-1 amplifier.
Specs
Model P-XW1221SHP
Subwoofer Specification 12” Subwoofer
Peak Power 2000W
RMS Power 500W
Impedance 2Ω
Frequency Response 30Hz-300Hz
Features Injection Polypropylene
Dual Area Cone
Closed Yoke with Advanced Airflow Control
Aluminum Bobbin
Enclosure Specifications Slant Back Design with Flared Port & Down Firing Capability
5/8"MDF Construction with 3/4" MDF Baffle Board

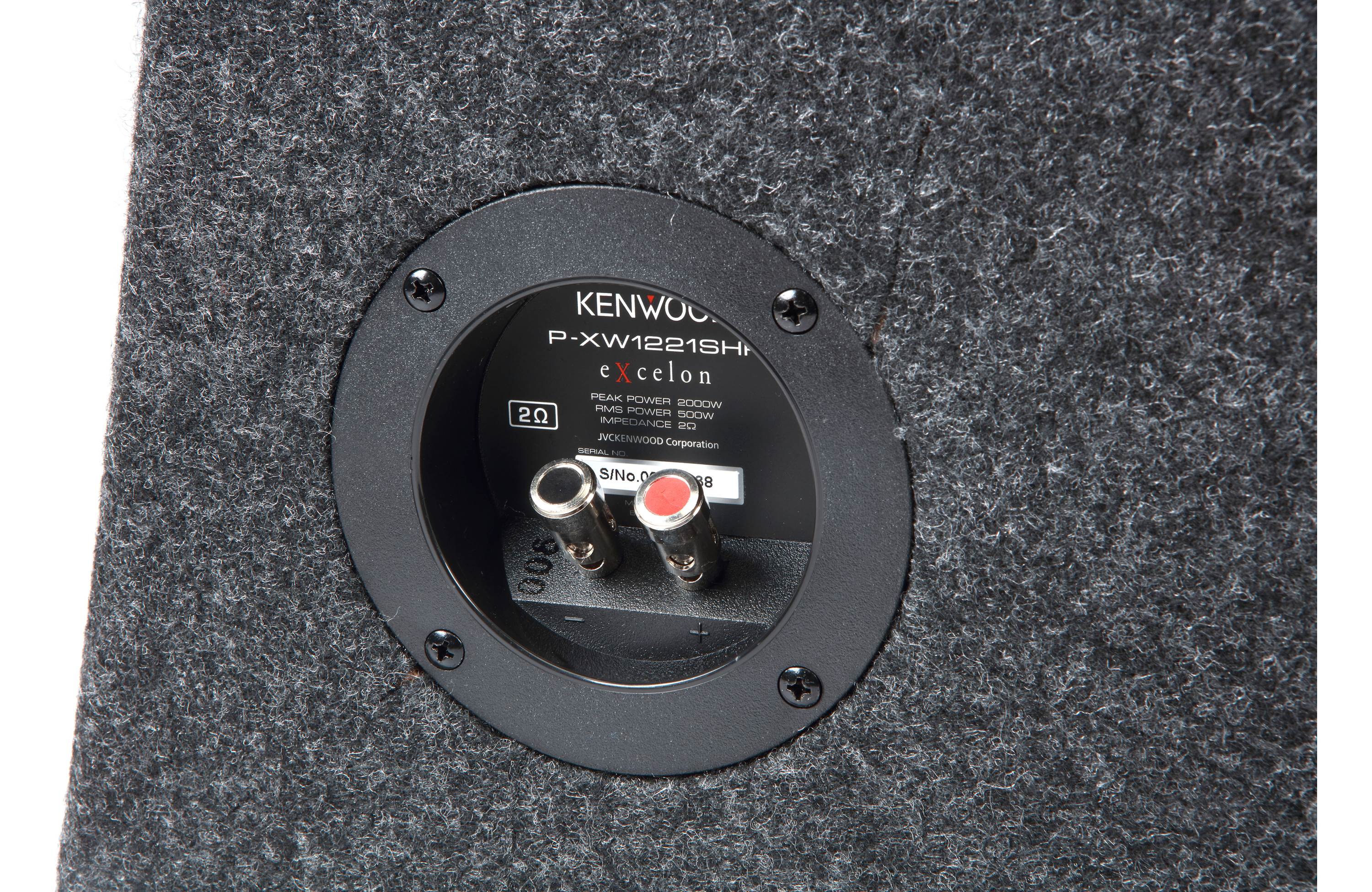

8AWG-ready Nickel-plated Spring Posts
Dimensions: 20-7/8"(W) x 15-13/16"(H) x 14-5/8"(D)
