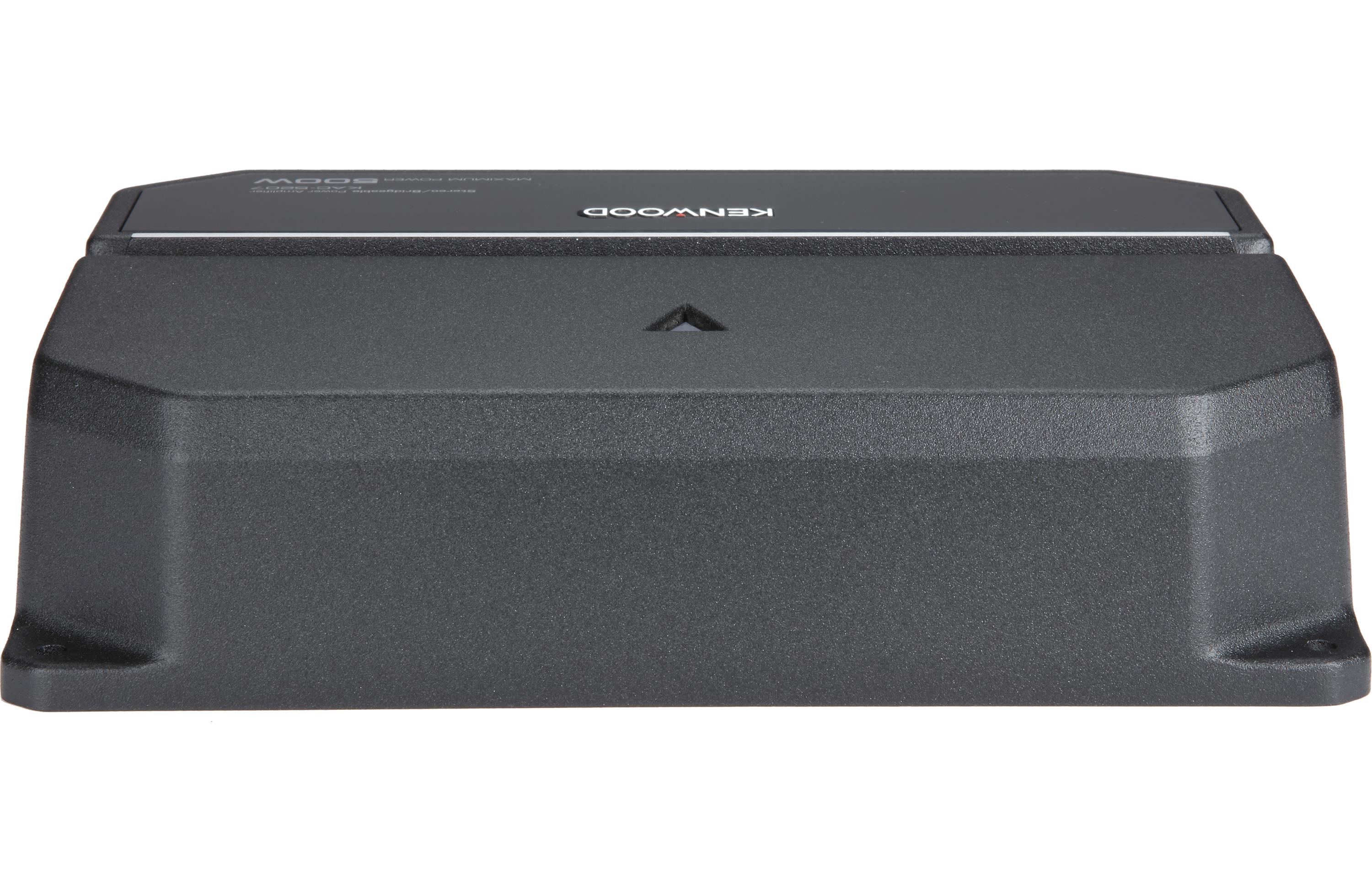

Kenwood KAC-5207 2 Chanel Car Amplifier
General Features
Max Power : 500W
- RMS Power :
- 70W x 2 (4 )
-
- 85W x 2 (2 )
-
- 170W x 1 (Bridged)
(W)9-1/16" x (H)2-3/16" x (D)6-9/16"
Low Pass Filter : 80 Hz (-18 dB / oct.)
Speaker Level Input
Signal Sensing Turn-on
Specs
CTA-2006 Primary Ratings Power Output 70Watts RMS x 2 at 4 Ohms and 1%THD+N
Signal-to-Noise Ratio 80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output MAX POWER 500W
Power Output Rated Power at 14.4V 70Watts RMS x [ch] (4 Ohms, 20-20kHz, 1.00% THD)
85Watts RMS x [ch] (2 Ohms, 1kHz, 1.00% THD)
170Watts RMS x [ch/2] (Bridged 4 Ohms, 1kHz, 1.00% THD)
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4 (2 to 8 allowable)
Bridged connection 4 to 8 allowable
Audio Section Low-Pass Filter Built in Low-Pass Filter (80Hz, -18dB/oct)
RCA Input Sensitivity 0.2[V] - 5.0[V]
Speaker Level Input Sensitivity 4.0[V] - 12.0[V]

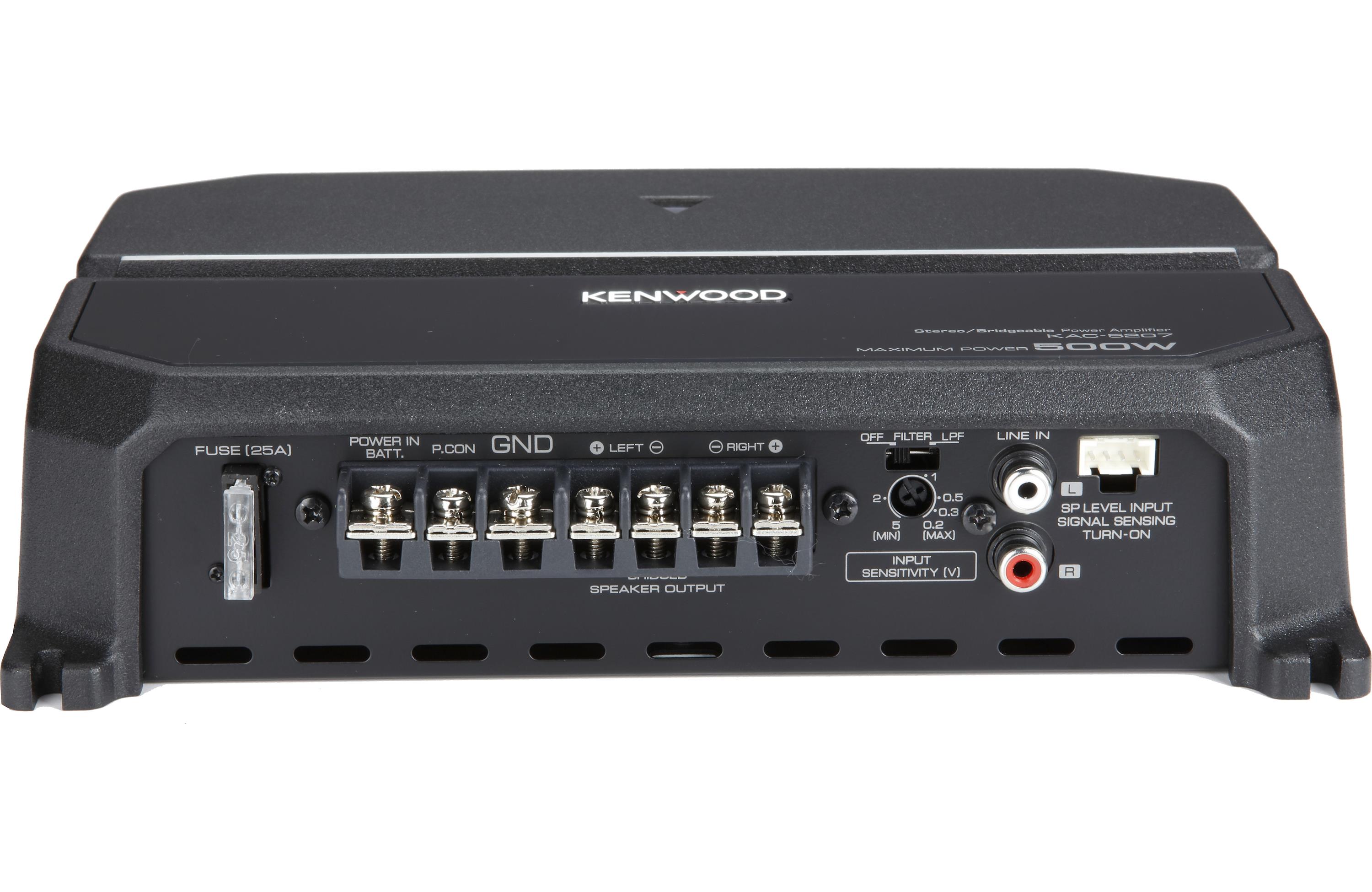

Terminals Battery & Ground Screw Type Terminal Block (Nickel colored) (M4)
Speaker Output Screw Type Terminal Block (Nickel colored) (M4)
General Dimensions(WxHxD) 230 [mm] x 56 [mm] x 167 [mm]
9-1/16 inch x 2-3/16 inch x 6-9/16 inch
Weight (kg) 1.7 [kg]
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 15 [A]
Key Features CTA-2006 Compliant
2 Ohms Load Capability
Speaker Level Input
Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Cast Aluminum Heat Sink Design
