Focal ES 100 K K2 Power 4" 2 Way Component Speaker (Pair)
ultra compact

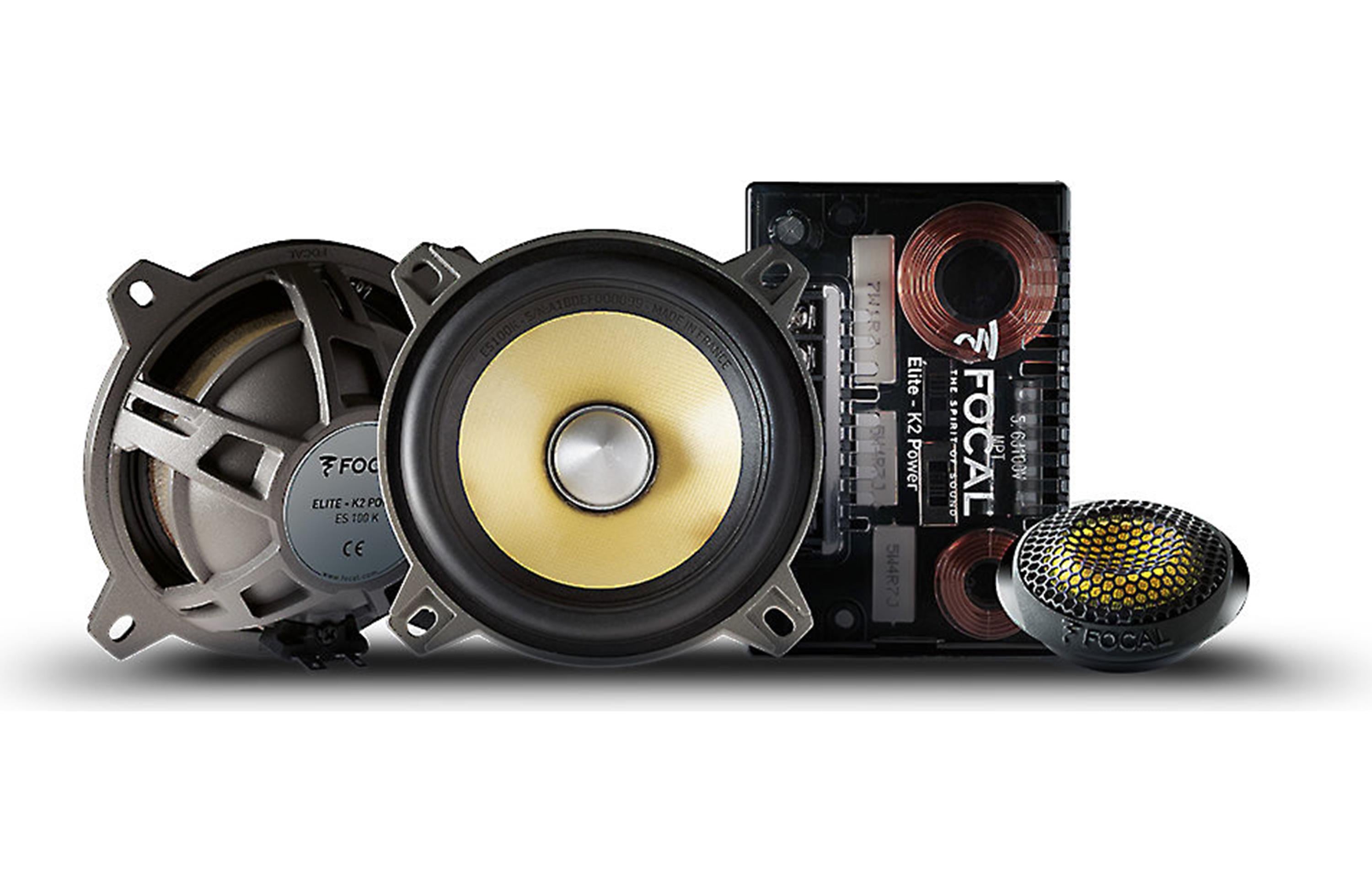

4" two-way component kit
The ES 100 K is an ultra-compact solution with an impressive SPL of 90dB (2.83 V/1 m) for such a small design.

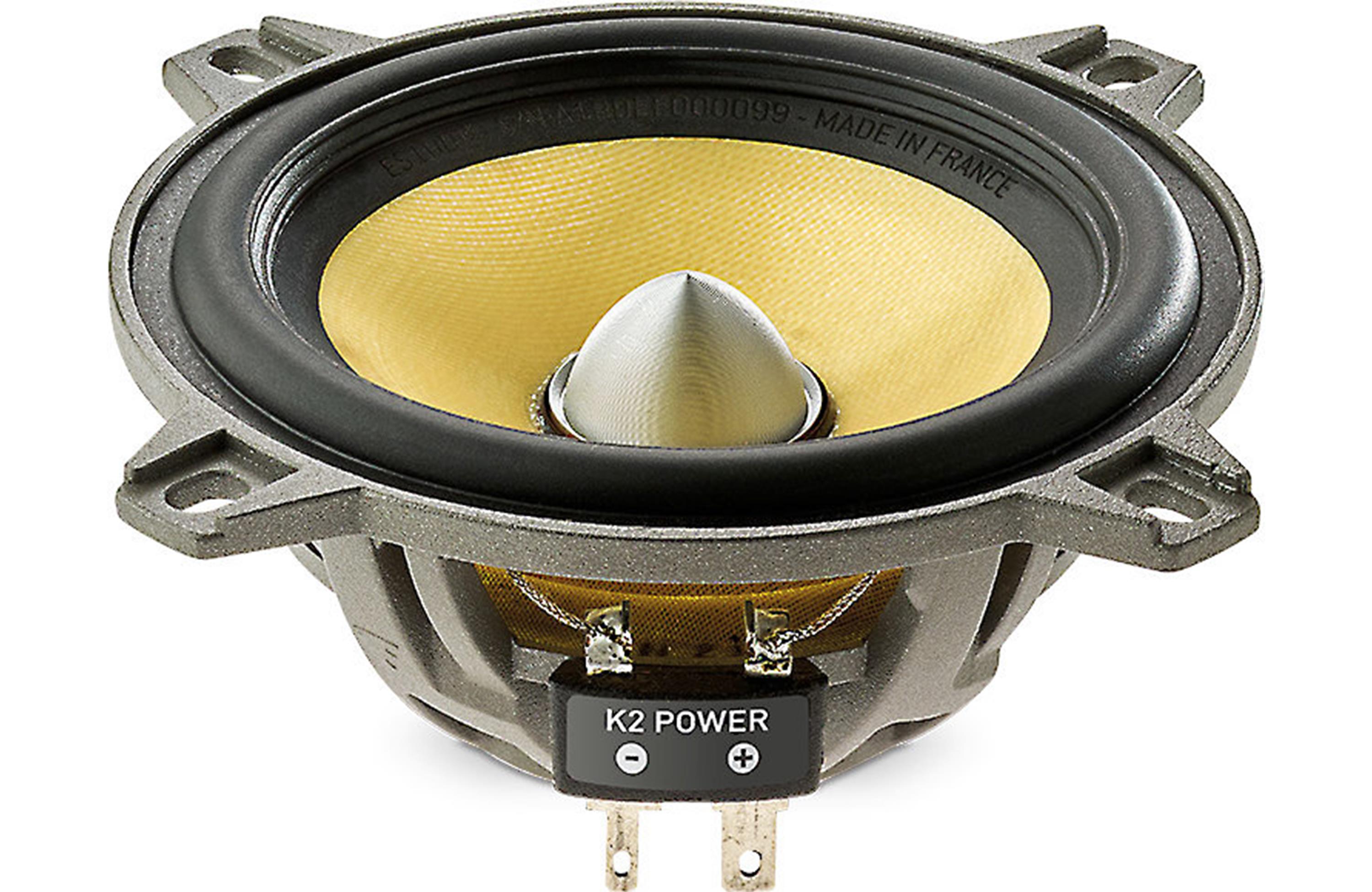

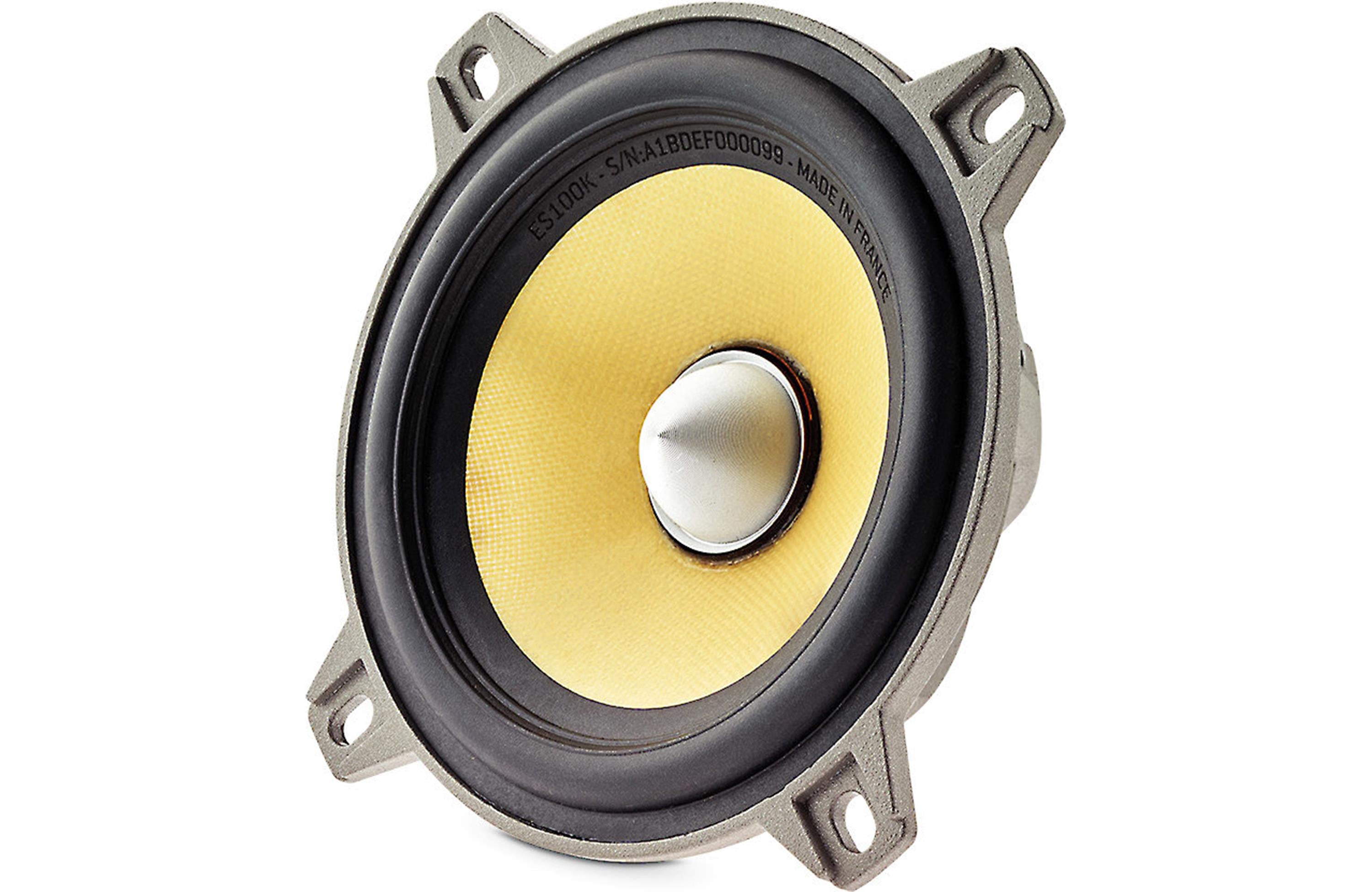

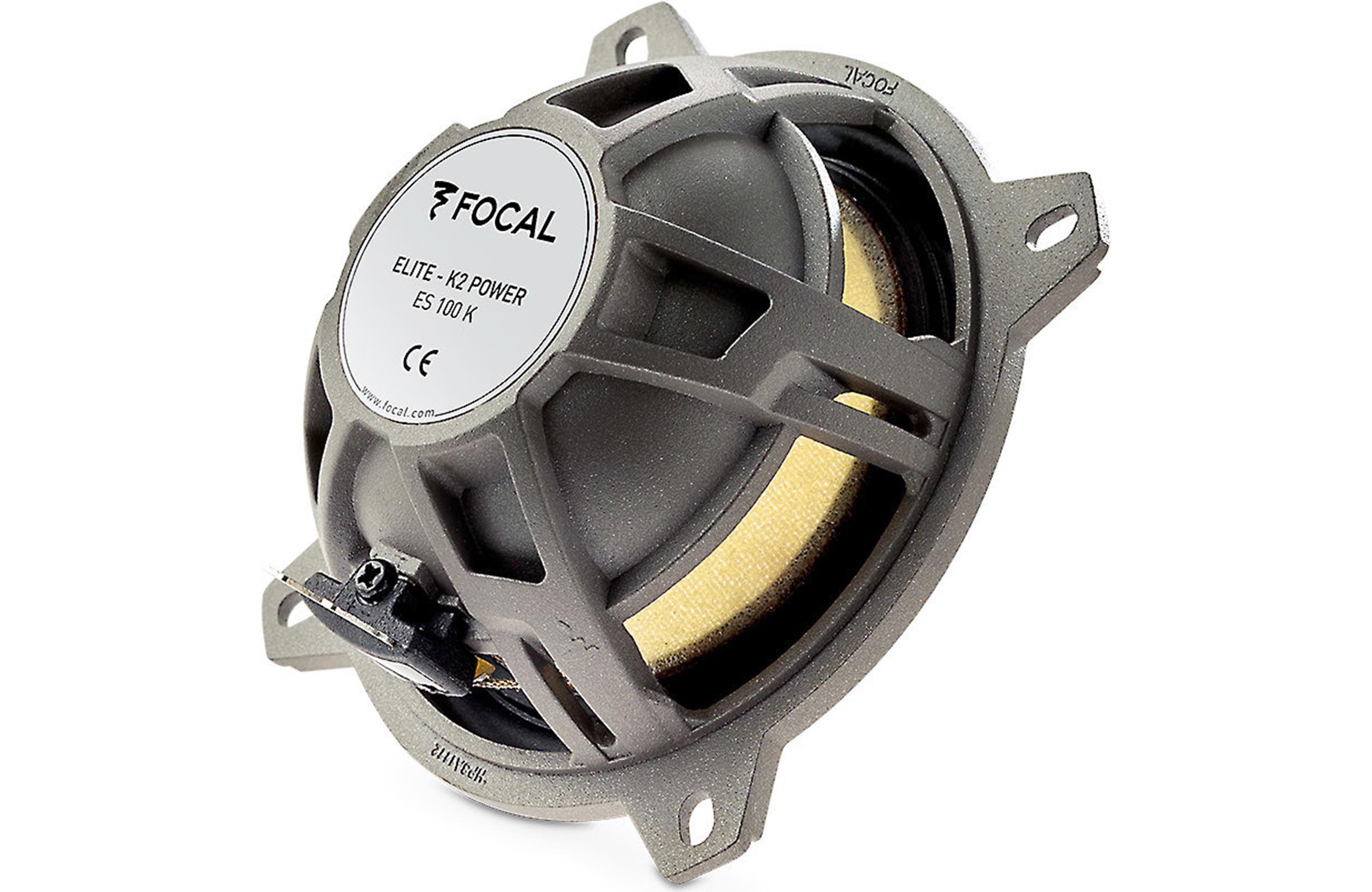

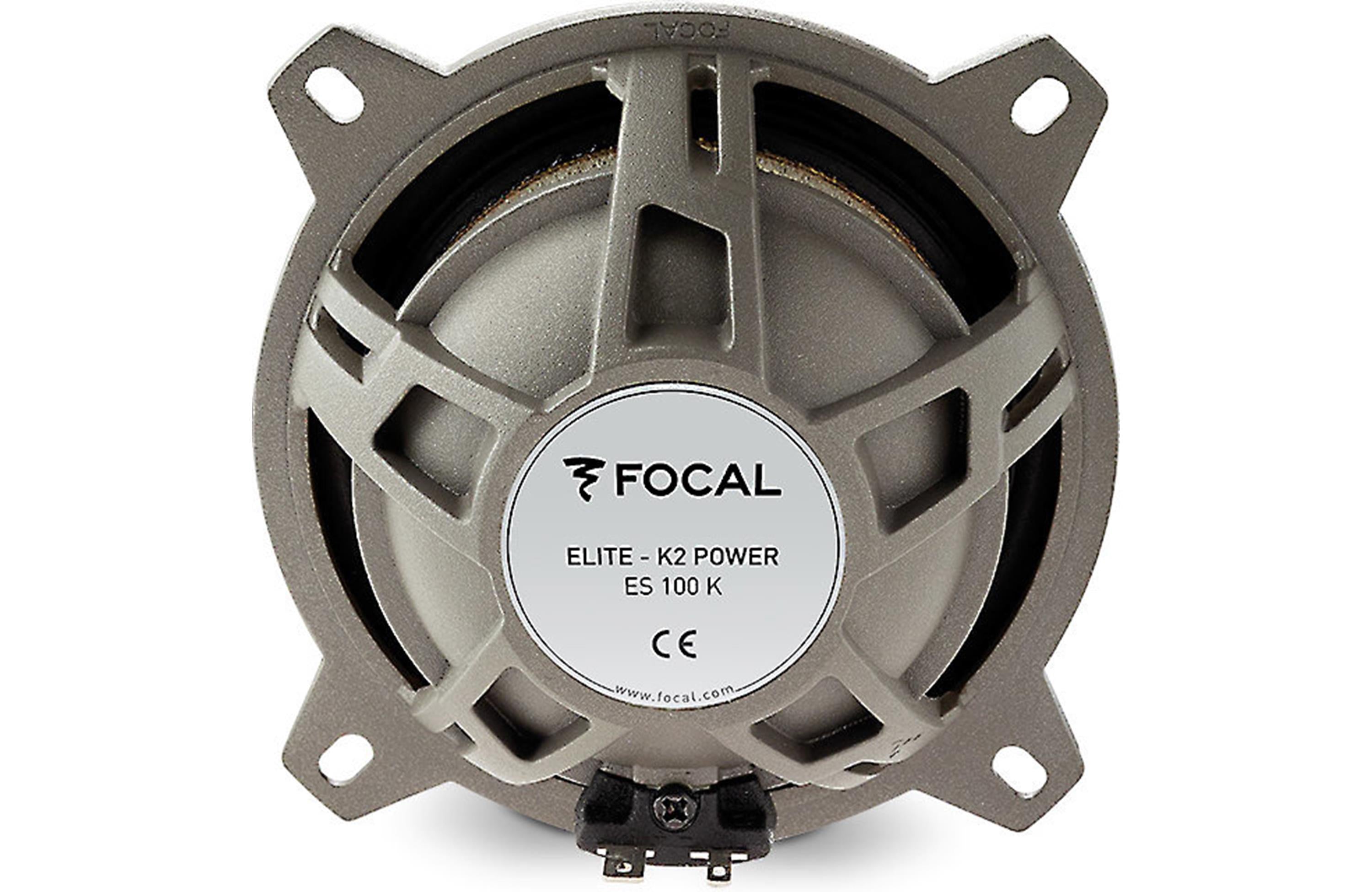

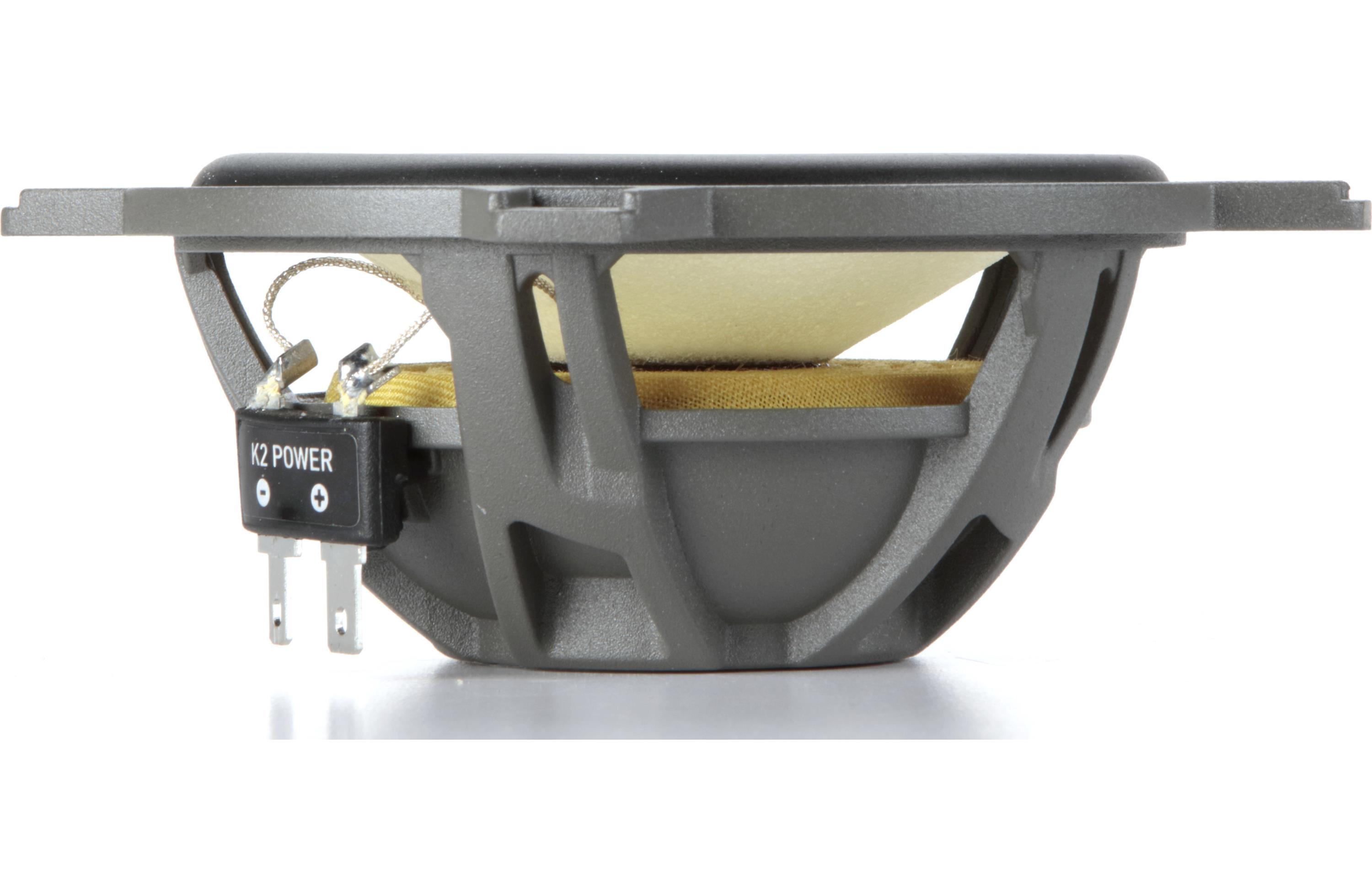

It is composed of two 4" (100mm) speaker drivers with Kevlar cones. The famous yellow cones of the K2 Power line are light, rigid and have excellent damping to provide dynamic sound with incredible definition. The centre of the cone is equipped with a phase plug for improved sound dispersion around the vehicle.

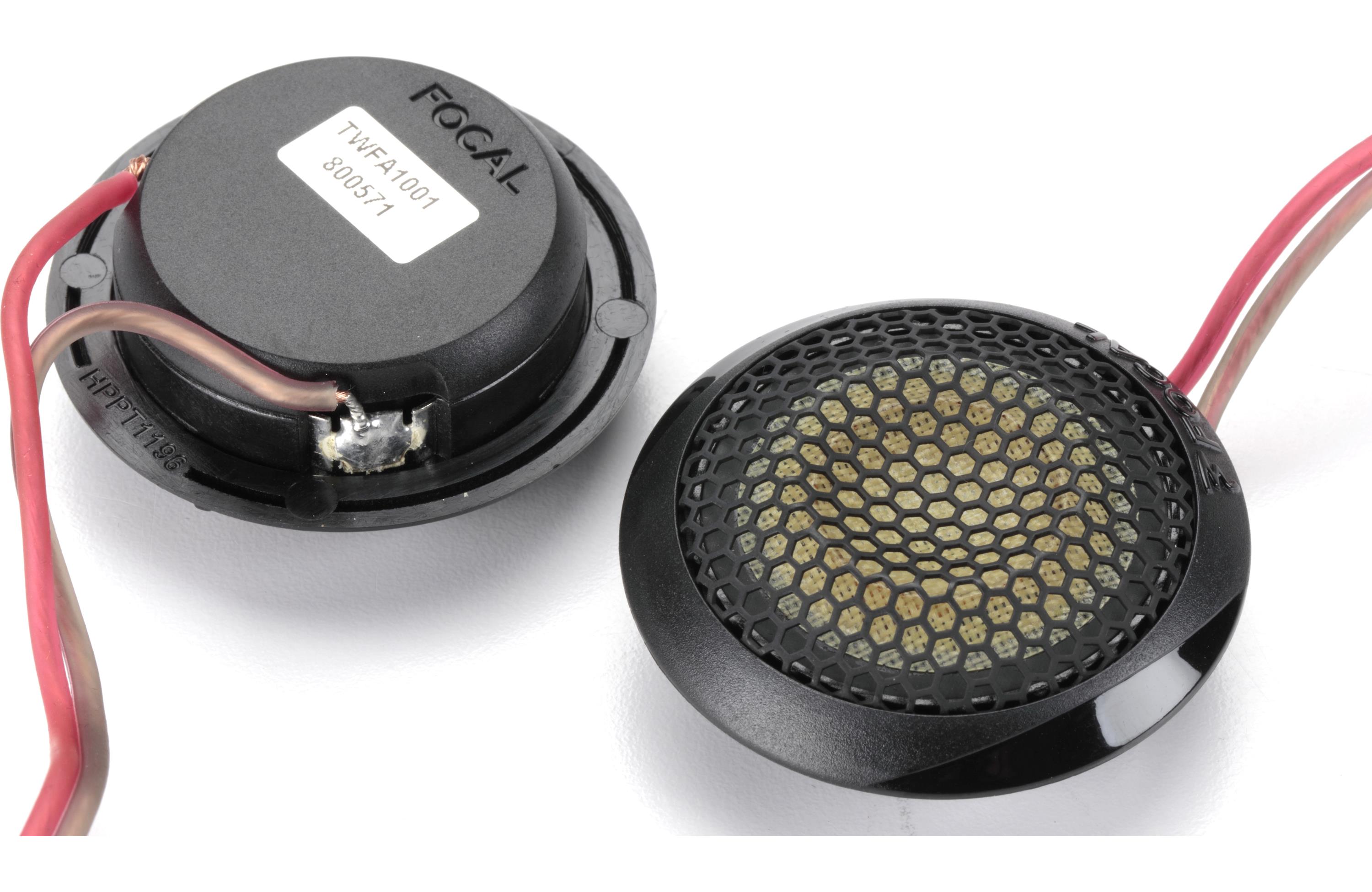

The high frequencies are faithfully reproduced by two 025/32" (20mm) TKM tweeters. Composed of aramid fibres, these inverted dome tweeters have an exclusive 'M'-shaped profile to control deformation and to reduce distortion. The new-generation tweeters feature very compact crossovers which are easy to install. Various accessories are supplied for assembling the tweeters, which can be installed in the factory locations, on tilting frames or flush-mounted.
The size of each component of this kit has been optimised to offer a very compact solution which can be adapted for all kinds of set-ups in all kinds of vehicles.
The kit is supplied with aluminum and mesh grilles.
KEVLAR CONE
Precision and dynamics
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics:
Rigidity
Lightness
Damping, for precise and dynamic sound.
TMD SUSPENSION
Say goodbye to distortion
The new K2 Power TKM tweeter features an exclusive M -shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a push-pull motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance
Radial VC cooling
For higher SPL
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Progressive spider profile
Improved linearity and precision
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
For improved reliability
An optimised crossover

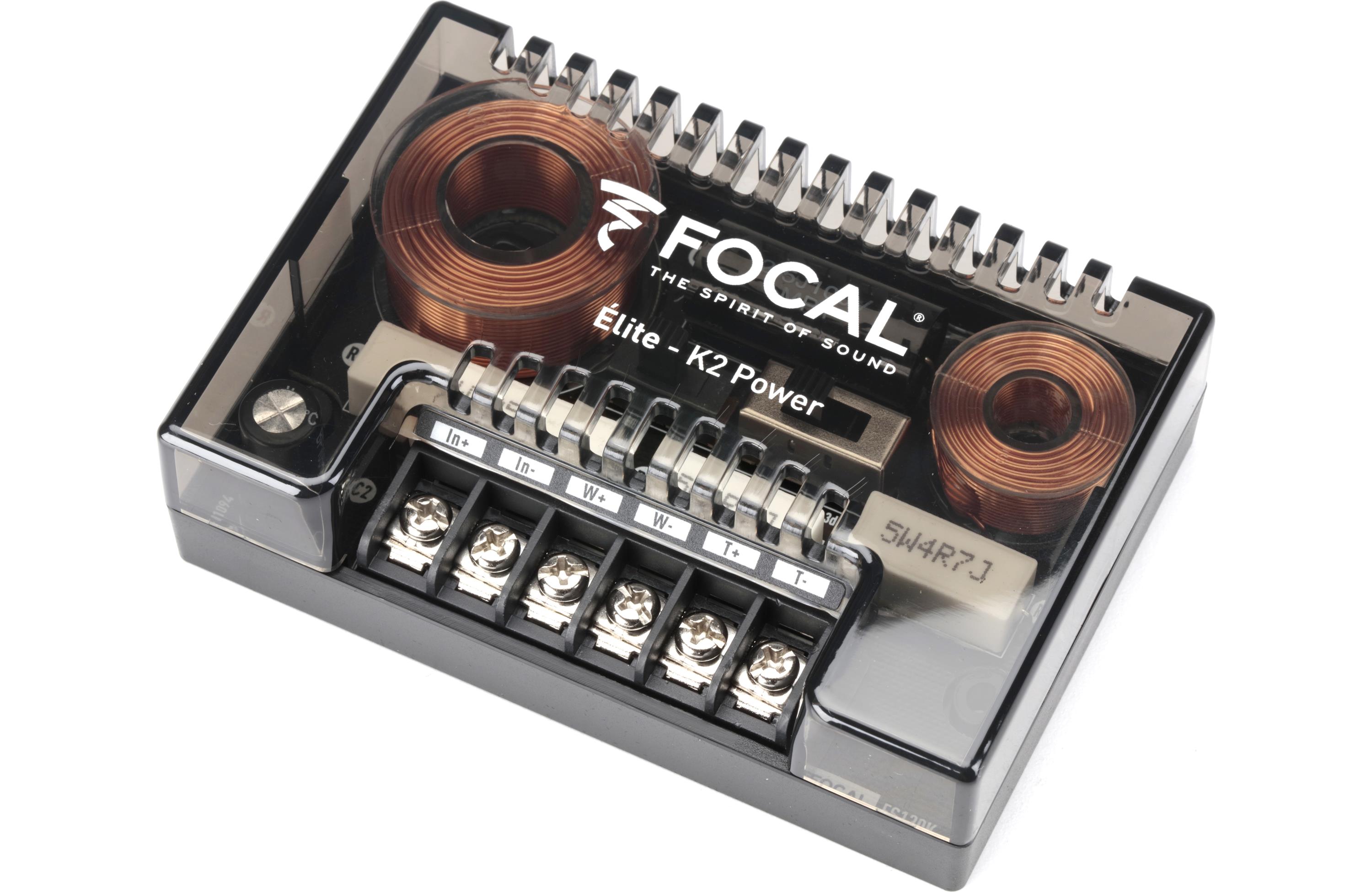

The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
Specs
2-way component kit
Diameter: 4" (100mm)
Voice coil diameter: 013/16" (20mm)
Voice coil height: 01/3" (8.5mm)
Motor: Neodymium
Tweeter: TKM ("M" profile aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned
Mass Damper (TMD )
Separated crossover: 12/12dB (3.5kHz)
Tweeter Adjustable level: +3; 0; -3dB/oct
Max. power: 120W
Nom. power: 60W RMS
Sensitivity (2.83V/1m): 90dB
Frequency response: 110Hz- 22kHz
Impedance: 4
Accessories: Supplied grilles
