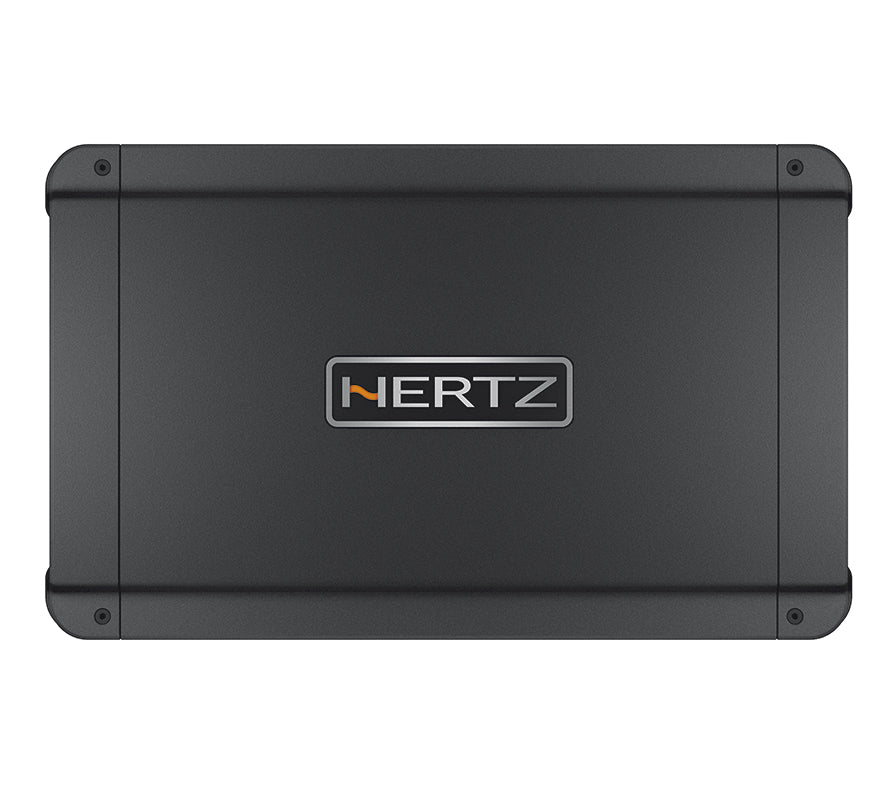

Hertz HCP 4 Four Channel Amplifier
HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units. Built to work both in mono, as part of a three-channel system with sub and front, and in stereo for a powerful two-channel system, HCP 4 is a unique model in terms of versatility!
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Specs
Channel mode 4 - 3 - 2
Output Power (RMS)
@ 14.4 VDC 4 Ch: 65 W x 4 (4 )
4 Ch: 95 W x 4 (2 )
3 Ch: 65 W x 2 (4 ) + 190 W x 1 (4 )
3 Ch: 95 W x 2 (2 ) + 190 W x 1 (4 )
2 Ch: 190 W x 2 (4 )
Filters
Bypass Yes
Hi-Pass A/B: 80 Hz @ 12 dB/Oct.
Lo-Pass A/B: 50 500 Hz @ 12 dB/Oct.
Band-Pass -
Distortion - THD
(100Hz @ 4 ) 0.01%
S/N Ratio
(A weighted @ 1V) 103 dB
Damping factor
(100Hz @ 4 ) 120
Size W x D x H
mm (in.) 315 x 190 x 50 (12.40 x 7.48 x 1.97)
