We have taken material and design cues from both the Axios USB cable and the older version of the Kimber Select Line (KS2416, KS2426, & 2436) and created a cable that surpasses both the performance and the fit and finish of the predecessors.
Details about the construction and components of these new USB cables:
Greatly improved -/+ data pair with low density PTFE dielectric. The copper version will utilize silver plated copper and the HB and AG models will utilize pure silver data pairs with pigment free PTFE dielectric. The data pair shielding is circumferential- ly bonded to the connector shell using pure, 0.003” thick silver foil for low RF impedance to ground (this is for all models).
Copper and HB models use copper conductors for the 5v DC line while the AG model uses pure silver conductors for the 5V DC line.
By virtue of this robust new conductor design GEN 2 will func- tion flawless even at 6 meter lengths. Cables will be available from 0.5 meters up to 6 meter lengths.
Ultra High Molecular Weight Polyethylene (UHMWPE) fibers are braided with the data and power conductors to maintain consistent geometry and greatly improve the durability. These special fibers are the same semicrystalline polymers that have a been trusted for decades by surgeons when performing total joint replacements for their mechanical properties and toughness/durability.

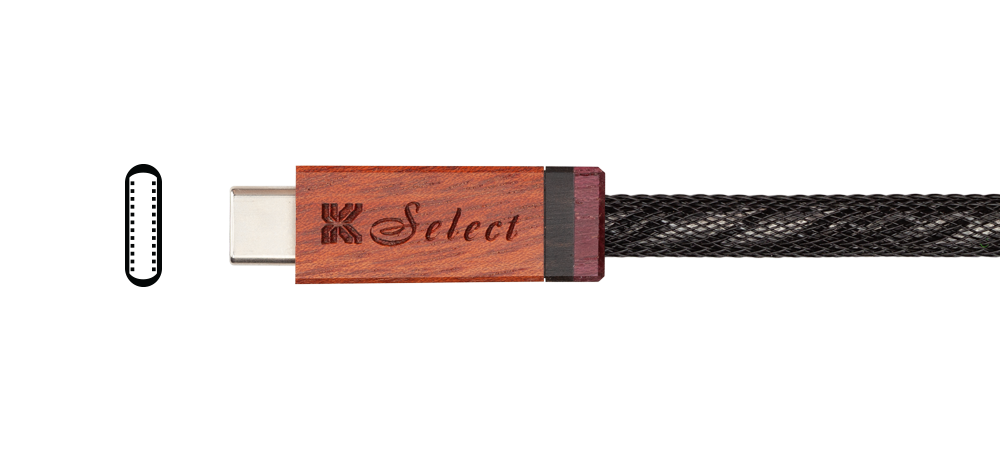

Connectors available: USB-A, USB-B, USB-C
