Focal ES 165K2 Power 6.5" 2 Way Component Speaker (Pair)
Dynamic sound
2 woofers + 2 tweeters

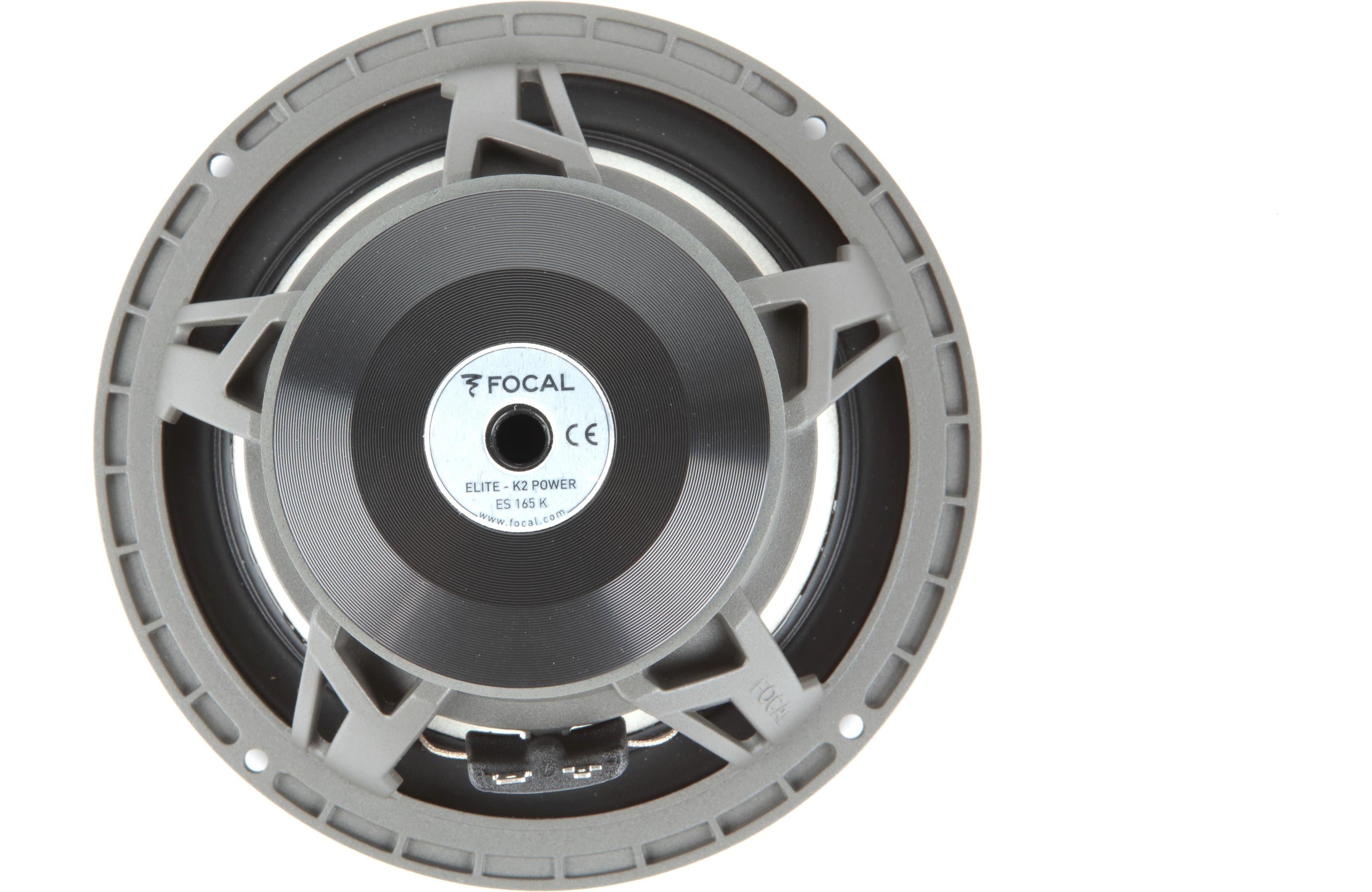

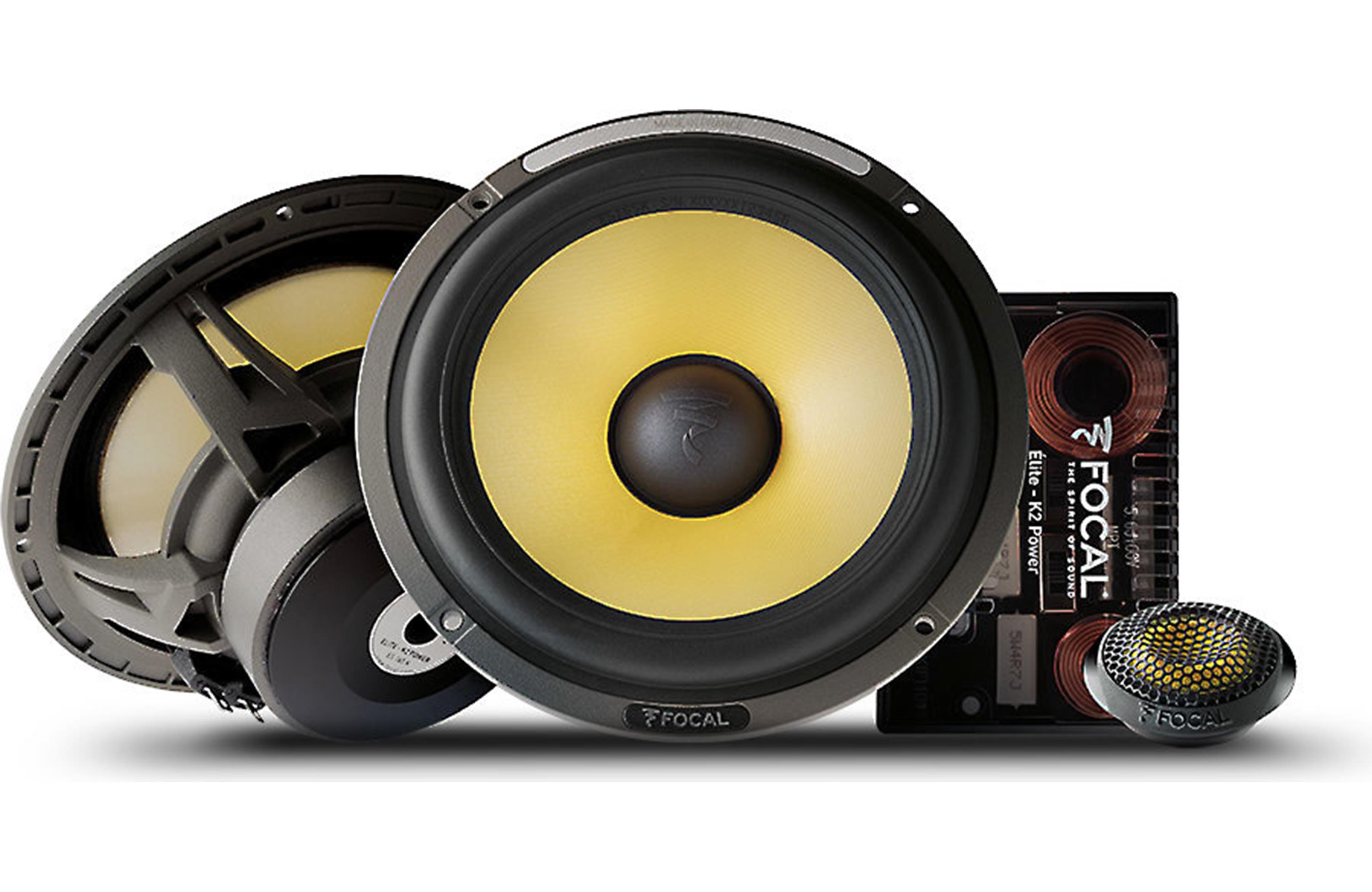

The car audio kit ES 165 K is composed of two 6,5" (165 mm) woofers and two 025/32" (20mm) TKM tweeters. This is a compact solution that s easy to install. The K2 Power Kevlar cones used for the speaker drivers of the ES 165 K component kit deliver extremely dynamic sound and perfect definition. These cones endowed with all the ideal qualities, lightness, rigidity and excellent damping, have also been given the new TMD suspension. Initially developed for Sopra high-fidelity loudspeakers, the exclusive design of the suspension removes unwanted resonances and reduces the effects of distortion.

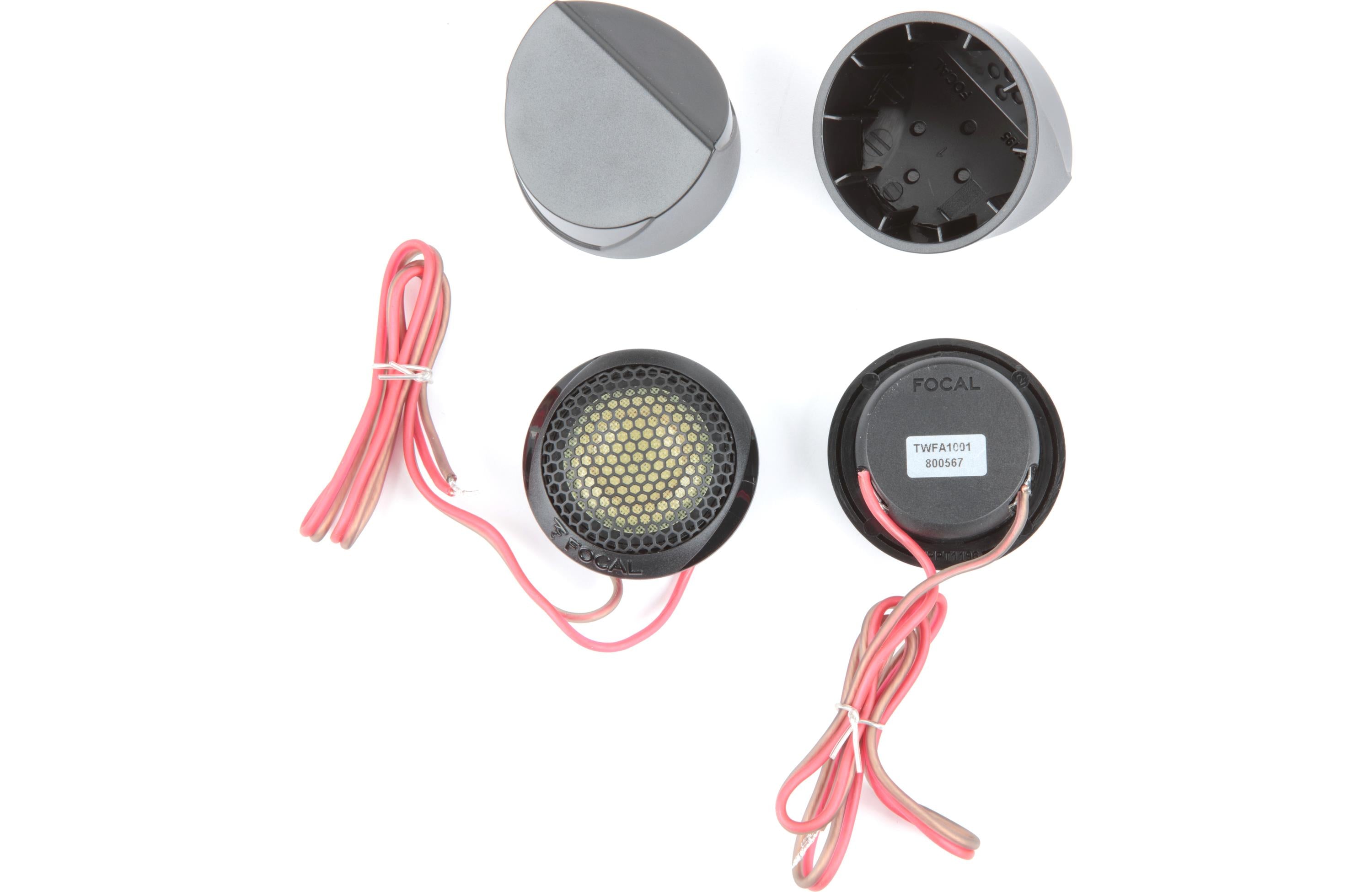

The two TKM inverted dome tweeters are composed of aramid fibres. Their exclusive M -shaped profile is designed to control deformation of the dome, and to perfectly reproduce high frequencies up to 22 kHz smoothly and with precision. Their compact crossovers are quick to install and easy to set up. Various accessories are supplied for assembling the tweeters, which can be installed in the factory locations, on tilting frames or flush-mounted.

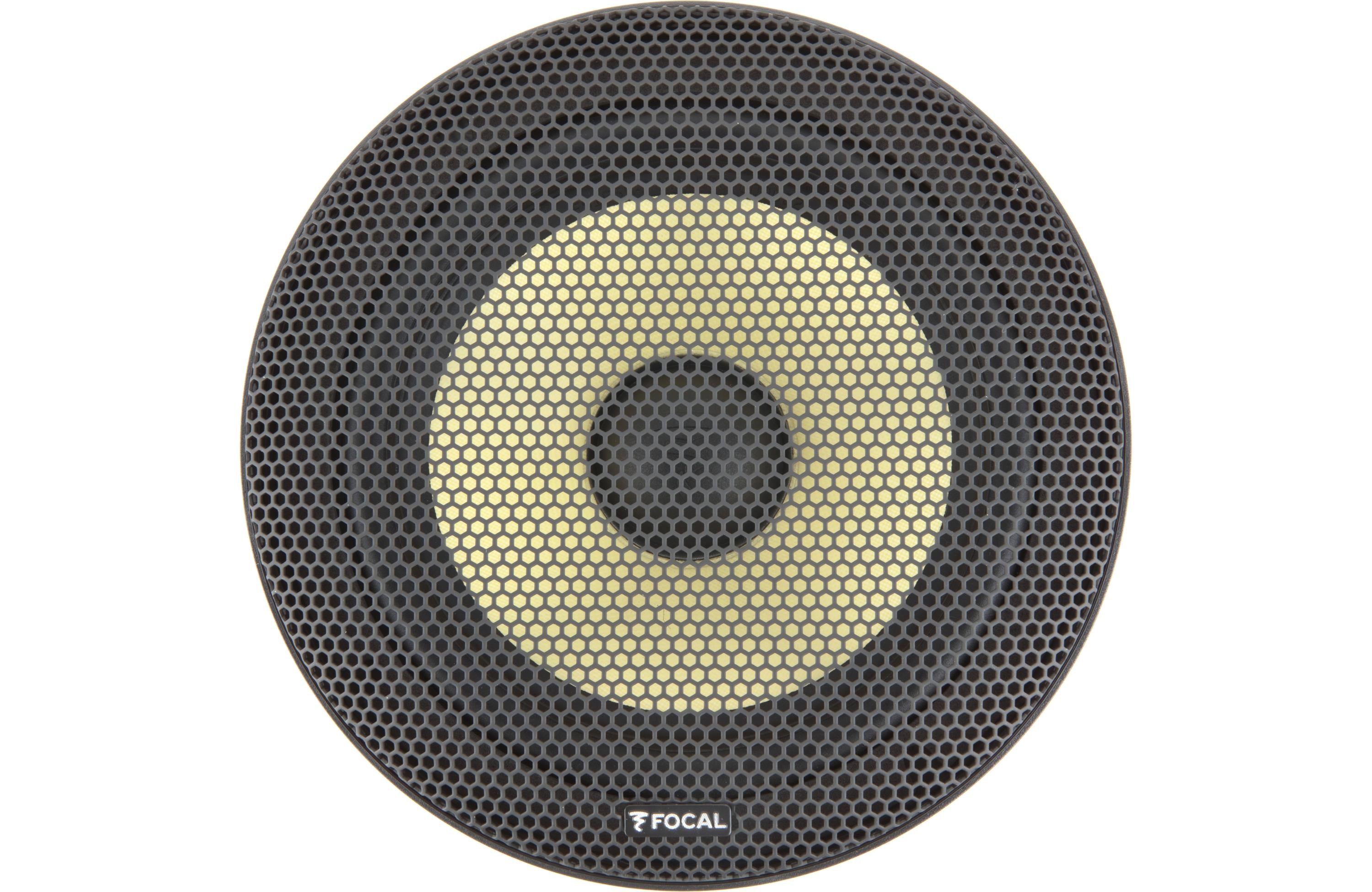

The kit is supplied with aluminum and mesh grilles.
KEVLAR CONE
Precision and dynamics
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics:
Rigidity
Lightness
Damping, for precise and dynamic sound.
TMD SUSPENSION
Say goodbye to distortion
The new K2 Power TKM tweeter features an exclusive M -shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a push-pull motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance
Radial VC cooling
For higher SPL

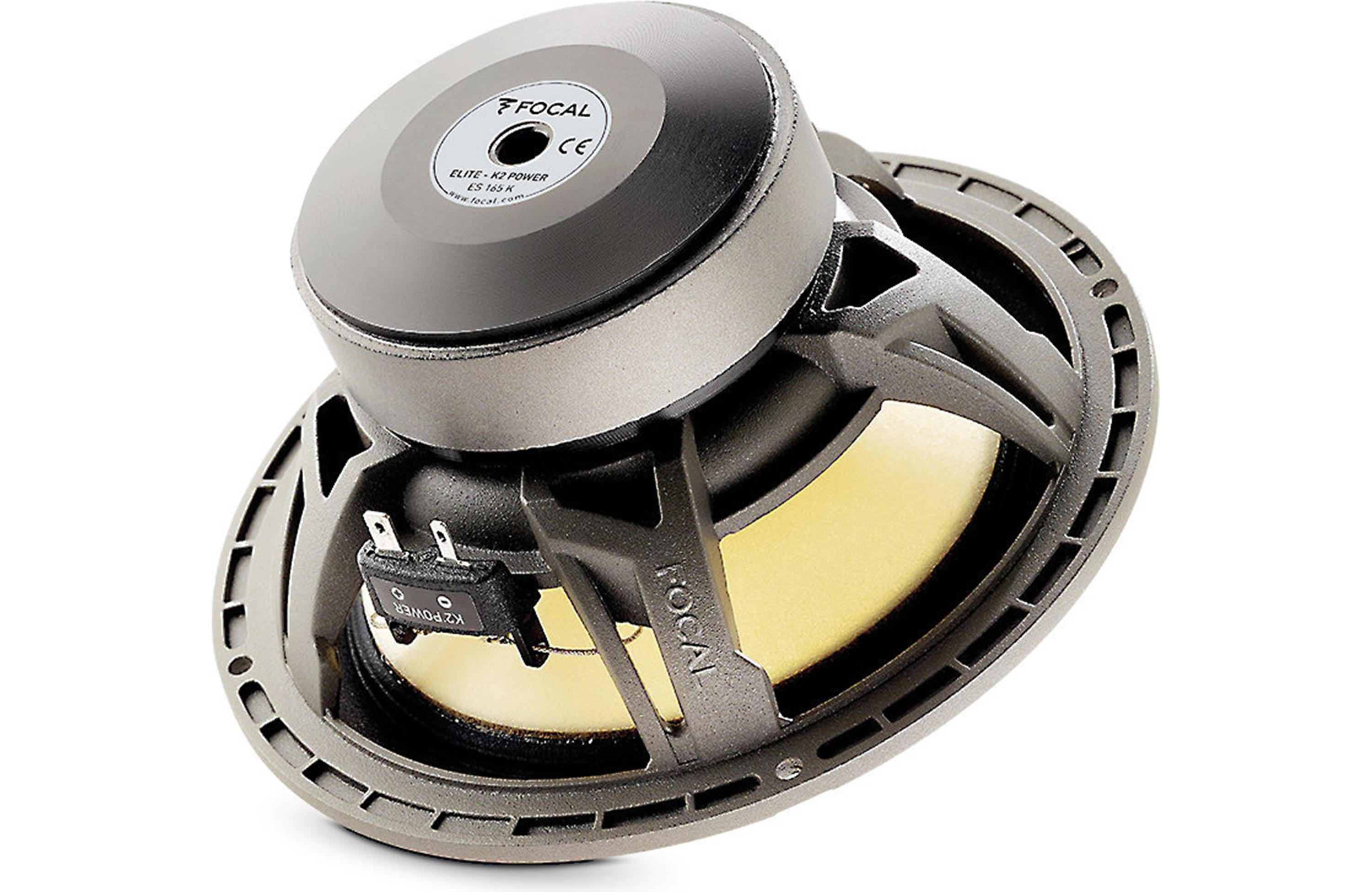

The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Progressive spider profile
Improved linearity and precision
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
For improved reliability
An optimised crossover

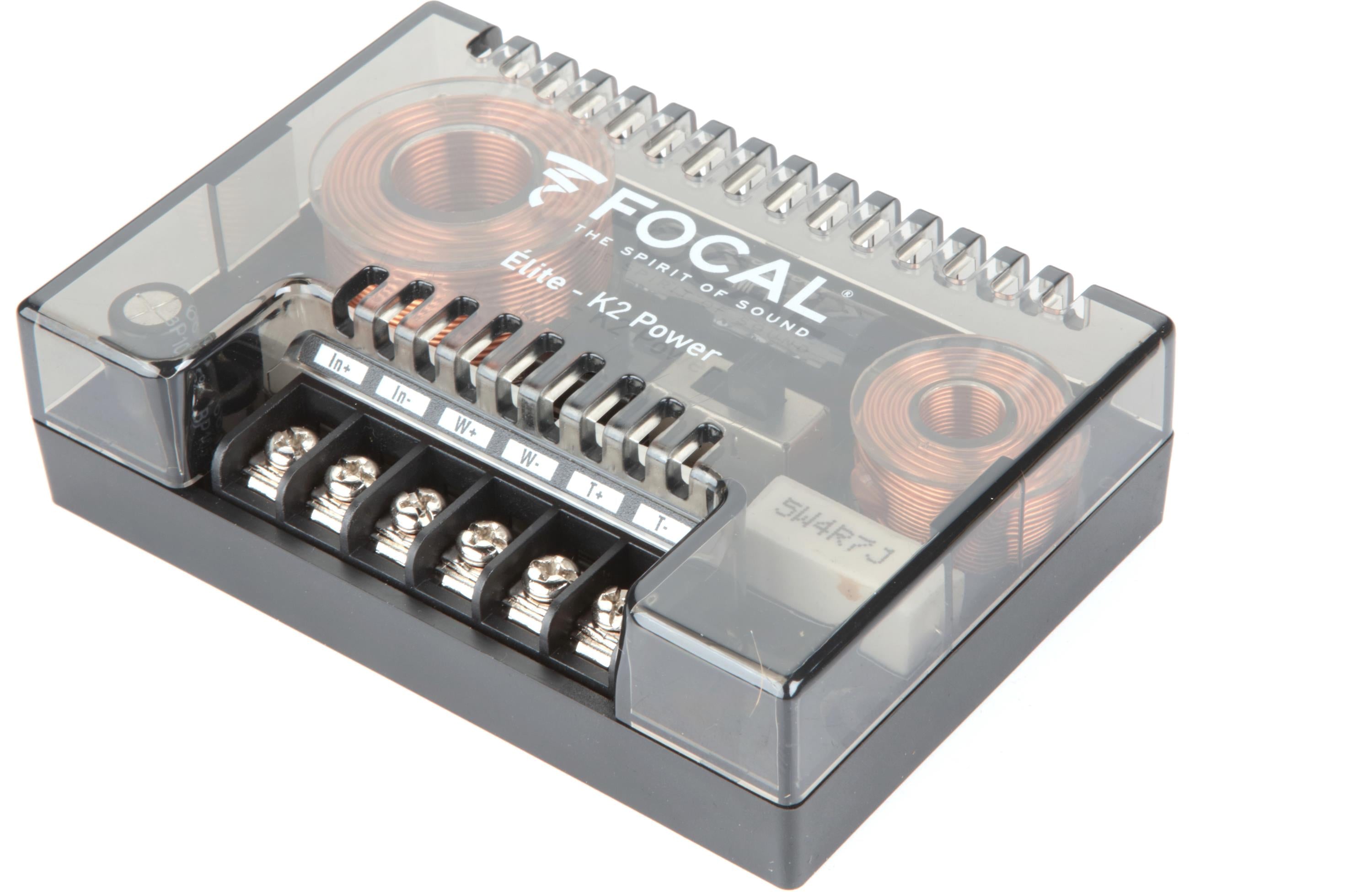

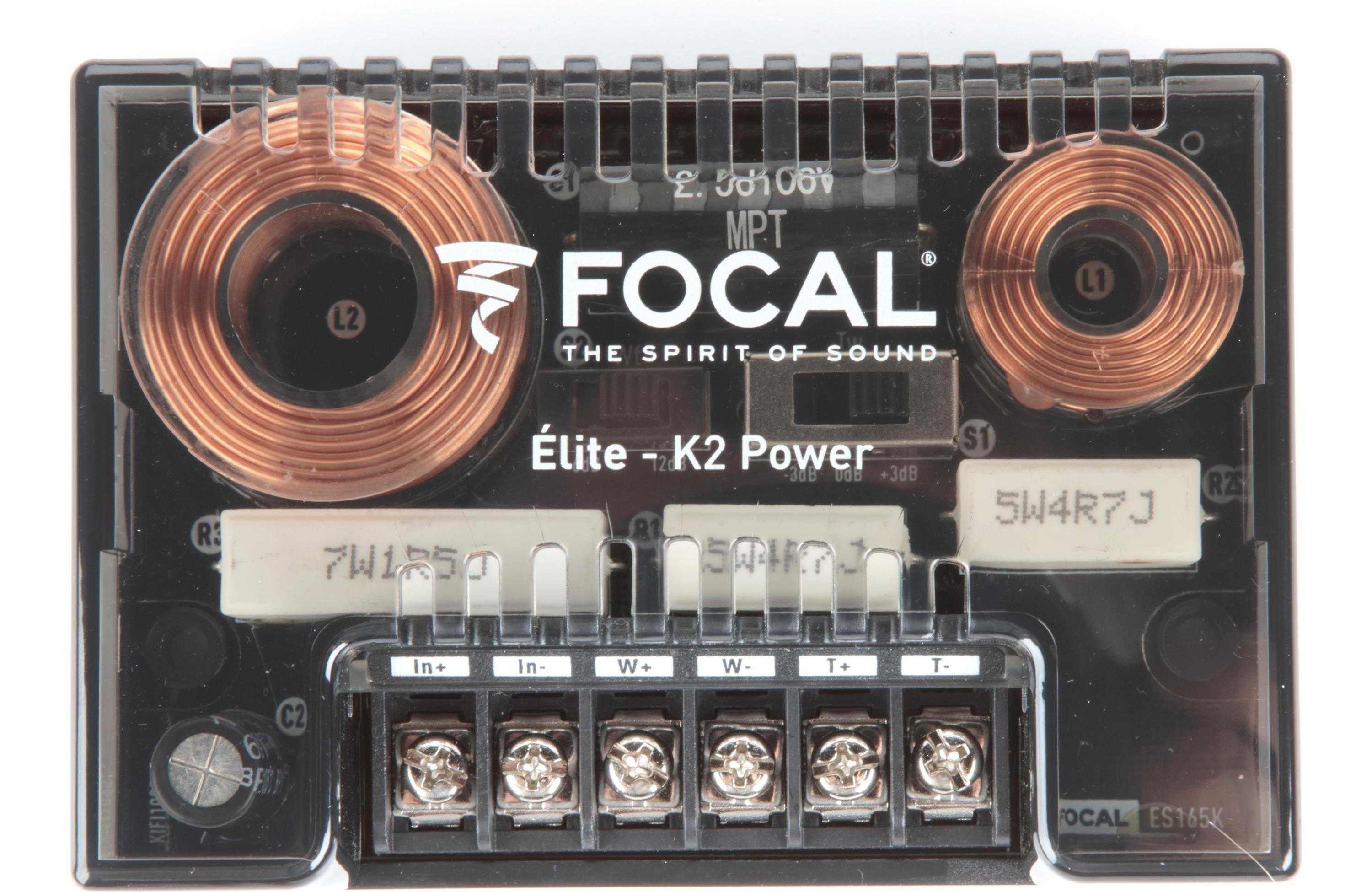

The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
Specs
2-way component kit
Diameter: 6 " (165mm)
Voice coil diameter: 11/4" (32mm)
Voice coil height: 09/16"(15mm)
Motor: Magnet
Tweeter: TKM ("M" profile aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned Mass Damper (TMD )
Separated crossover: 6-12/12dB (3kHz)
Tweeter Adjustable level: +3; 0; -3dB/oct
Max. power: 200W
Nom.power: 100W RMS
Sensitivity (2.83V/1m): 90.8dB
Frequency response: 60Hz- 22kHz
Impedance: 4
Accessories: Supplied grilles
