6.5" TWO-WAY COAXIAL COMPONENT KIT

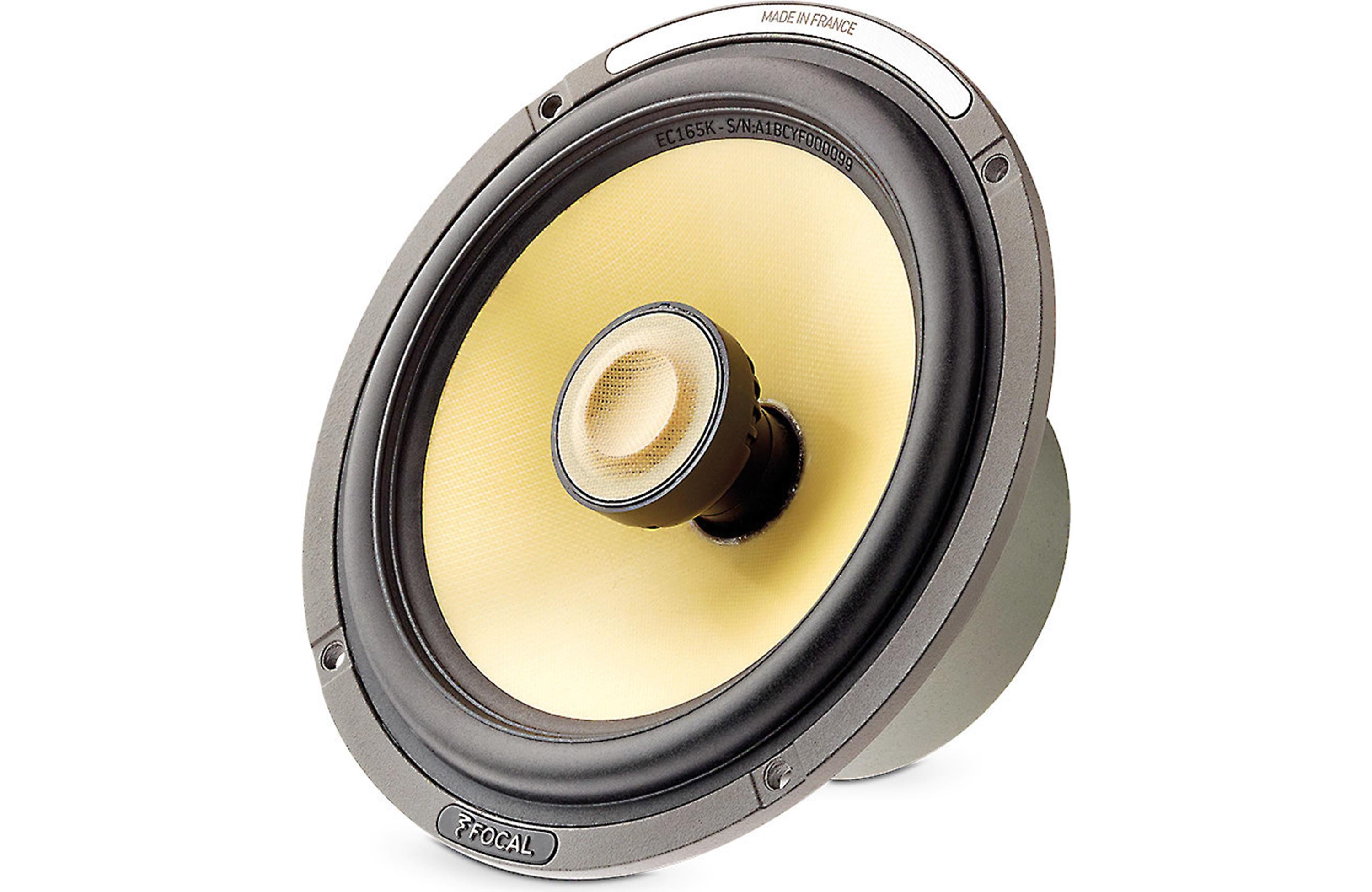

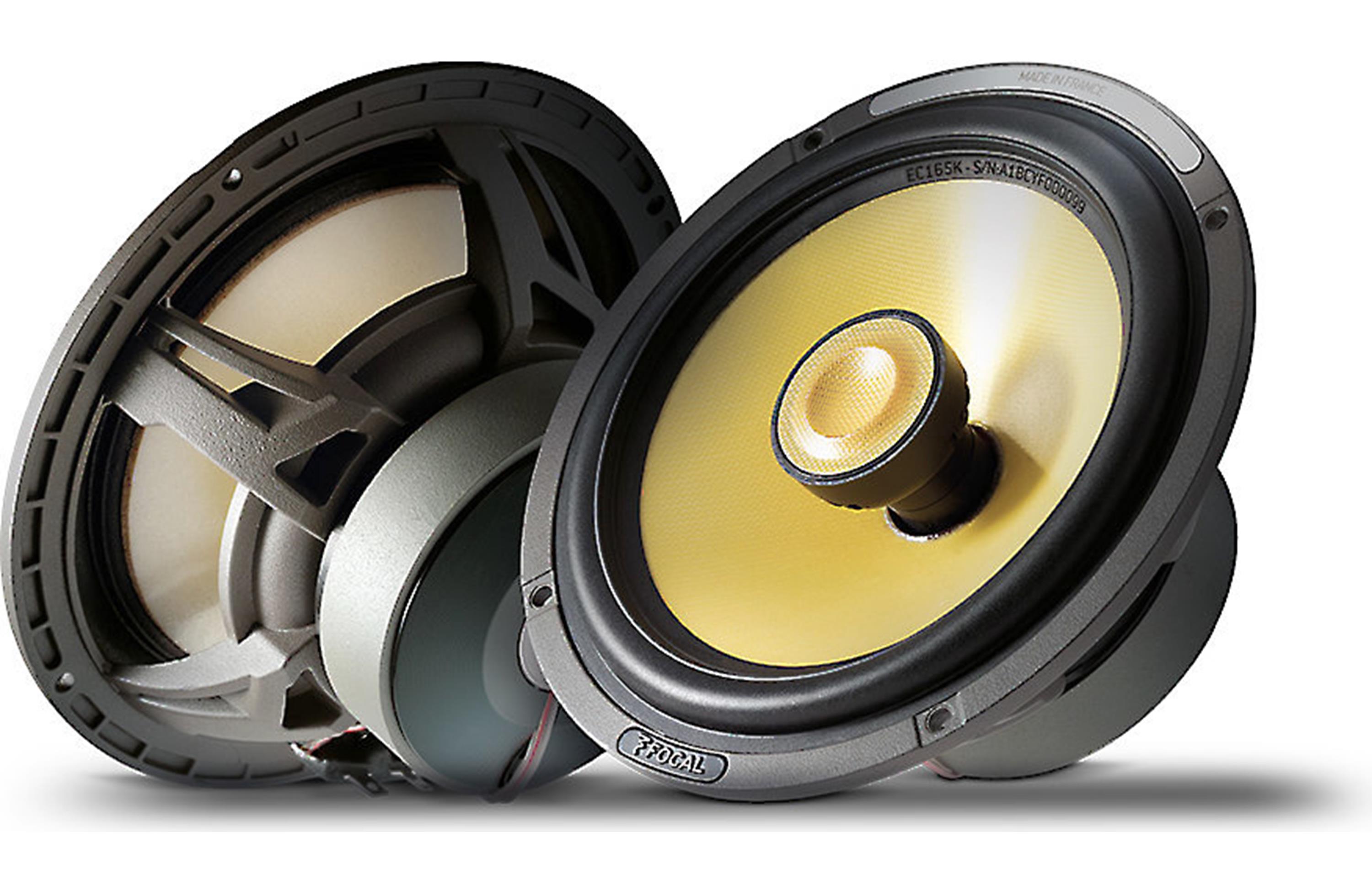

The EC 165 K kit is composed of two 165 mm (6 ") woofers with coaxial tweeters.
Like all speaker drivers in the K2 Power line, the coaxial woofers of the EC 165 K kit are also equipped with Kevlar cones. These cones are endowed with all the ideal qualities: lightness, rigidity and excellent damping, to deliver dynamic sound and perfect definition. The cones are fixed to the frame using TMD suspension, whose exclusive design removes unwanted resonances and reduces the effects of distortion.

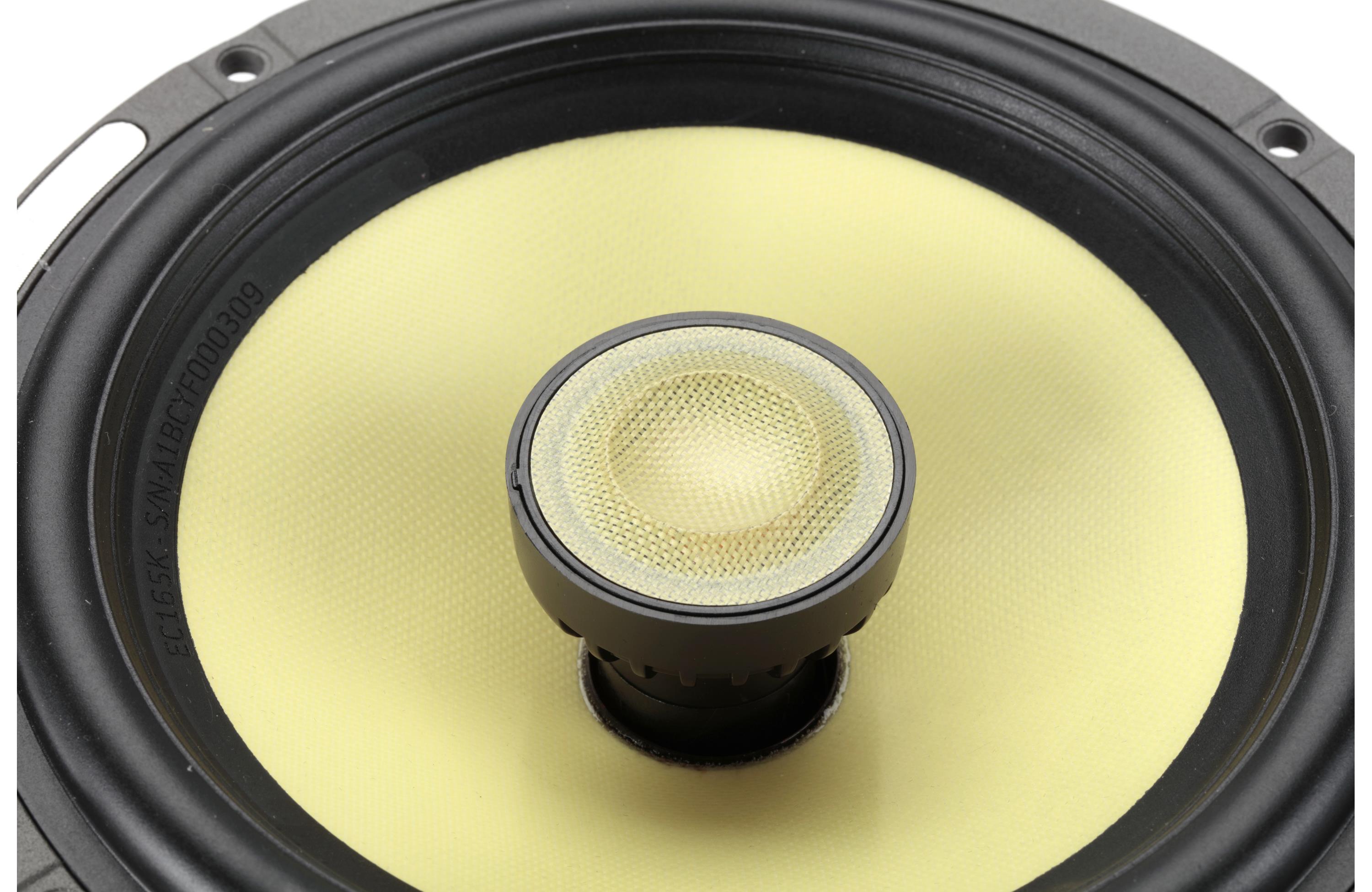

The two TKM inverted dome tweeters are composed of aramid fibers. Their exclusive M -shaped profile is designed to control deformation of the dome, and to reproduce with precision smoothly high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and shorter; their depth has been reduced as much as possible: 74 mm (3"). These tweeters are equipped with built-in crossovers.

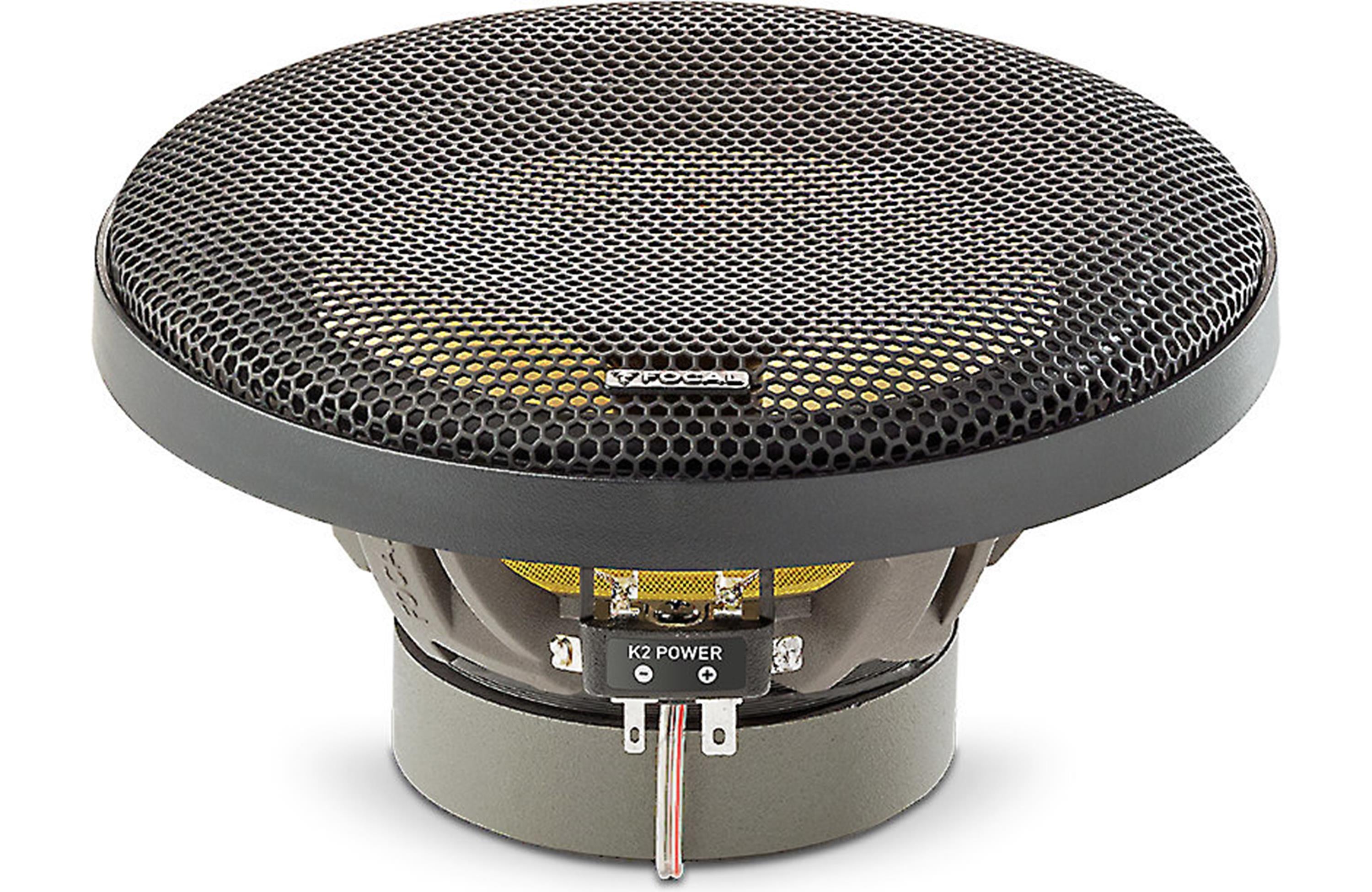

The kit is supplied with aluminum and mesh grilles.
Say goodbye to distortion TMD SUSPENSION
Initially developed for Sopra high-fidelity loudspeakers, TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonance and drastically reduce the harmonic distortion caused by the stress the cone is subject to. This patented technology endows the speaker driver with a very realistic mid-range with great definition.
Precision and dynamics
KEVLAR CONE
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics: Rigidity / Lightness / Damping, for precise and dynamic sound.
Specs
2-way coaxial kit
Diameter: 6 " (165mm)
Voice coil diameter: 1" (25mm)
Voice coil height: 0 9/16" (15mm)
Motor: Magnet
Tweeter: TKM ("M" profile aramid fiber inverted dome)
Cone: Composite K2 Power "W" sandwich cone
Surround: Tuned
Mass Damper (TMD )
Max. power: 160W
Nom. power: 80W RMS
Sensitivity (2.83V/1m): 93dB
Frequency response: 60Hz - 22kHz
Impedance: 4
Accessories: Supplied grilles
