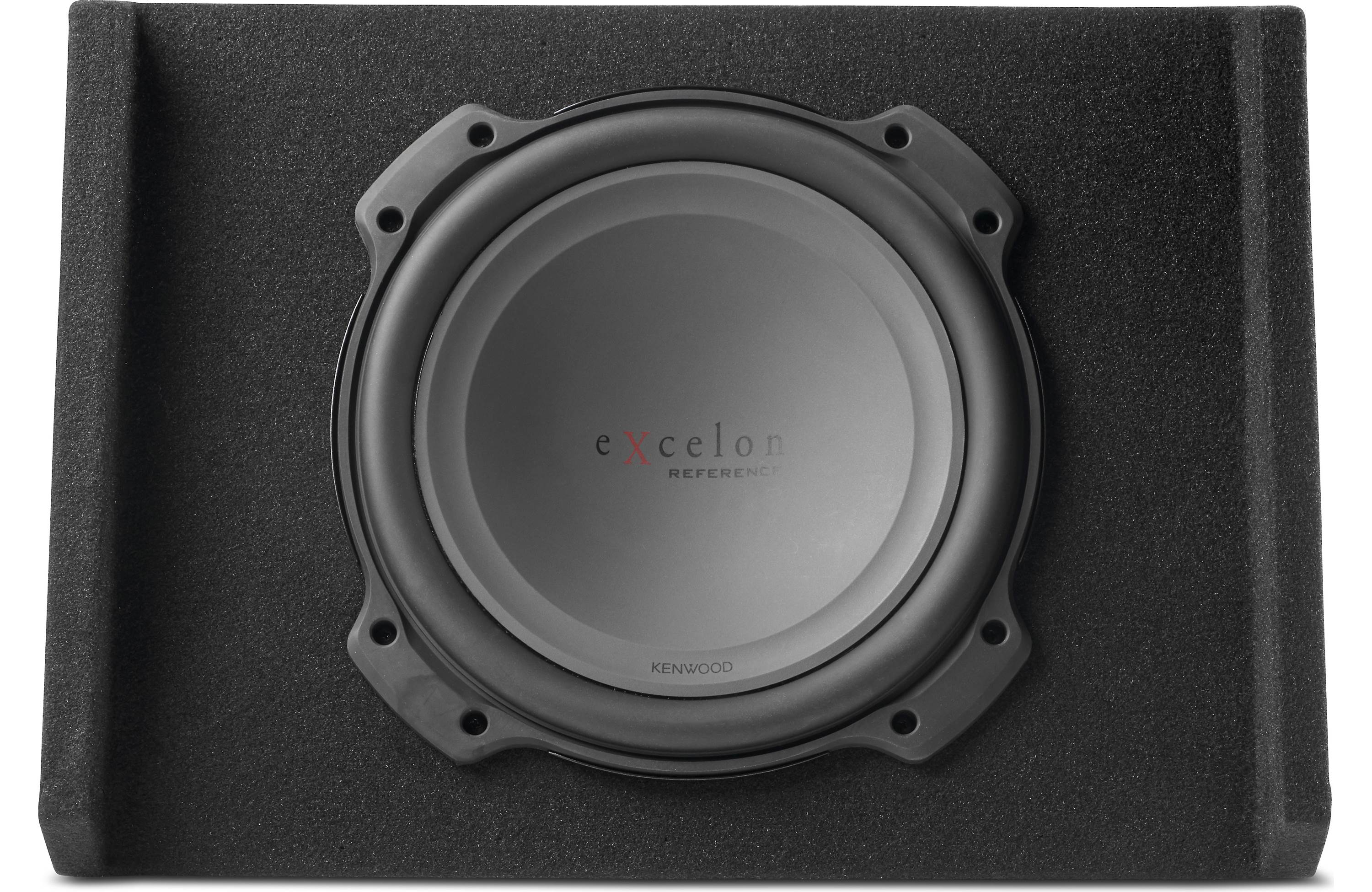

Kenwood Excelon P-XRW1202DB 12" Oversized Subwoofer with Sealed Down-Firing Enclosure
- 12" Oversized Cone Subwoofer
- Peak Power 2000W
- Low Profile Sealed Down-Firing Design
- Dimensions: 9"(H) x 16"(W) x 22"(L)
Cross Section Unit
Oversized Diaphragm
Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.
Reinforcing Ribs (Cone)
The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.
Strong Magnetic Circuit
Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.
Stress-free Spider
By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.
eXcelon Subwoofers
Subwoofers are one of the most important pieces of the sound quality puzzle. eXcelon oversized woofers provide quick response and offer stable and powerful bass that remains true to the original recording.
Test and Measurement
Subwoofer development requires a diligent testing process including an anechoic chamber, power testing facility and the most advanced desktop applications for design and simulation. These high standards allow KENWOOD eXcelon speakers to deliver their expected performance and have long term reliability so your music can be enjoyed for many years.

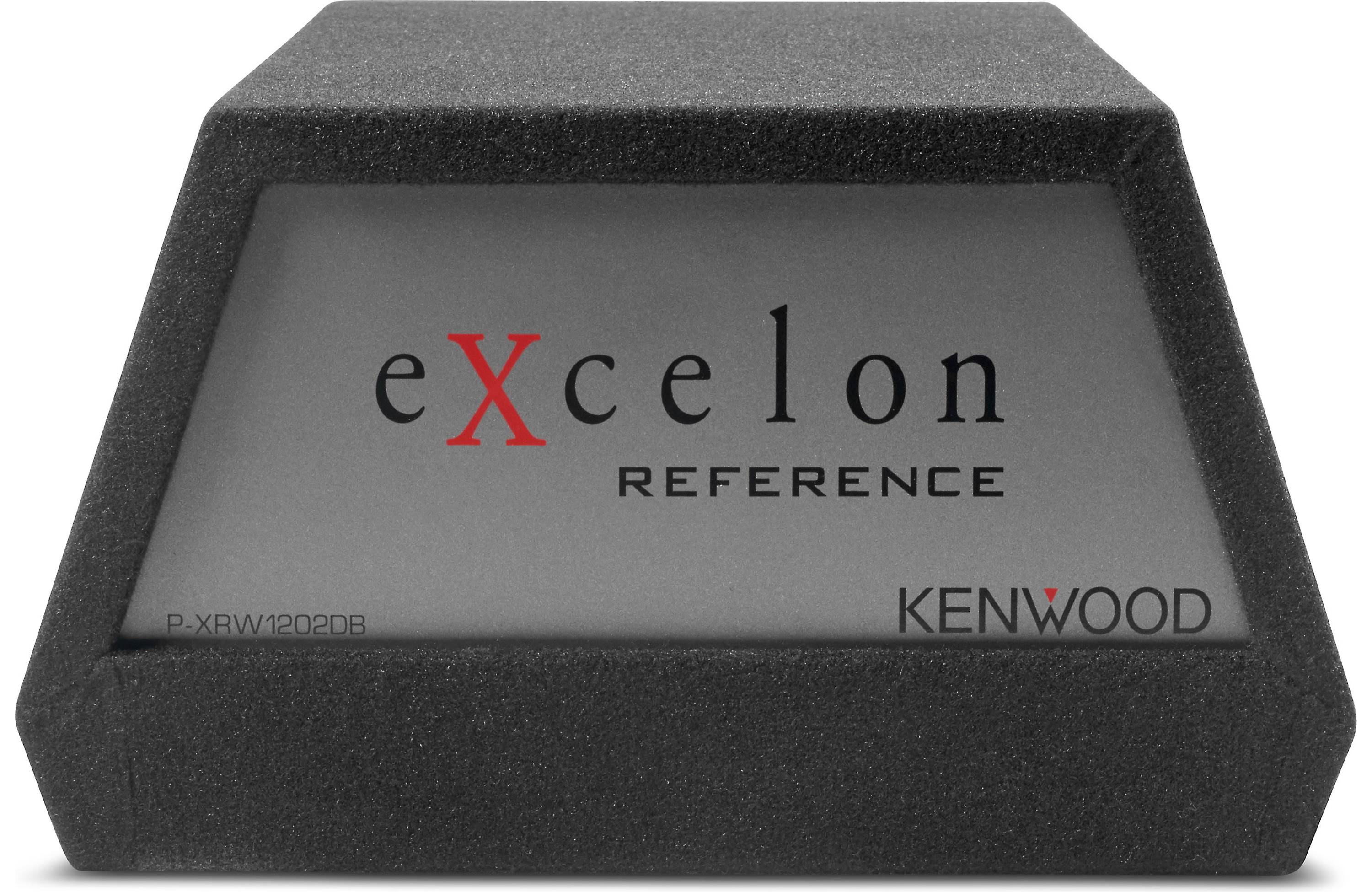

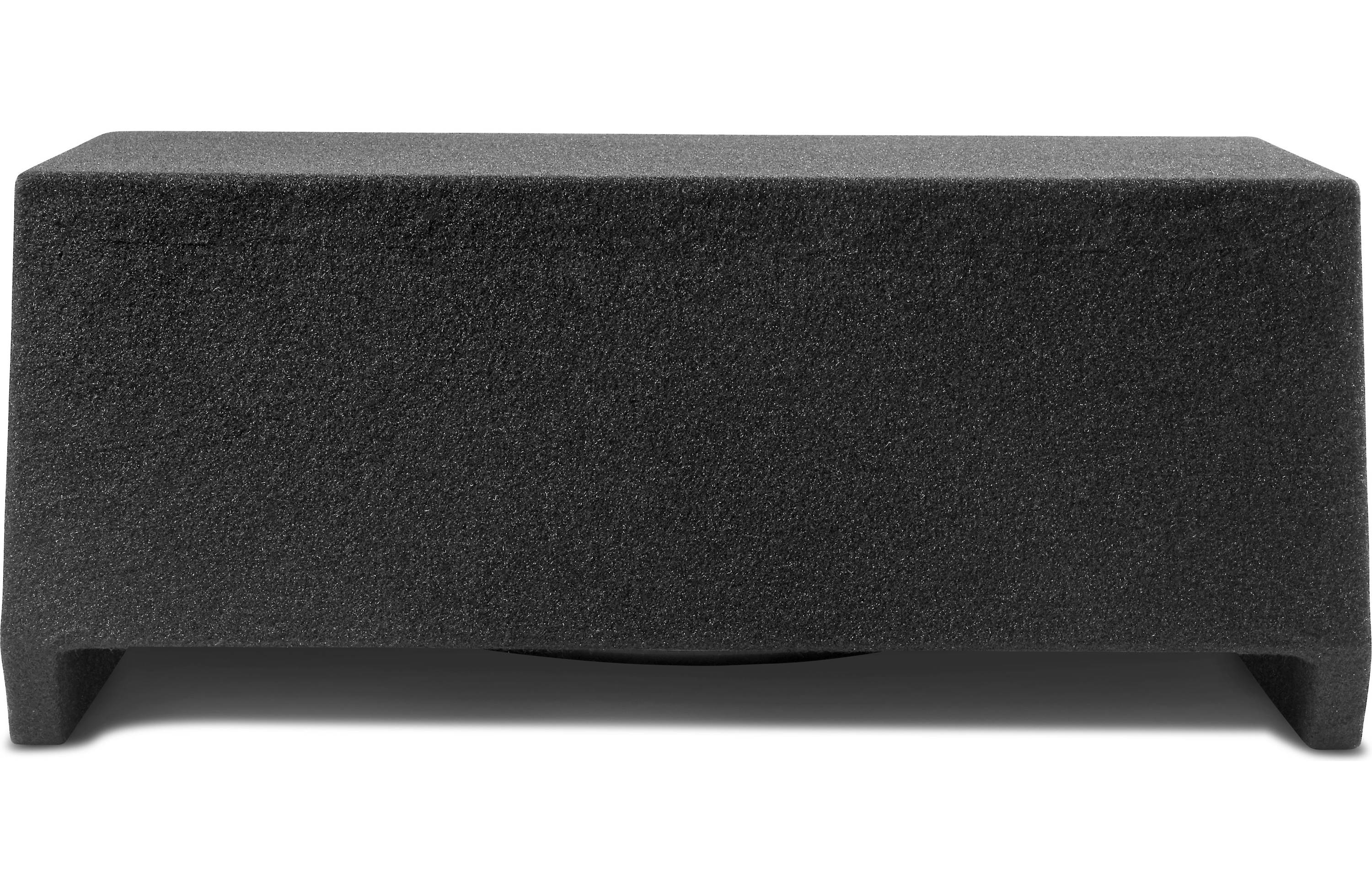

Sealed Down-Firing Enclosure
Durable 3/4" MDF and sealed down-firing enclosure adds rich and strong bass to your sound system.
Specs
P-XRW1202DB
Subwoofer Specification 12" Oversized Cone Subwoofer
Peak Power 2000W
RMS Power 400W
Impedance 2ΩSingle Voice Coil
Frequency Response 31Hz-300Hz
Features Dual Ventilation System
Stress-Free Damper
8AWG Push Terminals
Rubber Magnet Cover
Enclosure Specifications Low Profile Sealed Down-Firing Design
Black Carpeted 3/4" MDF Enclosure
Acoustic Damping Material
Dimensions: 9"(H) x 16"(W) x 22"(L)
