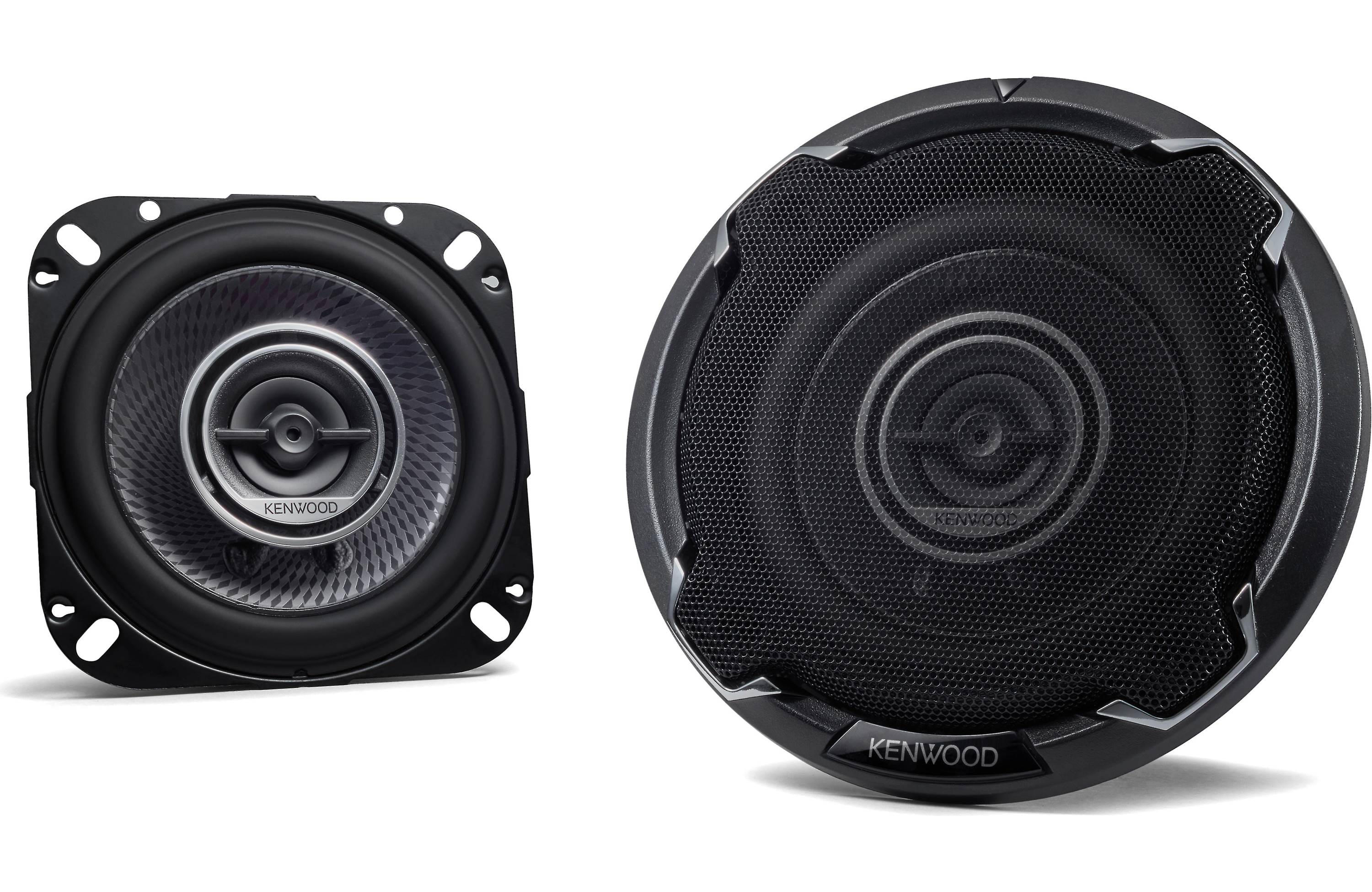

Kenwood KFC-1096PS 4" Round 2-Way Coaxial Speaker (Pair)
Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.
Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.
Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.
New Frame Design
Enlarged open area provides more bass and cleaner sound.
Specs
Peak Input Power 220W
Rated Input Power 50W
Impedance 4
Woofer Features 1-3/16 inch Paper Cone
Midrange Features 1 inch Paper Cone
Specifications
Sensitivity 85 dB/ W / m
Frequency Response 114Hz -25KHz
Cutout Diameter 3-11/16 inch
Mounting Depth 1-11/16 inch
Gross Weight 2.3lbs
Weight of Magnet(Woofer) 0.35lbs
