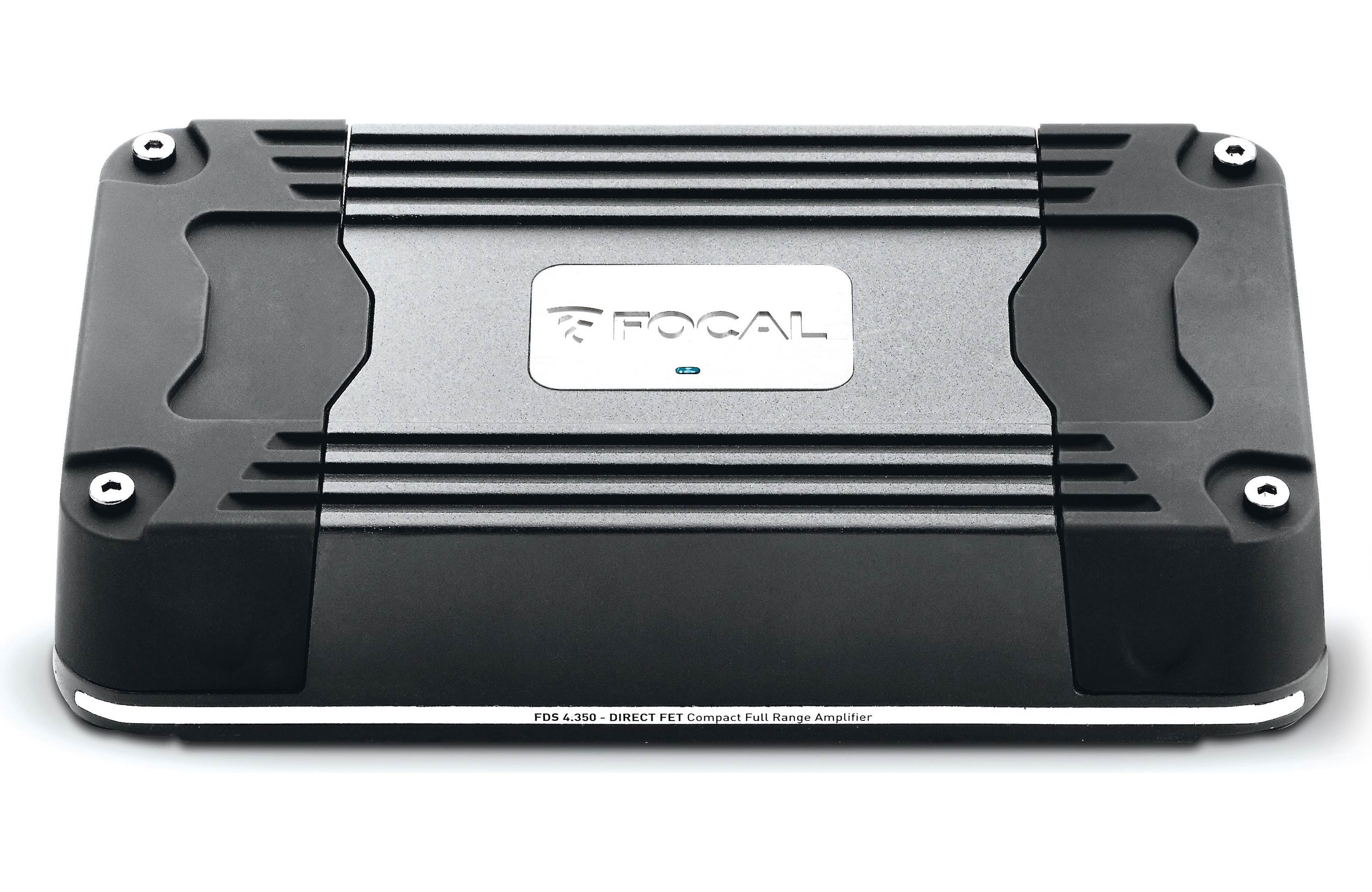

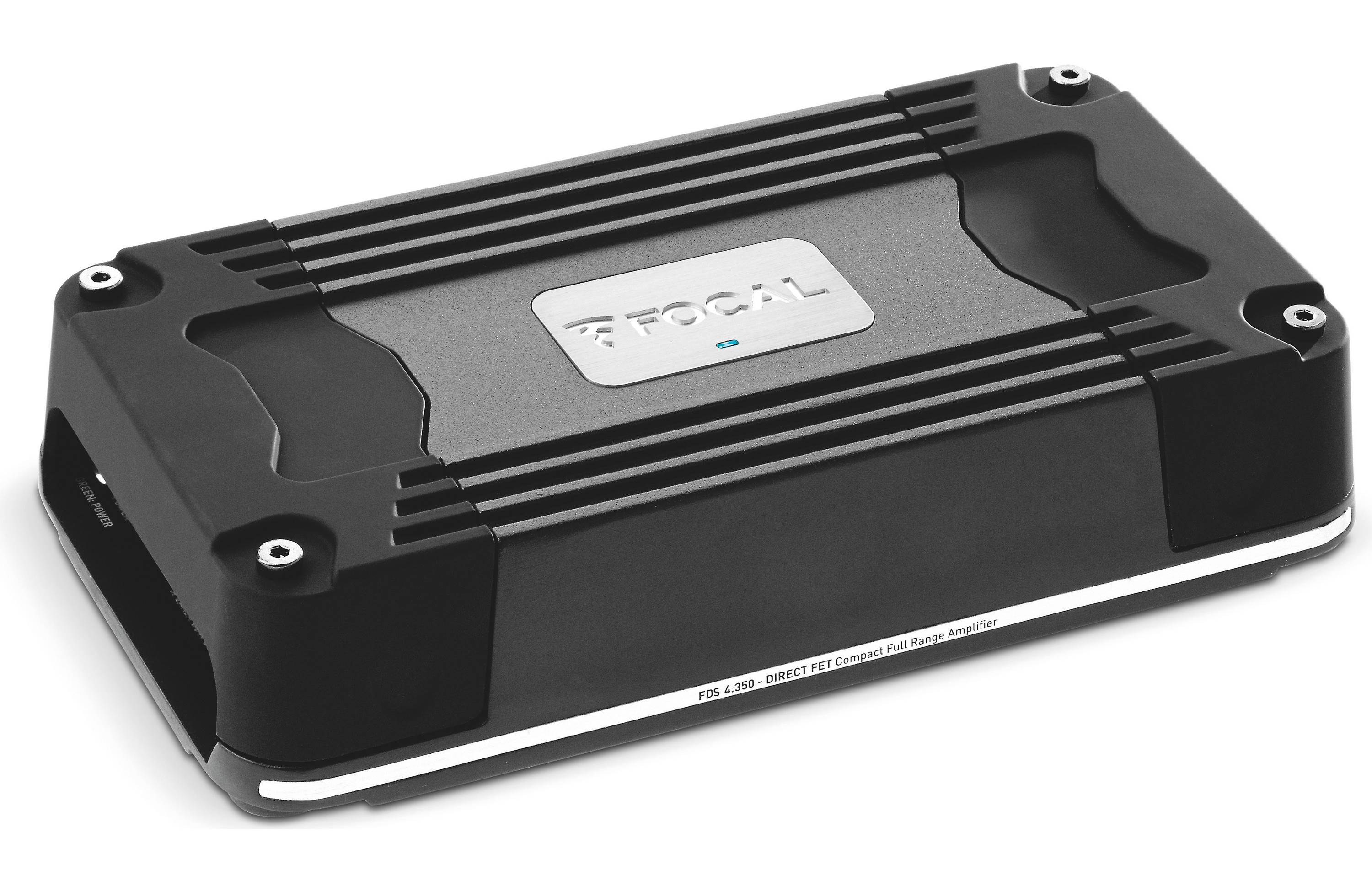

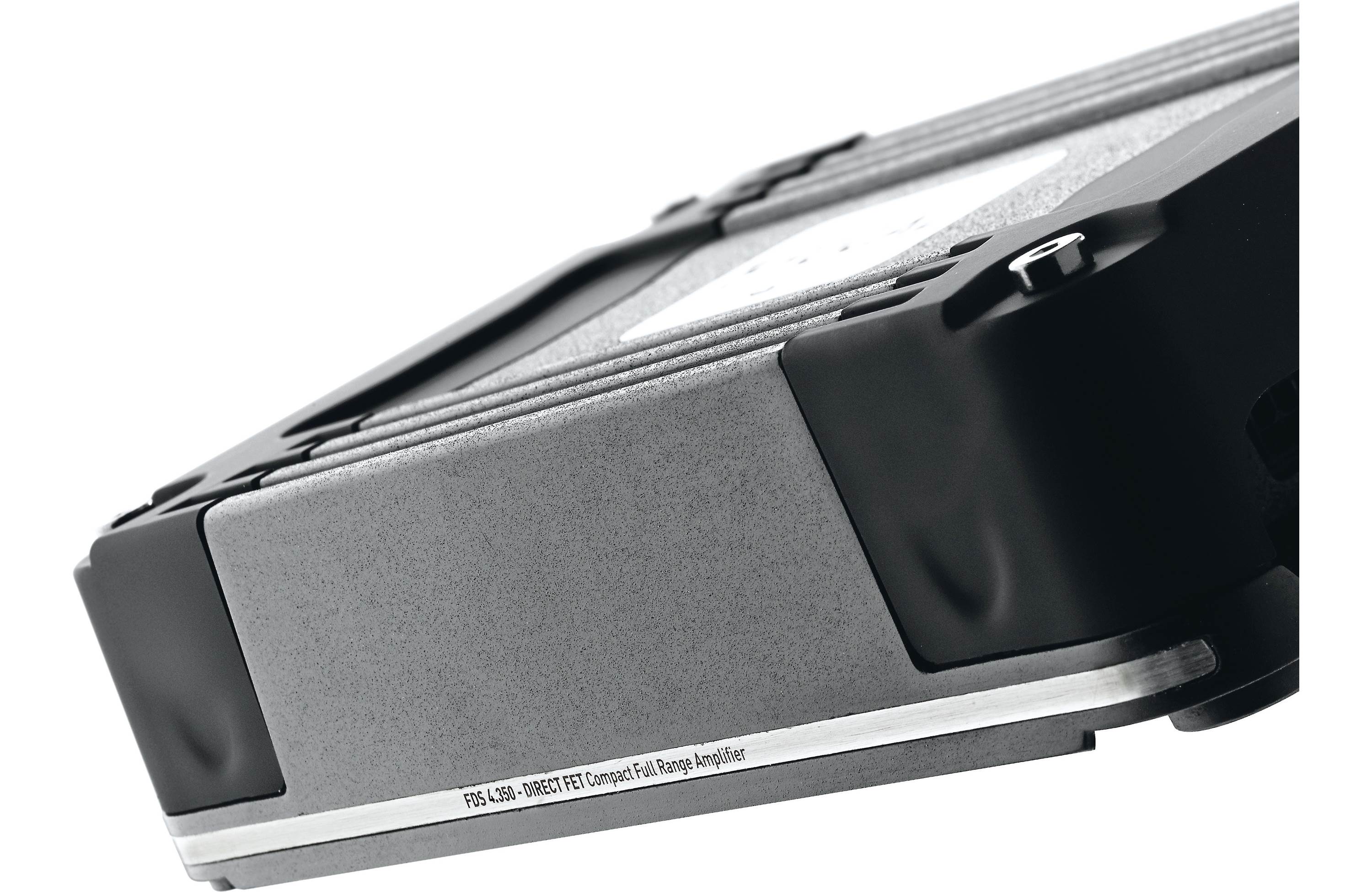

Focal FDS 4.350 Performance Ultra Compact Four Channel Amplifier
VERSATILE AND ULTRA-COMPACT
The FDS 4.350 is the 4-channel model (4 x 58 Watts RMS) and the most versatile of the range. It can operate in 4-, 3- or 2-channel mode. In most cases, it will be used to amplify a car s front and rear speaker drivers. It can also be used to drive front speaker drivers and a small subwoofer, for a small installation which stays simple and integrated.
4/3/2-channel D Class amplifier
RCA low-level inputs
Compact
KEY POINTS
D Class Direct Fet Technology - Efficient heat dissipation and precision
Stable under 2 Ohms
Stackable aluminium chassis with high heat dissipation
Low noise operational amplifiers New Japan Radio NJM4580
Low ESR capacitors - 105 C (220 F)
Pseudo-balanced inputs
Specs
4/3/2-channel D Class amplifier
CEA power (4 Ohms): 4x58 Watts RMS
Power max (2 Ohms): 4x100 Watts RMS
Power max (4 Ohms bridged): 2x200 Watts RMS
Configurable high-pass/low-pass crossover: 40Hz-400Hz
Full range modeProtections: Short circuit / low impedance / polarity reversal / DC / power drop / heat protection
Dimensions (L x H x W):713/16x41/4x111/16 (199x108x43mm)
Weight: 1.9 lbs
