HIGH PERFORMANCE PARTS
Special capacitors and inductors have been carefully selected for the digital amplifier s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
DEEP BASS SOUND
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
ENHANCED SIGNAL TO NOISE RATIO
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

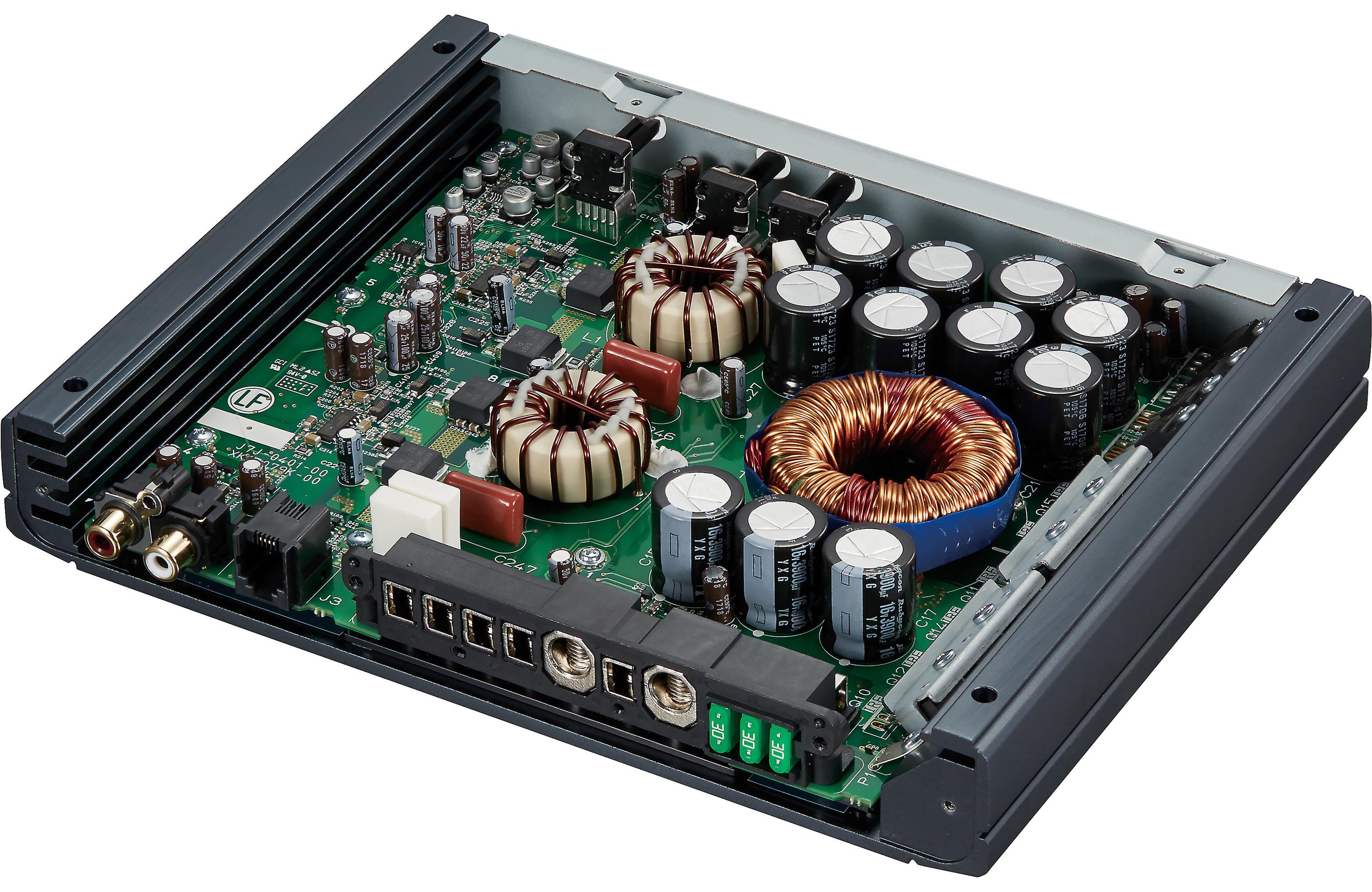

SPECIALIZED CIRCUIT DESIGN
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
WIRED REMOTE CONTROL
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Specs
CEA-2006 Standard 400 W x 1 RMS Watts per channel @ 4 ohms, 1% THD+N
78 dBA Signal to Noise Ratio (Reference: 1 Watt into 4 ohms)
Max Power Output -
Rated Power Output 14.4 V
400 W x 1 (4 ) (20 Hz - 200 Hz, 1.0% THD)
600 W x 1 (2 ) (100 Hz, 1.0% THD)
Frequency Response 20-200Hz( 1dB)
Input Sensitivity 0.2 V - 5.0 V (MIN-MAX)
Input Impedance 10 k
Signal to Noise Ratio 100 dB
Low Pass Filter Frequency (-24 dB/oct.)
50 Hz - 200 Hz (variable) Low-Pass Filter Frequency
High Pass Filter Frequency -
Dimensions (W x H x D) 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
