STANDS NOT INCLUDED
THIS BUNDLE INCLUDES:

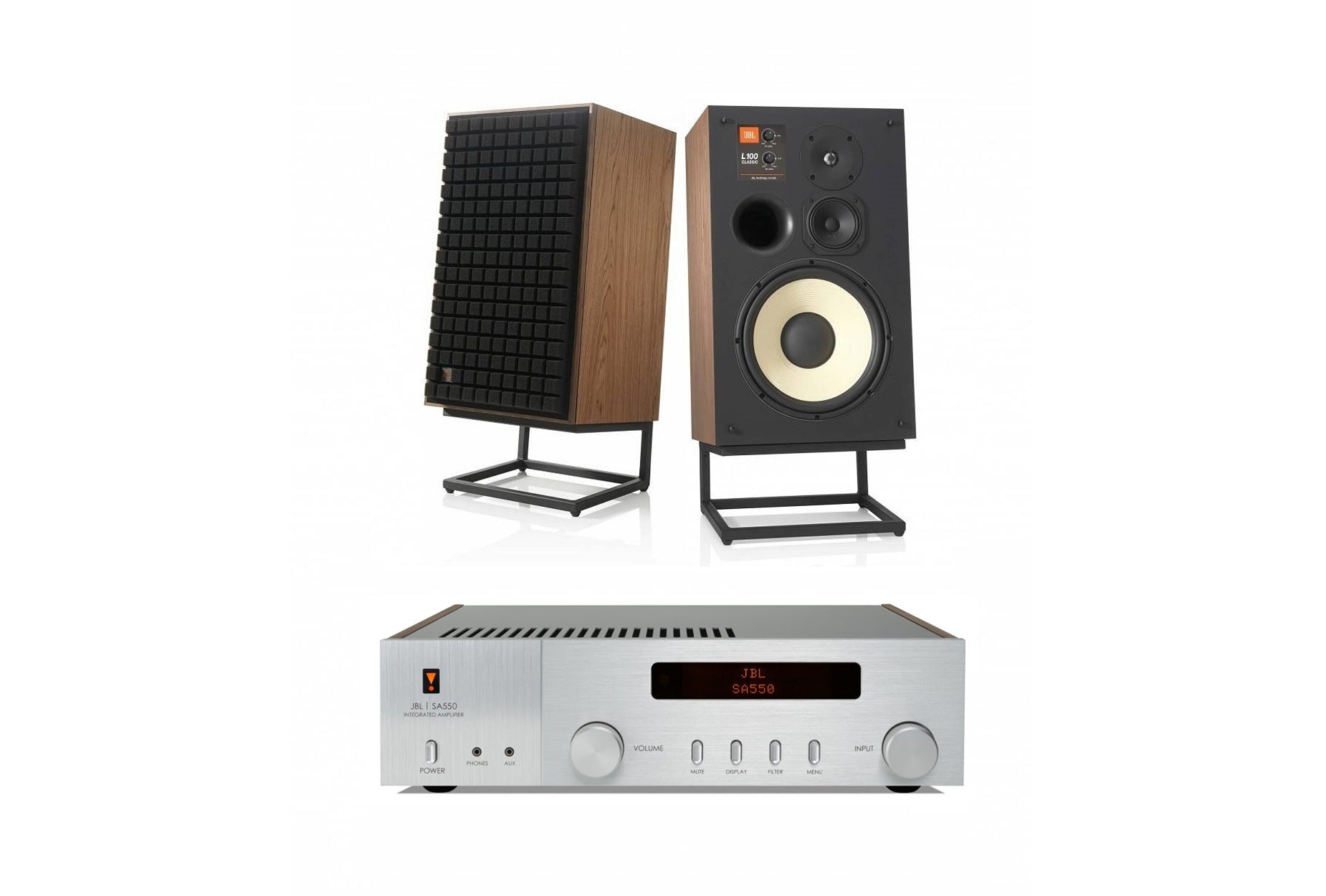

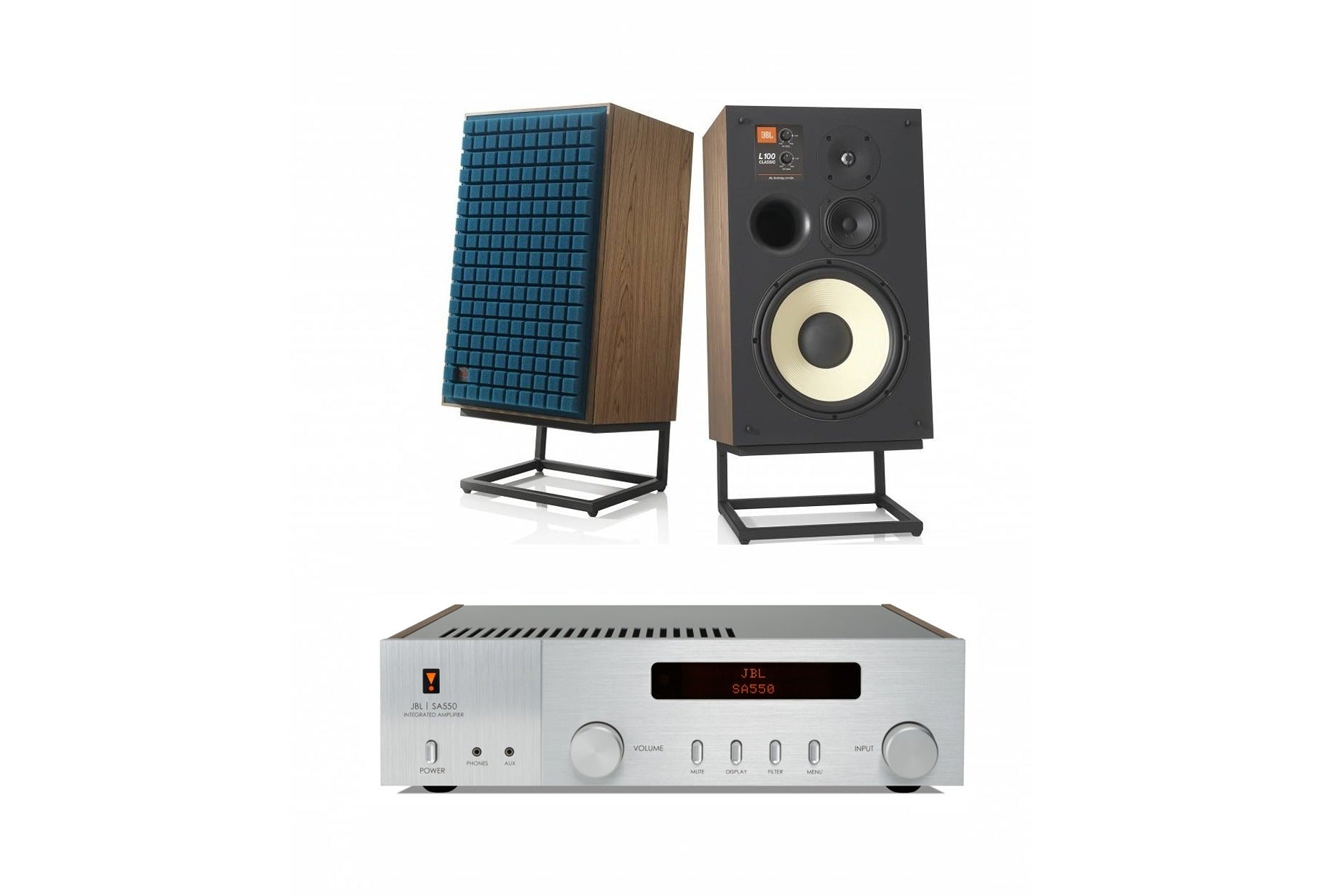

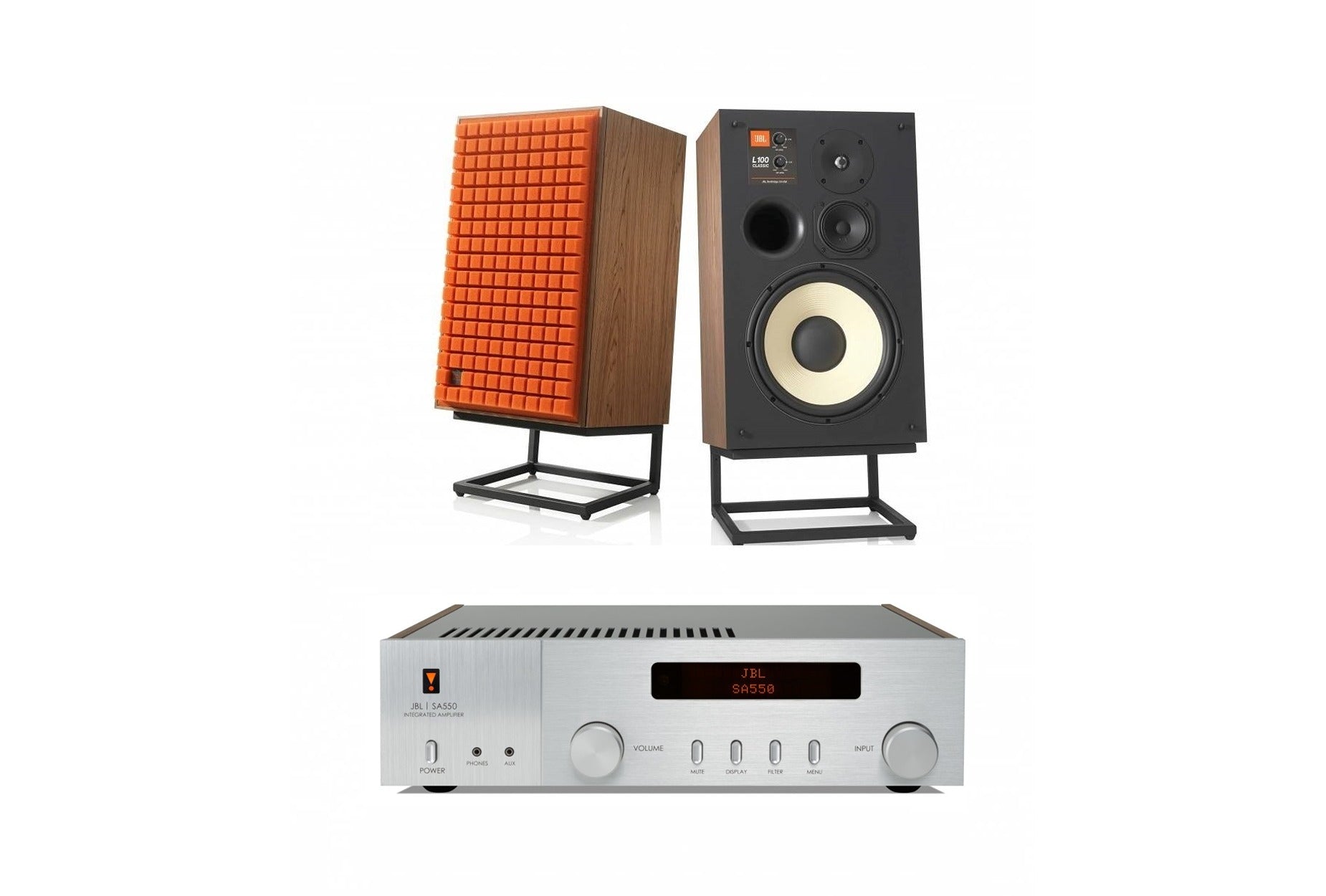

1 PAIR JBL 100 CLASSIC 12" 3-WAY BOOKSHELF SPEAKERS (BLACK, ORANGE, OR BLUE GRILLS)
1 JBL SA550 Bluetooth Integrated Amplifier
JBL L100 Classic
In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.
Main Features:
- Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
- Genuine satin walnut wood veneer enclosure with black painted front and rear panels
- 12-inch white cone, pure pulp woofer with cast frame
- 5-inch pure pulp cone midrange
- 1-inch titanium dome tweeter
- Bass-reflex design with front-firing port
- High-frequency and mid-frequency L-pad attenuators
JBL SA550
The JBL SA550 Classic is inspired by the classic JBL SA600 amplifier from the 1960’s, with retro styling and walnut veneer side panels to match JBL Classic and Studio Monitor loudspeakers on the outside.
On the inside, the JBL SA550 is a music system for today with an advanced amplifier topology with high power output, inventive efficiency, and fine noise control for captivating musicality and effortless power.
Straight out of the box, pair your smart phone or tablet to the SA550 with Bluetooth for instant high performance music from all your music services and libraries that you listen to everyday. The JBL SA550 Classic includes the latest Bluetooth AptX®Adaptive technology for hi-res audio over Bluetooth and low latency to ensure audio is in sync with video.
The advanced amplifier topolgy in the JBL SA550 Classic is called Class G. Class G utilizes multiple power supplies where all other amplifiers only use one. The first power supply feeds enough power for the amplifier to deliver 10 Watts per channel, not a lot you might think... but this small amplifier includes a big heatsink that keeps the amplifier stable up to 90 Watts per channel. That enables this first 10 Watts to be delivered in a topology known as Class A, which ordinarily is not very efficient. The benefit is that it involves no switching of any output stage components in and out of the music signal - as normally occurs in any Class AB or Class D amplifier. The result is vanishingly low noise and the purest sound with all micro dynamics and details preserved. Of course, 10 Watts really isn’t much and so the SA550 can deliver a great deal more. It can deliver a maximum sustained output of 150 Watts per channel with the use of a second, much higher voltage power supply, and this is where the amplification in the SA550 is incredibly inventive. If that second power supply was simply switched into circuit when required, it would induce nasty distortion, and this would be harmonic too - quite unpleasant. So the SA550 includes a set of high speed “lifters” which gradually raise the
power delivered to the amplifier, tracking the music signal and maintaining a 5 Volt head room. This allows the benefits of Class G amplification to be realizes, whilst eliminating the downsides and powering any speaker system effortlessly. All that smart amplification can be enjoyed from three digital and four analog inputs, including a moving magnet phono input for a turntable. The digital inputs include a high resolution, ultra high-fidelity DAC with the highest performance ESS DAC chip at heart. The SA550 is a throw-back to the late 1960’s on the outside. But with Hi-res Bluetooth technology, efficient amplification and exceptional musical performance, the SA550 is a modern classic rooted in today’s best technologies.
Specs
JBL L100 Classic Specifications:
Description 3-way Bookshelf Loudspeaker
Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
Frequency Response 40Hz 40kHz (-6dB)
Sensitivity 90dB (2.83V/1m)
Power Handling 25 - 200 Watts RMS
Crossover Frequencies 450Hz, 3.5kHz
Impedance 4 Ohms
Controls Attenuators for MF and HF drivers
Connectors Five-way gold-plated binding posts
Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
Weight 58.5 lbs (26.7 kg)
Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue
JBL SA550 Specifications:
General Specifications:
Continous power output both channels driven (0.5% THD):
• 90W into 8Ω x2
• 150W into 4Ω x2
• Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Phono moving magnet input:
• Input sensitivity at 1kHz: 5mV
• Input impedance: 47kΩ + 100pF
• Frequency response (ref. RIAA curve): 20Hz - 20kHz ±1dB
• Signal/Noise ratio (A-wtd) 50W, ref. 5mV input: 80dB
• Overload margin, ref. 5mV at 1kHz
Line inputs:
• Nominal sensitivity: 1V
• Input impedance: 10kΩ
• Maximum input: 6Vrms
• Frequency response: 20Hz - 20kHz ±0.2dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 106dB
Digital inputs:
• Supported Bit depth: 16 bit - 24 bit
• Supported sample rates (Optical)(kHz): 32, 44.1, 48, 88.2, 96
• Supported sample rates (Coaxial)(kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• Frequency response: 20Hz - 20kHz ±0.05dB
• Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 115dB
Mains Voltage: 110–120V or 220–240V, 50–60Hz
Maximum Power Consumption: 500W
Width (inches) 17-3/4
Height (inches) 4-15/16
Depth (inches) 13-5/8
Product Weight: 12kg, 24.69 lbs
Shipping Weight: 14kg, 30.86 lbs
Warranty: 5 Years
