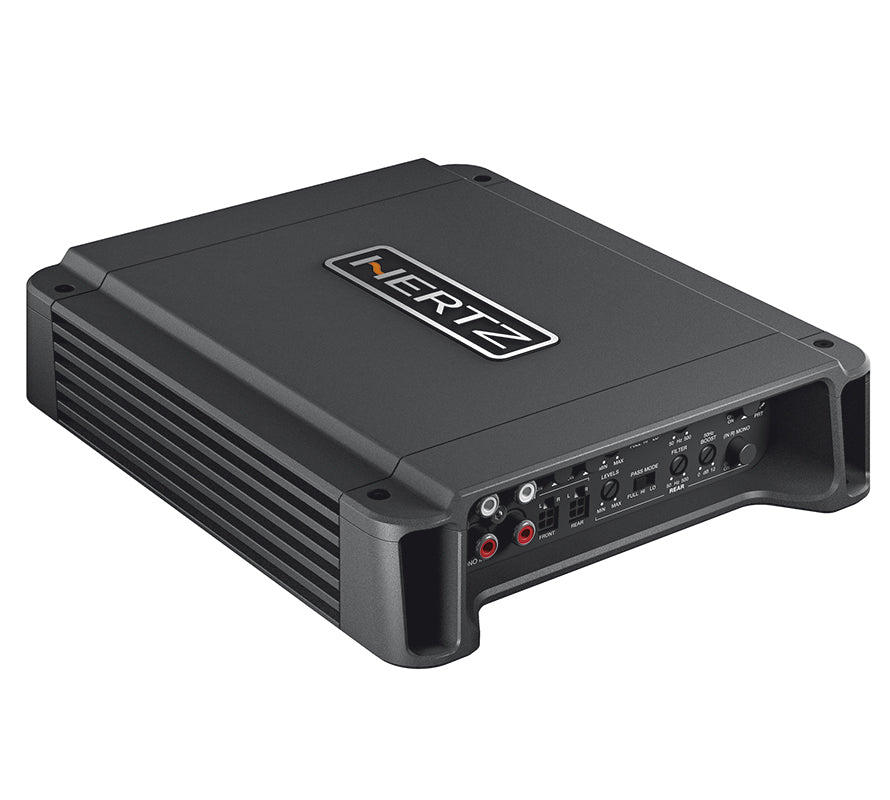

Hertz HCP 4D D-Class 4 Channel Amplifier
HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Specs
Channel mode 4 - 3 - 2
Output Power (RMS)
@ 14.4 VDC 4 Ch: 85 W x 4 (4 )
4 Ch: 145 W x 4 (2 )
3 Ch: 85 W x 2 (4 ) + 290 W x 1 (4 )
3 Ch: 145 W x 2 (2 ) + 290 W x 1 (4 )
2 Ch: 290 W x 2 (4 )
Filters
Bypass Yes
Hi-Pass A/B: 50 3.2k Hz @ 12 dB/Oct.
Lo-Pass A/B: 50 3.2k Hz @ 12 dB/Oct.
Band-Pass -
Distortion - THD
(100Hz @ 4 ) 0.02%
S/N Ratio
(A weighted @ 1V) 100 dB
Damping factor
(100Hz @ 4 ) 200
Size W x D x H
mm (in.) 215 x 190 x 50 (8.46 x 7.48 x 1.97)
