Focal PC165F Performance Expert 6.5" 2 Way Coaxial Speaker (Pair)
6 TWO-WAY COAXIAL KIT WITH FLAX CONES
The flax auto kit PC 165 F is a 6 (16.5 cm) speaker driver with a power of 70 Watts RMS.
This coaxial kit is the ideal solution for rear speaker drivers for vehicles equipped with Flax component kits in the front (PS 165 F, PS 165 FX, PS 165 F3 or PS 130 F). Indeed, many vehicles only have one location in the rear for a full-range coaxial speaker driver. The PC 165 F can be used to back up your front speaker drivers using the same Flax cone technology for perfectly balanced sound. The PC 165 F can also be installed in the front as a replacement for other coaxial kits.

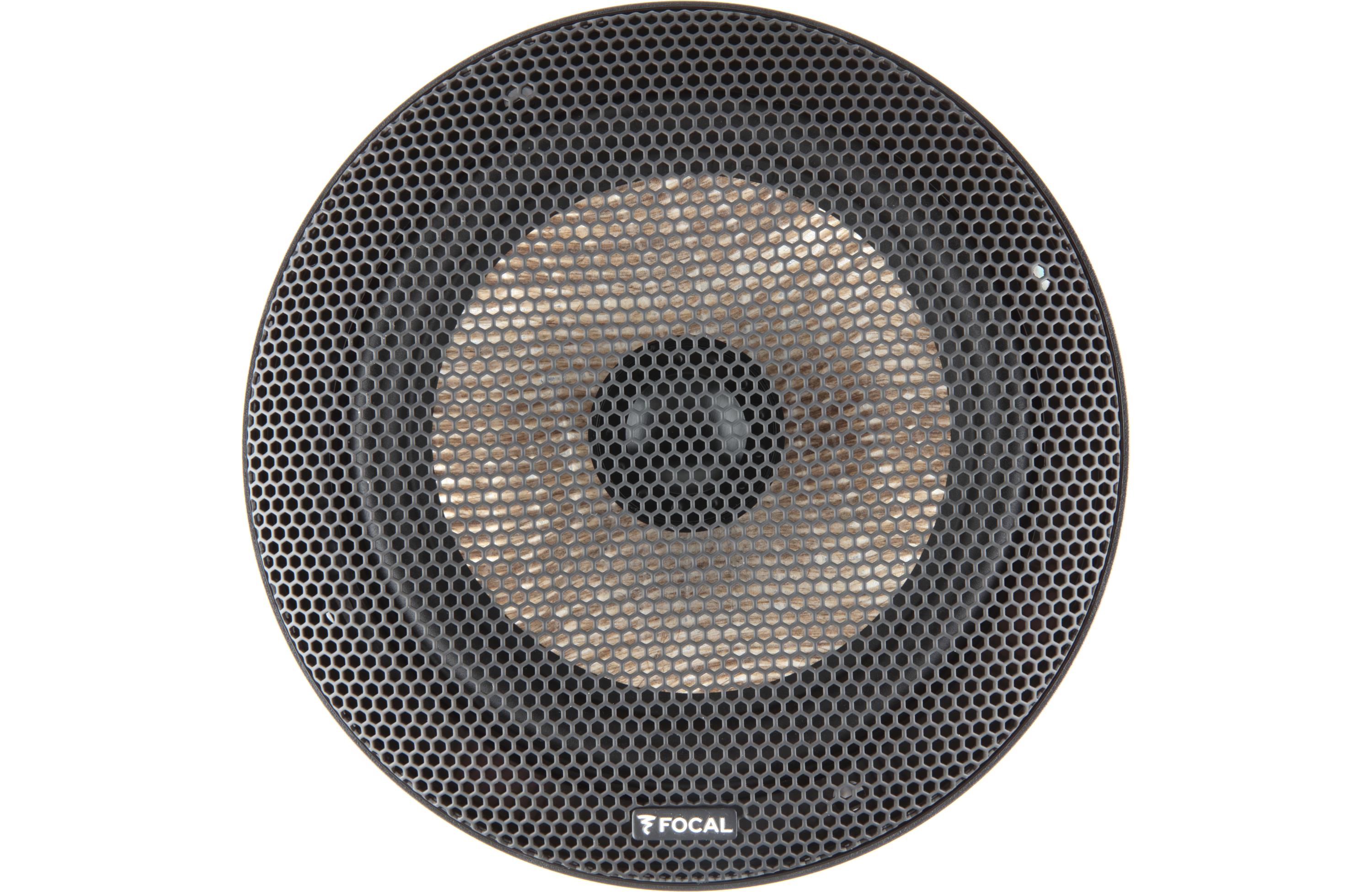

The kit is supplied with the appropriate protective grilles.
The ideal combining
Flax cones produce a natural, very dynamic sound without colouration. Composed of a layer of flax sandwiched between two layers of glass fiber, it combines lightness, rigidity and damping for optimal acoustics. The PC 165F is a 6 (16.5 cm) coaxial speaker driver featuring an exponentially-shaped cone for improved mid-range response.
The tweeter, mounted to a reinforced and lower frame, benefits from the same technology as the TNF model used for the other component kits in the range. The aluminum/magnesium inverted dome with Poron suspension is renowned for its smooth and precise sound. To make installation easier and to optimize the sonic response, the basket has an integrated passive crossover.
In order to preserve a visual identity, the PC 165F kit has the same basket as that used for the woofers of the 2-way component kit PS 165F. The shape of this aluminum basket has been optimized to improve voice coil cooling.WHAT MAKES THE DIFFERENCE
High sensitivity
All the last high tech solutions
Unique and patented FLAX cone (N 1350116)
A new sound for a new 100% Focal signature
Exponential cone
More compact tweeter support
Integrated crossover
Specs
2-way coaxial kit
Diameter: 61/2" (165mm)
Voice-coil diameter: 1"(25mm)
Voice-coil height: 01/2"(13mm)
Motor: Magnet
Aluminum/Magnesium inverted dome tweeter
Cone: Flax
Integrated crossover: 6dB/Oct
Max. power: 140W
Nom. power: 70W RMS
Sensitivity (2.83V/1m): 91.9dB
Frequency response: 60Hz 28kHz
Impedance:4
Accessories: Supplied grilles
