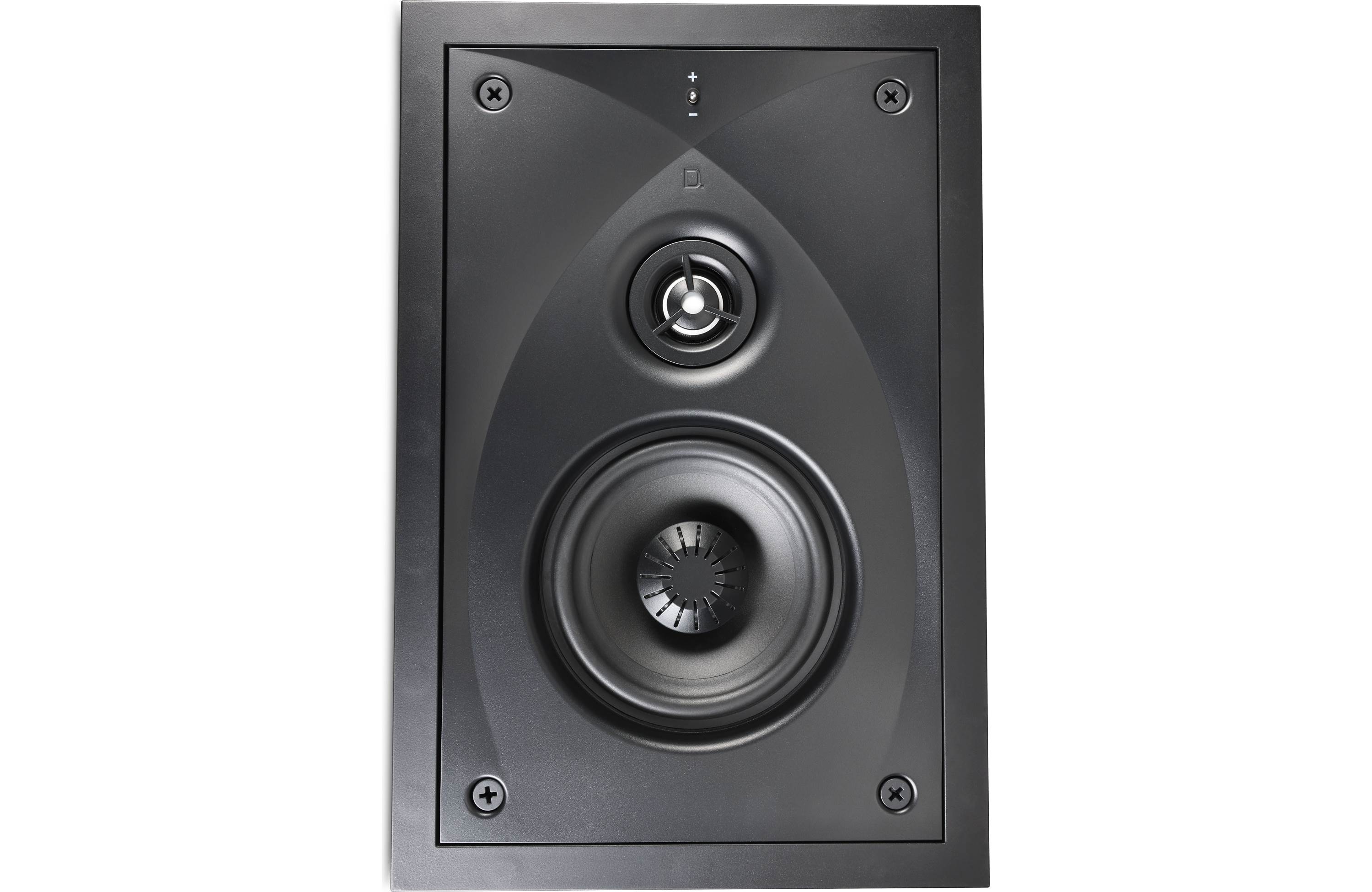

Dymension CI™ DW-45 MAX in-wall speakers deliver precise sound, indoors and out, thanks to premium woofers and tweeters, discreet aesthetics, and robust weather protection.
- 4.5" Mineral-Filled BDSS Woofer with Linear Response Waveguide™
- 1" Pivoting Aluminum Oxide Dome Tweeter
- Toolless Installation
- Flush, Border-Free Design
- Tweeter Attenuation Switch
Key Features:

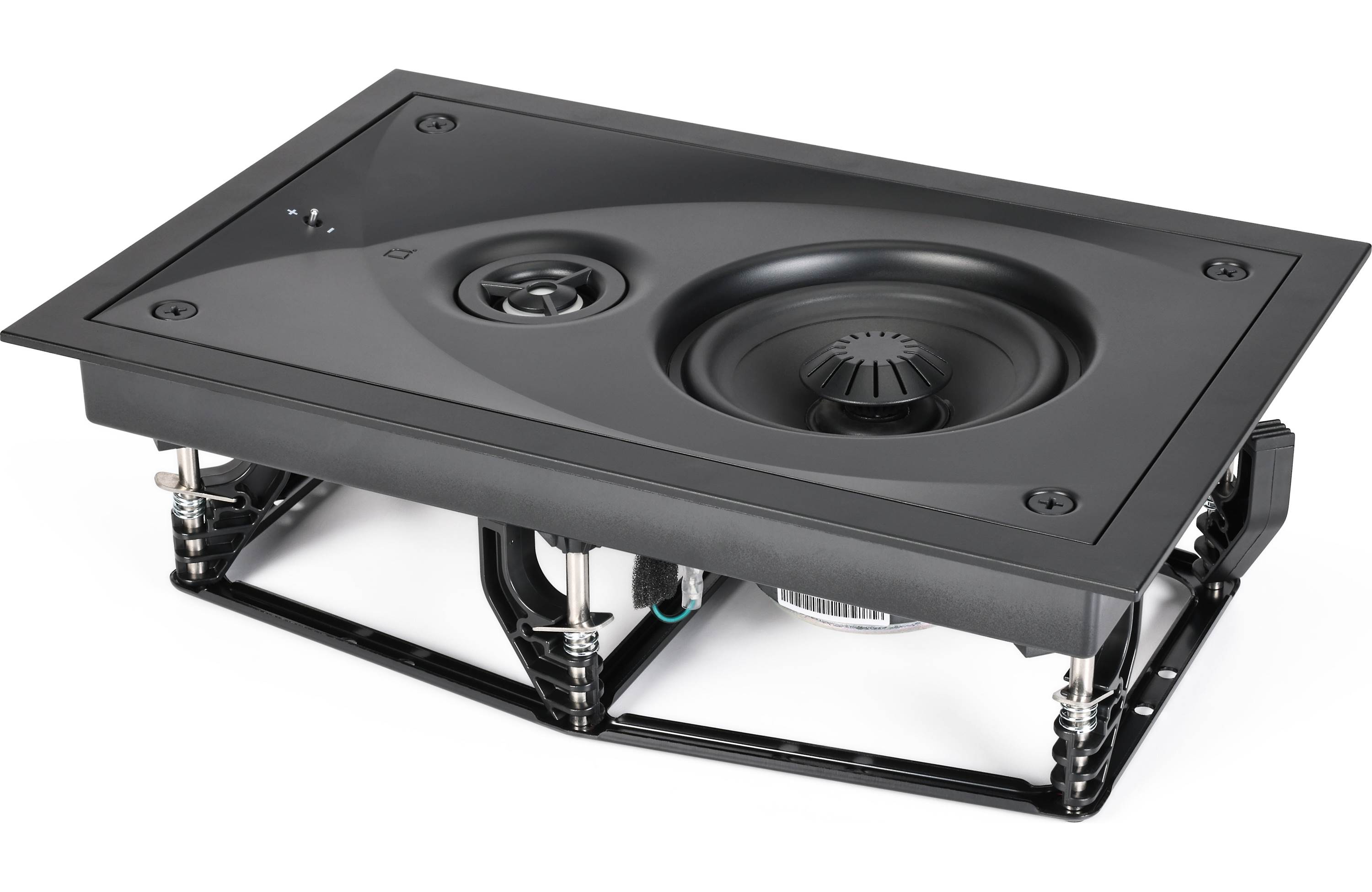

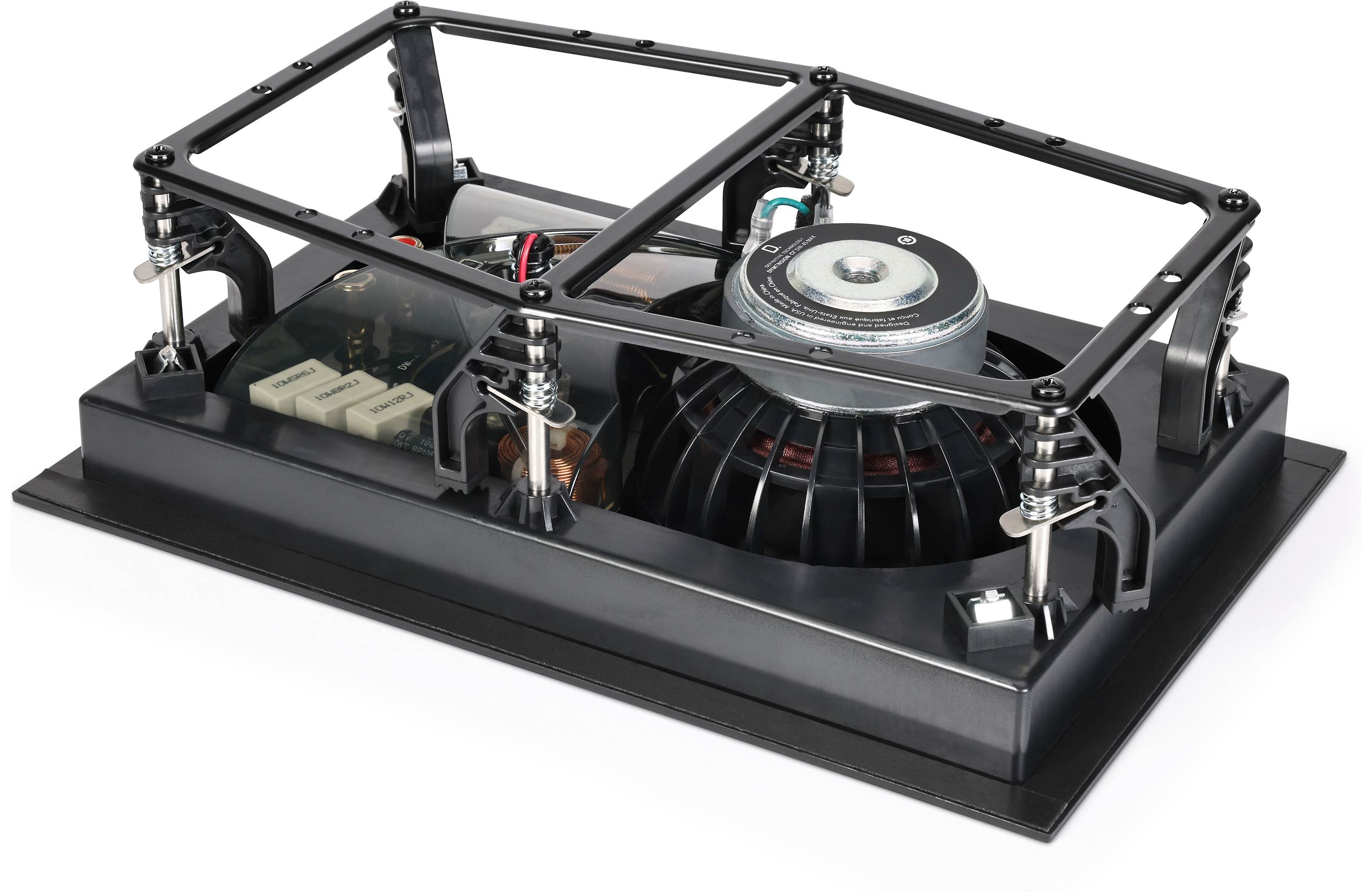

Toolless Installation
A simple, elegant two-piece mounting system with pivoting “dog” arms
allows speakers to be installed without tools, safely and securely, in minutes.
Pre-construction brackets are available for all Dymension CI models.
Discrete Design

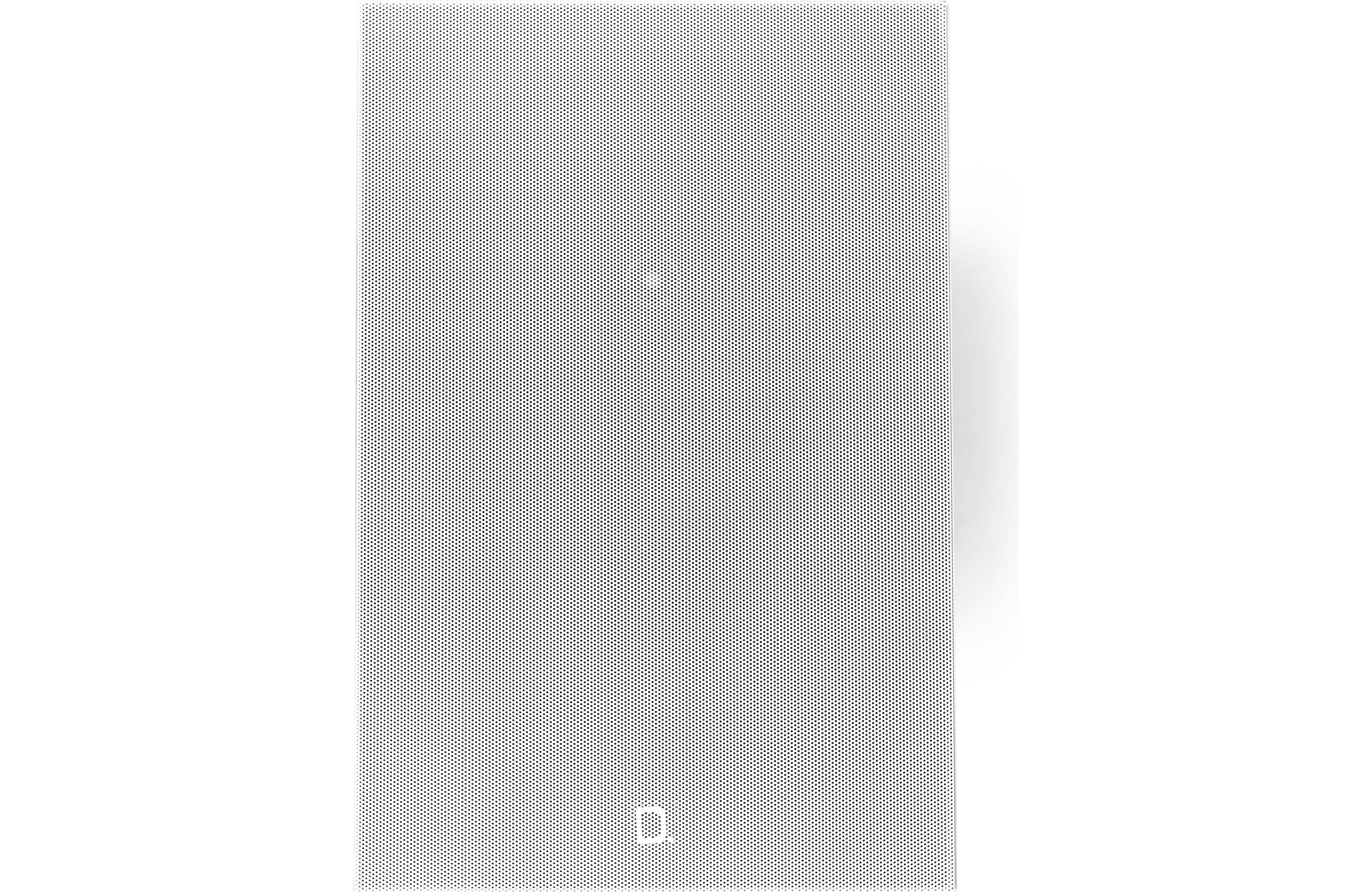

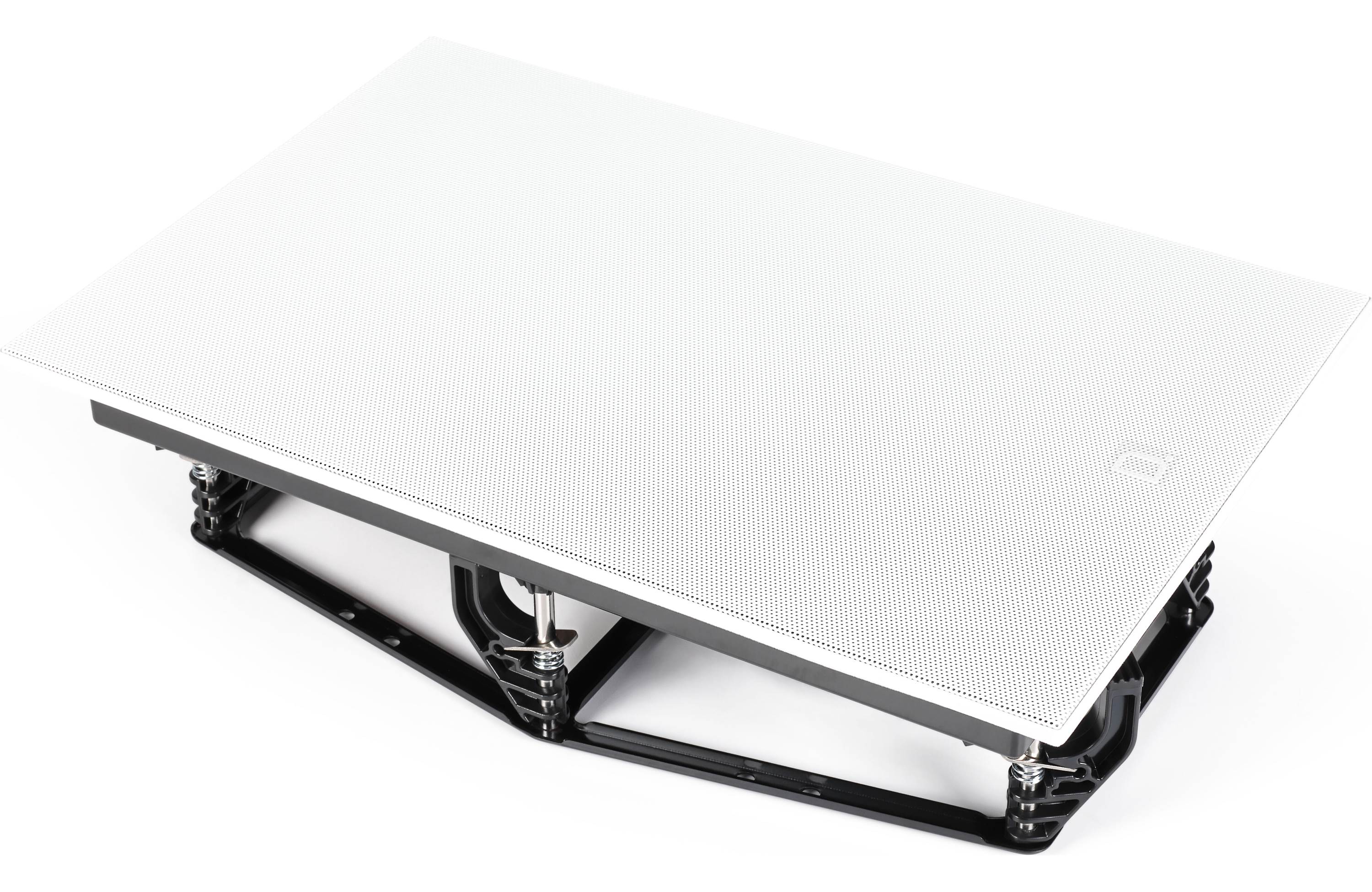

Integrated frames and baffles; paintable micro-perforated magnetic grilles; and flush,
border-free design mean speakers fade into the background for a virtually invisible
appearance that’s in perfect harmony with your space.
Premium BDSS™ Woofers with Linear Response Waveguide™
Light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary
Balanced Double Surround System (BDSS™), which improves driver excursion
and output, delivering superior punchiness and detail and a more even midrange
throughout the room. Our patented Linear Response Waveguide™ extends both
on-axis and off-axis frequency dispersion for more natural midrange and precise
imaging and an open, airy sound.
Pivoting Aluminum Oxide Dome Tweeter
An ultralight, rigid, 1” aluminum oxide dome tweeter produces crisp, distortion-free
highs that extend far beyond the range of human hearing. And because it’s aimable,
you can place speakers in convenient locations while directing sound precisely where
it matters most.
Tweeter Attenuation Switch
A three-position high-frequency attenuation switch (-2 dB, flat, +2 dB) adjusts tweeter
response to compensate for acoustic issues like overly bright- or dull-sounding rooms.
Bipolar Driver Array
The Dymension CI DW-MAX SUR in-wall bipolar surround speaker fills the room with
expansive, room-filling sound. A bipolar array—a signature Definitive Technology
design—orients both woofers and tweeters on opposite-facing horizontal planes.
This directs sound in more directions than traditional speakers, energizing the room
to create an expansive sound field.
Timbre-Matched
Combine timbre-matched Dymension, Dymension CI, and Mythos® speakers
and Descend Series subwoofers to design high-performance home theater or
whole-home systems of any size and scale.
