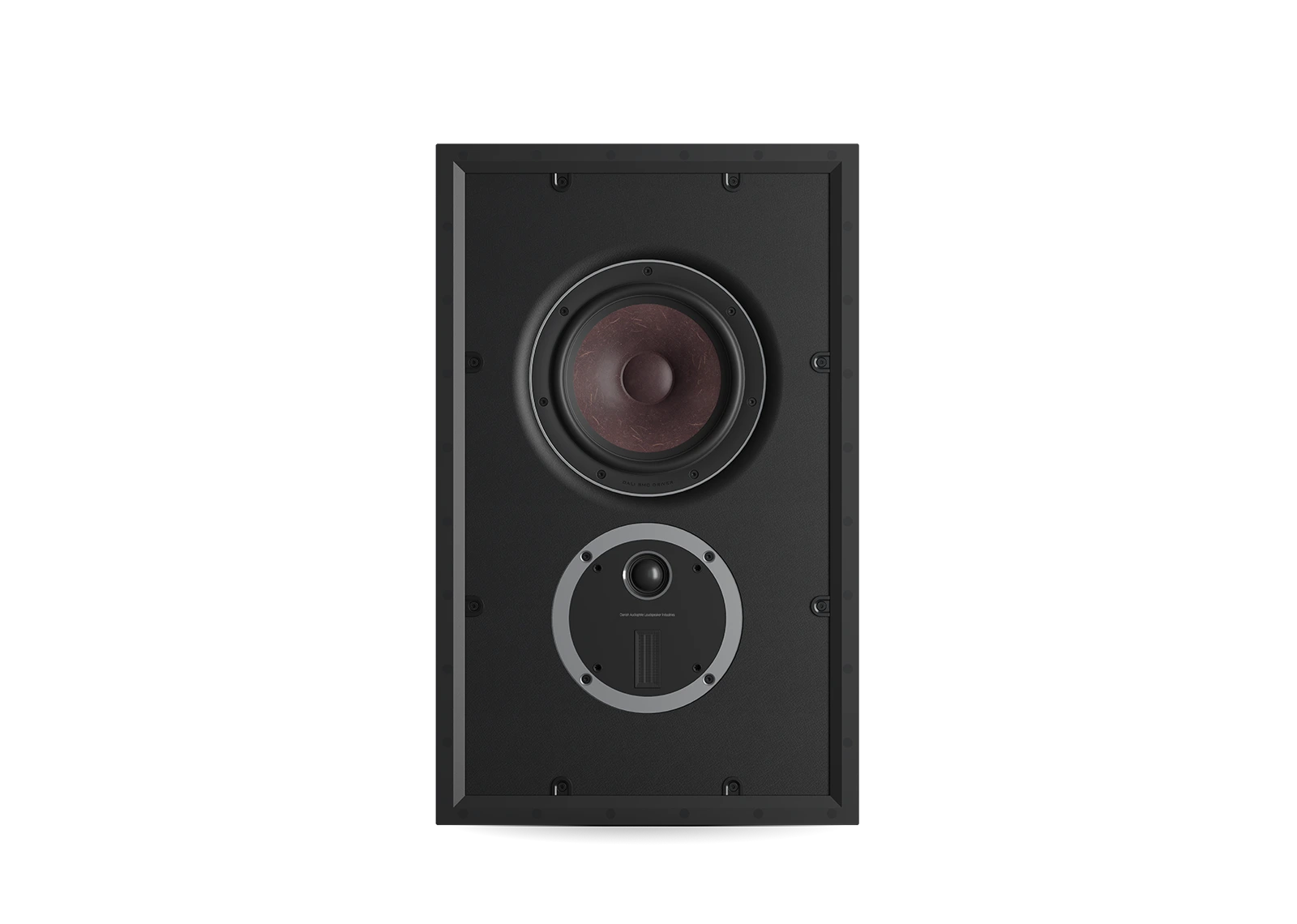

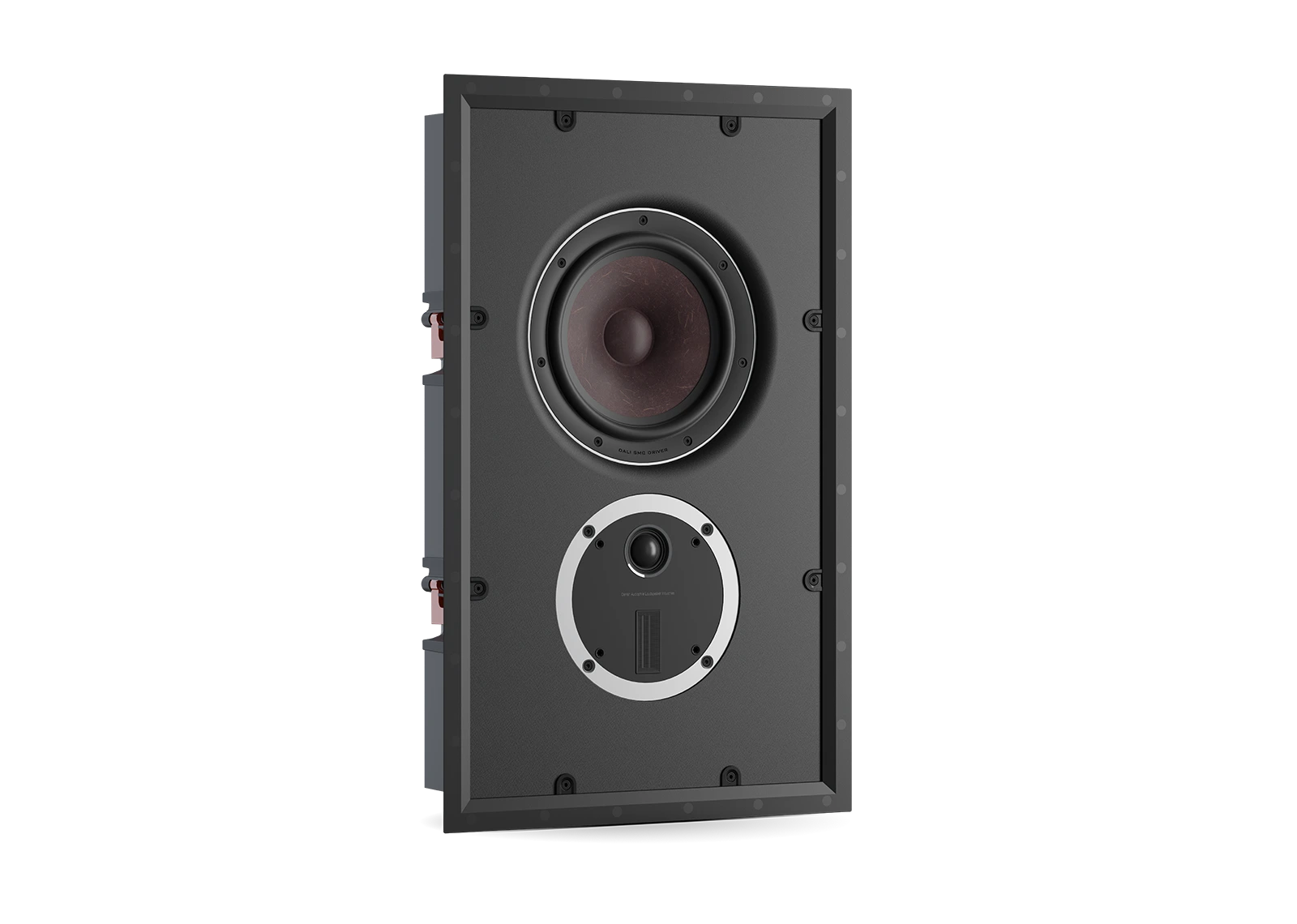

The DALI PHANTOM S-80 in-wall speaker delivers a clear and well-defined audio performance. With its combined 8" bass/midrange woofer and rotatable hybrid tweeter module, the PHANTOM S-80 is a flexible speaker with impressive bass response.
Wide Dispersion
Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.
Slim Cabinet
With a depth of 100-103 mm, our slim-profile DALI PHANTOM speakers fit conveniently into most standard walls.
Magnetic Grille
DALI PHANTOM S and M series magnetic front grilles have a simple, modern Nordic design that's both non-intrusive and attractive.
Patented SMC
Our patented Soft Magnetic Compound (SMC) minimizes coloration and distortion, compared with conventional drive design.
NO-COMPROMISE AUDIO
Innovative technologies for full frequency response
The slim DALI PHANTOM S-80 in-wall loudspeaker offers a full frequency response similar to that of a floorstanding loudspeaker without sacrificing valuable living room space. Delivering no-compromise in-wall audio performance using proven speaker technologies, the S-80 includes our signature wood fibre cone, low-loss rubber surround, solid MDF front baffle, patented hybrid tweeter module and our innovative SMC magnet design.
LOW-PROFILE CABINET
Extremely compact for a serious in-wall speaker
The compact design of the PHANTOM S-80 fits into most standard walls. At only 103 mm deep, it's slim yet has the perfect inner volume for the woofer to perform at its best. The solid MDF cabinet provides a robust platform for the drivers, while the dogleg mounting system makes installation simple. When installed, the elegant, extruded aluminum frame and magnet mounted front grille let the PHANTOM S-80 integrate elegantly into any room.
PATENTED SMC
Reducing distortion with Soft Magnetic Compound
Developed originally for the EPICON series, the PHANTOM S-80 woofer features our patented SMC magnet system. SMC has the unique ability to deliver very high magnetic conductivity and very low electrical conductivity, which dramatically lowers distortion while delivering all the benefits of a traditional
DRIVERS
Designed and optimized for bass and midrange performance
The specially developed 8" woofer is optimized for both bass and midrange performance. With 70% more surface area than a traditional 6½" woofer, it moves more air and produces higher sound pressure at very low frequencies. All this, while delivering the detail, rich midrange and full frequency response of a traditional floorstanding speaker. The PHANTOM S-80 also features our trademark hybrid tweeter technology. Combining a 28 mm soft dome tweeter with a high-performance ribbon tweeter, high frequencies are rendered with amazing detail and a wide dispersion pattern that outperforms all other tweeter technologies. The hybrid tweeter module can also be rotated when installed as a centre speaker in a multichannel setup.
INSTALLATION
Optimizing the hybrid tweeter module for maximum performance
When installing the PHANTOM S-80 into a wall, the ribbon tweeter should be placed at ear height. By placing the hybrid tweeter module at the bottom of the speaker, the S-80 can be installed higher up in line with larger wall-mounted TVs. The dome tweeter has also been rotated for a more seamless handover between the tweeter module and woofer, resulting in better integration with the room and improved bass performance.
WIDE DISPERSION
Easy integration in any room
All DALI speakers are designed around the principle of wide dispersion, which optimizes off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM S series speakers, which are mounted flush with the surface of a wall.
