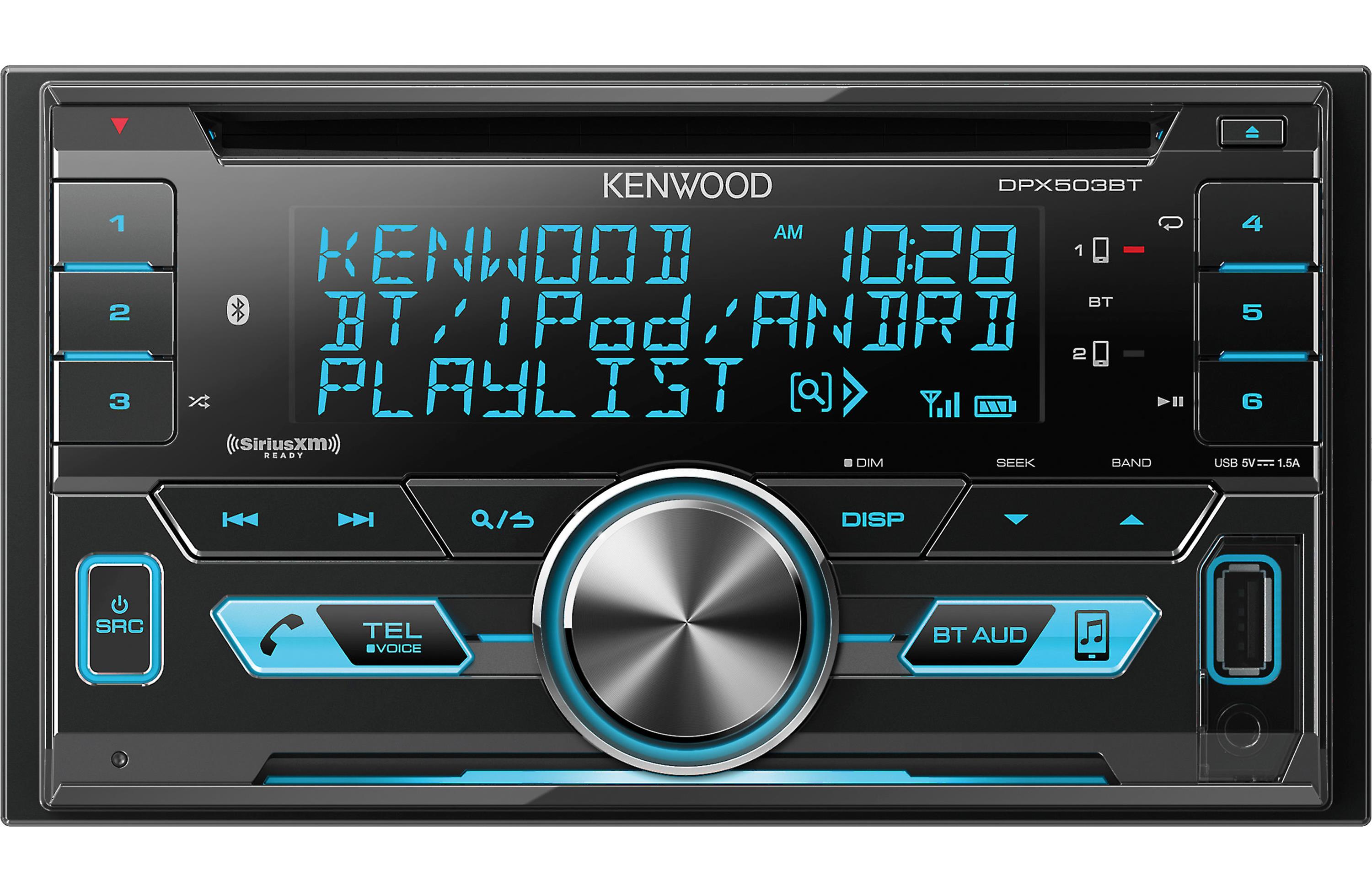

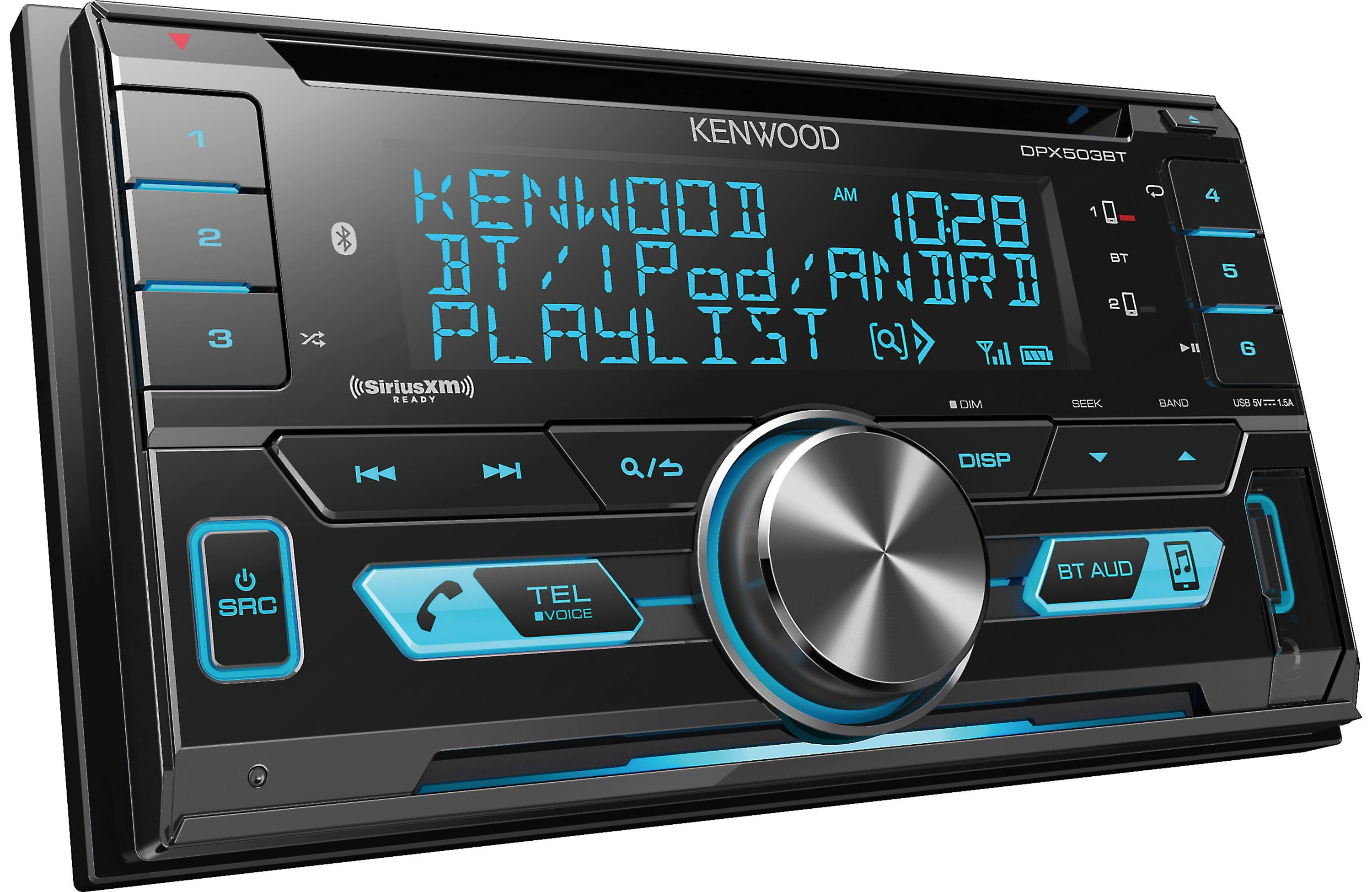

Kenwood DPX503BT Double-Din CD Receiver with Bluetooth
Pandora/Spotify Ready so You Can Stream Your Favorite Songs from Your Smartphone
Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth devices can be connected to the head unit at the same time and you can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection Allows You to Operate up to Two Phones Hands-Free
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
Operate the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like smartphones, USB thumb drives and portable hard drives. This USB input will allow you to charge and control the music playback on your connected device.
Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.
Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Optimal Sound Performance
with 13 Band Graphic EQ and
Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Specs
FM
Frequency Range 87.9MHz - 107.9MHz
(Frequency step) (200kHz)
Usable Sensitivity 8.2dBf
S/N:30dB Dev 22.5kHz (0.71 V/75 )
Quieting Sensitivity 17.2dBf
DIN S/N 46dB Dev 40kHz (2.0 V/75 )
Frequency Response 30Hz-15kHz
S/N 64dB (MONO)
Stereo Separation 40dB (1kHz)
AM
Frequency Range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 29dB (28.2 v)
CD
Laser Diode GaAlAs
Digital Filter (D/A) 8 Times OverSampling
Spindle Speed 500~200rpm (CLV)
Wow & Flutter Below Mesurable Limit
Frequency Response 20-20kHz ( 1dB)
Total Harmonic Distortion 0.01% (1kHz)
S/N Ratio (dB) 105dB (1kHz)
Dynamic Range 90dB
Channel Separation 85dB
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with WINDOWS MEDIA AUDIO
AAC Decode AAC-LC ".aac" files
WAV Decode -
USB I/F
USB USB 1.1 / 2.0 full speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1.5A
MP3 decode Compliant with MPEG-1/2 Audio Layer-3
WMA decode Compliant with Windows Media Audio
AAC Decode AAC-LC ".aac" files (.m4a)
WAV Decode Linear-PCM
FLAC Decode FLAC file (Up to 96kHz/24bit)
Preout Level(mV)/Load -Unbalanced 2500mV/10k (CD)
Preout Impedance( ) 600
Speaker Impedance( ) 4-8
AUX Input
Frequency Response 20Hz~20kHz 3dB
Input Maximum Voltage 1000mV
Input Impedance 30k
AMP
Maximum Power 50Wx4
Full Bandwidth Power
(at less than 1%THD) 22Wx4
TONE
Band1 62.5Hz 9dB
Band2 100Hz 9dB
Band3 160Hz 9dB
Band4 250Hz 9dB
Band5 400Hz 9dB
Band6 630Hz 9dB
Band7 1kHz 9dB
Band8 1.6kHz 9dB
Band9 2.5kHz 9dB
Band10 4kHz 9dB
Band11 6.3kHz 9dB
Band12 10kHz 9dB
Band13 16kHz 9dB
Bluetooth
Version Bluetooth 3.0
Frequency Range 2.402-2.480GHz
Output Power +4dBm(MAX) 0dBm(AVE)Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Profile HFP (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
GENE
Operating voltage 14.4V
(10.5~16v allowable)
Maximum Current Consumption 10A
Operational Temperature Range -10 C to +60 C
Dimensions (W) 180(mm) 7-1/8(in) (H) 100(mm) 4(in) (D) 158(mm) 6-1/4(in)
Weight 1.3(kg) 2.9(lbs)
