Focal E 25 KX K2 Power 10" Subwoofer (Each)
Very high power handling
10" SUBWOOFER

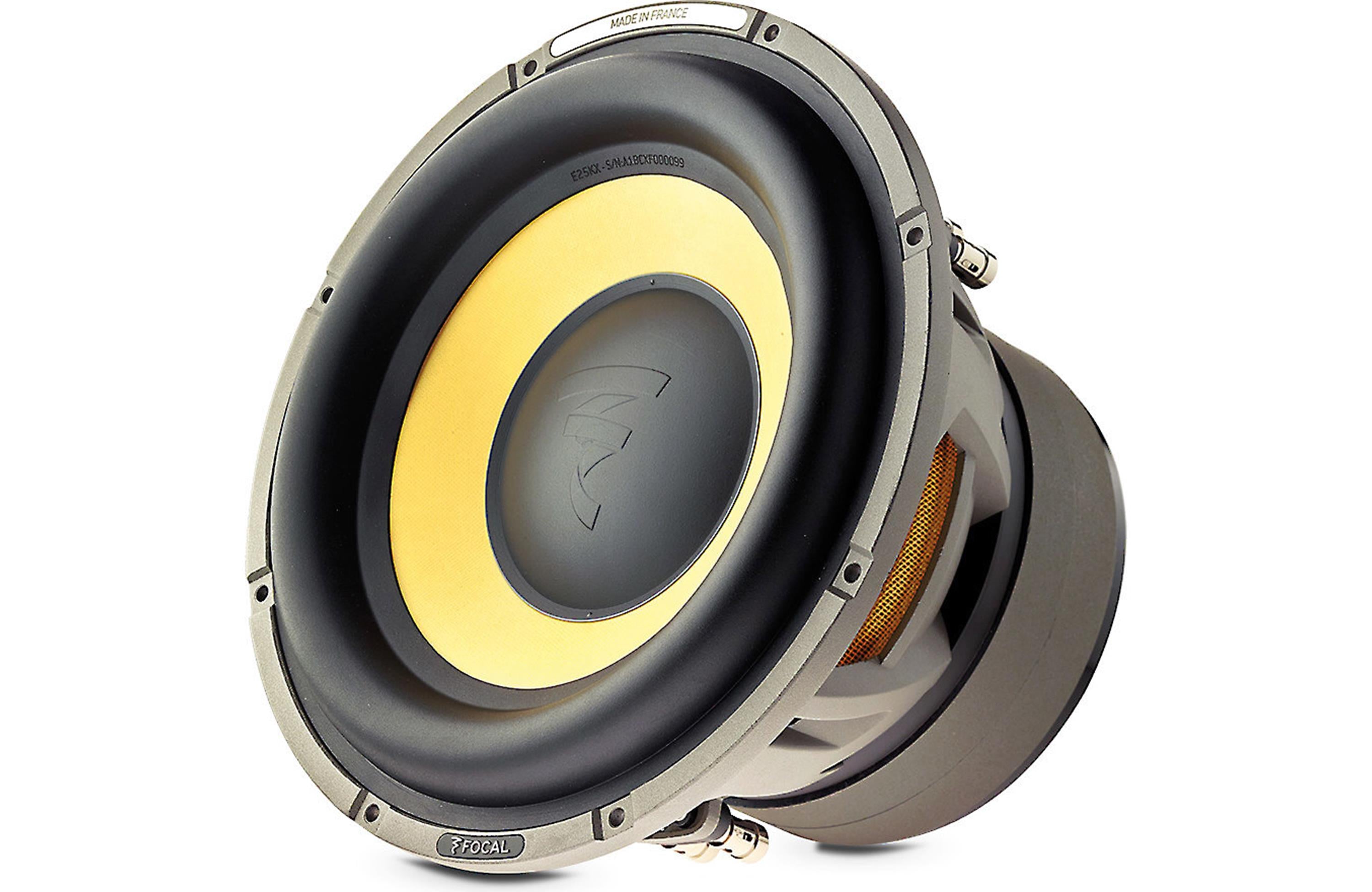

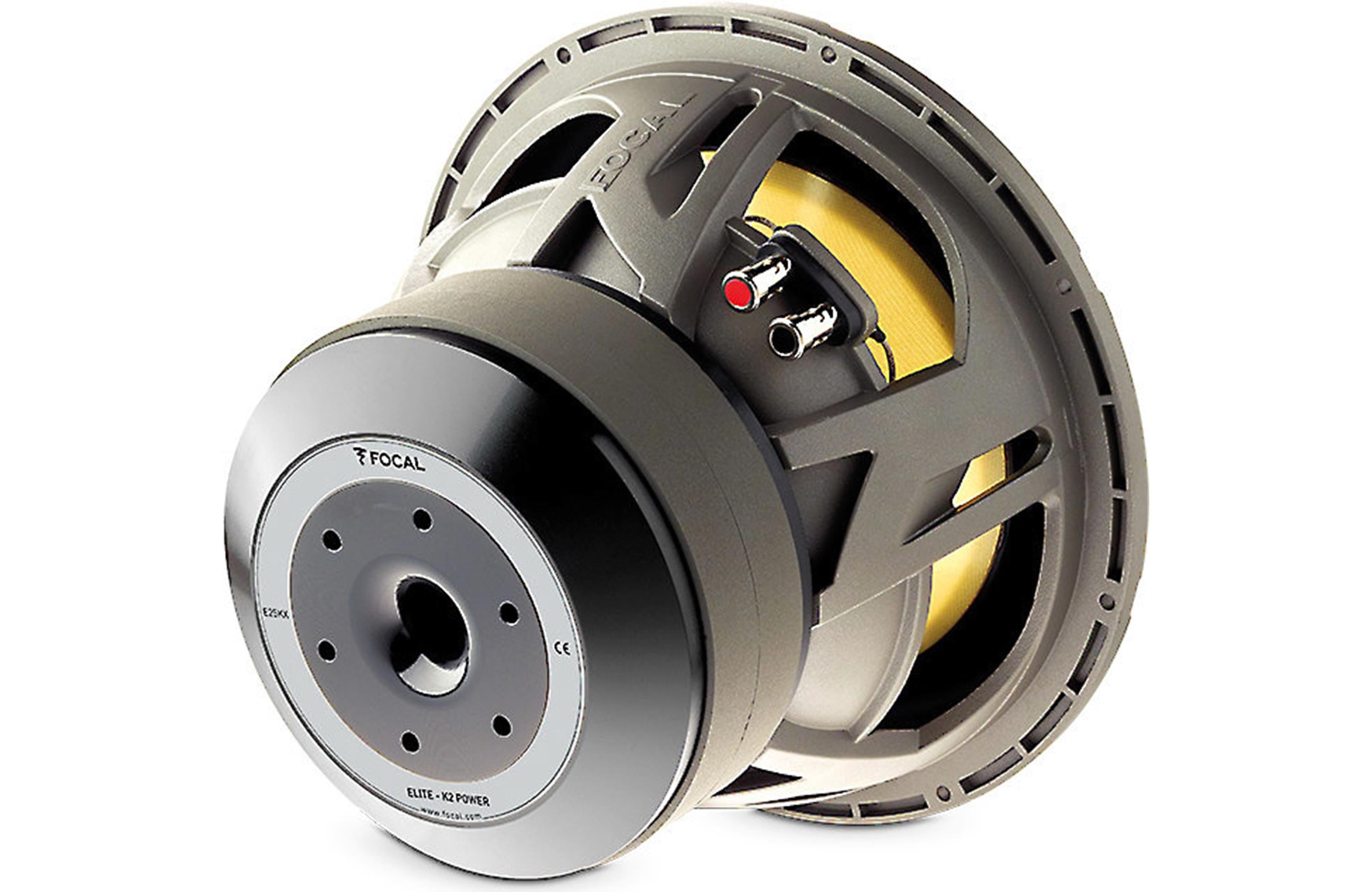

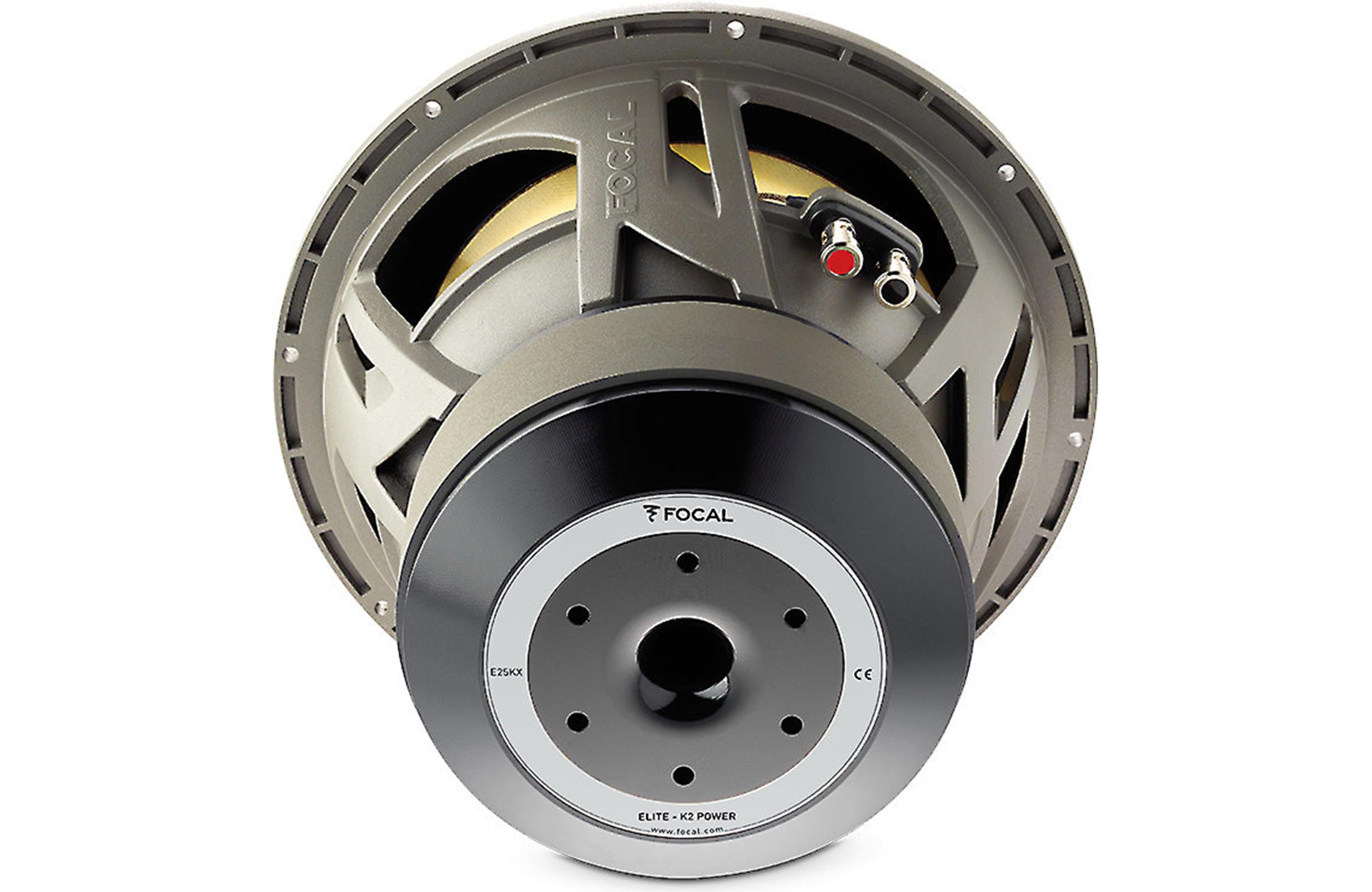

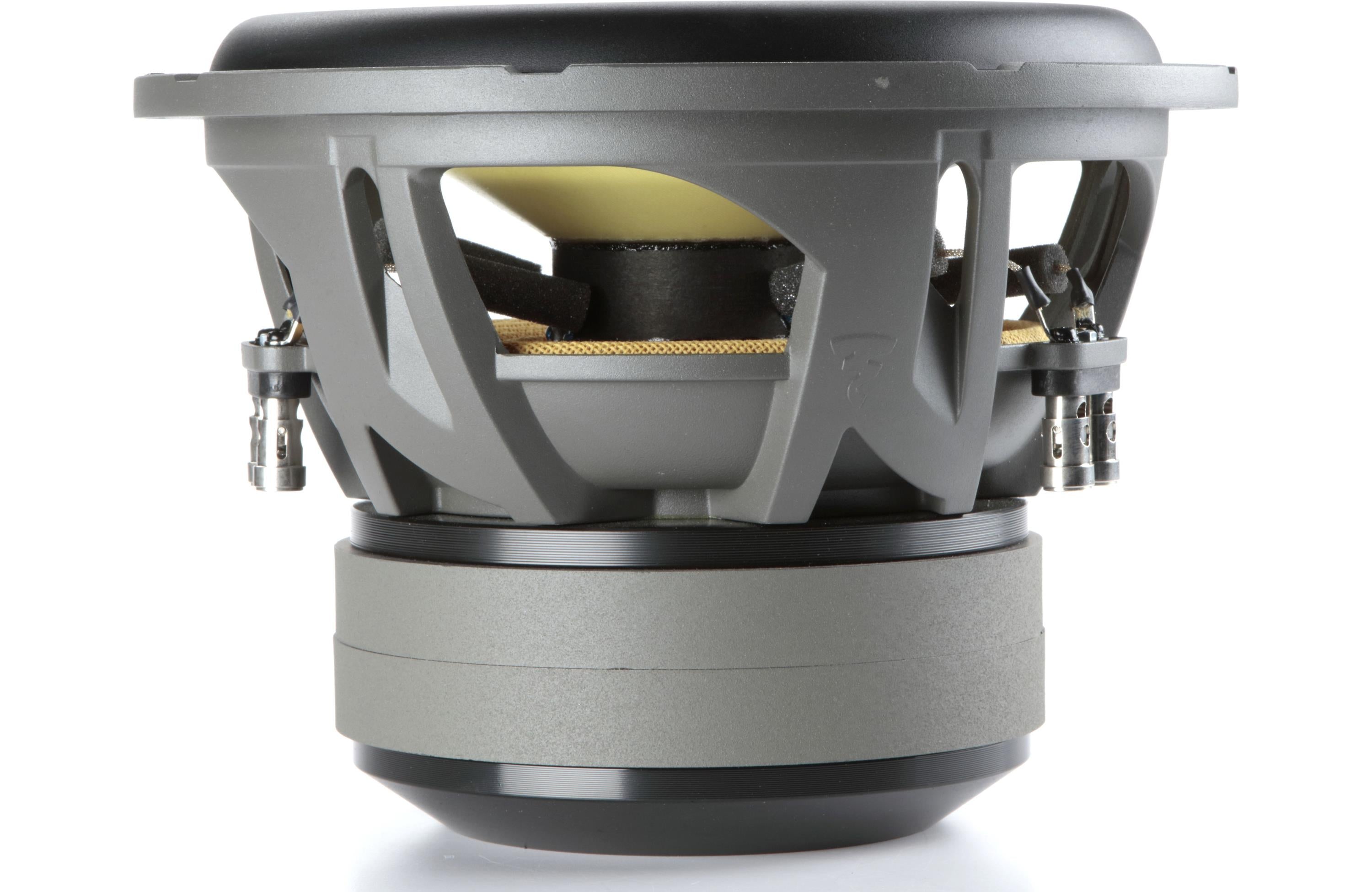

The E 25 KX is a very compact 10" (25cm) subwoofer. It offers very high power handling and exceptional reliability. Available in sealed box or bass-reflex type enclosures, this subwoofer has an astonishing SPL of 84.5dB considering its compact design!
It features a yellow Kevlar cone which is light, rigid and has excellent damping to provide extremely dynamic bass.
The cone is fixed to the frame using a new robust and very reliable rubber suspension, whose exclusive shape has been optimised to provide very high excursion. The aluminum frame has also been redesigned to improve voice coil excursion. All moving parts benefit from this excellent excursion, giving the subwoofer tight, punchy and dynamic bass.
The oversized Dual Magnet has been given a new voice coil cooling system to improve cooling and also to improve the subwoofer s performance and power handling.
KEVLAR CONE
Precision and dynamics
The speaker drivers used for the K2Power have been completely redesigned. Each component is the result of extensive research in acoustics to push back the limits of performance, of power and of precision! The K2Power Kevlar cone, a product of unique expertise Made In Focal, is to this day second to none. Composed of an ultra-light foam structure sandwiched between a thin layer of Kevlar aramid fibres, and a layer of glass fibres, the K2Power cone combines three key factors of quality acoustics:
Rigidity
Lightness
Damping, for precise and dynamic sound.
TMD SUSPENSION
Say goodbye to distortion
The new K2 Power TKM tweeter features an exclusive M -shaped structure. This new-generation aramid-fibre inverted dome tweeter provides great precision in the very high end, and its combination with a push-pull motor with IAL2 technology extends the low end of the frequency response and provides extraordinary harmonic balance
Radial VC cooling
For higher SPL
The new Radial VC cooling system for speaker driver voice coils expels hot air from the voice coil towards the bottom of the magnet through 6 holes. This improves control over the voice coil temperature, limiting the effects of thermal compression and improving reliability. This significantly increases the efficiency of the speaker driver. It also improves dynamics and produces a more powerful sound
Progressive spider profile
Improved linearity and precision
The progressive spider profile of K2 Power speaker drivers is designed to provide a full-bodied sound at low levels and to increase linearity, precision and dynamic range
For improved reliability
An optimised crossover
The components used for the new K2 Power crossovers were selected specifically and optimised in order to improve control over the effects of heat dissipation. These components, which are fundamental to managing the various channels and for the soundstage, are now even more reliable.
Specs
Nominal power 600W RMS
Maximum power 1200W
Sensitivity (2.83V/1m) 87.5dB
Cone Kevlar sandwich
Surround Butyl
Nom. impedance 4+4
DC resistance 3.2+3.2
VC diameter 65mm 29/16"
Former Glass fiber
Layers 4
Wire CCAW
Net weight 10.6kg 23.4lbs
Driver Displacement 3l 0.1 cu.ft
