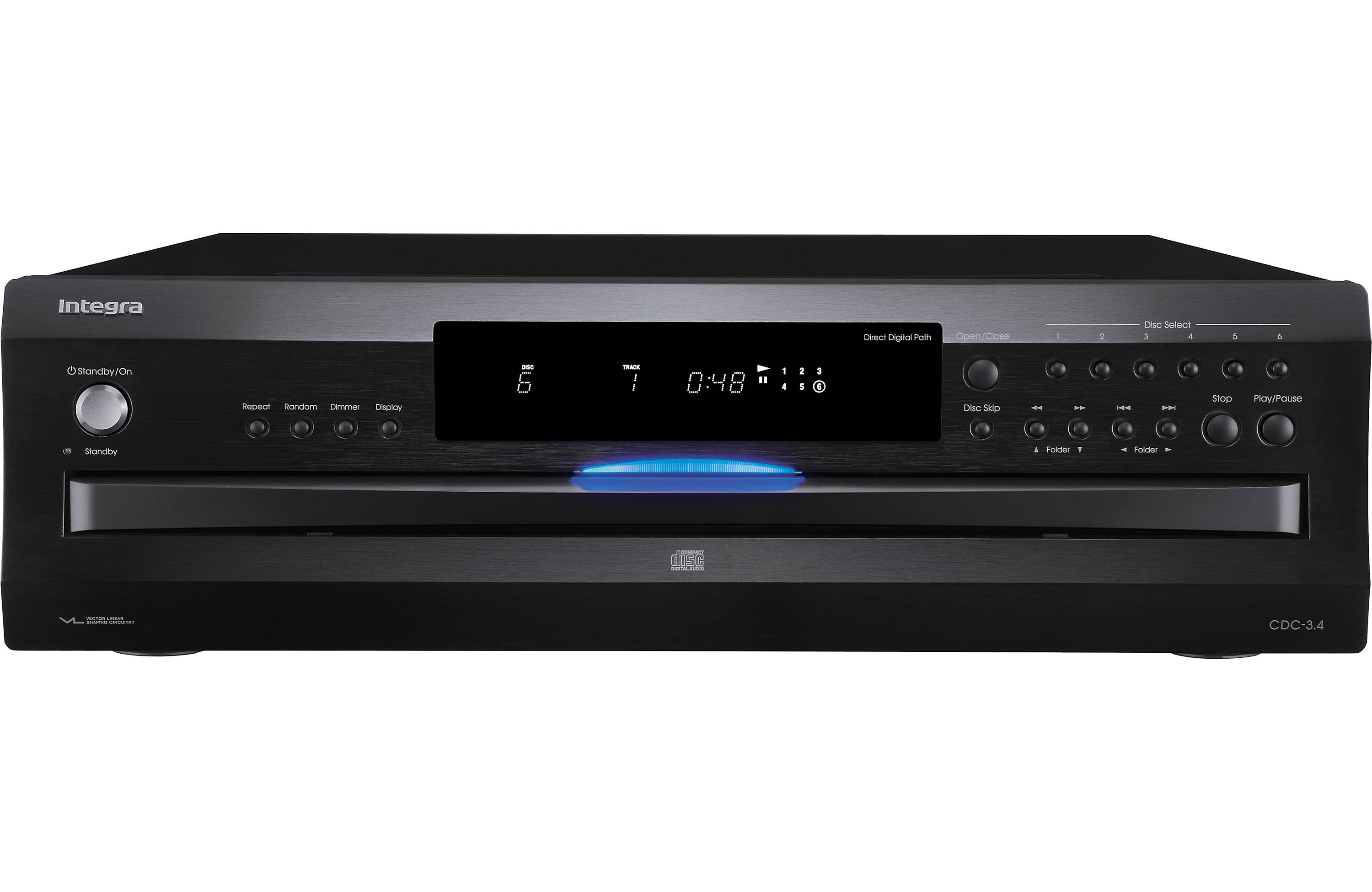

Integra CDC-3.4 6 Disc CD Changer
Original and Exclusive 6-disc CD Carousel
Integra was the first company to offer an exclusive 6-disc carousel in a CD changer. The tradition continues with the newly redesigned CDC-3.4. It features smooth & quiet mechanical operation, plus a soft blue light which illuminates the disc tray for better visibility. You can also load up to 5 discs while one is still playing for extended listening times without interruption.
Vector Linear Shaping Circuitry
Conventional analog filters reduce digital noise at the D/A conversion stage, and then the VLSC uses a 'Vector Generator' to output a smooth and noiseless analog signal. This results in a dramatically improved sound quality for all types of music signals.
Specs
GENERAL:
Disc Mechanism 6-Disc Carousel Changer
Ultra Smooth and Quiet Disc Mechanism ✓
Disc Change During Playback Up to 5 Discs
Repeat Modes All Discs, Entire Disc, Random Tracks, Memory Tracks
Random Memory, Single Folder, Single Track
Memory Playback 40-Track
Direct Track Access ✓
Shuffle / Random Play ✓
PROCESSING:
Multi-Bit Digital to Analog Converter 192 kHz / 24-bit (x2)
Vector Linear Shaping Circuitry (VLSC) ✓ (for Noise Free Signal Path)
Cross-Interleaved Reed-Solomon Code (CIRC) Error Correction ✓
Oversampling 128-times
MP3 Playback ✓
CD, CD-R / RW Playback ✓
ID3 Tag Recognition ✓

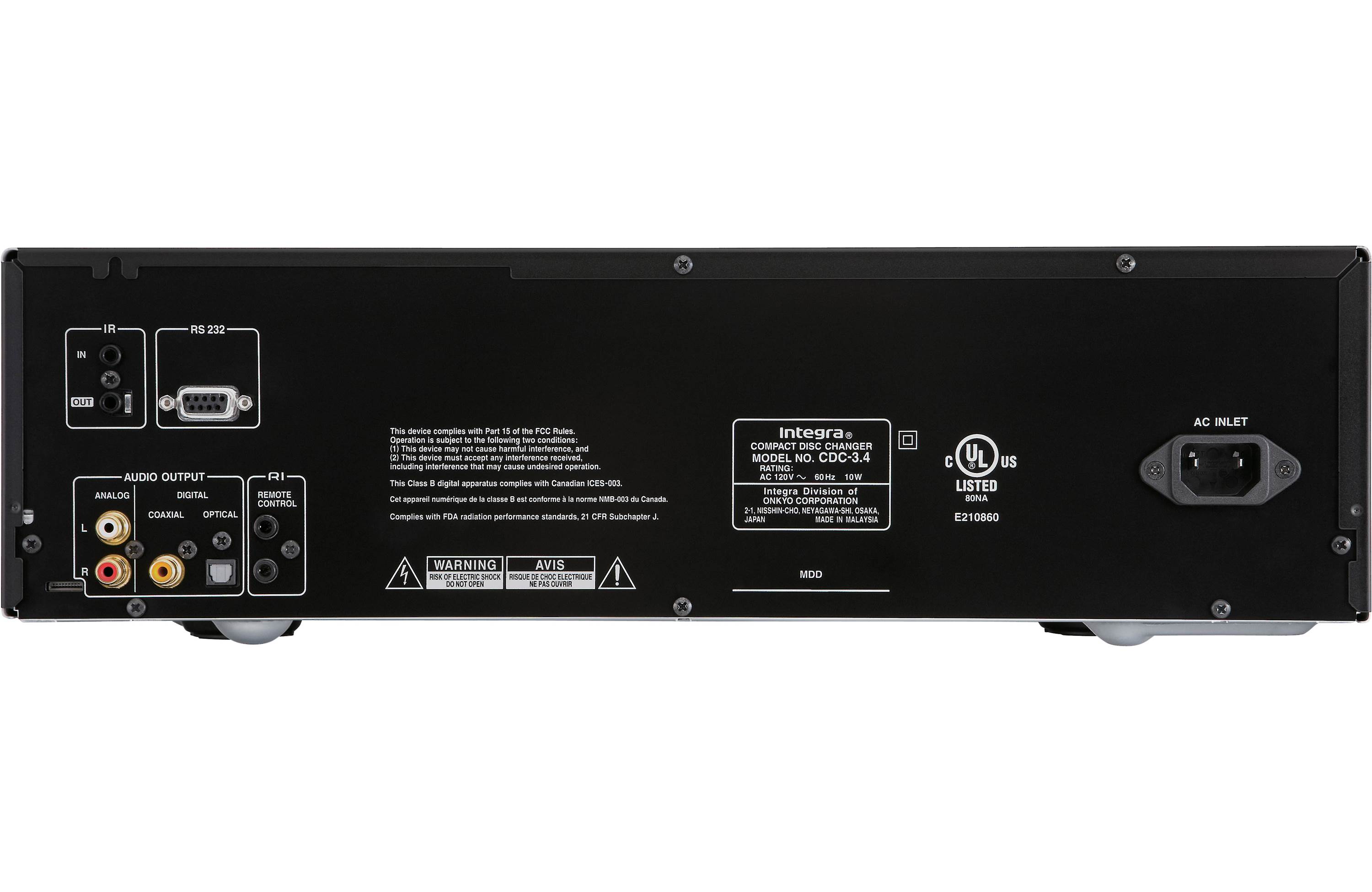

CONNECTIVITY:
Direct Digital Path Direct Shielded Cable Connection to Rear Panel
Digital Audio Output - Coaxial ✓
Digital Audio Output - Optical ✓
Analog Audio Output ✓
Parallel Audio Outputs All Outputs Simultaneously Active
INTEGRATION ACCESS
Bi-directional RS-232 Control Port ✓
Rear Panel IR Input ✓
Rear Panel IR Output ✓
RI (Remote Interactive) In / Out ✓
MISCELLANEOUS:
Anti-Resonant Aluminum Front Panel ✓
Illuminated Disc Tray ✓
Gold-Plated RCA Terminals ✓
Oversized Detachable AC Cord ✓
Rack Mount Kit Available IRK-120-3A
AUDIO PERFORMANCE:
Disc Compatibility CD, CD-R, CD-RW
Signal Readout System Optical non-contact
Error Correction System Cross-Interleave Reed-Solomon Code (CIRC)
Multi-Bit Digital to Analog Converter 192 KHz / 24-Bit (x2)
Digital Filter 128 Times Oversampling
Frequency Response 5 Hz - 20 kHz
THD (Total Harmonic Distortion) 0.003 % (at 1 kHz)
Audio Dynamic Range 100 dB
S/N Ratio 107 dB
Channel Separation 92 dB (at 1 kHz)
Wow and Flutter Below Threshold of Measurability
AUDIO OUTPUTS:
Audio Output (Digital / Optical) -22.5 dBm
Audio Output / Impedance (Digital / Coaxial) 0.5 V (p-p) / 75 Ω
Audio Output / Impedance (Analog) 2.0 V (rms) / 470 Ω
GENERAL:
Power Supply Rating AC 230 V, 50 Hz
AC 120 V, 60 Hz (Taiwan Model)
Power Consumption 10 W
Standby Power Consumption 4 W
Dimensions (W x H x D) 435 x 131 x 436mm
Weight 6.8 kg
Optional Rack Mount Kit IRK-120-3A
U Dimension (with Rack Kit) 4U
CARTON:
Dimensions (W x H x D) 554 x 252 x 536mm
Weight 9.2 kg
