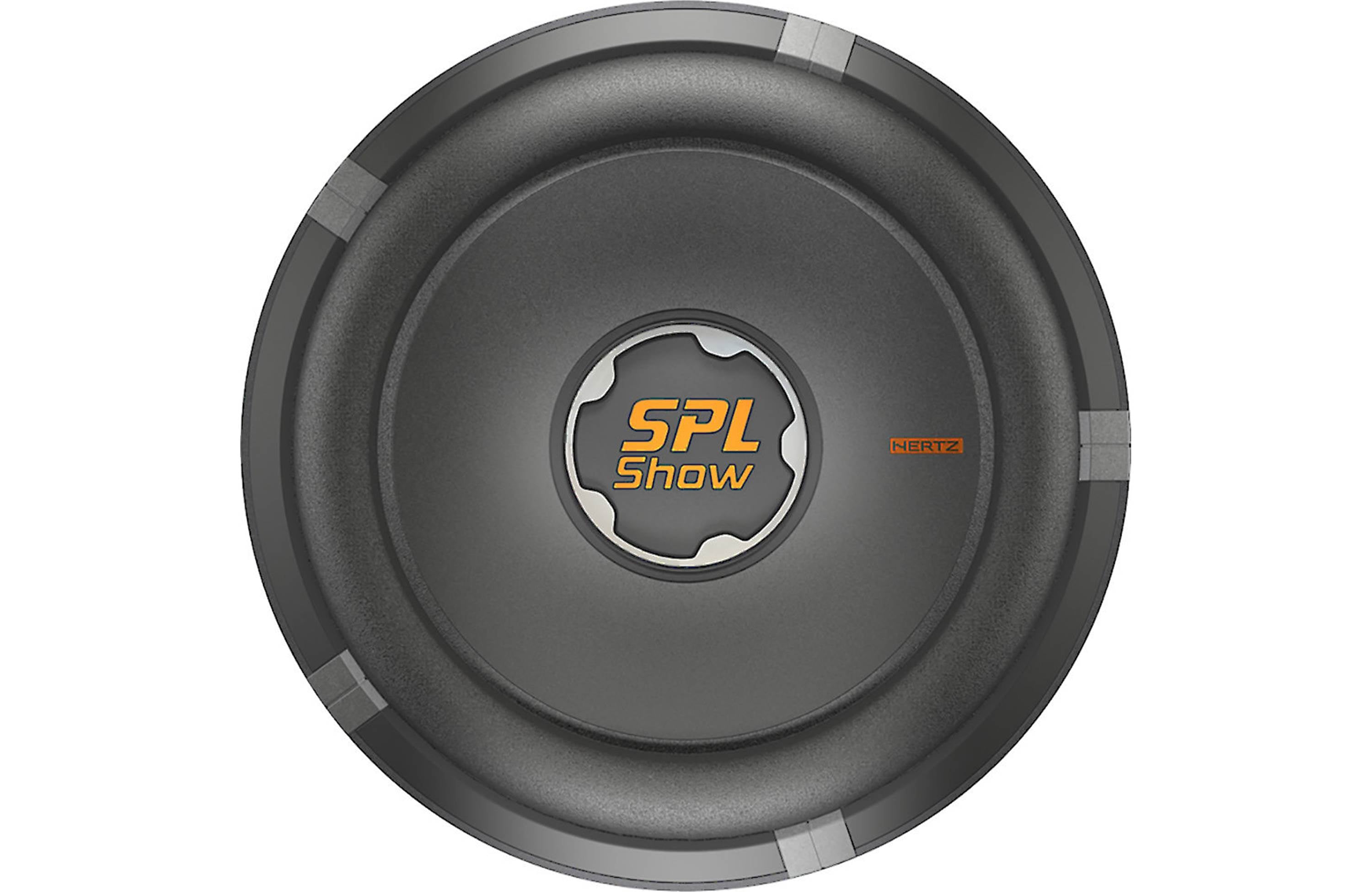

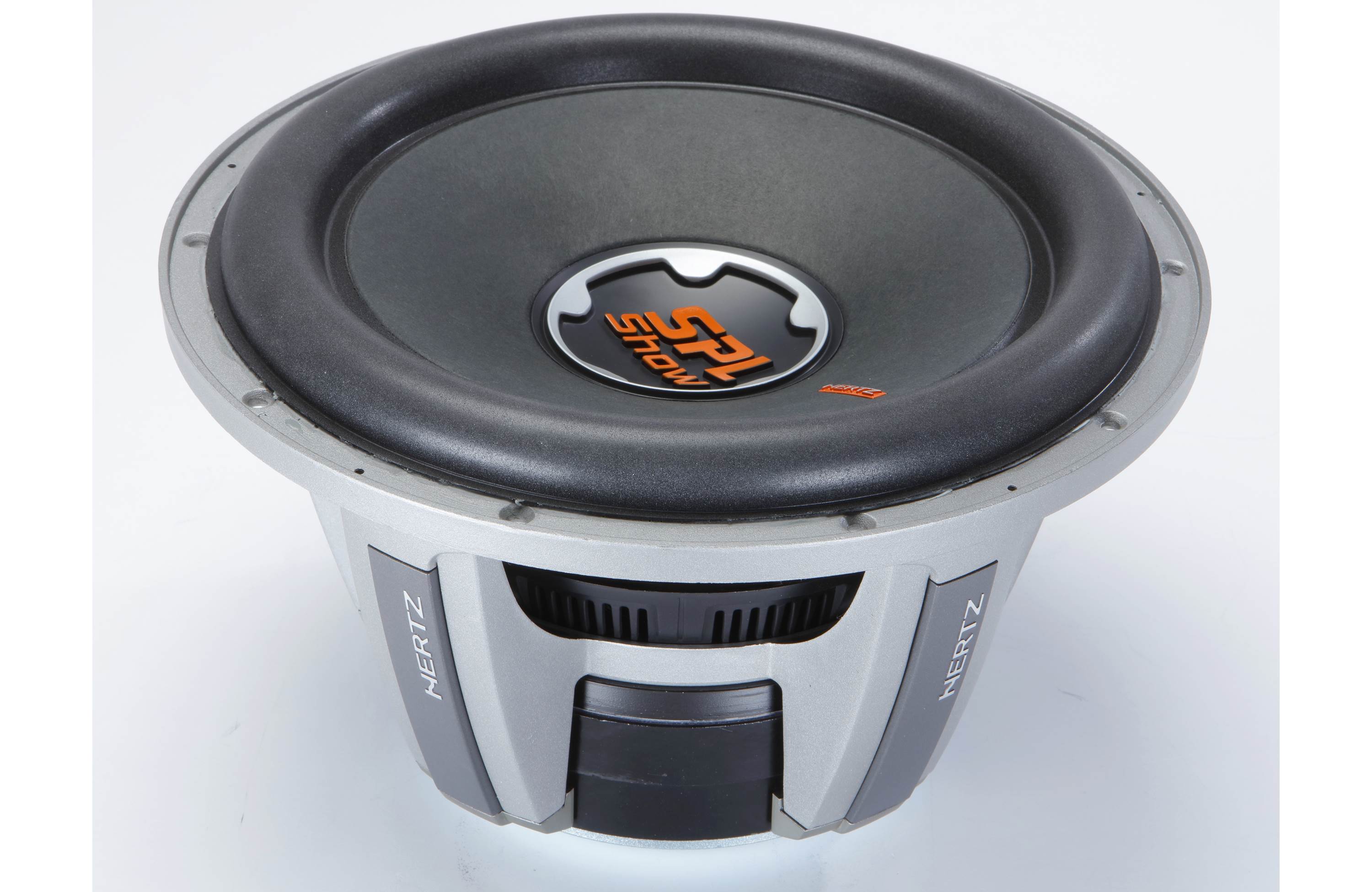

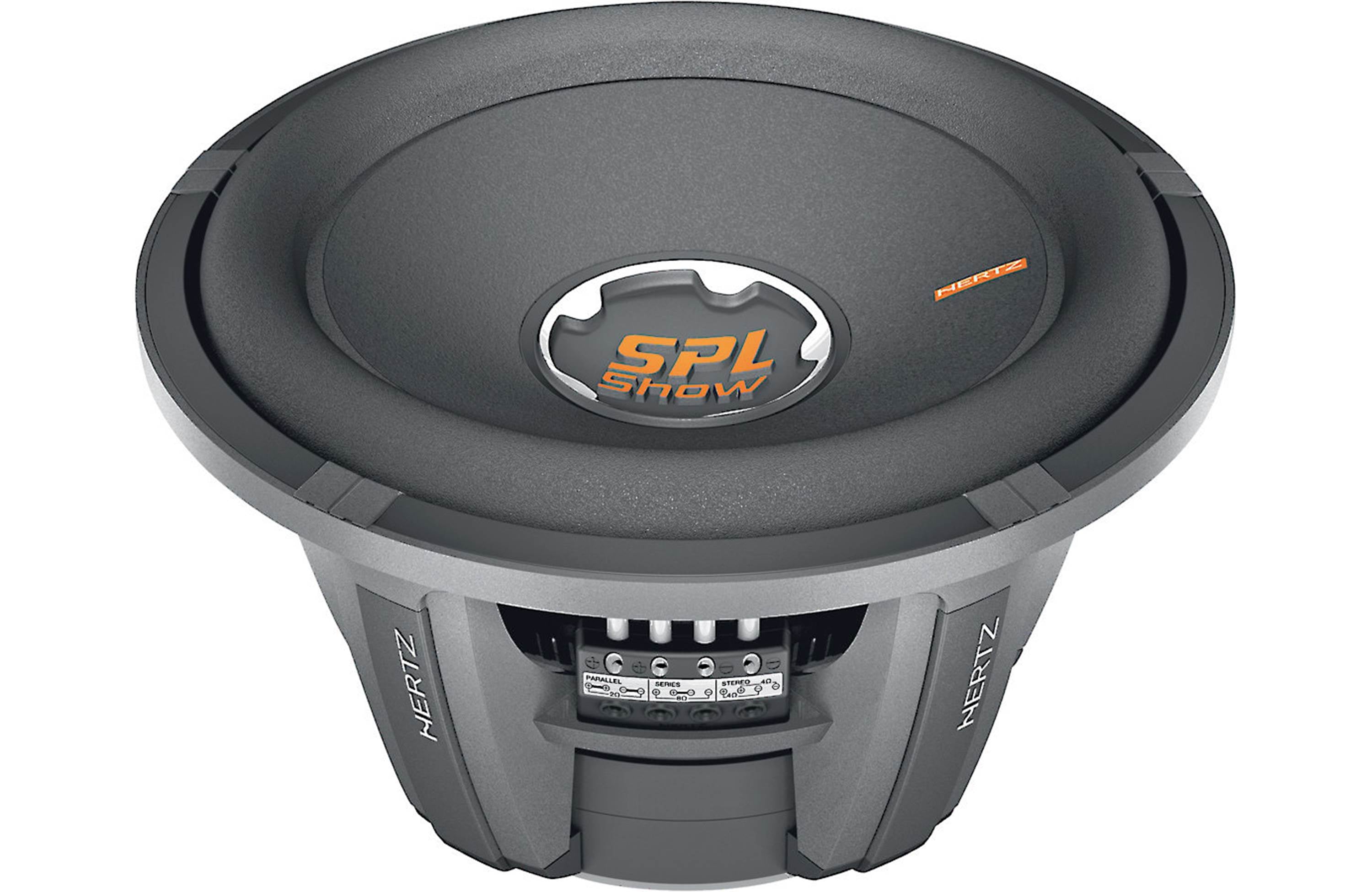

Hertz SX 380D SPL Show 15" Dual 2 Ohm Component Subwoofer (Each)

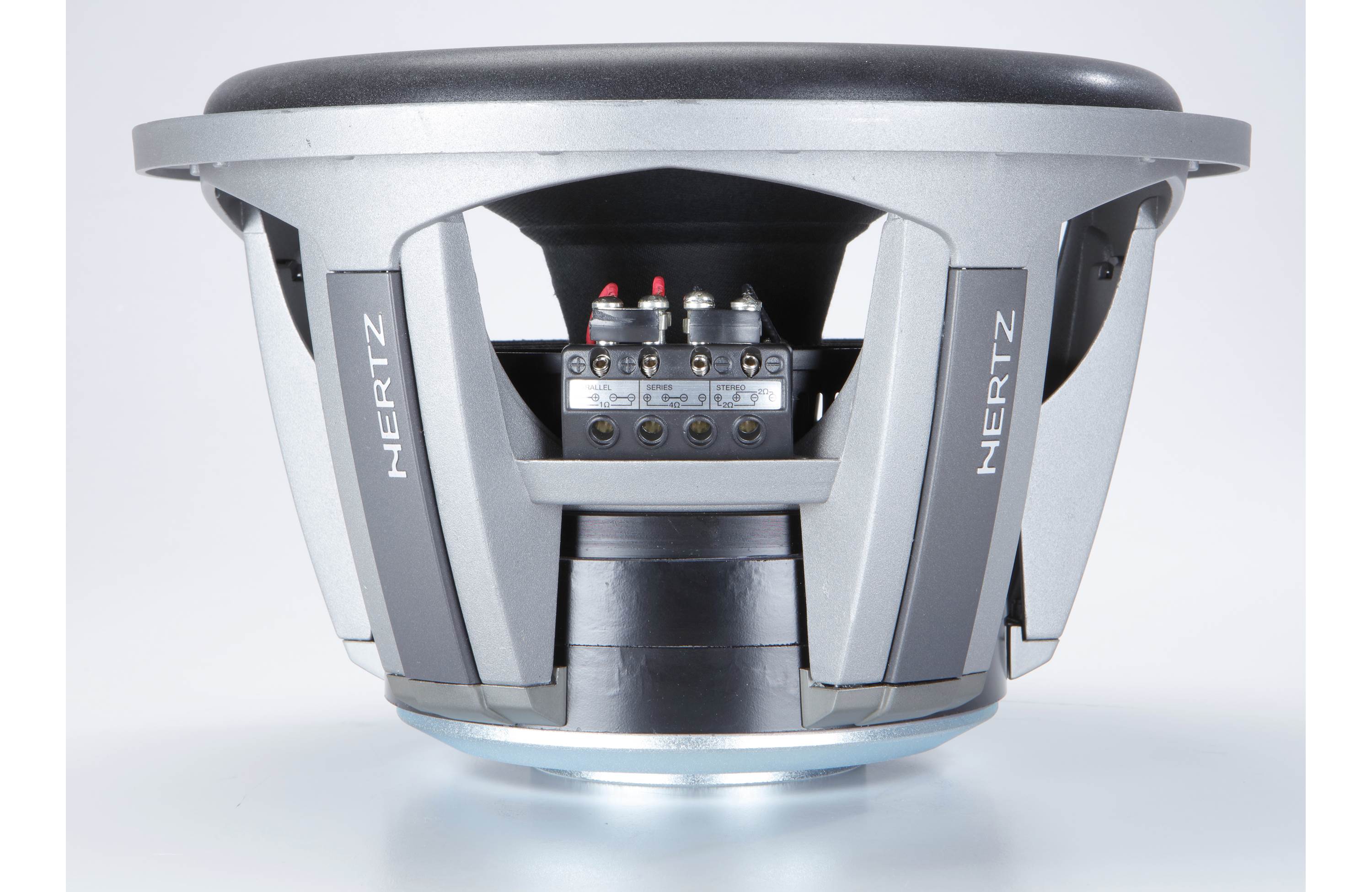

The Hertz SPL Show SX 380D car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, SX 380D differ only in their cone diameter: 250 mm, 300 mm, 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.
Specs
Size mm (in.) 380 (15)
Power Handling - Peak W 4000
Power Handling - Continuous W 1000
Impedance 2 + 2
Frequency response Hz 25 600
Sensitivity dB SPL 92
Voice coil mm (in.) 65 (2.6)
Magnet Double magnet, High density flux ferrite
Cone/Dome Pressed paper
Xmax mm 14
X-mech mm (in.) 23 (0.9)
Re 4
Fs Hz 43
Vas l 45
Qts 0,67
Qes 0,7
Qms 9,3
Spl dB 92
