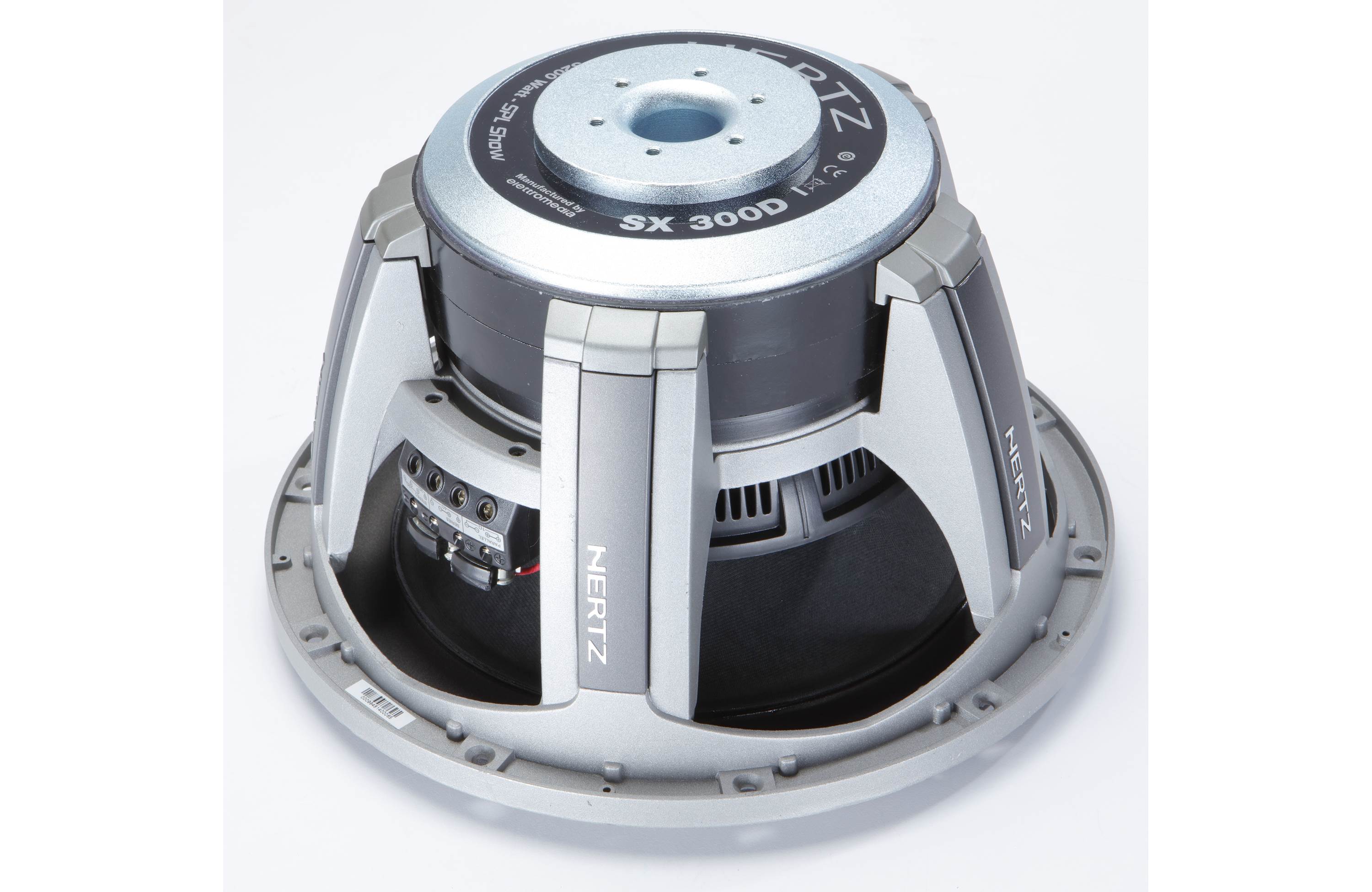

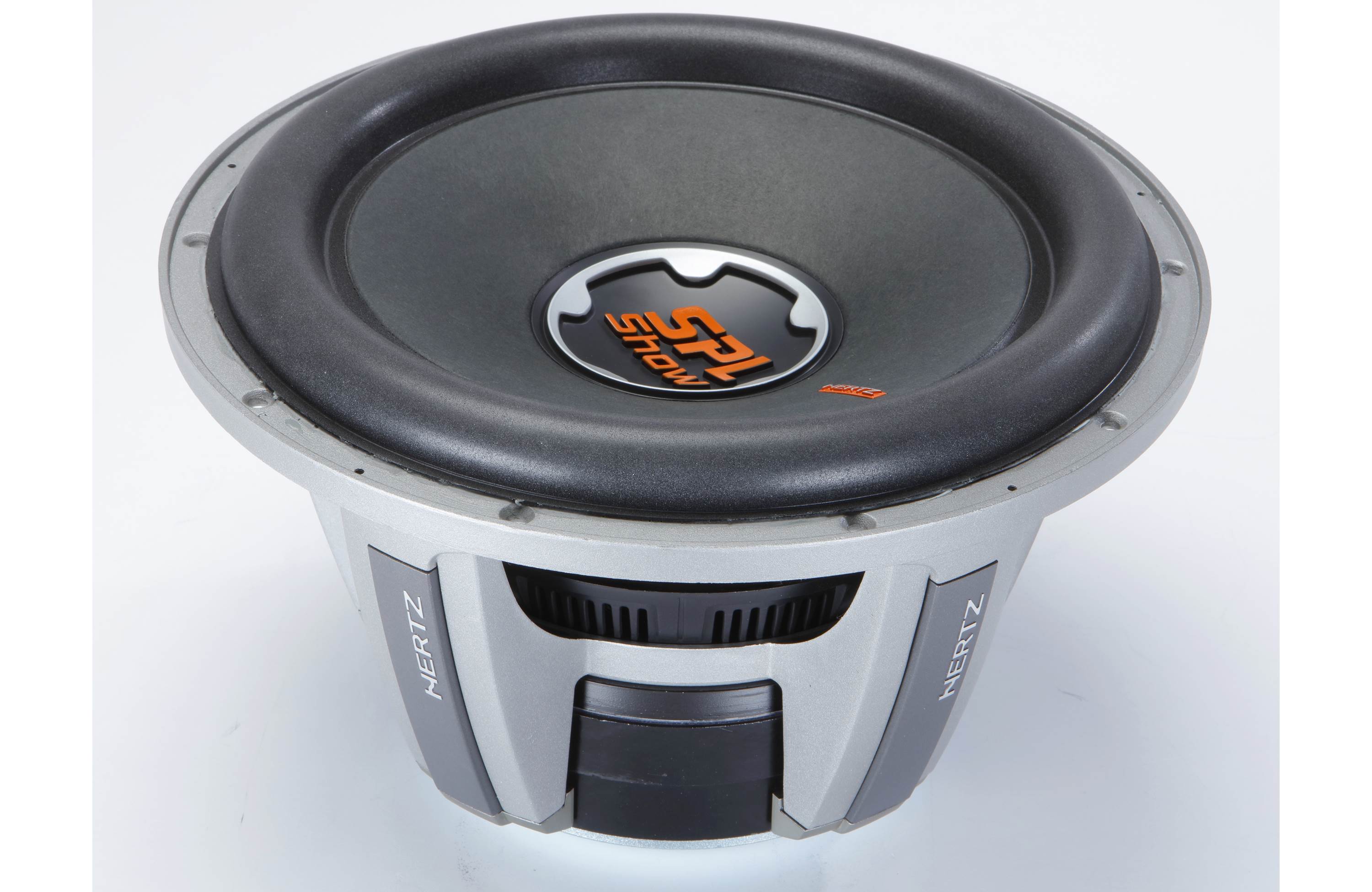

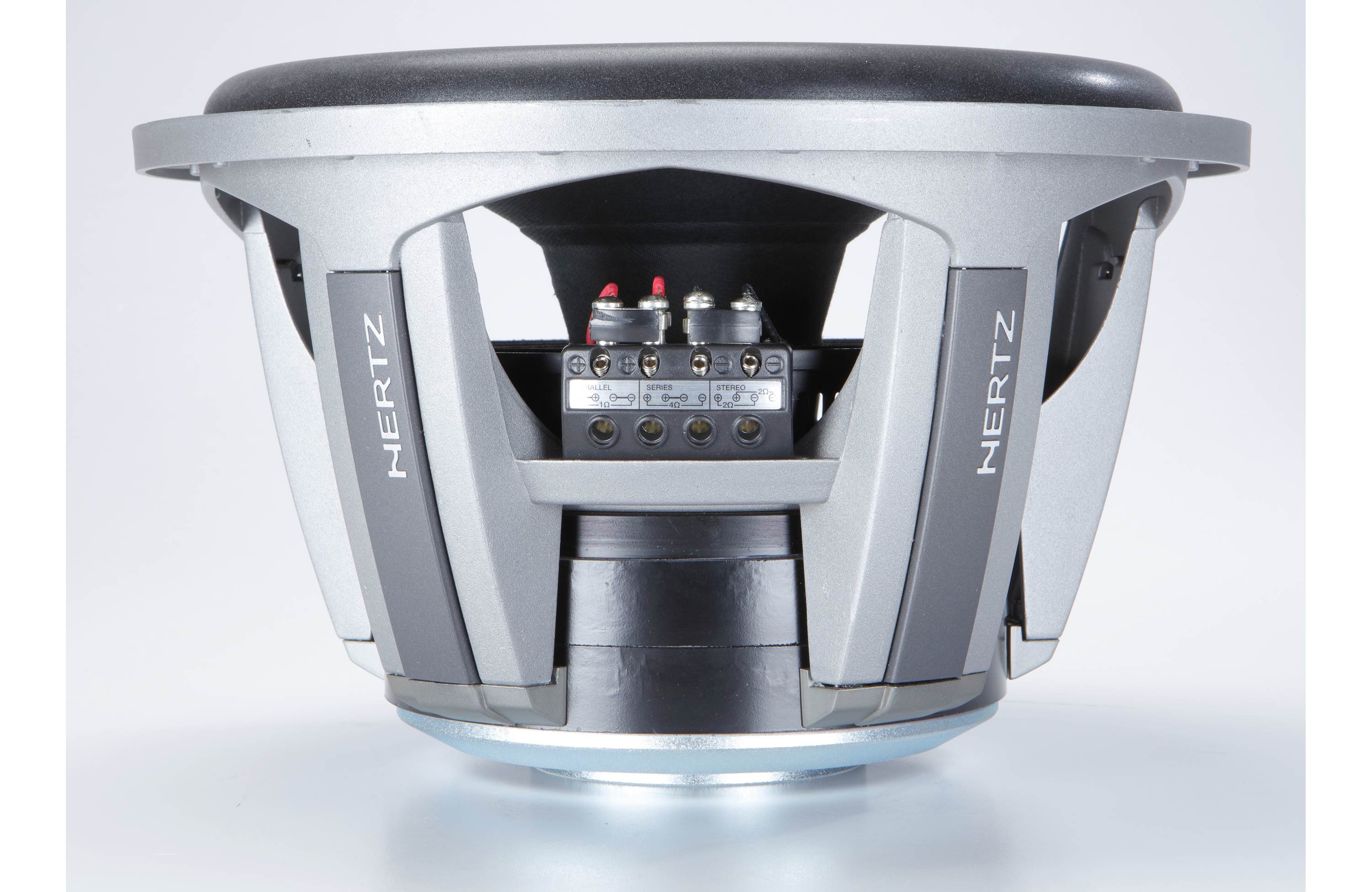

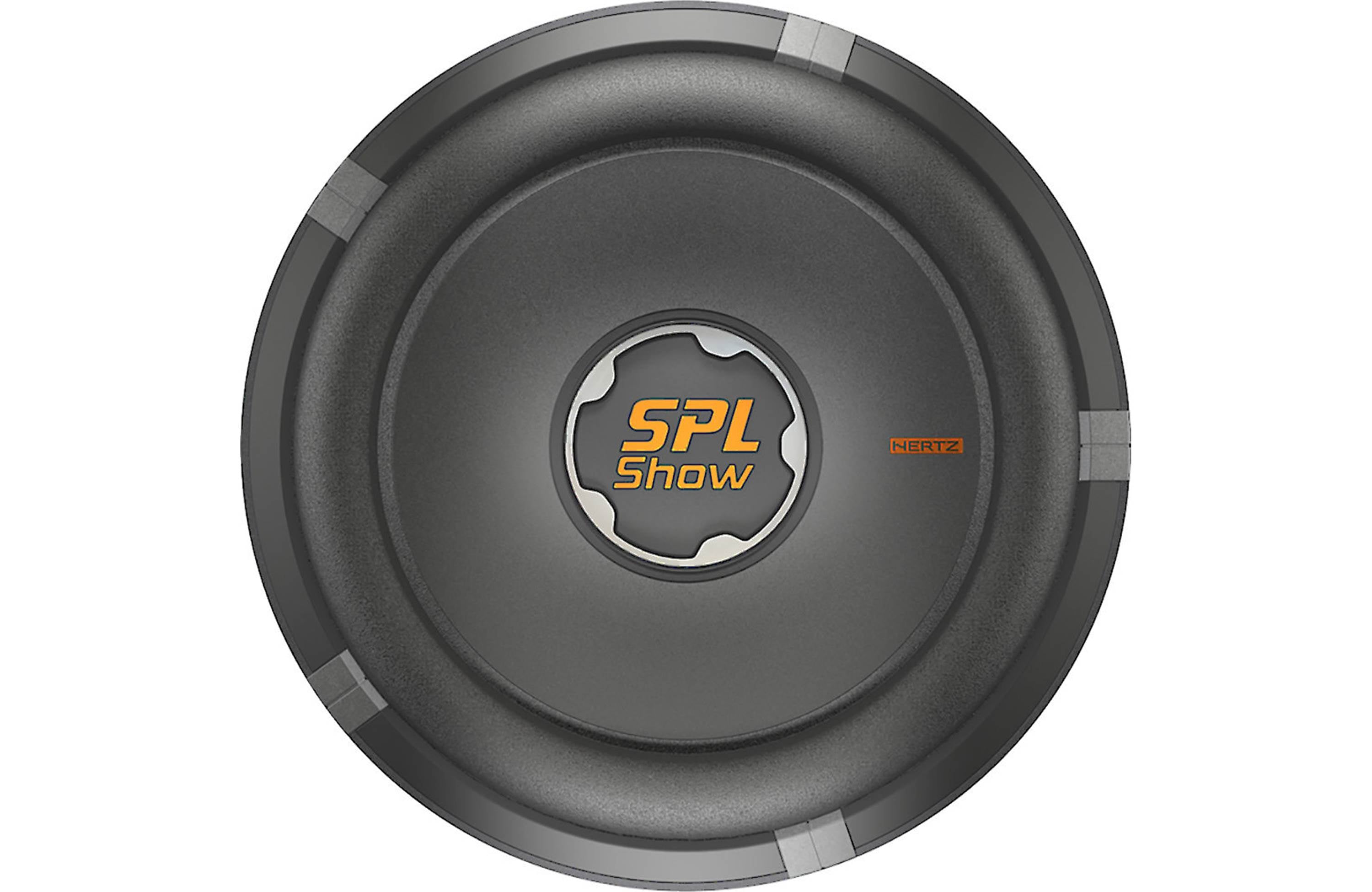

Hertz SX 300D SPL Show 12" Dual 2 Ohm Component Subwoofer (Each)
The Hertz SPL Show car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, SX 380D differ only in their cone diameter: 250 mm, 300 mm, 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.
Specs
Size mm (in.) 300 (12)
Power Handling - Peak W 3200
Power Handling - Continuous W 800
Impedance 2 + 2
Frequency response Hz 28 700
Sensitivity dB SPL 91
Voice coil mm (in.) 65 (2.3)
Magnet Double magnet, High density flux ferrite
Cone/Dome Pressed paper
Xmax mm 14
X-mech mm (in.) 23 (0.9)
Re 4
Fs Hz 46
Vas l 20
Qts 0,48
Qes 0,51
Qms 8,2
Spl dB 91
